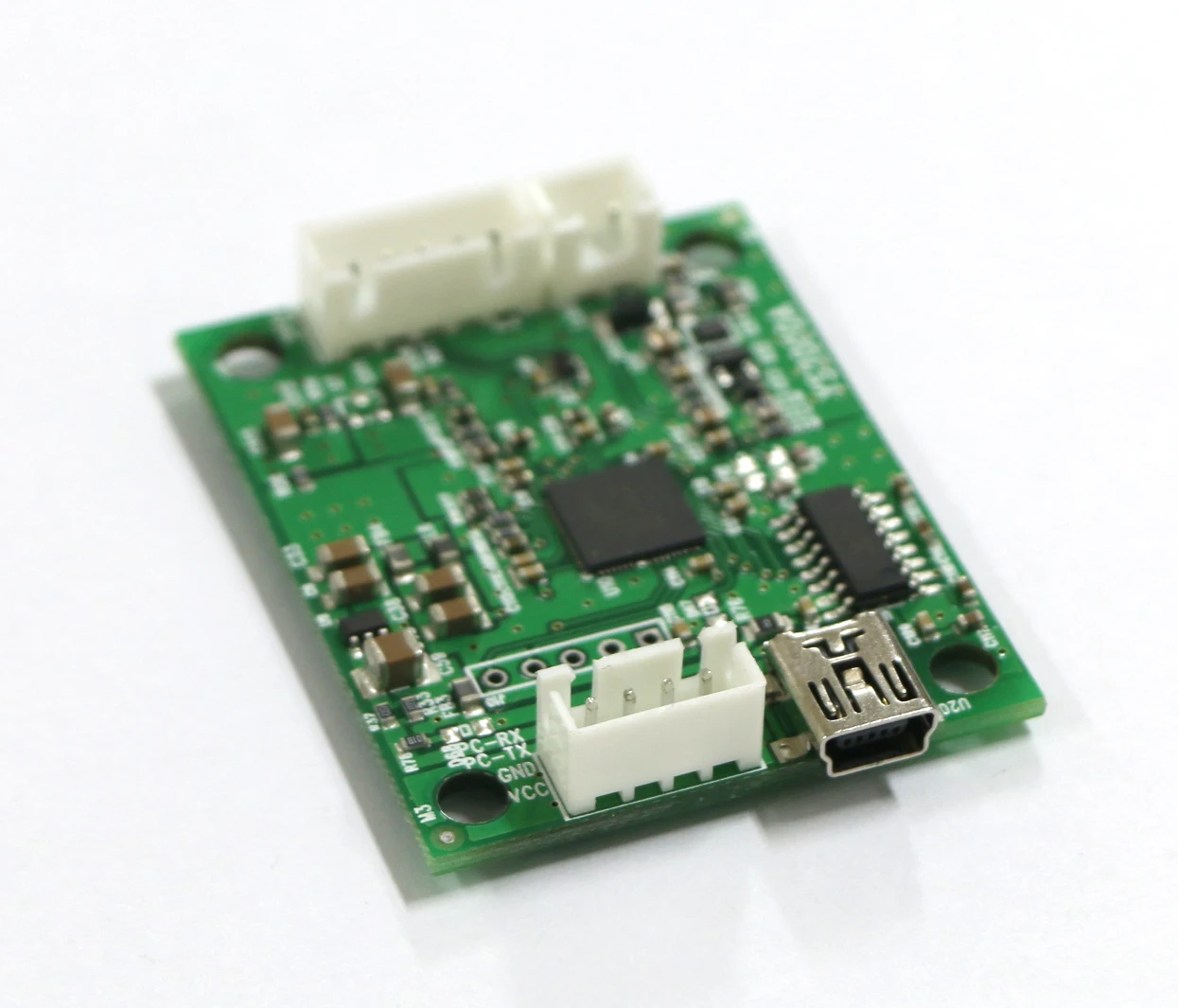

YS2000A SpO2 and Temp module Board
- Category: >>>
- Supplier: Shanghai Berry Electronic Tech Co. Ltd.
Share on (62022015198):
Product Overview
Description
YS2000A SpO2 and Temp module Board
Feature
1.Canbe used with patient monitor and handheld spo2 /temp oximeters.
2.Small volume,flexible installment mode,high relible and accurate test.
3.Providing quick and accurate oxygen saturation and HR.
4.Using improved digital signal processingtechnology,effectively control the body movement and low perfusion measurement.
5.Can provide the best test sensitivity and stability to meets ICU,CCU and anesthesia operation appliance.
6.Comparing with many clinical trials of blood gas analyzer to ensure its accuracy.
7. In accordance with function safety design of CE requirements.
8.Suitable for adult,pediatric and neonate.
9.Single power5.0V work,low consumption.
10. Display communication protocol connection,easy integration
11.Fully compatible with BCI communication protocol (except temp).
2.Small volume,flexible installment mode,high relible and accurate test.
3.Providing quick and accurate oxygen saturation and HR.
4.Using improved digital signal processingtechnology,effectively control the body movement and low perfusion measurement.
5.Can provide the best test sensitivity and stability to meets ICU,CCU and anesthesia operation appliance.
6.Comparing with many clinical trials of blood gas analyzer to ensure its accuracy.
7. In accordance with function safety design of CE requirements.
8.Suitable for adult,pediatric and neonate.
9.Single power5.0V work,low consumption.
10. Display communication protocol connection,easy integration
11.Fully compatible with BCI communication protocol (except temp).
Specification
SpO2
Detection scope: 35%-100%
Detection scope: 35%-100%
Accuracy: ±2% 80%-100%
±3% 70%-79%
Pulse Rate
Rage:25-250BPM
Accuracy:±2bpm
Resolution:1bpm
Environment
Temperature working:0-45℃
Storage:-20-55℃
Humidity working:30-95%
Storage:10-100%
Working voltage
D.C 3-5V, Input Current:<40mA
Size
50*40*10mm
Weight
20g
Delivery time
Samples: about 2 days
Mass production: about 15 days (2000pieces)
OEM: about 25 days

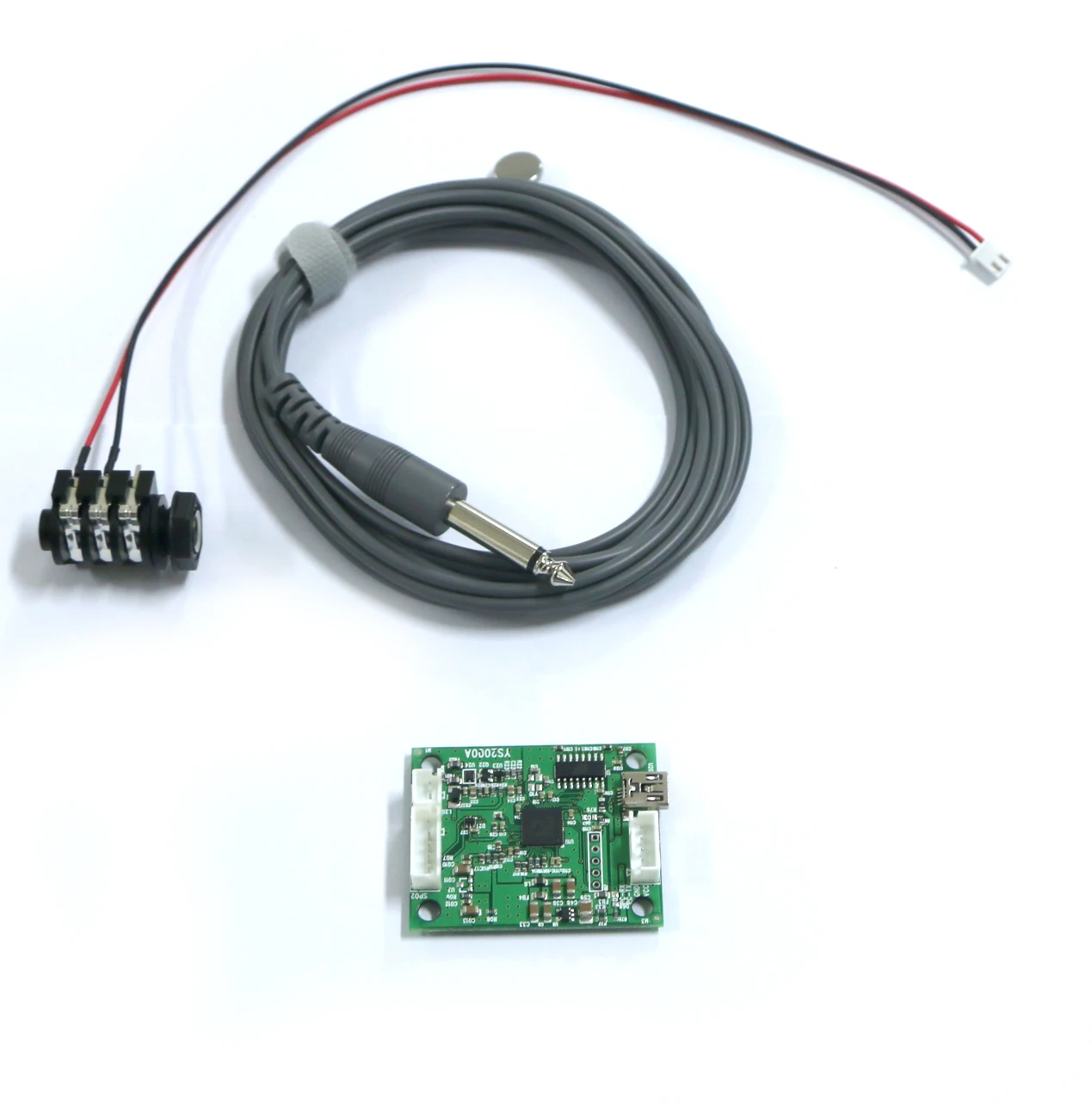

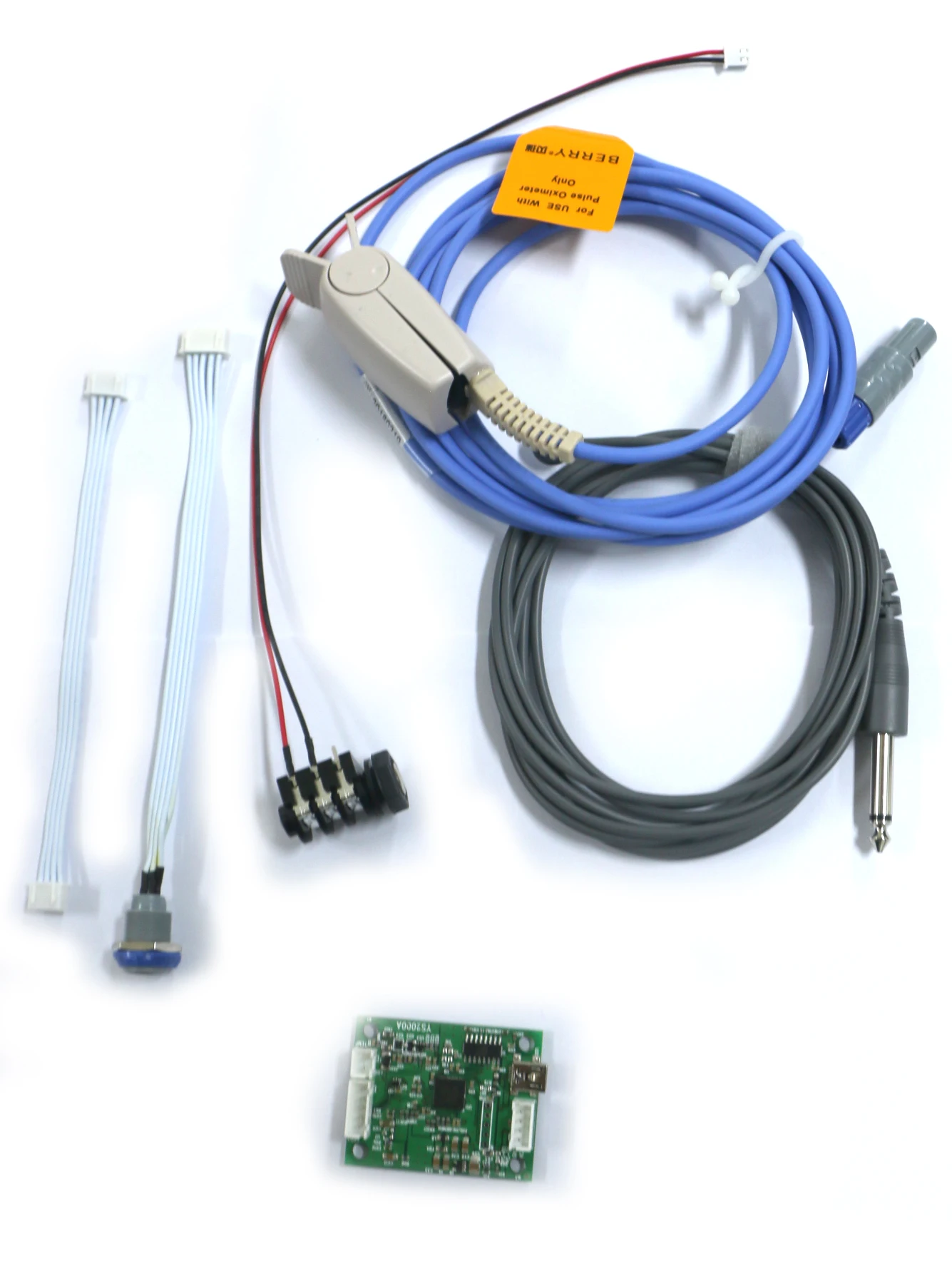

Accessories section
YS2000A host 1 PCS

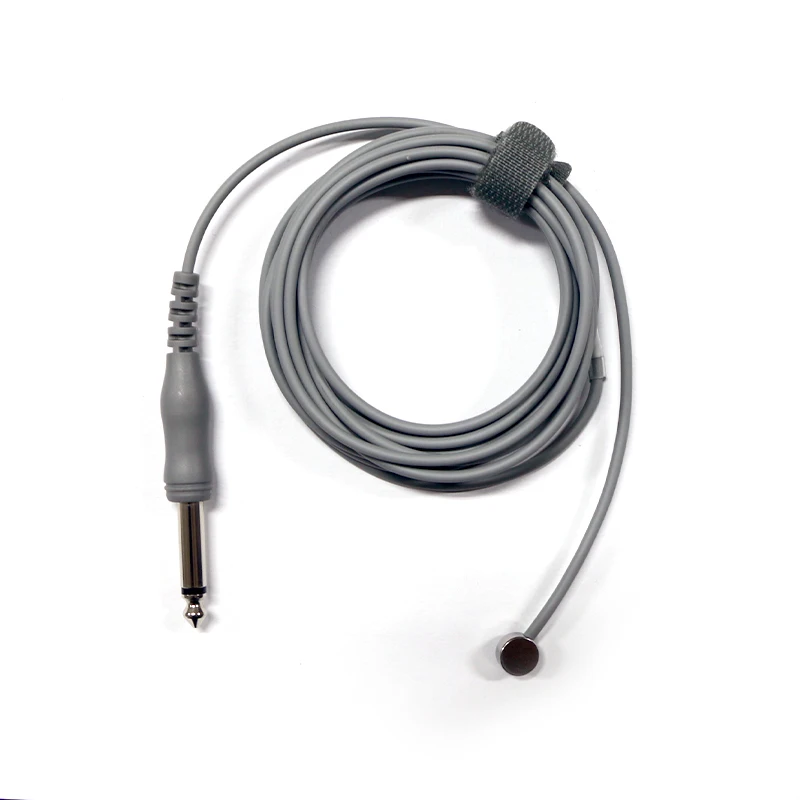

Temperature probe 1 PCS
Temperature probe 1 PCS

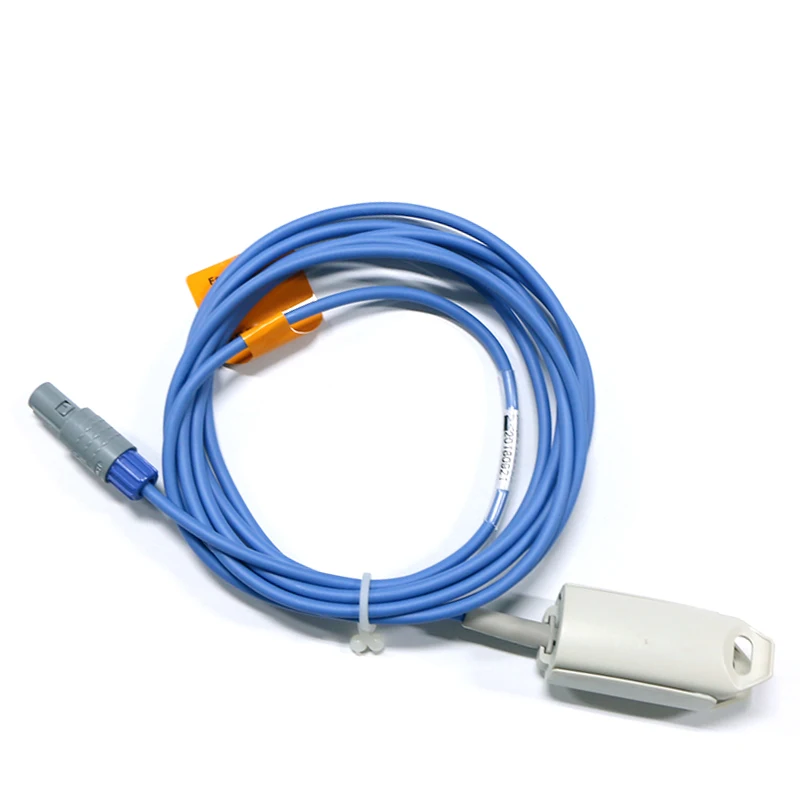

Spo2 sensor 1PCS

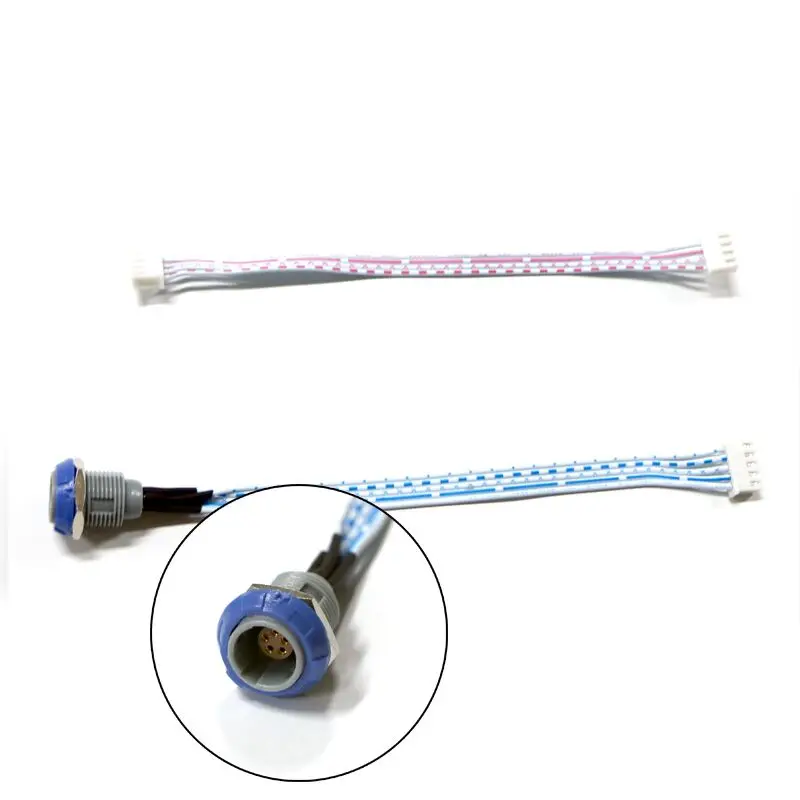

Oxygen machine inside line 1PCS
Body temperature machine inside line 1PCS
Body temperature machine inside line 1PCS
