Mobile phone shell coating machine

Product Overview

Description

AR glass PVD coating machine



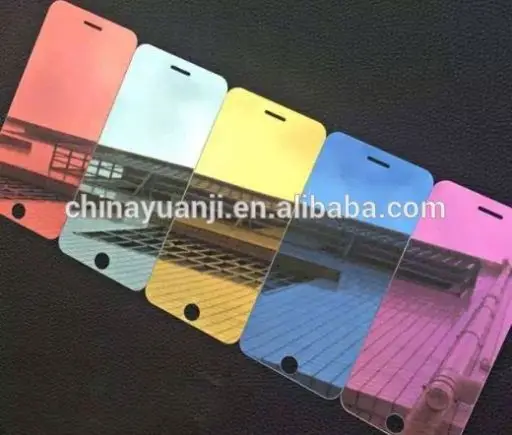

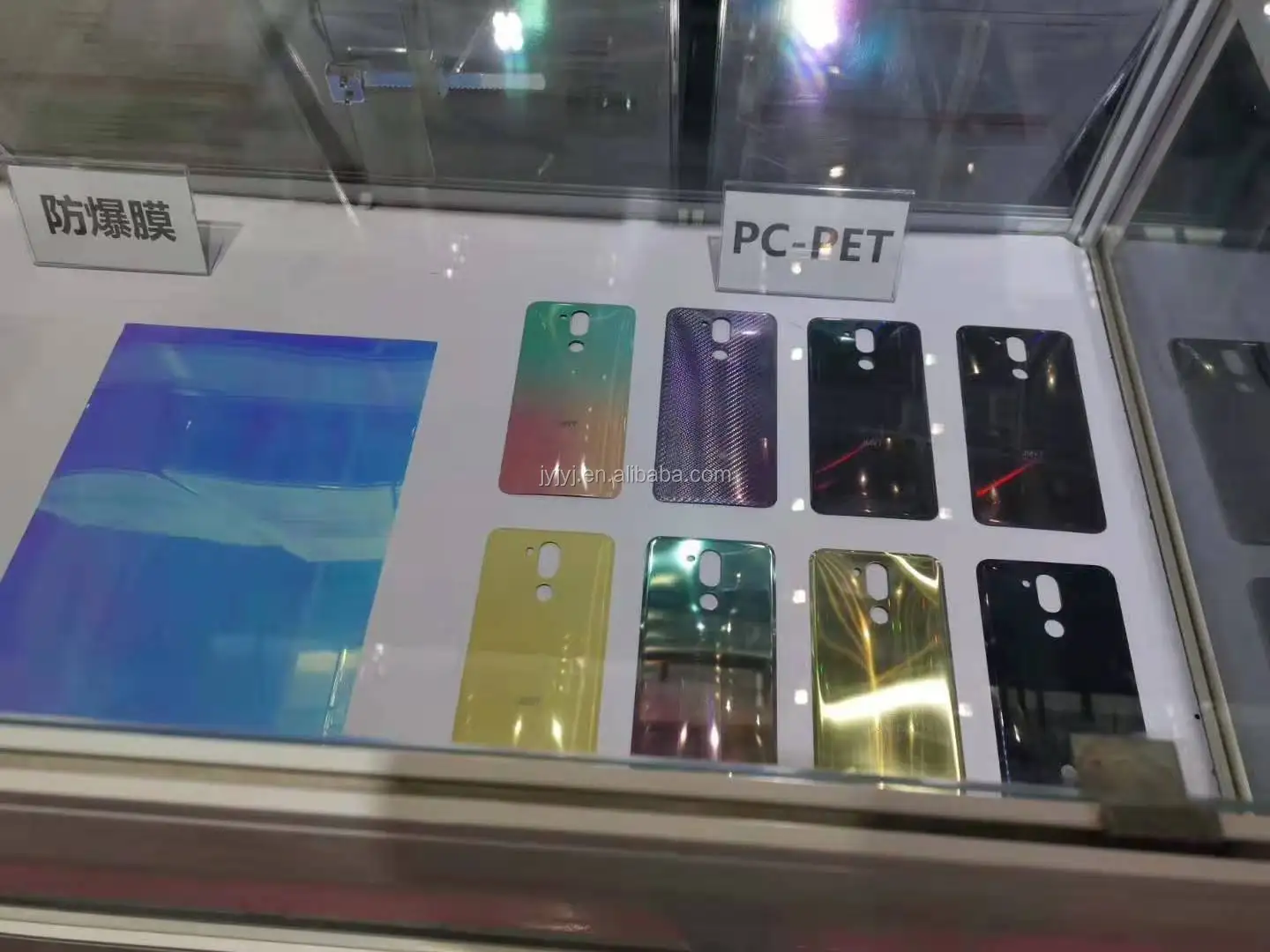

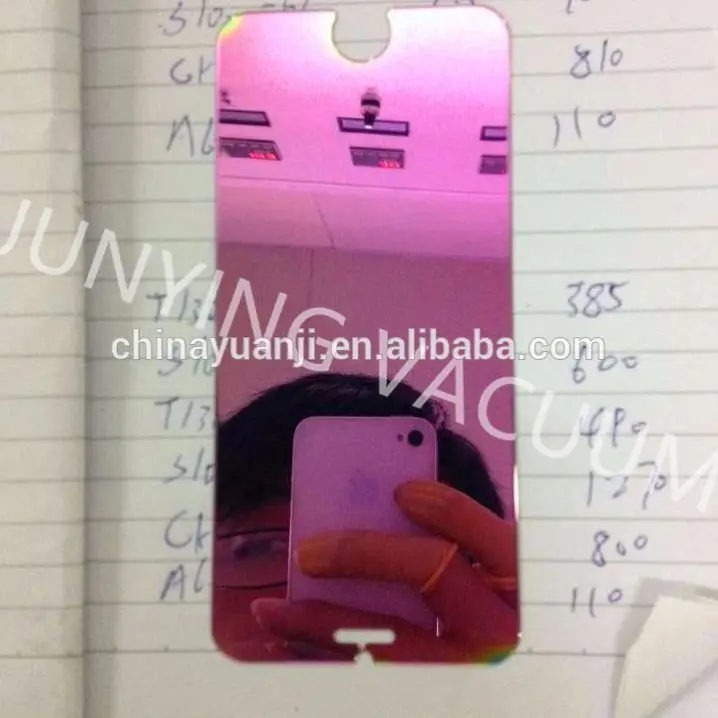

This machine is mainly used for plating various films such as transparency enhanced film, spectroscopic film, band pass film/cutoff film, and high reflection film. It can plate a super large film system with 100 lays of film, and a transparency enhanced film with various colors, a reflection film with a red, yellow, blue, green or rainbow color



Main Features:

1.   This machine is equipped with a super big crucible electronic gun. In the entire evaporation process the film surface is flat and evaporation distribution is even.

2.   This machine is equipped with a quartz crystal film thickness control instrument to control the film forming speed and metallization process automatically.

3.   This machine is equipped with a high power ion source to produce a film thickness with good quality.

4.   The overall structure is rationally designed to better satisfy the process requirements. The vacuum system is automatically controlled by PLC for convenient operation.

5.   The vacuum operating system is protected with an interlock. The diffusion pump has water cutoff and phase loss alarm functions.

6.   Touch screen and PLC automatic control are used to set parameters of main components of the entire machine, to monitor the running of this machine at real time, and to diagnose faults intelligently.

Main Configuration:

1.  The vacuum chamber is a vertical type boxed structure with a front door; the box is completely made of stainless steel; dimensions of the internal cavity are Φ800mm1200mm.

2.  Vacuum System Configuration: with molecular pump(or diffusion pump), Roots pump, mechanical pumps.

3.  Deep Cooling System with a Fast Cycle Water Vapor Cryopump

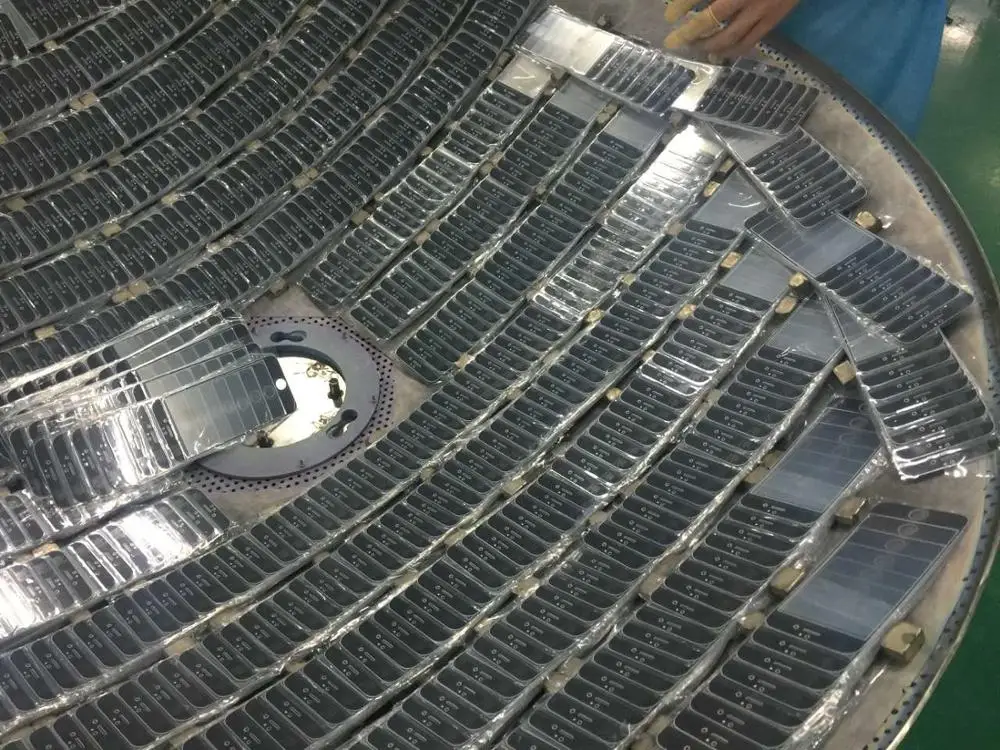

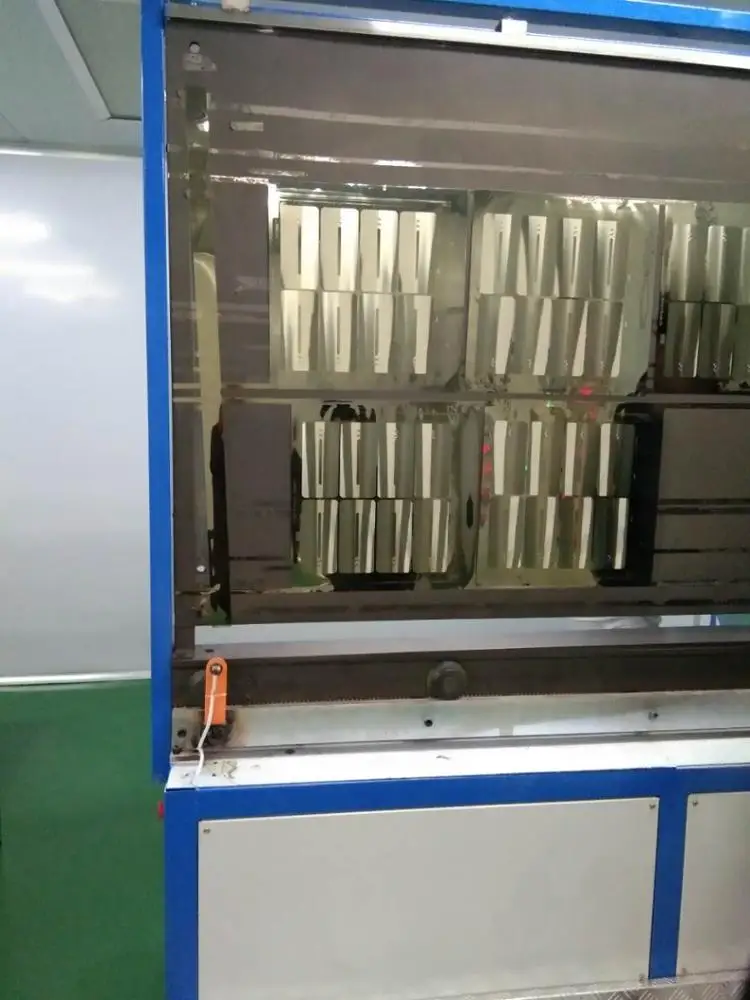

4.  Work Piece Rack is an integrated arched shape work piece, can be customized according to the customer.

5.  Coating system is equipped with one or two sets of high power e-type 270°magnetic deflection electronic gun scanning in XY directions. The auxiliary metallization system is equipped with a Holl ion source.

6.  Baking: Digitally displayed and automatically controlled with a temperature control precision of ±1.5.

7.  The film thickness monitoring system can control evaporation rate of the electronic gun. The optical film thickness monitoring system, in which the wave length is controlled within the range of 200-900nm .

8.  Control System: The vacuum is controlled by a 10.4 inches color touch screen coupled with a programmable logic controller.  The vacuum and coating process are controlled fully automatically.

Mode Dimension	JYDC-800	JYDC-1250	JYDC-1416	JYDC-1518
	800*1000mm	1200*1500mm	1400*1600mm	1500*1800mm
Coating mode and main confirguration	Eight multi-arc targets	Twelve multi-arc targets	Fourteen multi-arc targets	Twenty multi-arc targets
Power source	Electric-arc power, Filament power,  Using ac and dc magnetron sputtering source,Pulsed bias power supply
Process gas control	Mass flowmeter + Electromagnetic ceramic valve
Vacuum chamber structure	Vertical side opening door, pump system postposition, double water cooling
Vacuum system	Molecule pump +Roots pump +Mechanical pump(5.0*10-5Pa) Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa)
Workpiece baking temperature	Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion mode	Public rotation Frequency control: 0-20 rotation per minute
Measure mode	Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa
Control mode	Manual/Automatic/PC/PLC + HMI/PC four choice of control mode
Remark	We can design the dimension of the equipment according to customer’s special technique requirement.



Best regards;Looking forward to your reply!
