Senior make Indian High Speed semi automatic corrugated carton box making machinery

High speed Single Face Paper Corrugating Machine with latest Technology. Flute Rolls are minutely finished and mounted on spherical Roller Bearings, to give perfect impression on Board. The setting of Flute Roll is from one side only. A Motor is fitted to keep the Gum Rolls Rotation for agitation of the gum while the gum Unit is disengaged from the Flute Rolls. A steam shower is provided for perfect formation of the flutes. Motorized self Loading Reel Stand is additionally provided with machine. The Machine is provided with Centralized Lubrication System.

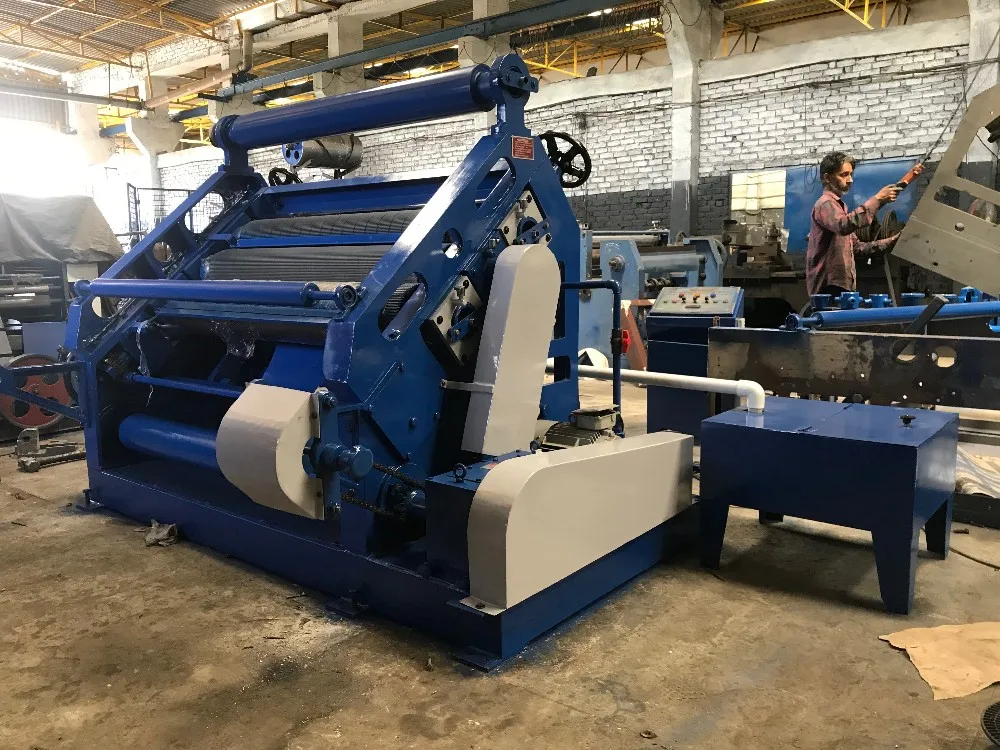

High speed single face heavy duty oblique type Corrugating Machine, with self loading twin shaft reel stand, And has more production capacity and efficiency than vertical type.

Technical Specifications:

(A) One Set of Narrow (UV type) Flute Rolls

(B) Flute Rolls material alloy steel.

(C) Flutes in One Feet are 52 Nos. Flute Height 3.2mm

(D) Gum Roll & Gum Pipe is Hard Chrome Plated. SS Gum Tray

(E) Glue circulation Pump.

(F)Electric Heaters 3 Nos. with Pre Heaters- 2 Nos.

(G)Motor – 7.5 HP with Variable Speed A.C Drives.

(H)Rewinding arrangement with 2 Nos. Rewinding Shafts.

(I)Self Loading Hydraulic Lifting Reel Stand with two unwinding shafts with 3 HP Motor.

(J) Make of Bearings: NTN / SKF / NBC

(K) With all Standard Accessories Complete

Detailed Images

Packing & Delivery

Delivery Time : 45 to 60 Days

Packing method
1. Plastic film wrapping outside
2. Hard wooden case
3.Then loading in container

Our Service

1. 12 months warranty
2. 100% good Quality
3. 24 hours online service
4. Providing free quick-wear parts
5. Engineers available to service overseas if necessary
6. Product certificated by CE and ISO
