Product Overview

Description

BH-S800 Middle speed paper cup machine

paper cup machine.jpg

Model

BH-S800 (with cup collection and safe shell,PLC,UItrasonic)

FOB price

14500USD

Paper Cup Size

3-16 OZ

Raw Material

One-side or two-side PE/PLA coated paper(Singe PE /PLA or Double PE /PLA coated paper)

Speed

75-85 pcs/min

Suitable paper weight

          160-300g/square meter;±20g/square meter

Voltage supply

380V,50HZ

cup size

bottom35-70mm,top45-90mm,high32-135mm

Working Air Source

0.6-0.8Mpa; 0.4m³/min

General power

9.5 kw

Net weight

2000kg

Measurement (mm)

MACHINE



L:2150mm;W:1300mm;H:1700mm



collecting tube and cup Stacker.  100kgs

L:900mm;W:600mm;H:1500mm

Cup Side Sealing

EVERGREEN Ultrasonic

Bottom Knurling

HOT AIR SYETEM

We can customize machine and mold according to customers requirement. Delivery time:50days

Product parameters

STANDARD  ()              Optional(can)

NO

NAME OF SPARE PARTS

BRAND AND MODEL OF SPARE PARTS

ORIGIN

  Optional

1

MAIN MOTOR



ZHI BAO

Shanghai



2

Knurled motor



ZHI BAO

Shanghai



3

Bottom feeding motor

HUI CHUAN

SHENGZHEN



4

BOTTOM PROGRESSIVE MACHIN

HUI CHUAN

SHENGZHEN

FUSHI(JANPAN) (y)

5

Lubricate the motor

TROCHOLD PUMP

SHENGZHEN



6

TOUCH SCREEN

WEINVIEW

TAIWAN



7

main switch

CHNT

ZHEJIANG

Schneider(FRANCE)(y)

8

Convert

HUI CHUAN

SHENGZHEN

Mitsubishi (JANPAN)

9

PLC

HUI CHUAN

SHENGZHEN

Mitsubishi (JANPAN)

10

Contactor (Switch)

CHNT

ZHEJIANG

Schneider(FRANCE)(y)

12

Sensor

OMRON

JAPAN

(y)

13

Ultrasound

KEJIAN

ZHEJIANG

CHANGRONG (TAIWAN)(y)



Transmission

TAIZHONG

ZHEJIANG



14

PRESS BUTTON



AUTONI

KOREAN



15

Temperature module

AUTONI

KOREAN



16

Pneumatic

PNEULEAD

SHANGHAI

AirTAC(taiwan)

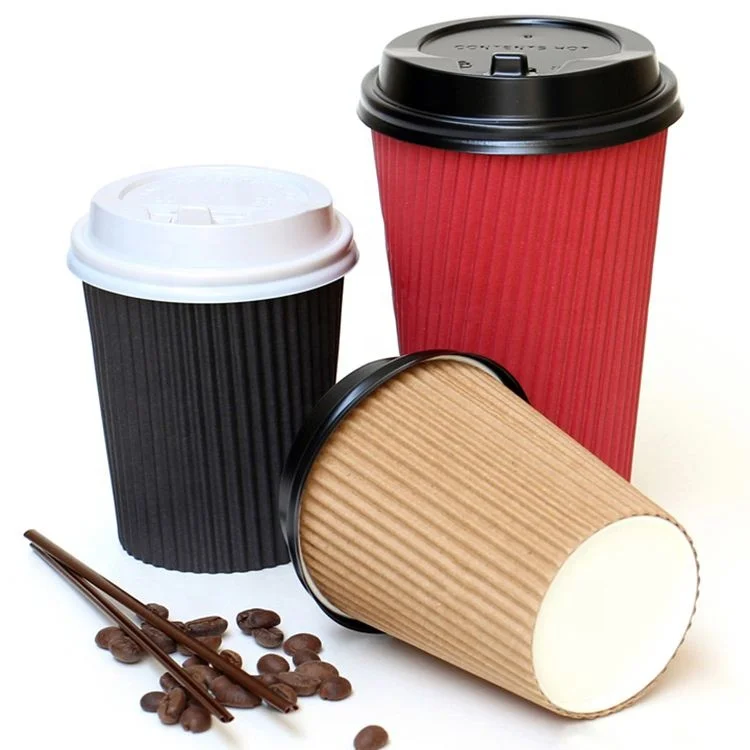

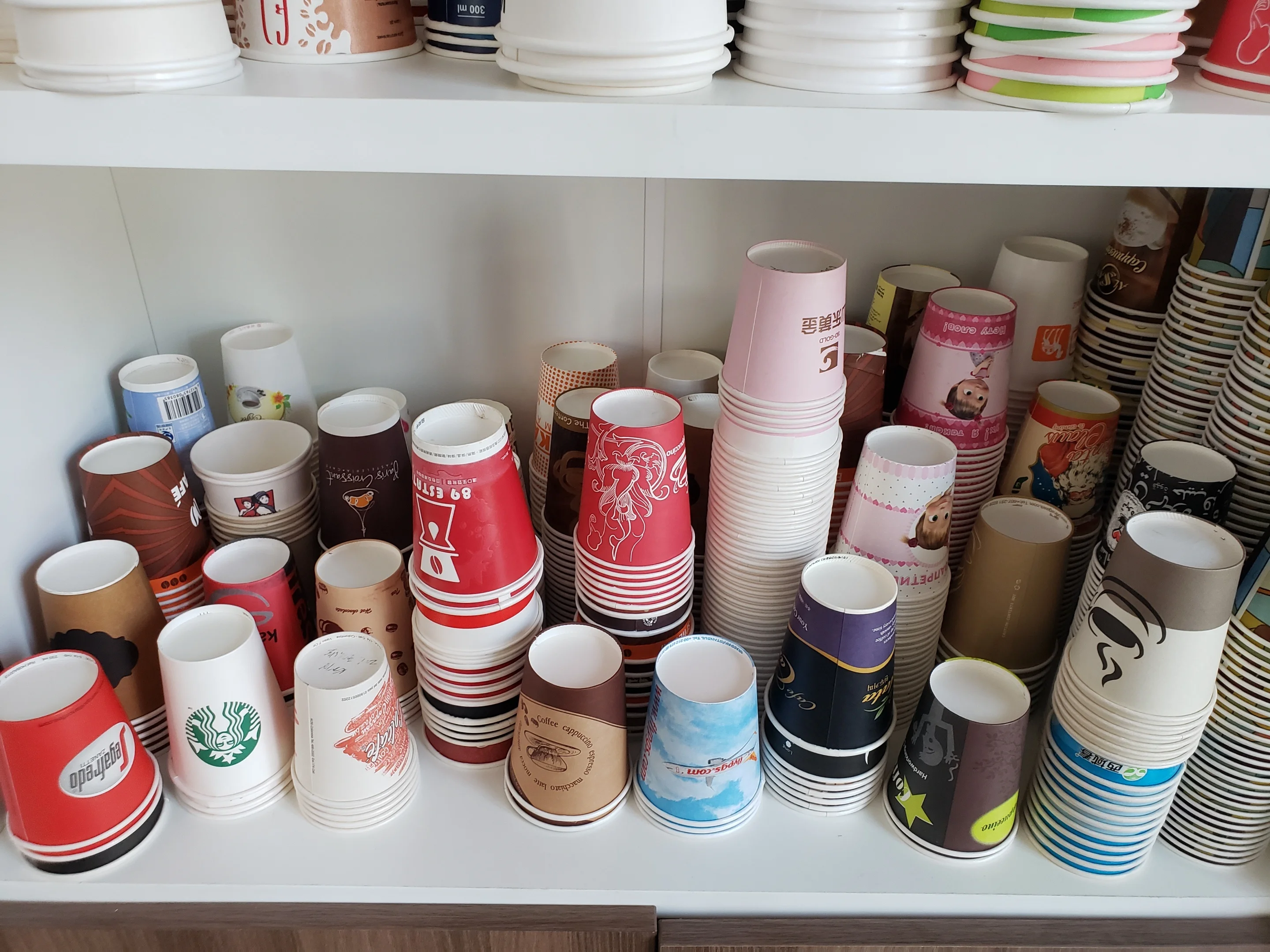

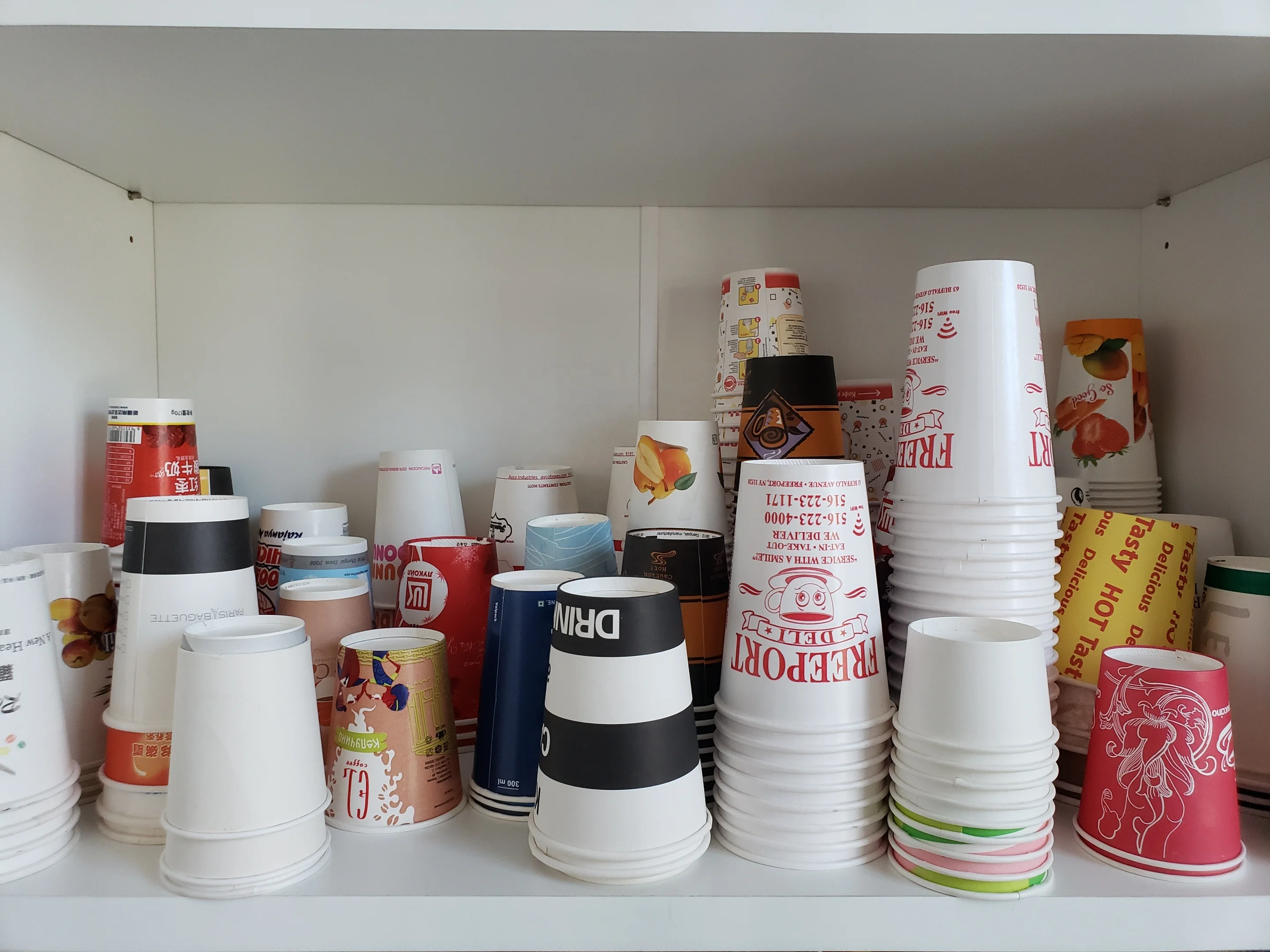

Paper Cup Sample:




Adopt Open Cam for the dividing moving, compare with index gear box,

easy maintenance, stable and reliable, easy replace broken parts.


Main mechanism and moving parts are controlled by quality gears, which is

more efficient and more stronger than chain and axis.



Machine inner with Single Shaft from Start to End for control whole

machine Running which difficult broken and easy control Whole machine running




Packaging & Shipping



      MACHINE LOADING









FAQ

     QUESTIONS YOU MAY ASK

Q1: Do you have different models for each machine?

Reply: Yes, we have different models and we can make the machine according to your requirements.



Q2: What is the production time?

Reply: Normally we need around 45 days.



Q3: What service you can offer after we buy the machine?

Reply: We have a few experienced technicians who can help to install and test running the machine anytime overseas. Moreover, our own export personel will give you the service support after buying the machine. As long as you have any questions, we will try our best to help you.



Q4: Should the customer send the sample cups?

Reply: Yes, if there is. If the customer has no samples, please send a drawing or a photo of the sample, and let us know the size. Then we will send the drawing for your confirmation.



Q5: What about the payment terms?

Reply: We accept T/T. 30% as deposit and 70% balance should be paid before delivery. We can also accept 100% confirmed irrevocable L/C at sight.
