JYCL 1800 series Sunglass coating led production line

Product Overview

Description

 JYCL-1800 series Magnetron Sputtering Coating Machine is a vertical type non-equilibrium reaction magnetically controlled sputtering vacuum coating machine. The film deposited by this machine is enhanced in terms of density, evenness, purity and hardness. This machine is widely applied to high class decorative and functional film in such areas as watch, glasses, communication, electronic, machinery, decoration, traffic and aviation.

Main Features:

1. This machine has a fast depositing rate and little temperature rise, being able to well restrain sparking and target intoxication.

2. The high energy released during sputtering significantly enhances film density and adhesion.

3. Equipped with a touch screen, this machine can be controlled fully automatically or manually, which can be toggled at any time.

4. The vacuum chamber has a huge volume and high load capacity, which results in high production efficiency.

5. The work piece rack is a revolution structure, which can be set for automatic rotation clockwise or counterclockwise, producing fairly even film.

6. The entire machine has a rational configuration, low air suction rate, low noise, and low energy consumption.

Main Configuration:

1.  The chamber, valves and pipeline of this vacuum coating machine are all made of stainless steel, Chamber size Φ1000~1800mm;

2.  Vacuum system consist of high vacuum valve, high vacuum diffusion pump or molecular pump, roots pump, rotary piston pump, slide vane rotary vacuum pump;

3.  Coating system use 28 sets plane-target or Column-target and 28sets power source;

4.  Use one fast cycle water vapor cryopump;

5.  Inflating system has 14 sets mass flow control instrument and a gas flow display;

6.  Cooling system: there is a water pressure alarm device on this machine;

7.  The control system (touch screen + PLC) displays detailed parameters at real time and controls the entire production process fully automatically under automatic running mode.

Continuous magnetic sputtering vacuum coating production line  / Glass sputtering line

 Continuous Magnetic Sputtering Vacuum Coating production line / glass sputtering line is our core vacuum coating technology production, with high performance, high efficiency and reliable stability.

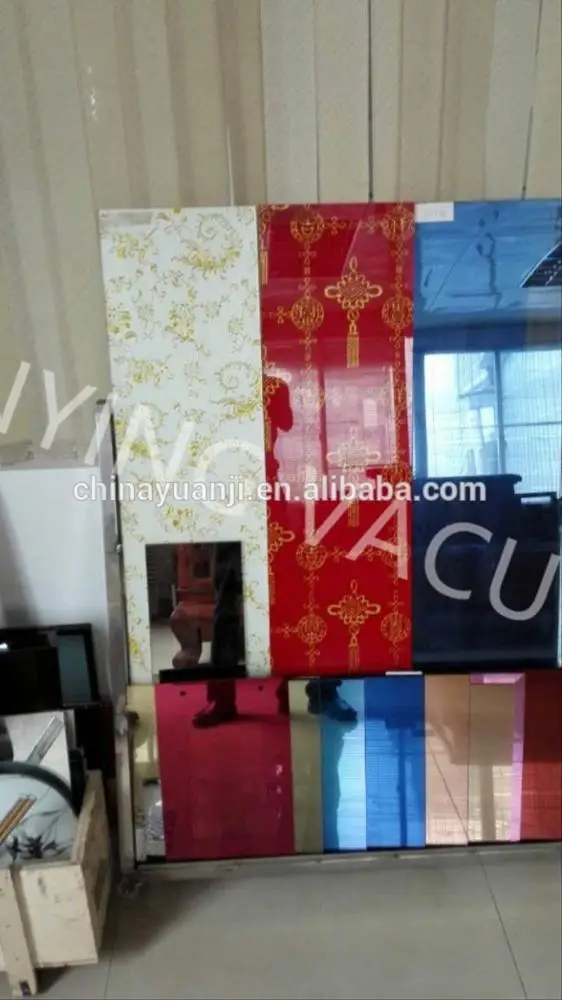

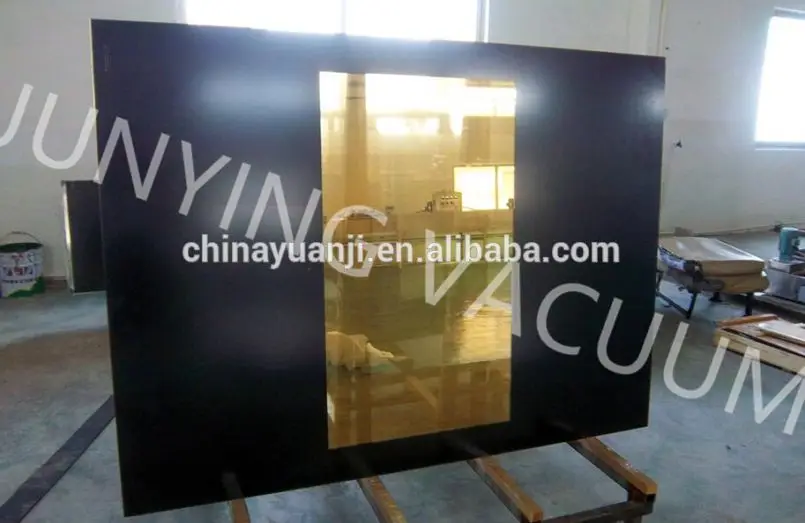

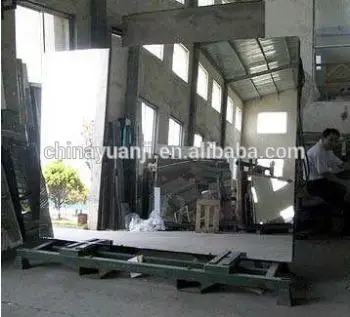

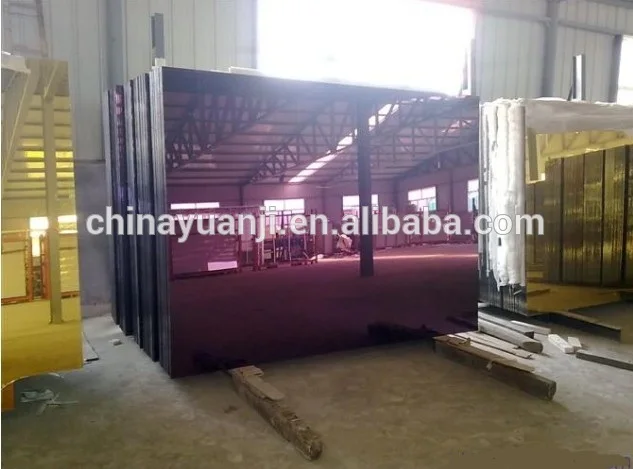

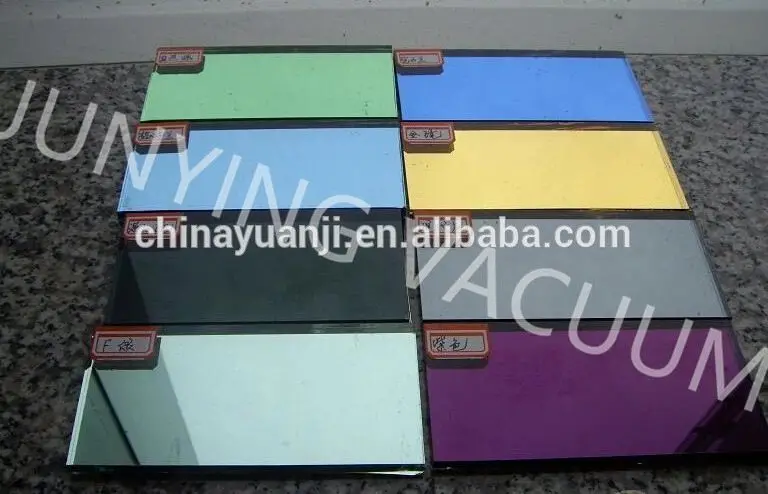

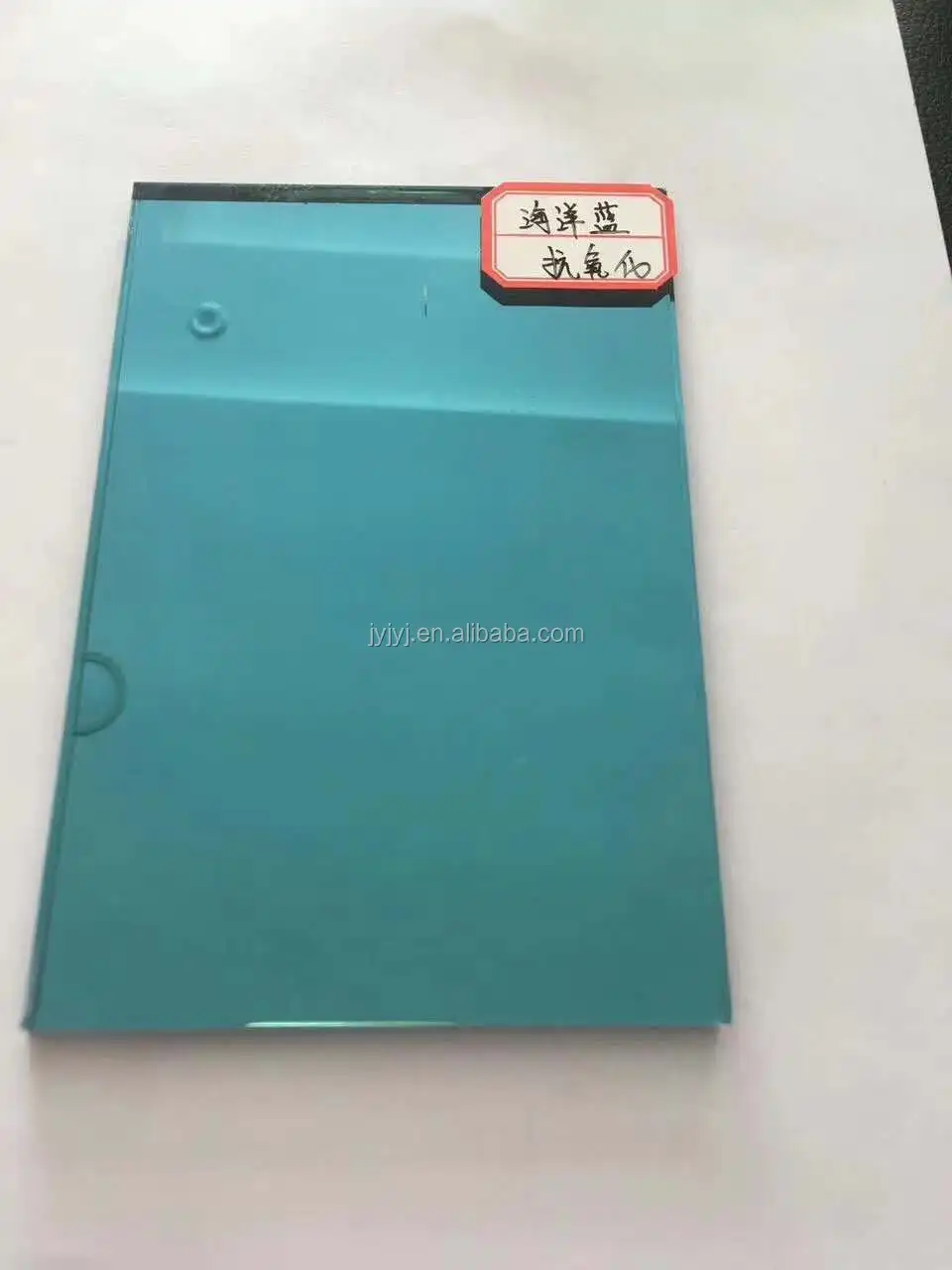

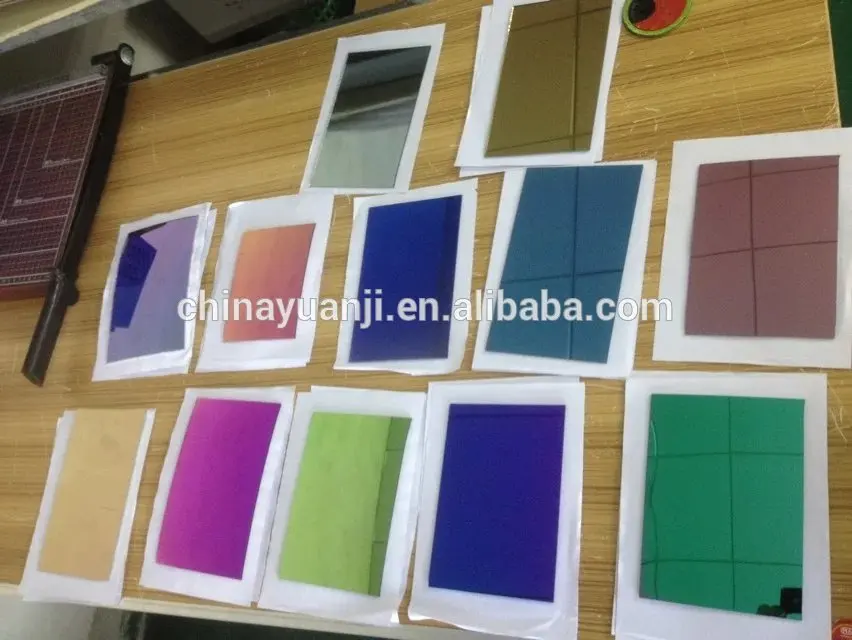

 This kind of coating line is widely used in touch screen, acrylic, glass, ceramics etc.. Which can coat high-quality, high-performance metal film, electromagnetic shielding film, reaction film, composite film, the transparent conductive film, radiation (AR), the reflection-increasing film, LOW-E film, etc..

  The continuous coating line can resolve the coating of large size glass, arylic, ceramic products which also requires large coating quantity per day. We can design the coating line satisfying the coating cycle of 1 piece/ 1mins, 1 piece/ 2mins, 1 piece/ 3mins ect.   We can provide you modular design, optimized processes, energy efficiency, high throughput and accurate quality control.

Technical Parameters:

Gross weight	6000kg         26000kg
Total power	80KW280KW
Suction rate (new, idling)	2×10-2Pa≤8min
Ultimate vacuum (new, idling)	≤8×10-4Pa
Gas leak rate (new, idling)	0.67Pa/Hr
Work piece rotating speed	020r/min
