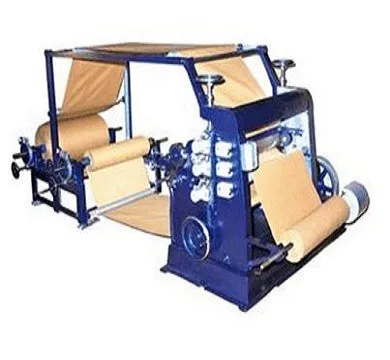

BOXMAC Heavy Duty High Speed Single Facer Paper Corrugation Machine


(Vertical Type) Bearing Mounted with Manual loading/ Self Loading Reel Stand



Technical Specifications

(A)\tOne Set of Flute Rolls as per requirement.

(B)\tFlute Rolls material alloy steel.

(C)\tRoll Dia 195 mm.

(D)\tFlutes in One Feet are 86 Nos.

(E)\tGum Roll & Gum Pipe Hard Chrome Plated.

(F)\tMotor –5 HP and A.C. Drive

(G)\tRewinding arrangement with 2 Nos. Rewinding Shafts

(H)\tManual Loading Reel Stand with two unwinding shafts.

(I)\tMake of Bearings: NTN / SKF / NBC

(J)\tWith all Standard Accessories Complete.

\t
Size
\t
42"
\t
45"
\t
52"
\t
62"
\t
Motor H.P.
\t
3
\t
3
\t
5
\t
5
\t
Heating Load Approx.
\t
21 Kw
\t
21 Kw
\t
27 Kw
\t
27 Kw
\t
FLOOR SPACE
\t
90" x 165"
\t
95" x 165"
\t
102" x 165"
\t
115" x 180"
\t
HEIGHT
\t
76"
\t
76"
\t
76"
\t
80"
\t
Weight Approximate
\t
3.0 MT
\t
3.5 MT
\t
4.0 MT
\t
4.5 MT
\t
OUTPUT RFT/MIN
\t
60
\t
60
\t
60
\t
60
Detailed Images
Packing & Delivery


Delivery Time : 45 to 60 Days

Packing method


1. Plastic film wrapping outside
2. Hard wooden case
3.Then loading in container

Our Services

1. Training how to install the machine and how to use the Machine
2.12 months warranty
3. 100% good Quality
4. 24 hours online service
5. Providing free quick-wear parts
6. Engineers available to service overseas if necessary
7. Product certificated by CE and ISO
