Hyperbaric oxygen therapy 1.5 ATA 2.0 ATA 3.0 ATA monoplace multiplace chamber

1. Pressure cut off by software-Automatic pressure relief when the pressure increases over 55kPa in the chamber

2. Mechanical Pressure cut off-Safety valve (certified product) is installed to prevent the internal pressure from increasing over 60kPa

3. Emergency release switch-Quickly release the pressure from inside tor out side the chamber by operating one-touch type valve in case of emergency

4. Automatic emergency power off system- Automatic pressure relief in case of power failure or power off

5. Custom Controls- Profile fit with automatic pressure control treatment.

6. Graph-Designed to always check current treatment progress through graph

Customer Design

1. It detects temperature, humidity and carbon dioxide inside the chamber and displays it on the inside of the chamber, allowing automatic ventilation at all times.

2. Interphone can communicate internally and externally even in case of power failure or power off.

3. A wide transparent window allows the patient to be seen inside the chamber and eliminates patient frustration due to confined spaces.

4. 40L / min ~ 100L / min pressure valve can adjust the flow rate according to patient's condition

5. Easy installation and operation

Specification

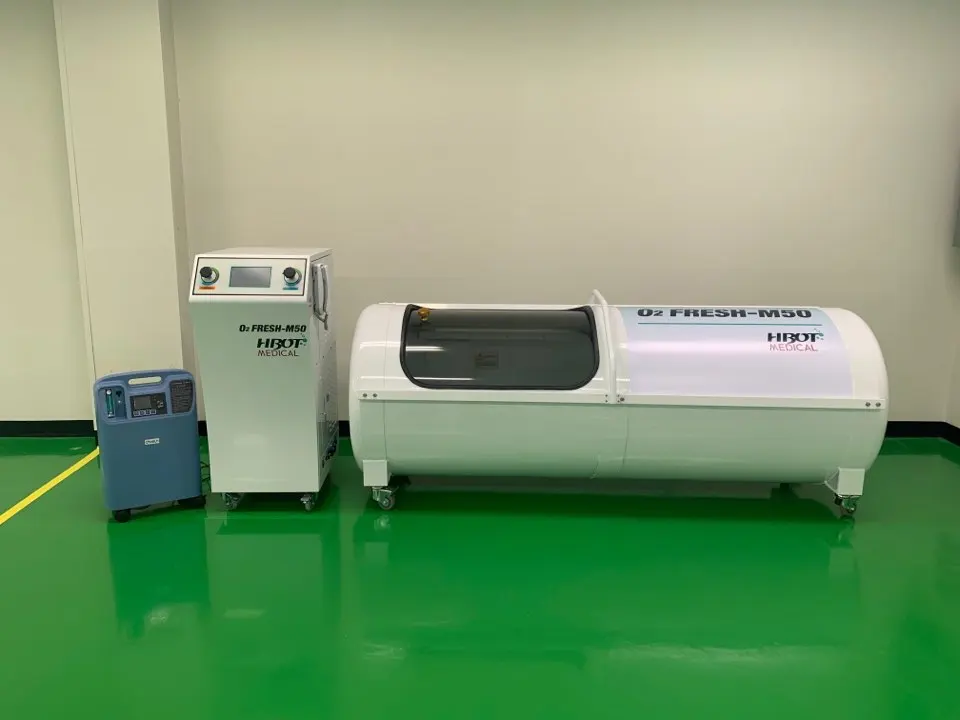

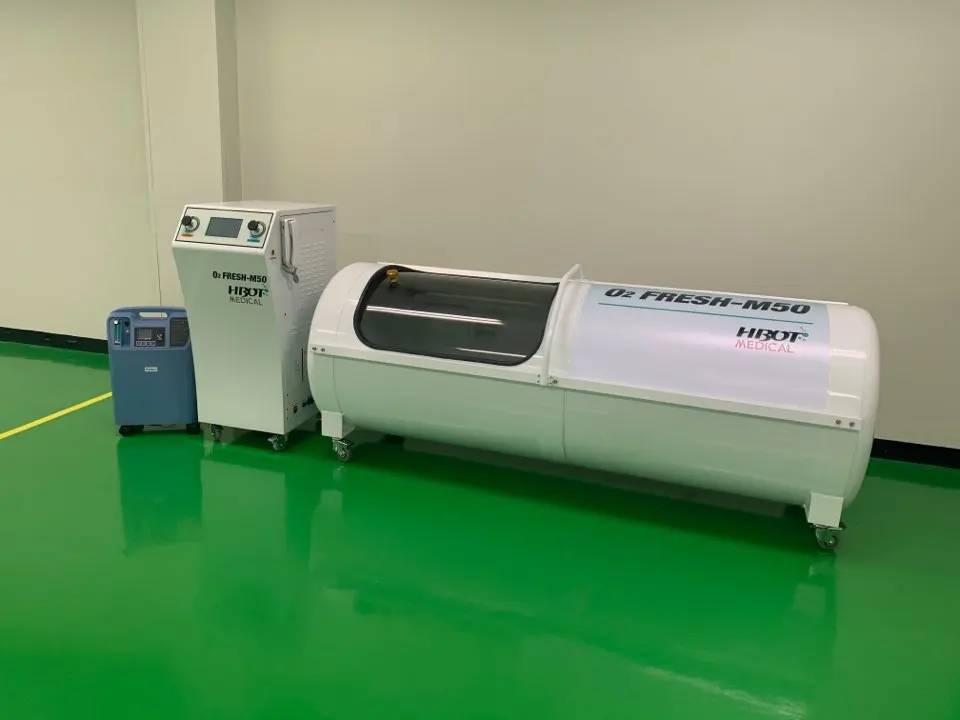

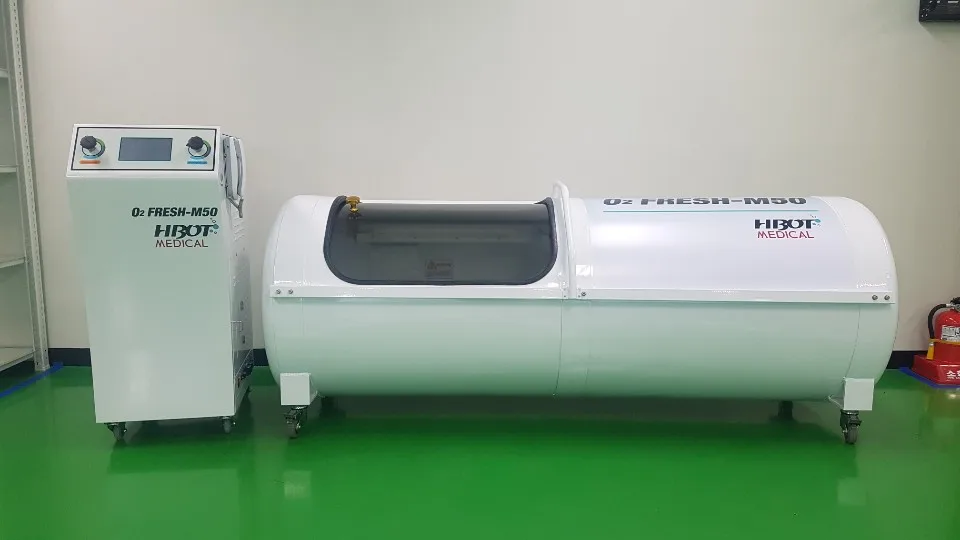

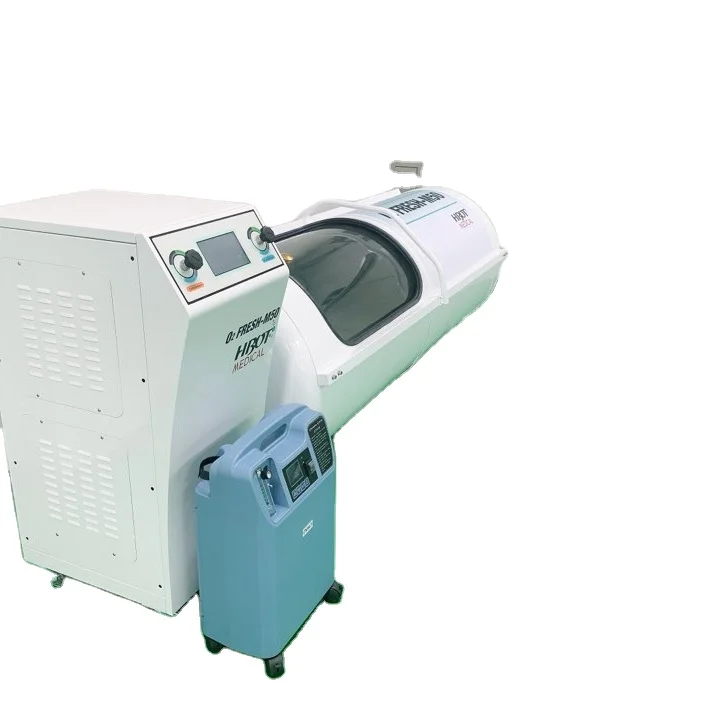

O2 FRESH-M50 specification
Chamber	Usage	One Patient
	Operation Pressure	10kPa ~ 50kPa(1.1~1.5ATA)
	Size	2200mm * Ø800mm
	Weight	125 KG
	Material	Aluminum
System(Controller) Compressor+Air Cooler	Air volume	100L / min
	Voltage	220VAC / 50,60Hz
	Power Consumption	950VA
	Size	(W)450mm * (D)642mm * (H)1095 mm
	Weight	94 KG
	Material	Steel

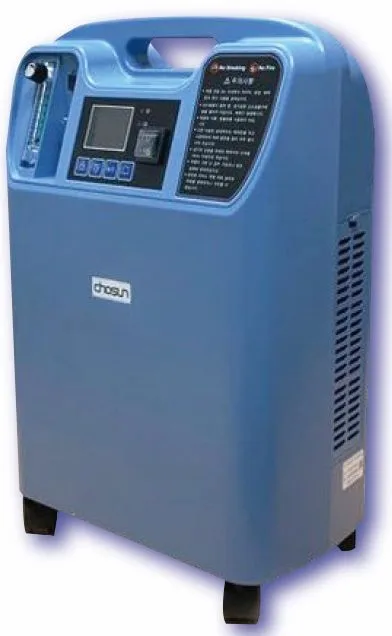

Oxygen Generator	Oxygen Volume	1L ~ 5L/min
	Oxygen Concentration	93 ± 3%
	Voltage	220VAC / 50,60Hz
	Power Consumption	270W
	Noise	45db or less
	Size	(W)400mm * (D)300mm * (H)510mm
	Weight	16.5kg
Installation Space		(W) 3m * (D) 1.5m

Certifications

DISPLAY IMAGES

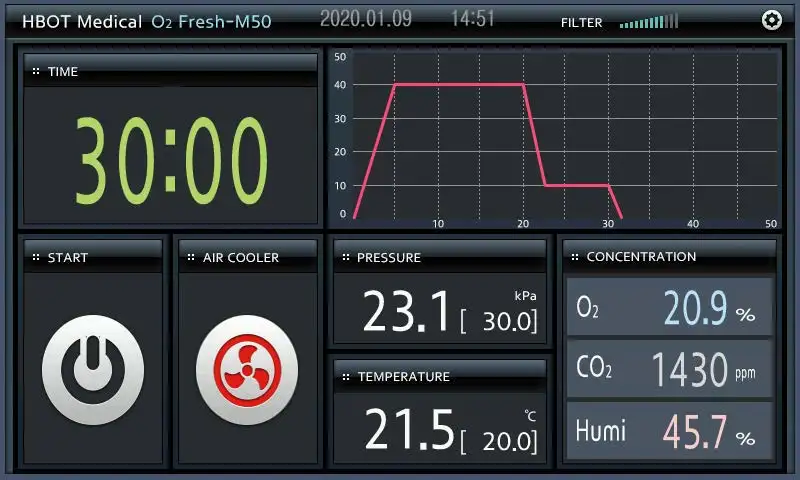

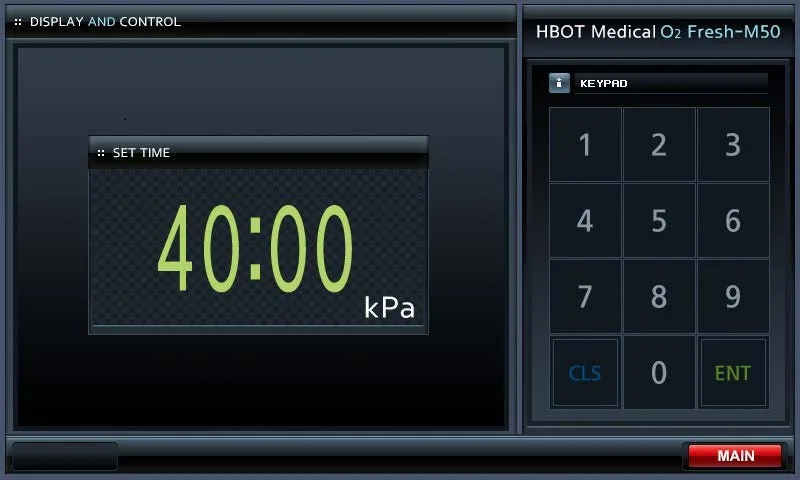

Touch type display controller that provides various information

One-touch treatment system mode

Intuitive pressure setting window
