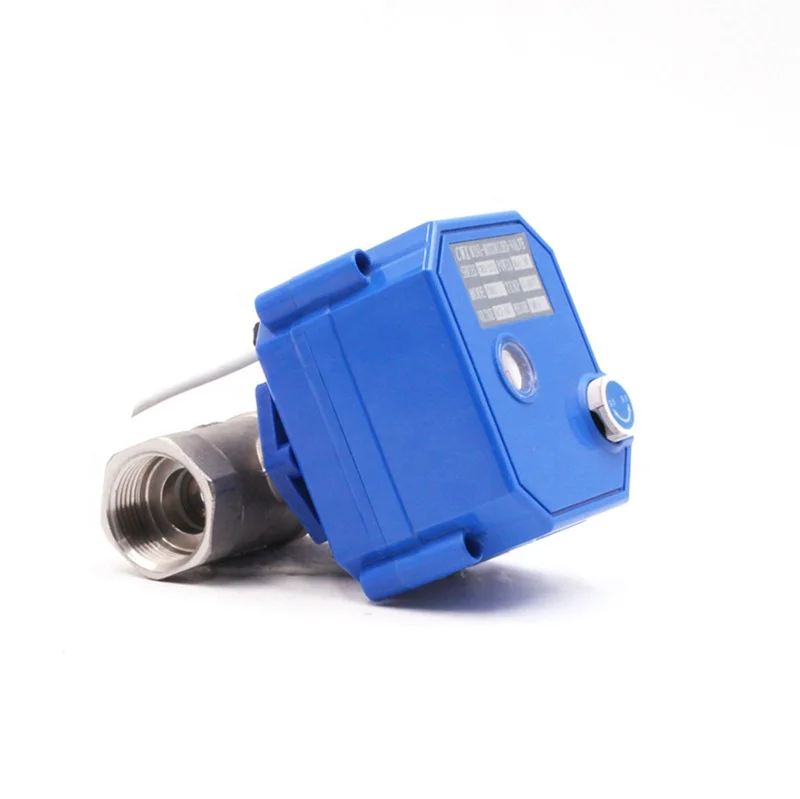

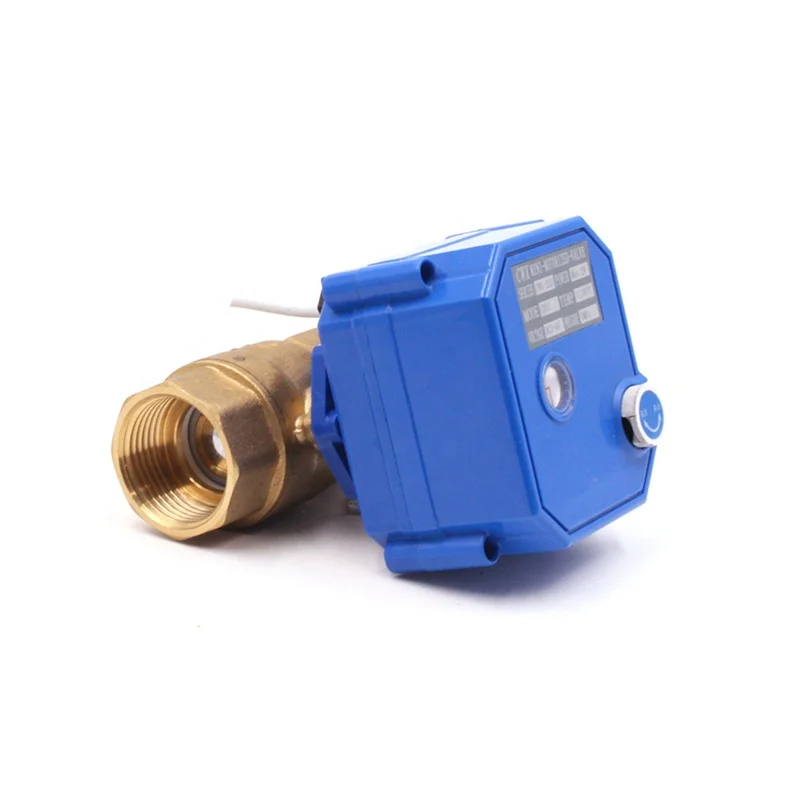

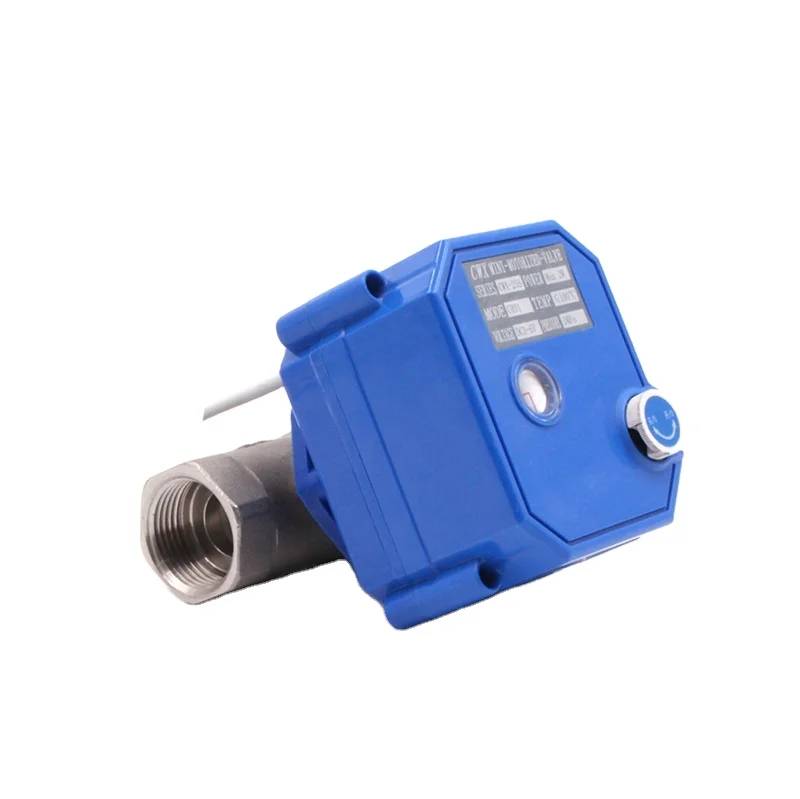

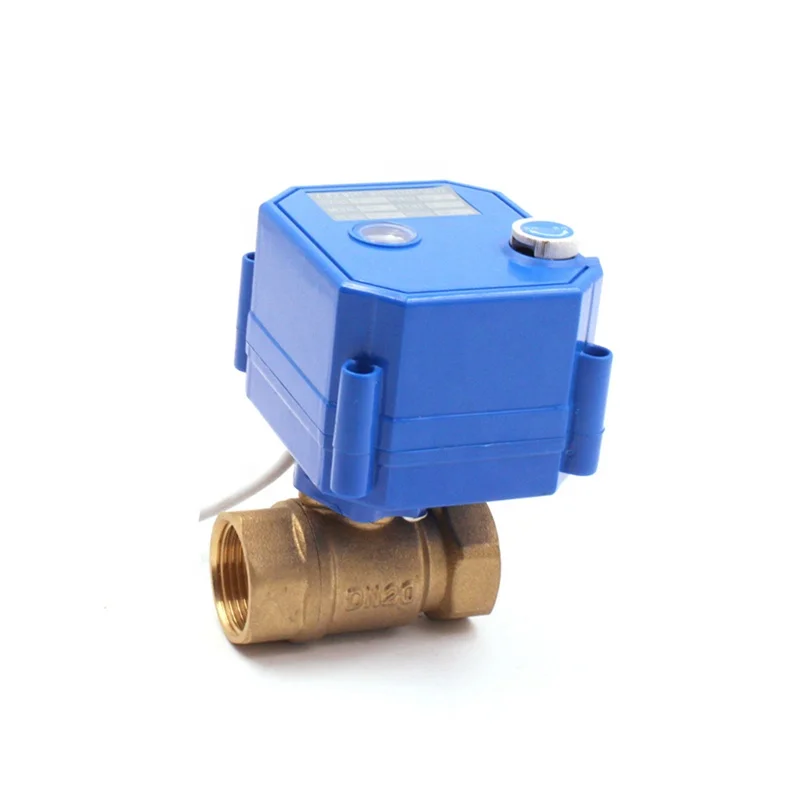

CWX 25S 2 way mini electric actuator motor operated ball valve brass stainless water valve actuator control valve

 CWX-25S motorized ball valve electric water ball valve with manual function electric water valve flow control 5V 12V 24V 110V 220V

Product Features  actuator control valve

•


  POM material gear box





•


  Manual Override, the valve can be operated when power failure





•


  Mini dimension and position indicator





•


  Good sealing performance, IP65 enclosure

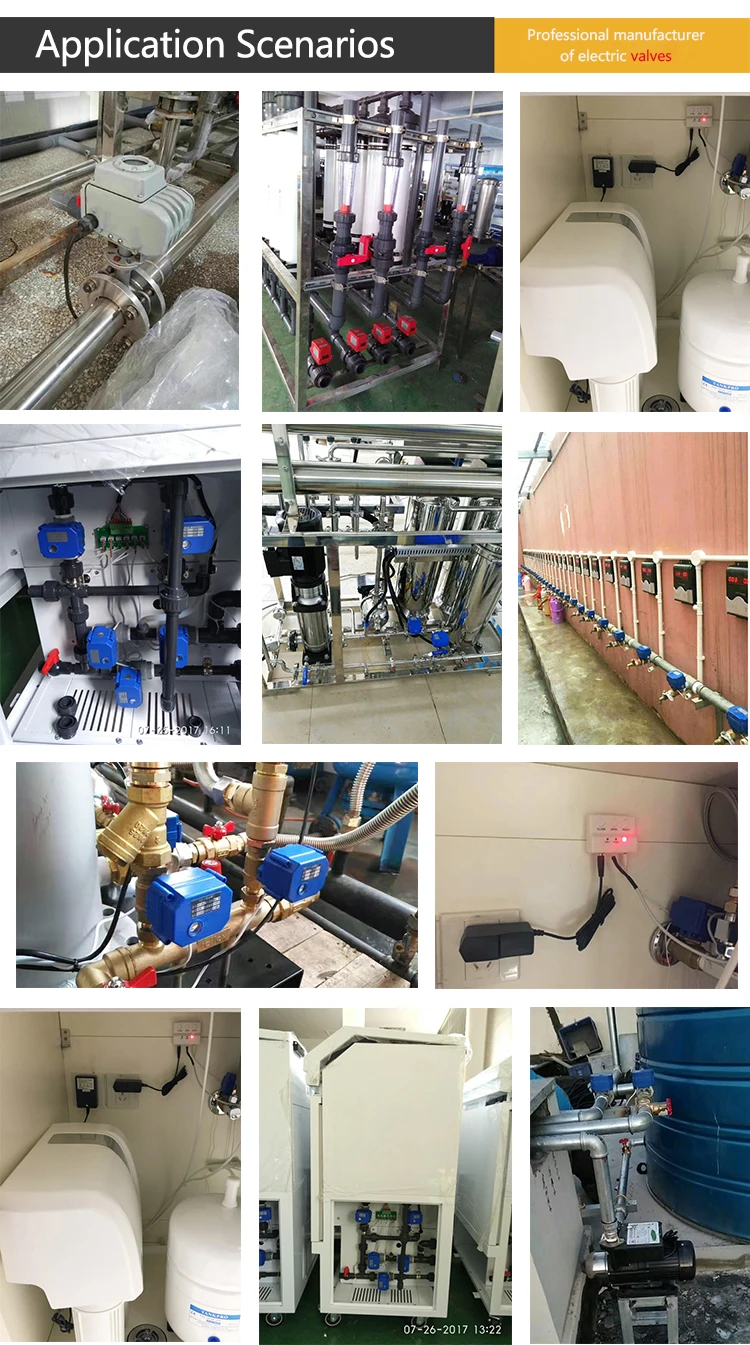

Application

•


  Heat energy meters, fire work, save water system





•


  Water saving equipment, drinking water equipment





•


  Auto control system, industrial mini auto control equipment





•


  Air-conditioning fan coil(HVAC)

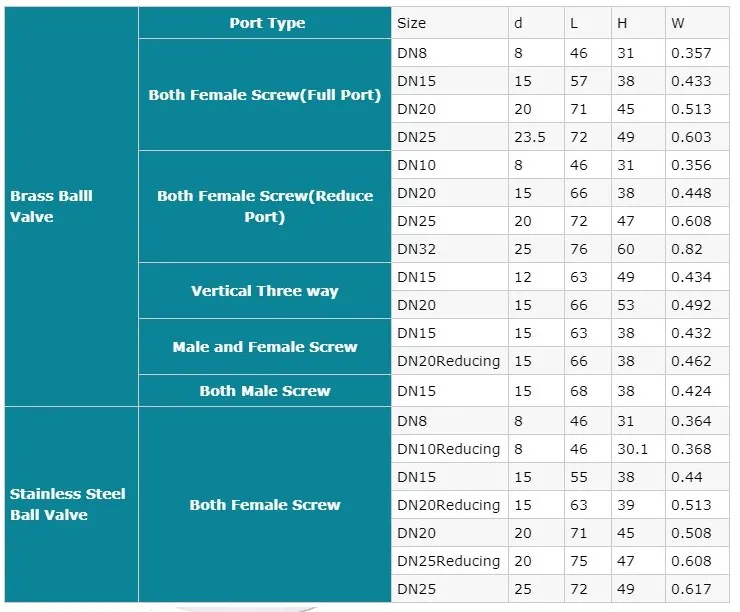

Specification

	Parts	Material
	Actuator housing	ABS
	Valve body	Brass / SS304/316
	Valve ball	Brass / SS304
	Stem	Brass / SS304/316
	Ball seat	PTFE
	Seal	silicon rubber

actuator control valve

actuator control valve

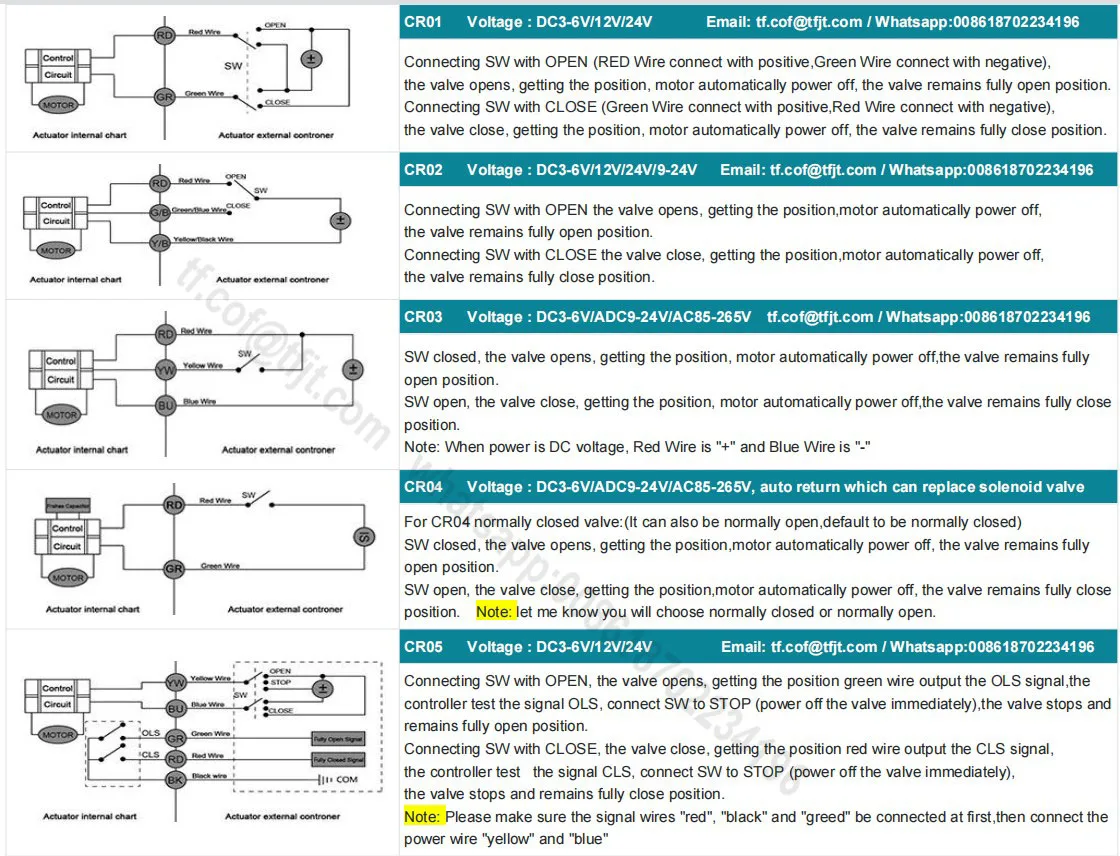

WIRING
CR01 (2 WIRES)	CR02 (3 WIRES)	CR03 (3 WIRES)	CR04 (2 WIRES)	CR05 (5 WIRES)
Standard control	Two point control	One point control	Auto-return	Signal feedback
	INSTRUCTION FOR MANUAL OVERRIDE
	It is only permitted to use when power-off.
	Lift the hand-wheel, and turn it left or right until the valve is in place.
	When the black line on the indicator is horizontal, the valve is on; when vertical, the valve is off.
