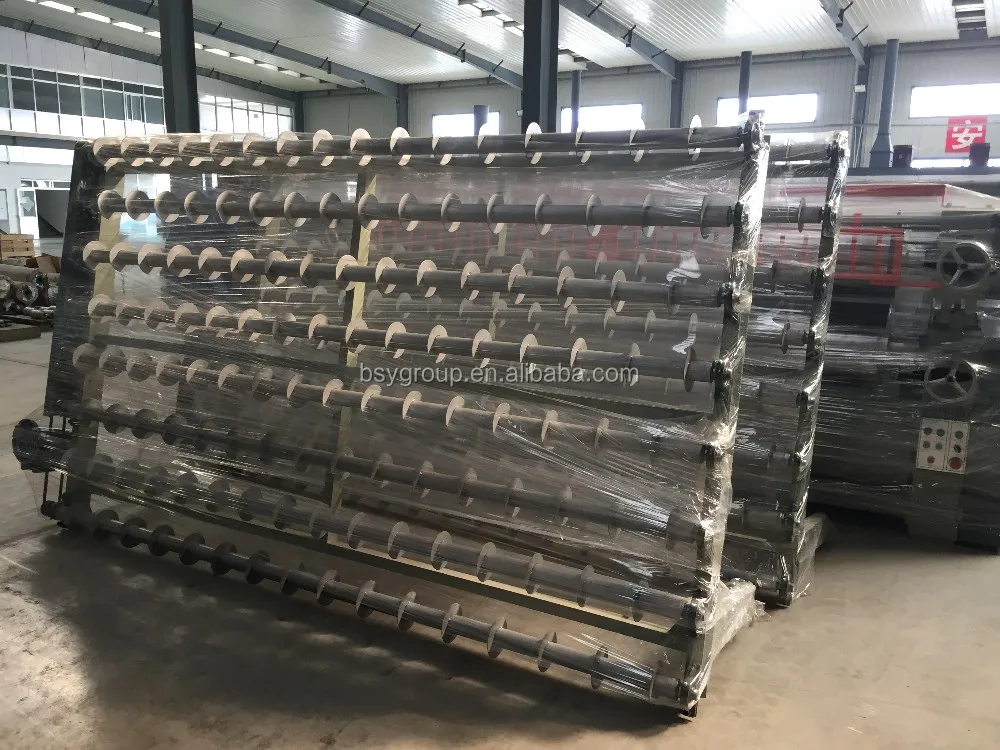

BSY 4ft 8ft Double Sided Wood Glue spreader roller machine for plywood plant
- Category: >>>
- Supplier: WEIHAI BAISHENGYUAN INDUSTRY CO. LTD.
Share on (62022170939):
Product Overview
Description
Product Description
Product Application

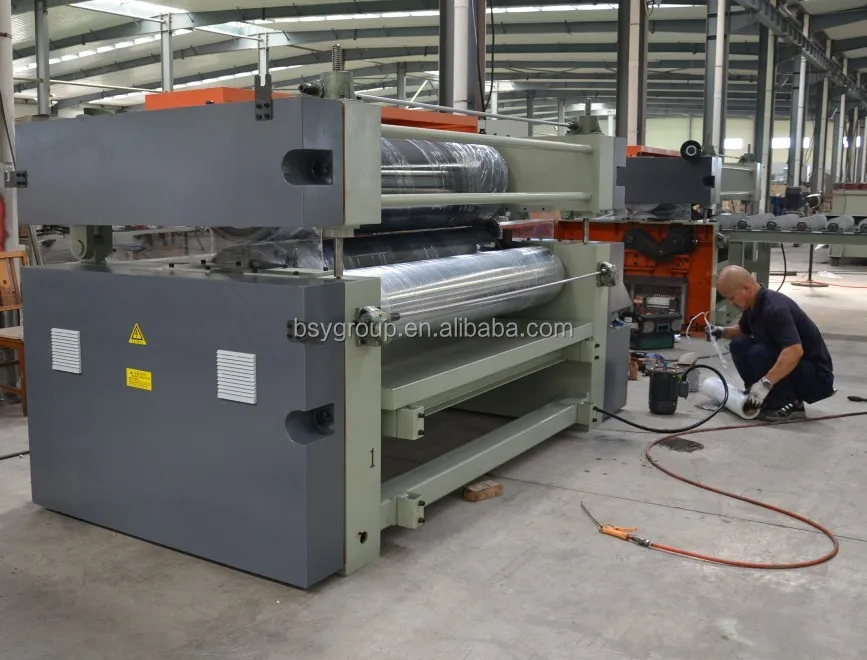

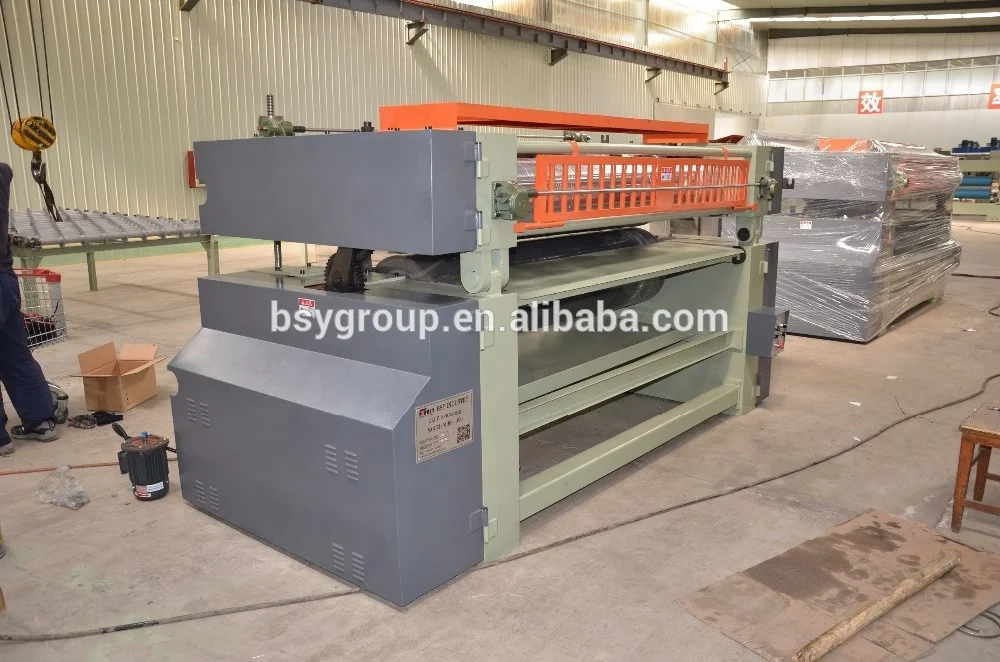

BSY 4ft 8ft Glue spreader roller machine for plywood plant
The glue spreader is used to spray the adhesive on the veneer surface averagely.
The glue spreader rollers' layout is zigzag which can save glue,and the larger roller ensure good perfromance and to make high quality plywood.
And we could design a complete gluing line according to plant size.
Two types:
OLD type-Parallel rollers,with glue tray underneath;
NEW type-Cross rollers "Z" type,save glue.

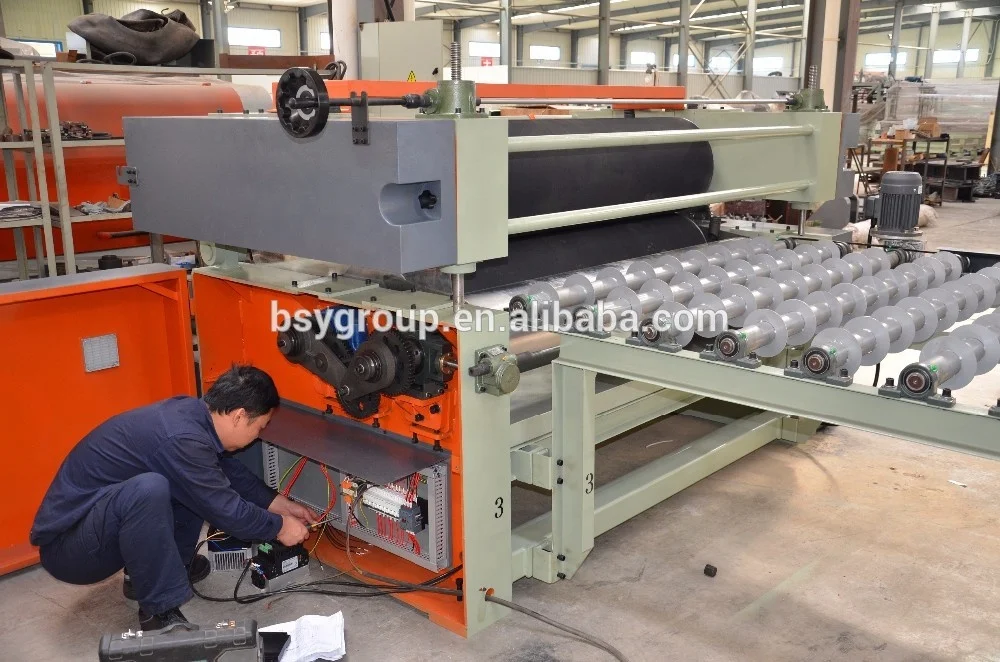

BSY 4ft 8ft Glue spreader roller machine for plywood plant
Features:
1.Two rubber rollers and two polishing steel rollers,"Z" type layout\t
2.Newdesinged structure,more steady perfromance,spray gule even and save glue\t

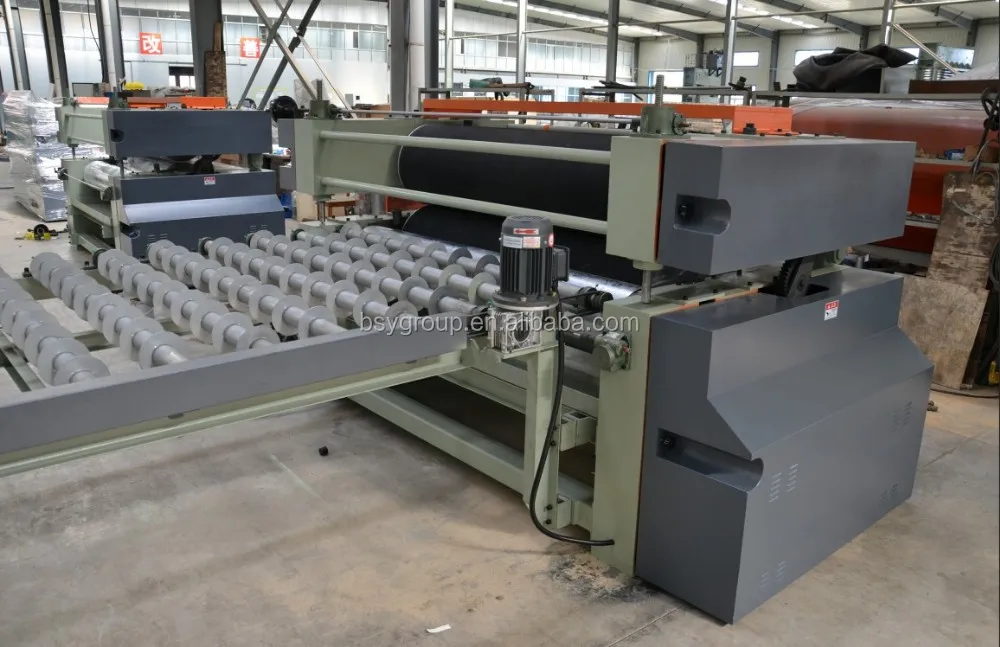

3.With automatic feeding out conveyor
Model | MH62 | MH61 |
Coating roller Diameter x Length | Φ430x2700 mm | Φ430x1500 mm |
Squeeze roller Diameter x Length | Φ292x2700 mm | Φ292x1500 mm |
Max. working thickness | 30 mm | 30 mm |
Coating roller speed | 30/ 45 m/min | 30/ 45 m/min |
Main drive motor | 4/5.5 kw | 4/5.5 kw |
Outlet conveyor motor | 0.75 kw | 0.75 kw |
Roller table size | 3050x1520 mm | 1450x1800 mm |
Main body size | 4110x3200x1600 mm | 2910x2978x1600 mm |
Weight | 4300 kg | 3290 kg |
Main Features
BSY 4ft 8ft Glue spreader roller machine for plywood plant
The glue spreader is used to spray the adhesive on the veneer surface averagely.
1.Glue saving: roller all under professional precision treatment and balance revised . And it will make the spray more even.
2.Convenience: the special adjusting mechanism of rubber and doctor roller with pneumatic cylinder . When matching frequency controller glue density cam be adjusted and speed-changed efficiently under different operation demands.
3. Safety: due to up&down roller were allocated pneumatic cylinder. So it can leap vacant to reduced the damage to glue spray roller.
Detailed Images
BSY 4ft 8ft Glue spreader roller machine for plywood plant

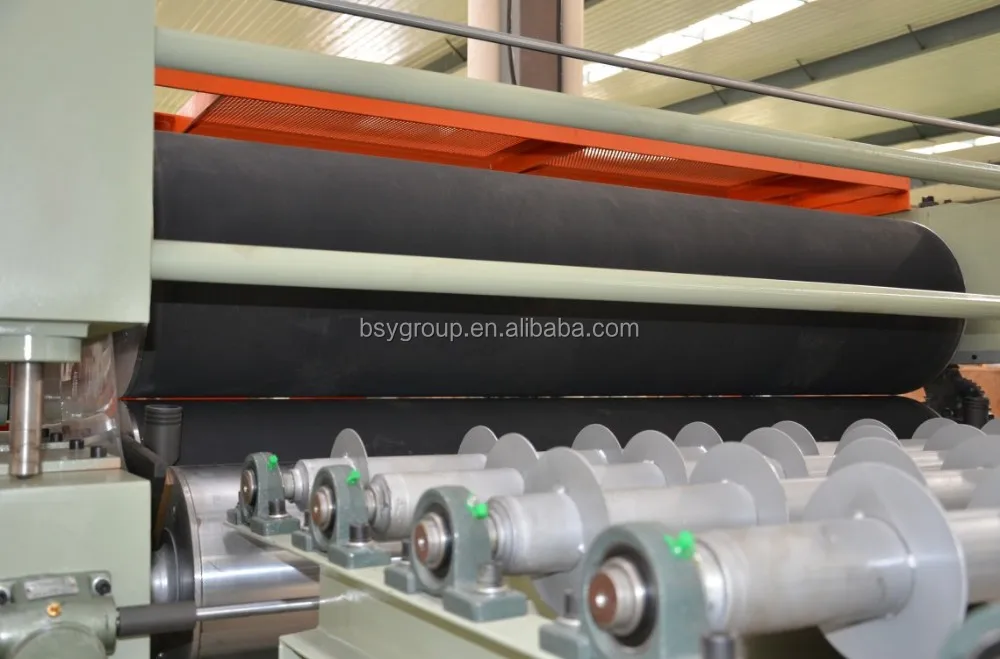

2pcs big rubber roller,diameter 430mm which is quite larger than 250mm from other factory.
Rubber roller material NBR.
BSY 4ft 8ft Glue spreader roller machine for plywood plant
Squeezing stell roller,diameter 290mmx2pcs.
which is quite larger than 215mm from other factory.Length could be 1500mm,2000mm or 2700mm.
BSY 4ft 8ft Glue spreader roller machine for plywood plant

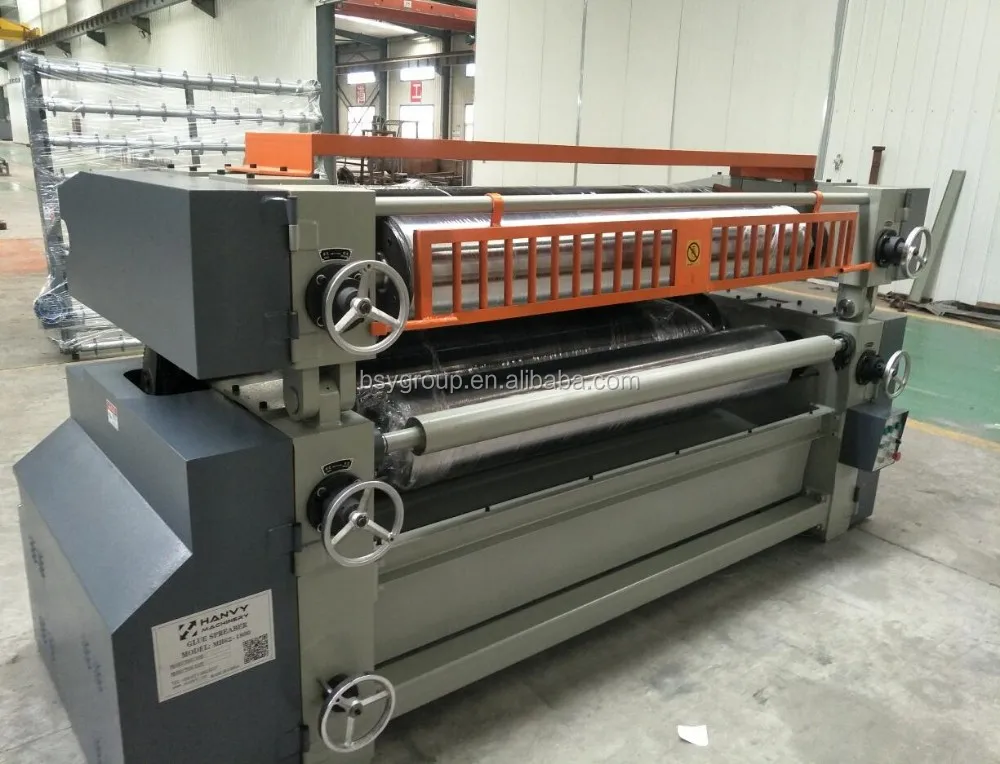

Normarl type of veneer glue roller spreader machine.
with hand wheels in front,and glue tray underneath,
rollers are in parallel layout.
BSY 4ft 8ft Glue spreader roller machine for plywood plant

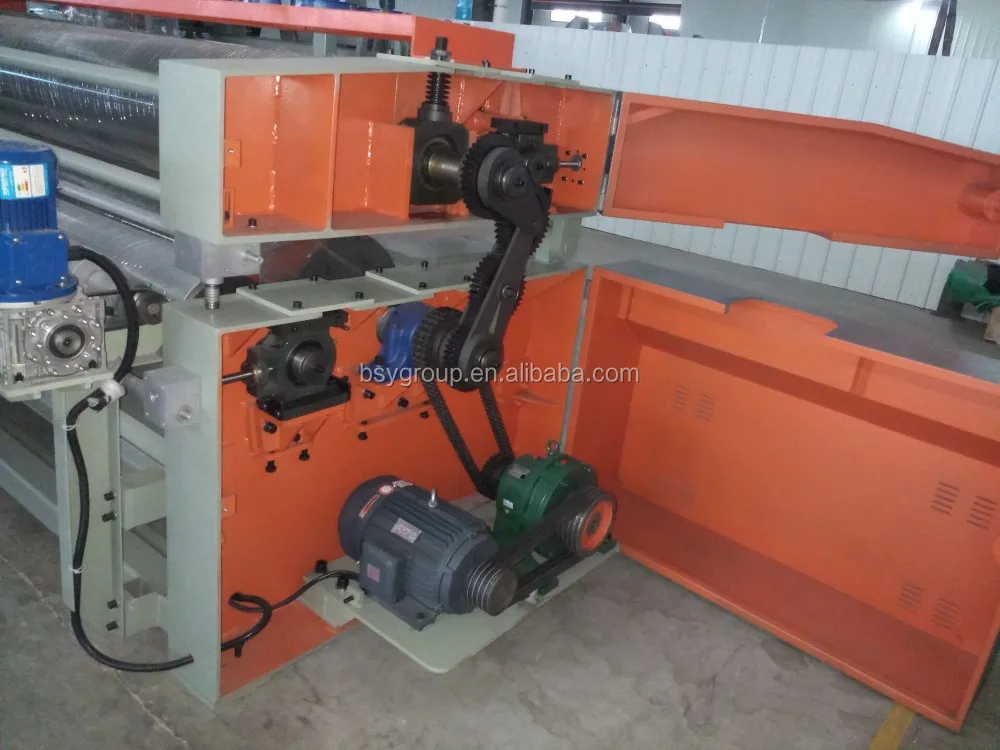

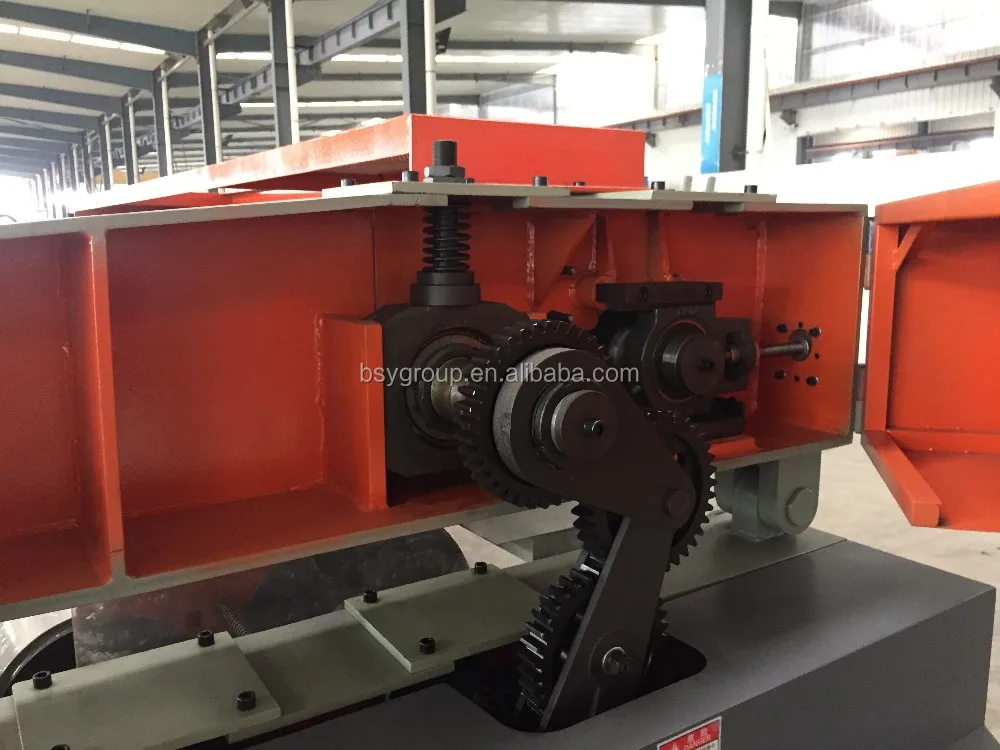

Gear drive system,motor connects with speed reducer,which is quite differnt and advanced than chain drive system.
Packing & Delivery
Packaging | ||
Size | 20ft | |
Weight | 4300kg | |
Packaging Details | Strengthed film+plywood pallet for full container load. Plywood packing box for LCL shipment. | |
