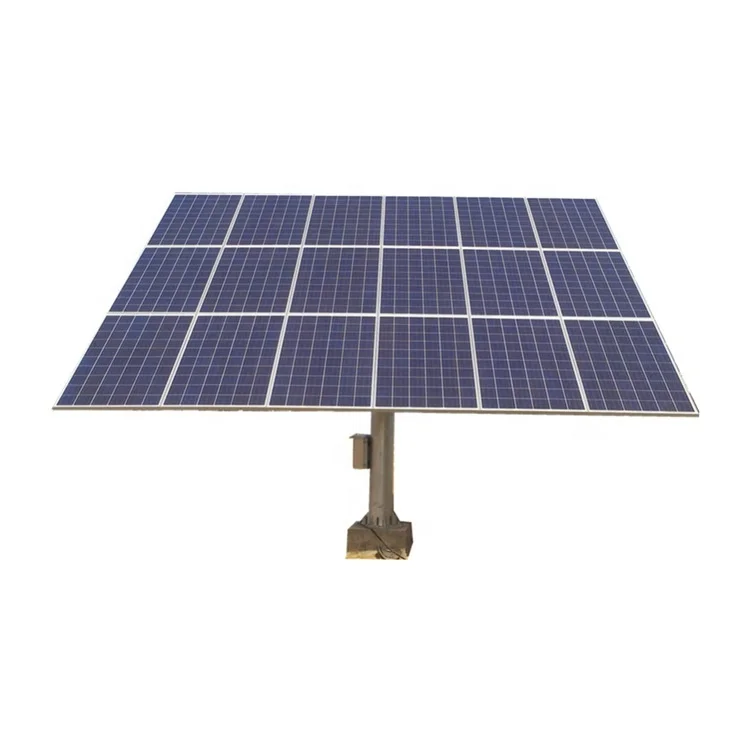

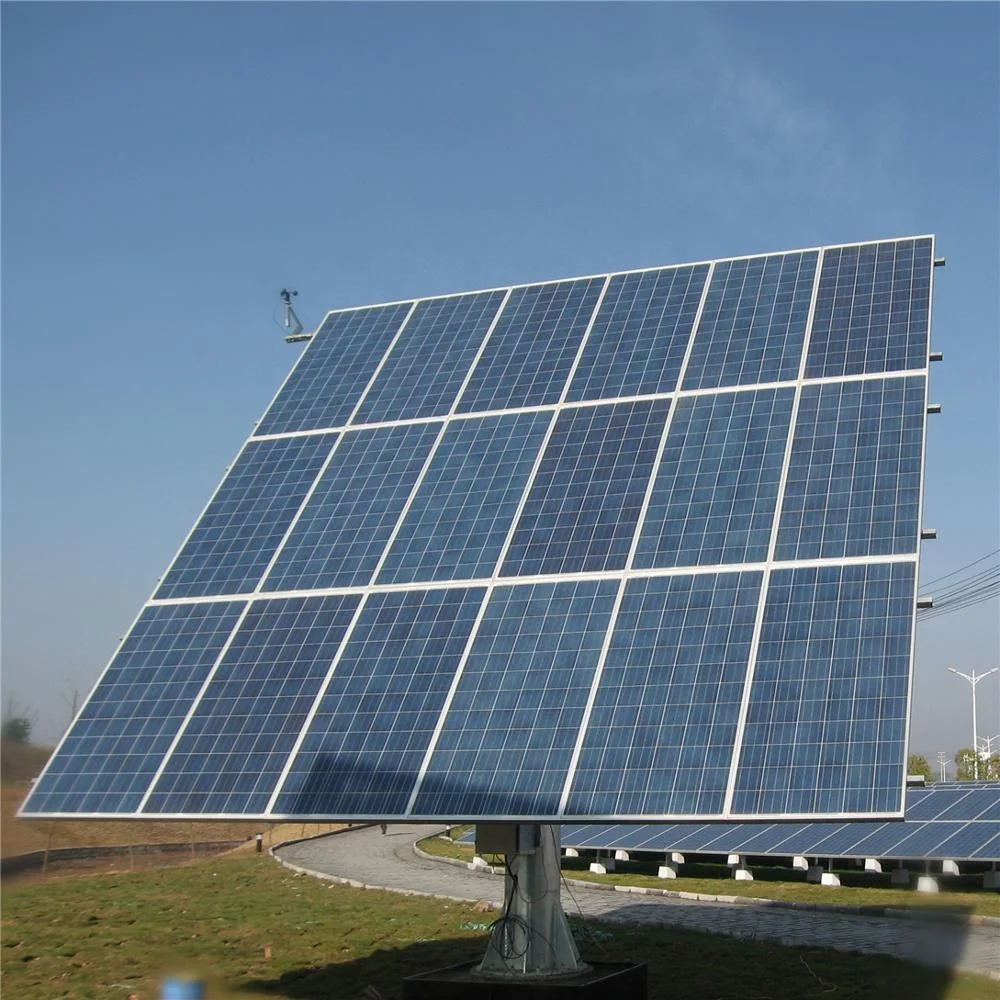

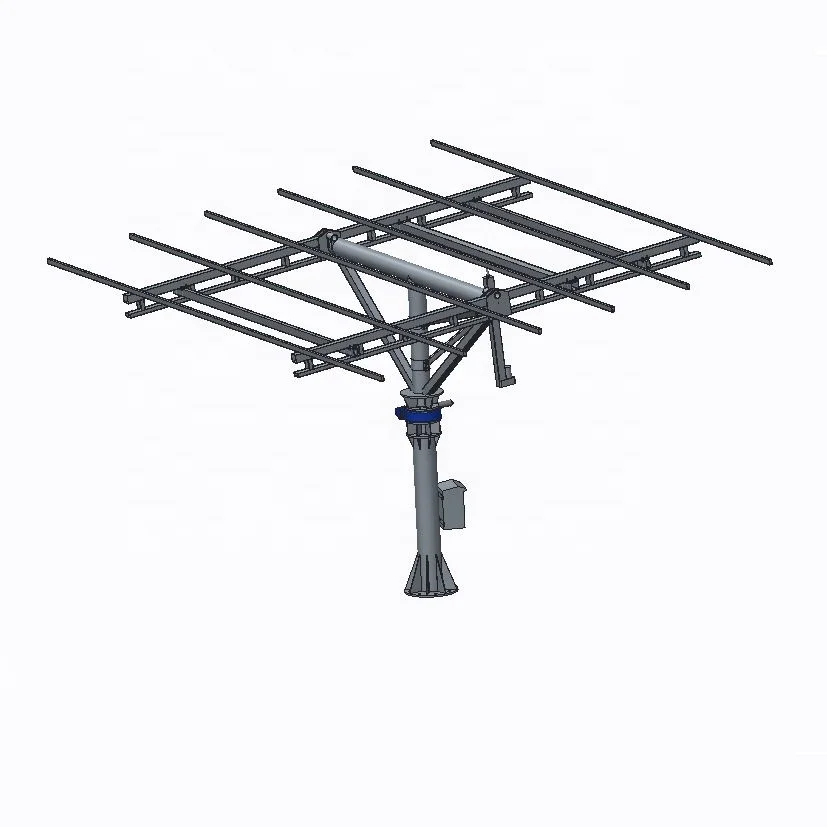

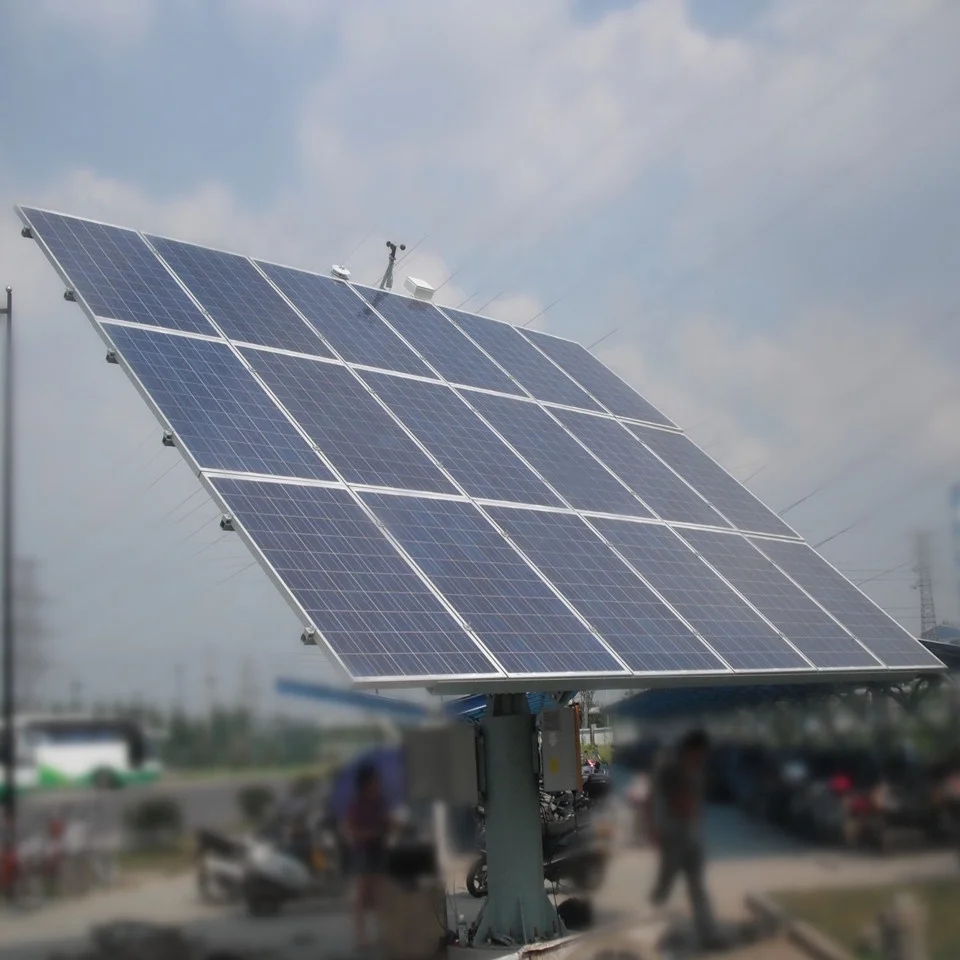

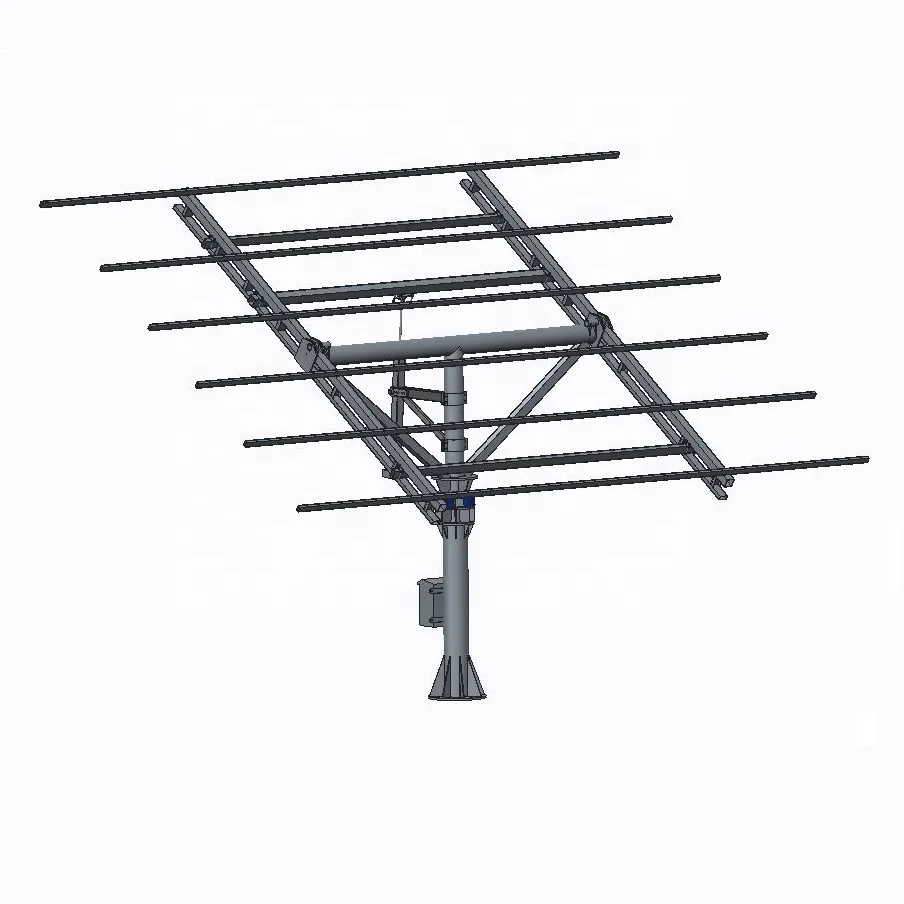

dual axis solar tracker The solar tracker uses high-precision astronomy algorithm to calculate the angle of the sun, combined with high-performance microcontroller (DSP core), making the system accurate and reliable, not rainy days interference,using international first-line brand tilt sensor, real-time closed-loop feedback tracking angle, automatic tracking, without human intervention.
Product Details
Solar Tracker main Technical Parameters
Module Num
15 units
Module Size
1956*992mm
Tracking Precision
≤1°
Communicating Protocol
RS485-MODBUS
Power Supply
90~264VAC,47~63HZ
Electricity Consumption
≤0.5(KW·h)
X tracking angle
-45°~+45°
Y tracking angle
0°
Bracket Area
≈30m2
Operating Temperature
-40℃~+80℃
Bracket Material
Hot Galvanizing
Device Weight
≈1000KG
Standard
GBT29320-2012
Design Life
>25 years
Certification
CE,CQC,ISO9001,ISO14001,OHSAS18001
Main Features 1) Power generation efficiency increased by 35%~40%. 2) Simple structure ,easy in installation and debugger application. 3) Adopting advanced world famous brand components in inclination,electric parts and actuator parts. 4) The tracker could adjusts solar panels into horizontal when meeting strong wind. 5) Adapt to outdoor environment,working temperature -40~80C°. 6) Running in a high automation and intelligence,no pollution. 7) Hot-dipped zinc galvanization will extend the work life of the brackets,25 years service life.
Product Advantage
High generating capacity
Solar Tracker use back-track algorithm to ensure that the solar panels are not covered each other all day,power capacity increased again.
High intelligent application
Solar Tracker uses the international brand tilt sensor, intelligent identification of rotation angle, without manual debugging angle.
High Compatibility
The company's proprietary design module and bracket locking parts, compatible with any PV module specifications.
Materials use Q235B steel with above 85um Hot-dipped zinc galvanization to ensure the 25 years life.Adapt to all kinds of outdoor environment.
Packing & Delivery
1. Special logistics packaging
2. Suitable wooden box size
3. Shock bubble film
4. Professional placement
5. Professional shock
6. Complete package
