Фитинги для шлангов марки 316, соединитель Npt, высококачественный фитинг для воды, гидравлический быстроразъемный клапан из нержавеющей стали
- Category: >>>
- Supplier: Jiangxi Aike Industrial Co. Ltd.
Share on (62022199917):
Product Overview
Description

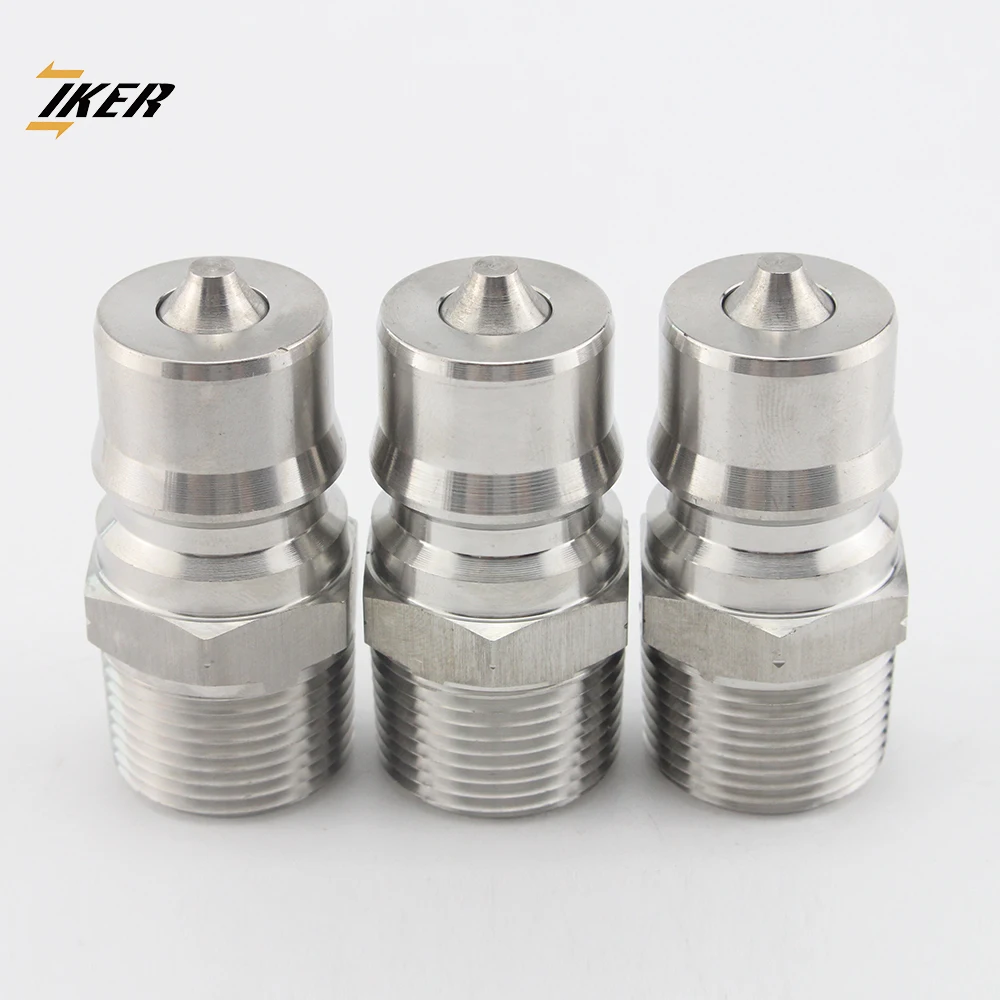

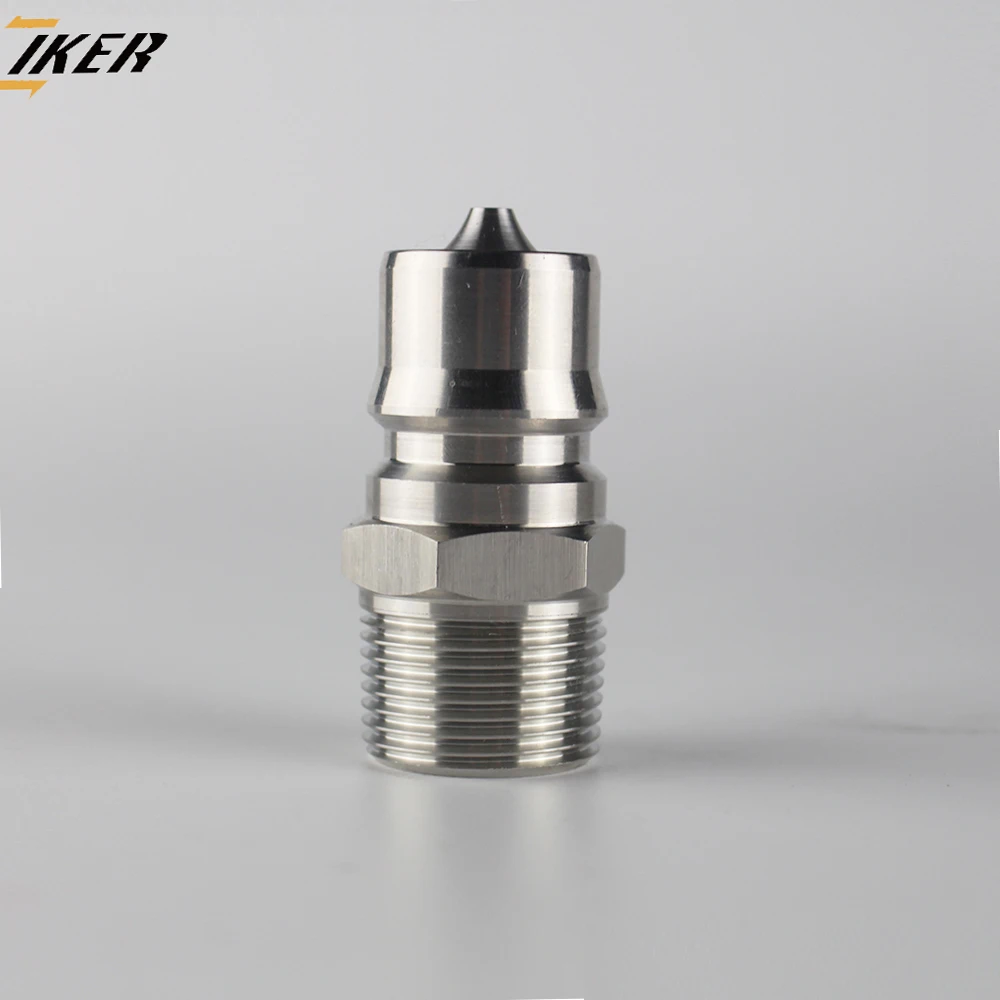

Grade 316 Hose Fittings Coupler Npt Top Quality Connect Water Fitting Stainless Steel Hydraulic Quick Disconnect Coupling Valve
Grade 316 Hose Fittings Coupler Npt Top Quality Connect Water Fitting Stainless Steel Hydraulic Quick Disconnect Coupling Valve
Product Description
KZF hydraulic quick release coupling features:

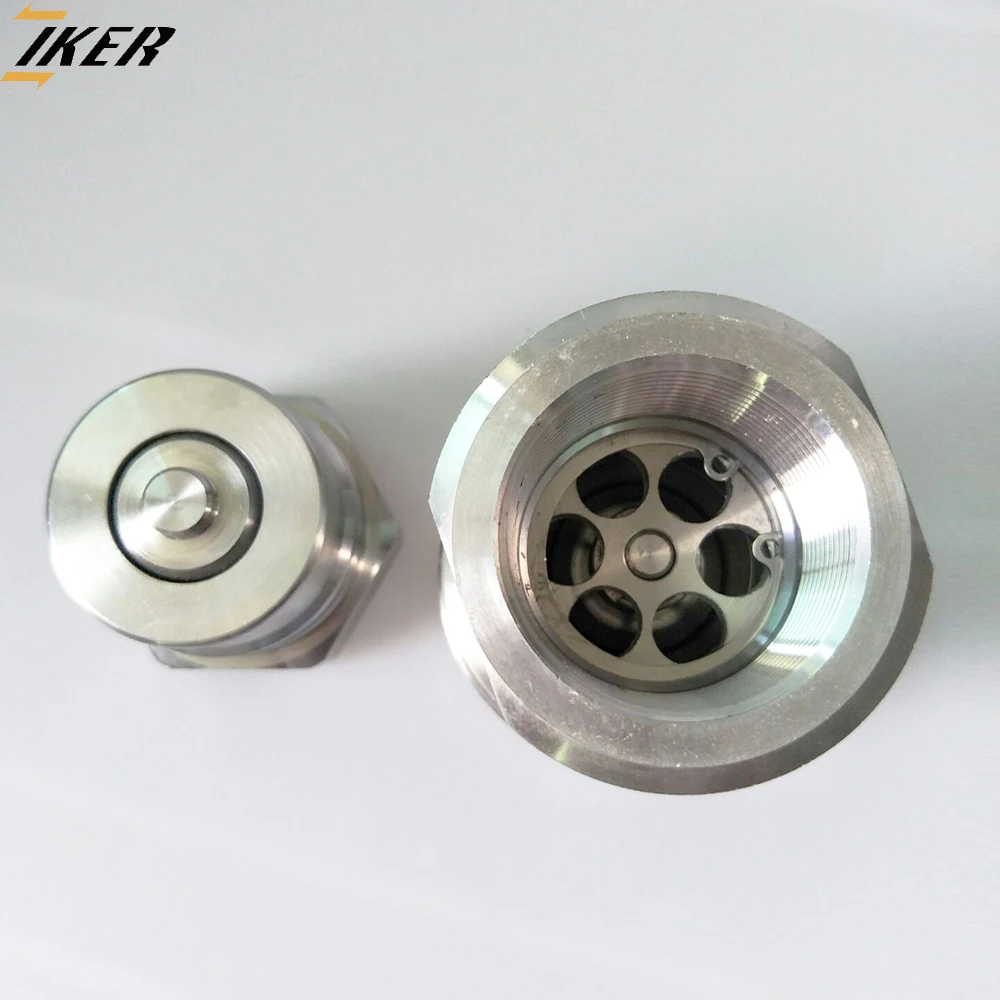

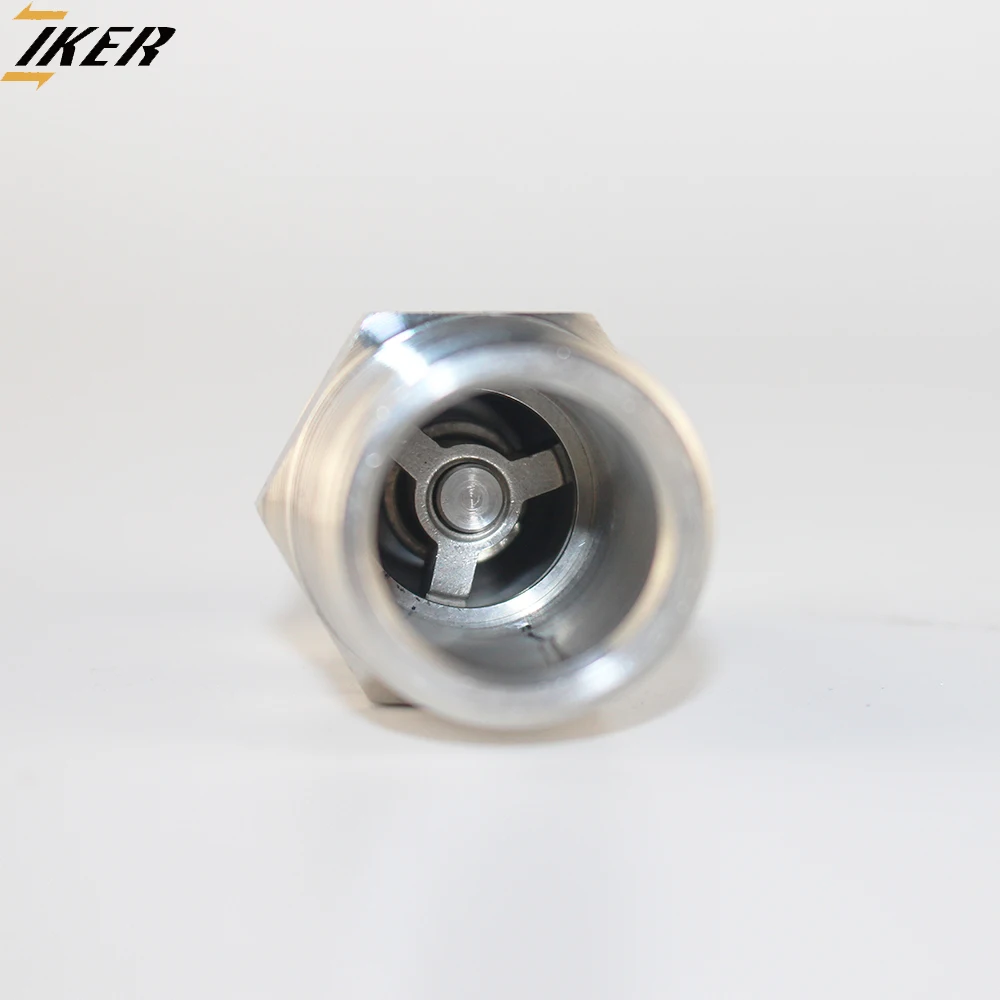

l Valve plug can automatically close to prevent leakage when couplings are disconnected.
l Valve plug can automatically open to let fluid get through when couplings are connected.
l Key parts are induction hardened for a better durability.
l Function reliable ball-lock system combines 2 marched half parts together.
l Male coupling and female coupling are machined from solid steel bar stock.
l These couplings reach ISO7241-1B hydraulic quick release coupling standard.
l The same function and can interchange following foreign products: PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HA Series.
KZF hydraulic quick release coupling applications:
The KZF hydraulic quick release coupling are suitable for all kinds of hydraulic usage. If fluid delivery pipe needs to be connected or disconnected because of operation or maintenance without fluid leakage, because it has double shut-off couplings.
The KZF hydraulic quick release coupling are mainly used for hydraulic fluid pipes, but they are also used for chemical fluid, steam and gas pipes.

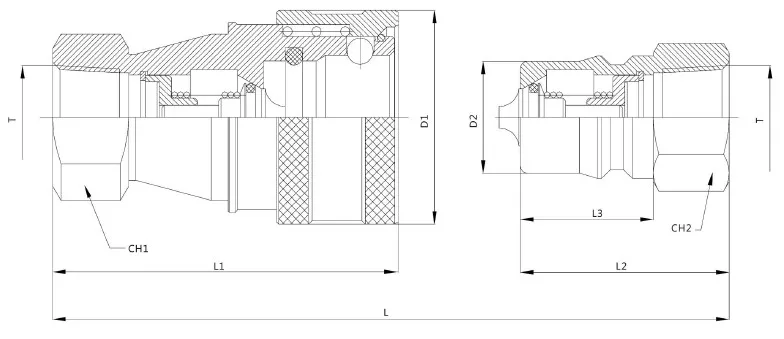

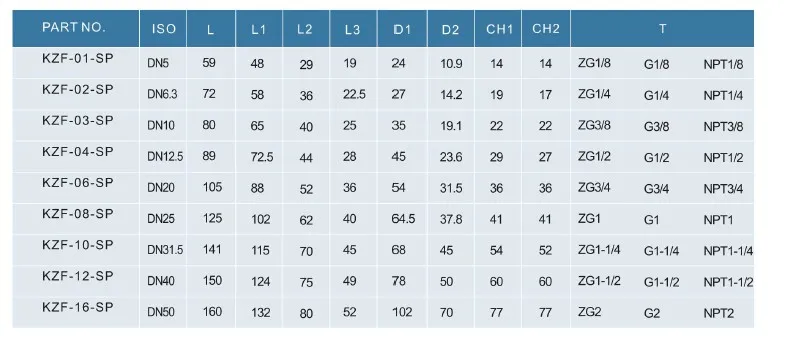

SPECIFICATION:
| Body size(in) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| Code | 01 | 02 | 03 | 04 | 06 | 08 | 10 | 12 | 16 |
| Rated pressure(Mpa) | 13.8 | 13.8 | 10.4 | 10.4 | 10.4 | 7 | 7 | 7 | 7 |
| Rated Flow(L/min) | 3.8 | 11.5 | 23 | 45.5 | 106 | 190 | 330 | 830 | 900 |
Temperature Range(NBR):-20°c+100°c

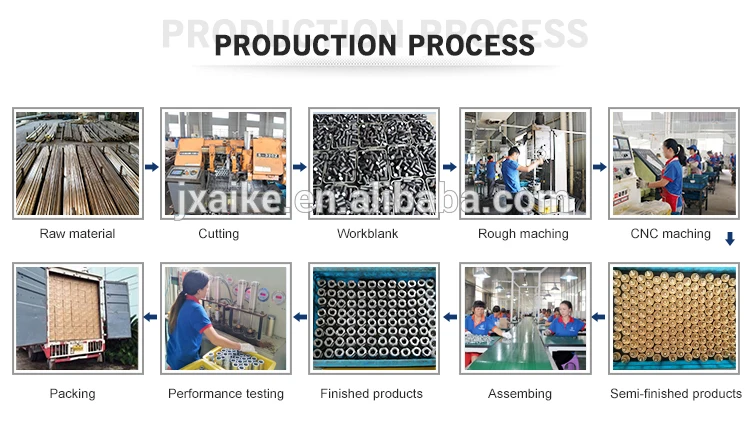

Production Flow
| How is the quick coupling produced? |
Packaging & Shipping
| Packaging Details: | Standard export package carton or pallet |
| Carton Size: | 32cm*22cm*24cm |
| Loading Port: | Ningbo, Shanghai, Xiamen port |
| Lead Time: | Based on type and order quantity, some items are stock available and could be sent out immediately |
Company Information
About Jiangxi Aike Industrial Co., Ltd |
>>Established in 2011, Jiangxi Aike Industrial Co., Ltd is a leading manufacturer specializing in hydraulic quick couplings, pneumatic quick couplings and tube fittings. With a group of experienced engineers equipped with strong technical background, sound management system, innovative mind and team work, we are competent to exceed our customers' expectations in every aspect of our business relationship. For more information, please visit our website: www.aikecoupling.com |
Workshop Show
Company Gate
Workshop show
Test Equipment
Our Certificate
Our Exhibition
Our Services
Why Choose Jiangxi Aike
>> Quality— ISO9001 Quality System Management Assurance
— SGS certificate
>> Price— Manufacturer price, first-hand price
>> Delivery— Control delivery by ourself, no middle-man
>> Production— High precision production, high standard and strict quality
>> Machinery— More than 80 sets advanced machines
>> Payment— Various options to make payment more convenient
>> Logistics— LCL to save on your freight cost
>> Customer Service—24 hours standby, feedback immediately
FAQ
Q: Do you have your own factory?
A: Yes, we are a real factory with over 20 years experience in manufacturing hydraulic and pneumatic quick coupling.
Q: Where is your factory?
A:Our factory, covering 30000 square meters, located at Jiangxi Province, China,
3.5 hours away from Shanghai if take high speed train.
Welcome to visit our company!
Q:What is your sample policy?
A: We are glad to provide sample for your evaluation, free of charge, freight collect.
Q: How long is your delivery time?
A: For some items, we have stock and can be sent out immediately.
For other items, it will take 30 days after receiving deposit. The specific delivery time depends on the items and the order quantity.
Q: What is your terms of payment?
A: For payment less than USD1000, full payment in adance.
For payment more than USD1000, 30% TT in advance.,70% TT before delivery.
