TiN metallization vacuum coating machine Special preferential price, sincerely moved world to patronize the new and old user

Product Overview

Description

Special preferential price, sincerely moved world -- to patronize the new and old customers

Titanium Nitride metallization vacuum coating machine

PVD is the abbreviation of Physical Vapour Deposition.PVD coating is a Plasma coating deposition technology.

This machine is applied in coating hard metal membrane and membrane metal compounds on the surface of tools, molds,dies, metal, glass, ceramics, building materials, and other surface treatment industry.

 Main Features:

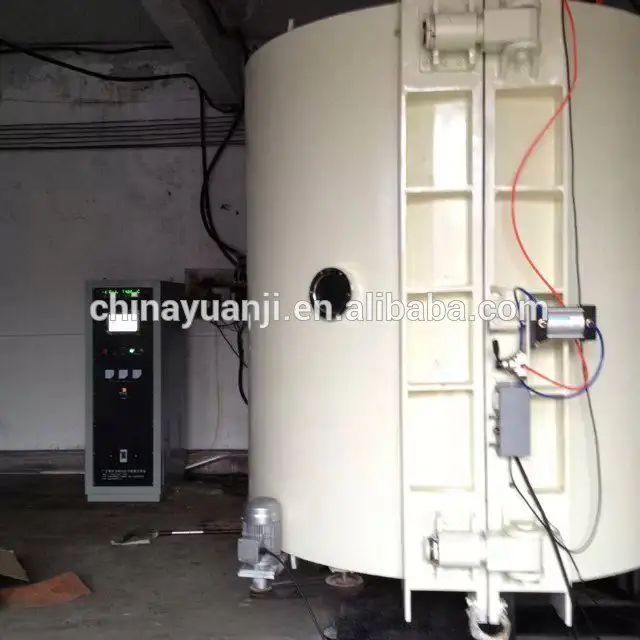

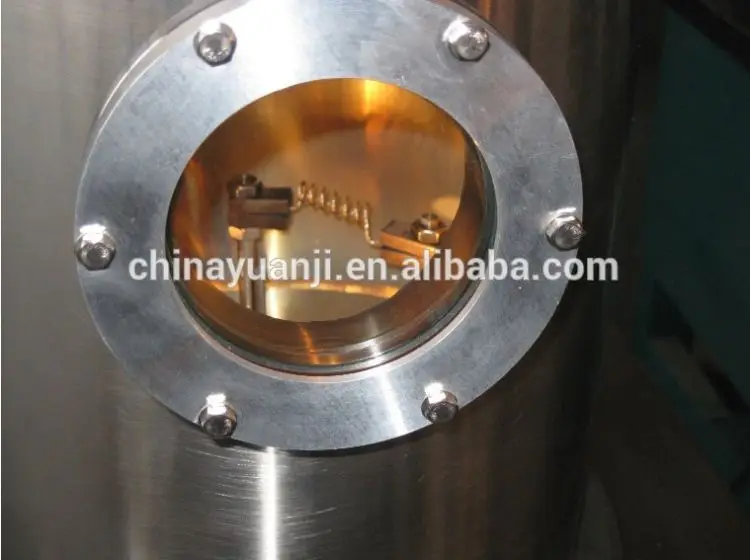

1.The vacuum chamber is a vertical type single door structure made of stainless steel. Chamber size1000~2000mm

2.The vacuum system is composed of mechanical pump, roots pump, and diffusion pump.

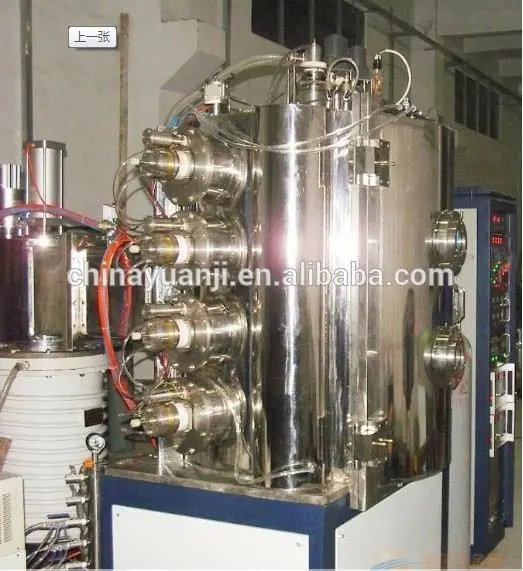

3.Coating system for 10~28 arc or 1~4 arc column or plane arc.

4.High power pulse bias power source.

5.Inflating system has 1~4 sets mass flow control instrument and a gas flow display.

6.The electrical control system is equipped with sound and light alarm devices for circuit overload, water cutoff and air cutoff.

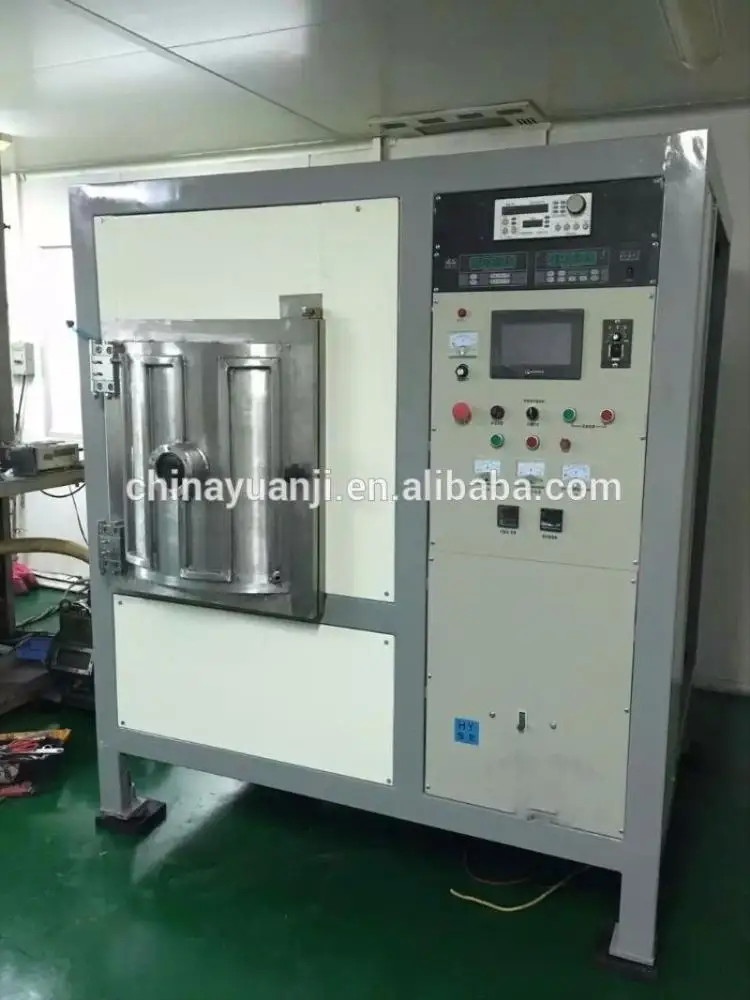

7.The control system (touch screen + PLC) displays detailed parameters at real time and controls the entire production process fully automatically under automatic running mode.



1. It can be plating a variety of pure metal films and alloy films. If the vacuum chamber through a variety of reactive gases, and can coating various compounds film. It has been applied to the construction and daily necessities decorative plating (imitation gold plated, plating a variety of colors), mechanical tool coatings, anti-corrosion coatings in nuclear industry, solid lubricating coatings in the aerospace industry as well as other coatings of various functional coatings.

2. Advantage: High deposition rate, High ionization rate, Easy operation, High productivity and Low cost. No waste gases and water.Magnetron sputtering stably at low temperature.

3. Modes:

    (1) Semi-automatic/Automat

    (2) Automatic bombardment

    (3) Accurate control of various process time

4. Application: Small-sized stainless steel plates, ornaments for hotels, cutters, machine tools, glasses, watches, ceramics,jewelry, locks, faucets, carbide cutters ,drill bits and etc. A wide range of colors could be achieved.

5. Coating color: Gold, Rose gold, Black gold, Coffee, Silver, Champagne gold, Multicolor, etc.

6. Coating film:titanium nitride film, titanium carbide film, zirconium nitride film, titanium aluminum film, chromium nitride, and other superhard functional metal film ( the workpiece coated by ion coating machine can improved hardness, wear resistance, anti-corrosion and more beautiful.)

Specification:

Model	JYD 9090	JYD1012	JYD1216	JYD1416	JYD1618
Vacuum chamber size	900×900mm	1000×1200mm	1200×1600mm	1400×1600mm	1600×1800mm
Total Power	30-60KW	35-65KW	40-80KW	40-80KW	75-100KW
Bias power	20KW/set	20KW/set	40KW/set	40KW/set	50KW/set
Technology	Magnetron sputtering,pvd ion coating,vacuum coating
Working gases	N2, O2, Ar, C2H2
Material of vacuum chamber	superior stainless steel vacuum chamber
Vacuum chamber structure	Vertical , door on the side

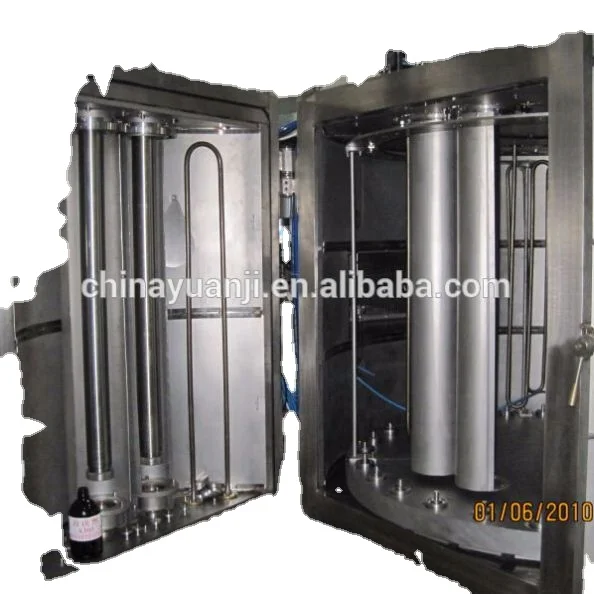

Workpiece turntable	Planetary frame, revolution + rotation
Workpiece baking temperature	Controllable and adjustable from room temperature to 450°C
Power source Type	Arc power supply, bombardment bios and heating power supply
Ultimate vacuum	≤8×10-4pa,pressure rising rate≤0.67pa/h, Pump down time (exhaust speed) : from atom to 8x10-3 pa ≤20min
Vacuum system	Oil diffusion Pump+ Mechanical pump +Maintenance Pump + Roots Pump (the number of the pumps are designed according to customer’s need)
Control mode	Manual,semi-auto,auto, touch screen operation, PLC or computer control
Cooling system	water-cooling system
Arc source	4 - 6 units	8 -10 units	10 -16 units	14 -16 units	16 -18 units
Magnetron target	2	2	2-4	2-4	2-4
Equipment area	6-15m2	10-15m2	15-30m2	15-30m2	20-35m2
Other technical parameters	Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa
Remark	The specific configuration of coating equipment can be designed according to process requirements of coating products
