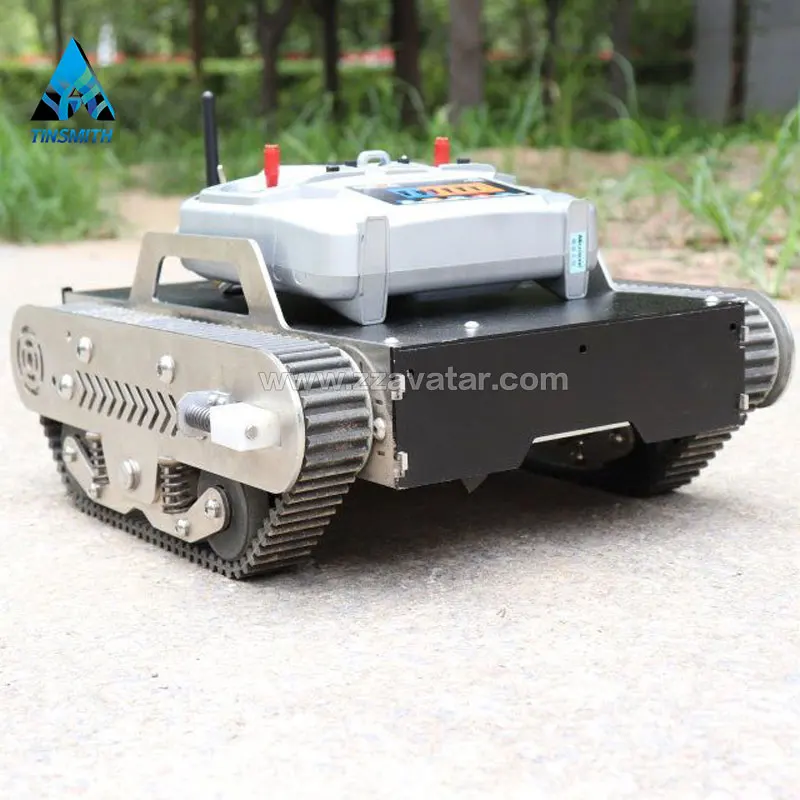

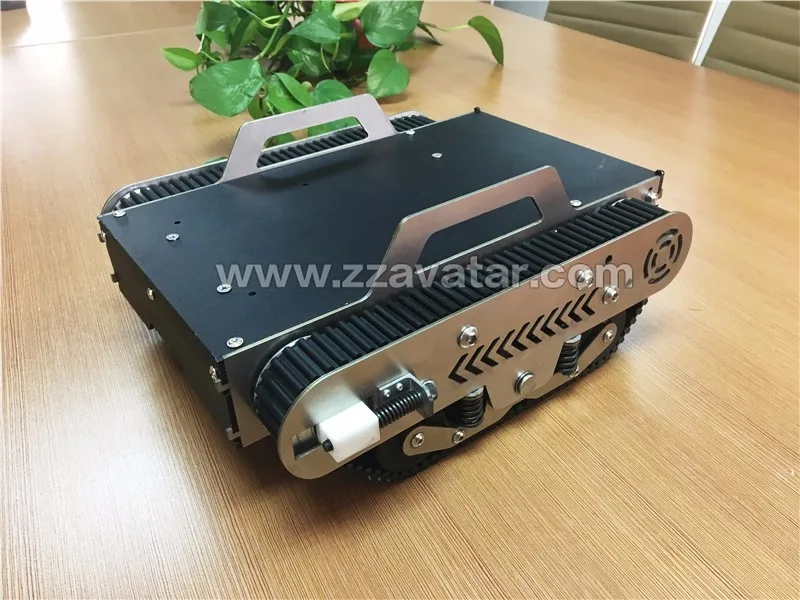

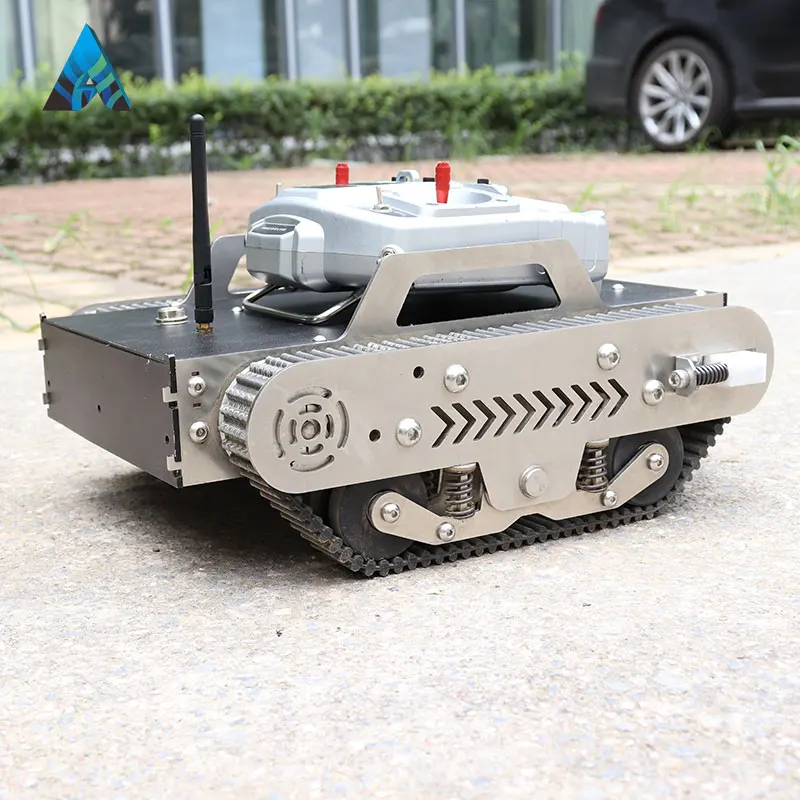

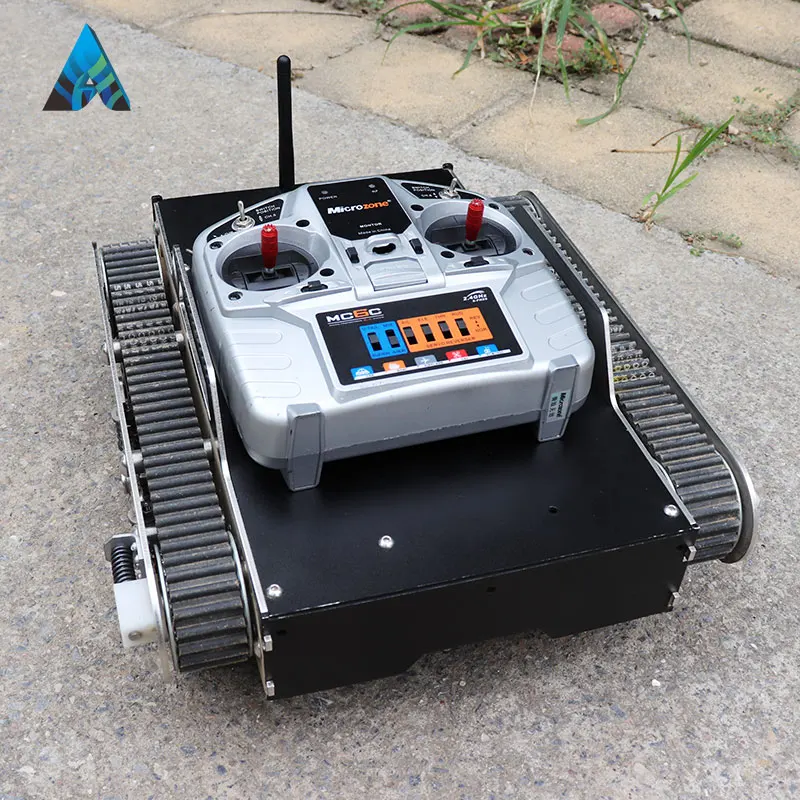

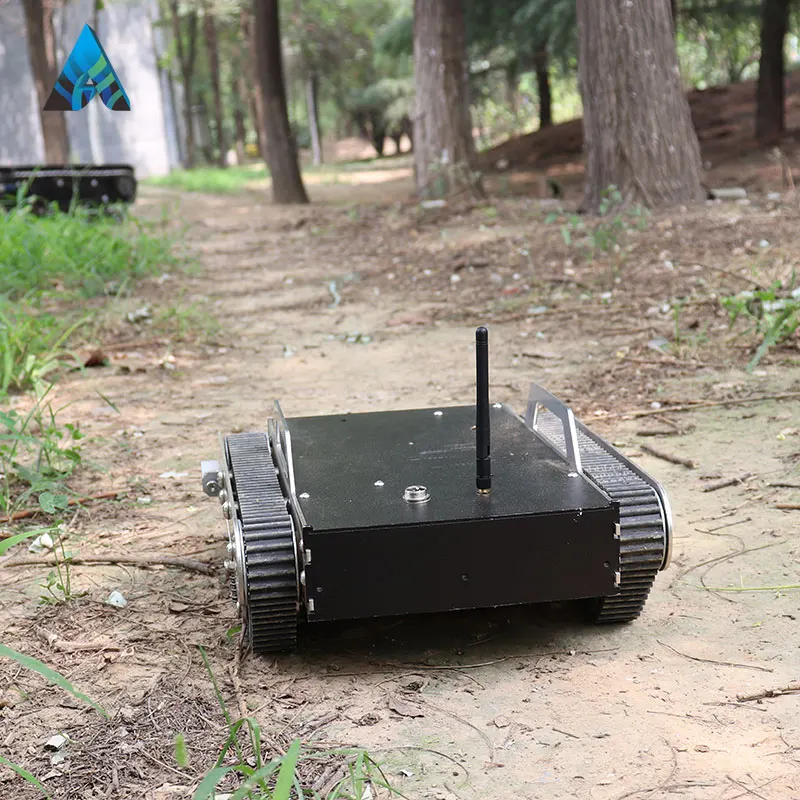

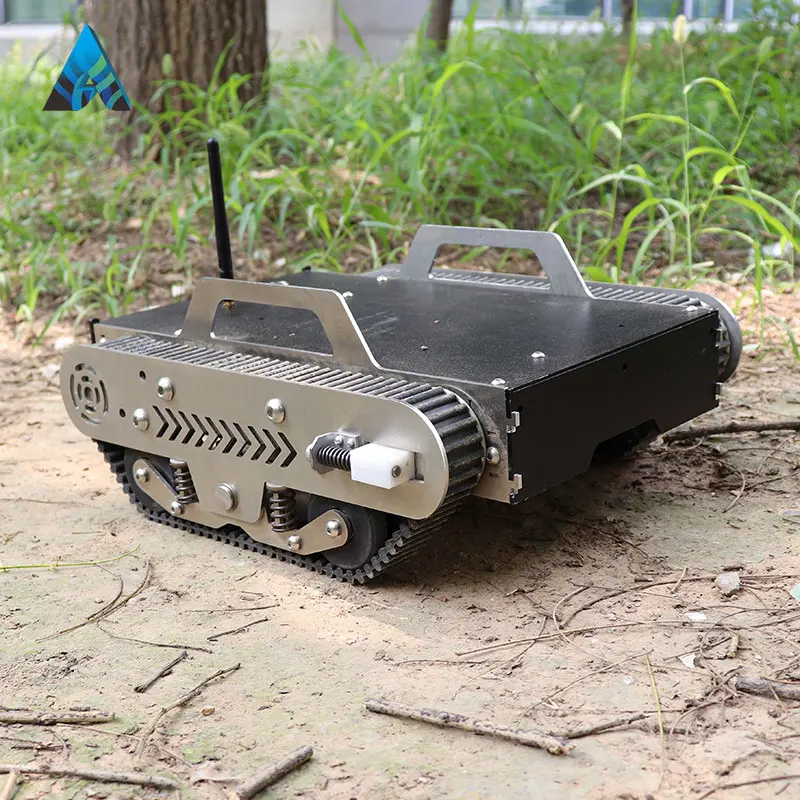

Remote control small rubber track robot tank chassis

Tins-3 robot platform is mainly used for secondary development of robot products.

The platform is equipped with various interfaces for installation, such as,  mechanical arm, cameras, draft gear, etc.

1. Rubber Track with Better Adhesion to Ground.

2. Stainless Steel and Aluminum Combined Body, Robust and Light for Delivery and Take.

3. 8-level Damping: 4 Rubber Wheels Shock Absorption, 4 Spring Shock Absorption, Making It More Sable and Good for Different Ground Conditions.

4. Hold handle with user-friendly design. The edge is polished, with smooth feeling when holding it.

5. Spring Tension at Two Sides of Robot Platform, Making it More Stable and Robust, Reducing Rubber Track Wearing.

6. Loading Capacity is 80-120kg. Small in Size, but Powerful for Loading.

1. Fully digital control. It adopts stepper motor, which can control the turning, speed and stroke precisely, ensuring accurate working.

2. Automatic tensioning of guiding wheels. No need to adjust manually, which can ensure good tension and working of track.

3. Shock absorbing structure with two degrees of freedom. High quality load bearing wheels and excellent torsional spring form two degrees of freedom(concave convex shock absorption and center of gravity shock absorption). This design will make it more stable and stop structure from plastic deformation caused by fluctuation and drop acceleration, ensuring durable working.

4. Many mechanical expansion slot. There are mechanical expansion slots in the front, back and upper sides. You can equip other devices for different demands from clients.

5. Modular design for electronic part. The power control system is independent modular with standard circuit interface, good for secondary development and equip other electronic equipment.

6. Multiple power mode, you can equip battery, gasoline generator, etc.

7. Multiple control model, you can use ADSL cable control or remote control as options.
