Drum unit silicon oxide plating vacuum coating machine
- Category: >>>
- Supplier: Ningbo Junying Vacuum Machinery Co. Ltd.
Share on (62022266966):
Product Overview
Description
Product Description

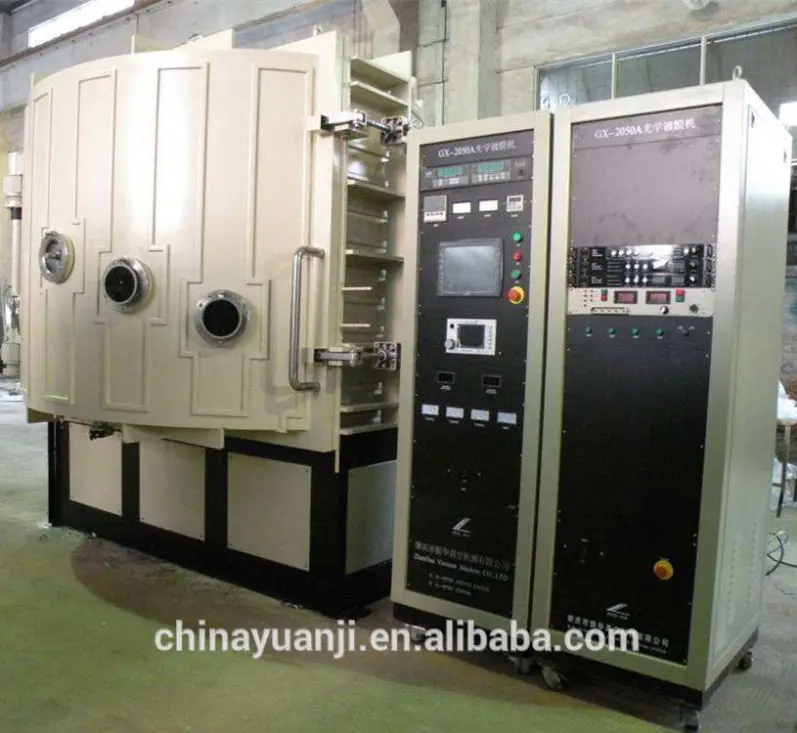

The electron beam vacuum coating machine
Optical coating machine equips multi pieces of sectors or single arc-shaped part. It can coat multi-layers like optical filter, reduce anti-reflective film on viewing window or spectrum element that applied to optical instruments optical lens. Touching screen + PLC and fully automatic crystal film thickness controller make up the fully automatic controlling system that can realize parameter input, process monitoring and data saving. Technological process can be set and operates automatically. It can improve the quality of film layers which manual operating machine cant do.
It is suitable for coating antireflection coating, optical filter, multicolor, red, yellow, green and blue on optics lens, electronics, acrylic, glass, lamps, mobile viewing window, glasses, lighting.
Technical reference
Model | JYGX-800 | JYGX-900 | JYGX-1100 | JYGX-1300 | JYGX-13500 |
Chamber Size | 800×900 | 1050×1200 | 1100×1300 | 1300×1300 | 1350×1500 |
Coating Film Type | Optical antireflection film, AR, broadband antireflection, single-point antireflection, optical filter and decorative film | ||||
Fixture | 4 pieces of arc-shaped fixtures, single arc-shaped plate revolution, 3 pieces of plates planet rotation and revolution, 12 shafts rotation and revolution (horizontal) | ||||
Vacuum Chamber Structure | vertical / horizontal (304 stainless steel), vacuum system post positioned | ||||
Vacuum System | slide valve pump(rotary pump), roots pump, diffusion pump, maintaining pump (optional: molecular pump, deep cold pump, deep cold system) | ||||
Heating System | heated by heating tube, PID control, the max temperature: 350 degrees | ||||
Inflation System | mass flow controller & electric magnetic valve | ||||
Electric Gun | Electric gun 4 round shaped crucibles and a U shaped crucible, high voltage 4KV-8KV adjustable. Triangle wave, sine-wave and rectangle wave scanning are optional. | ||||
Resistance Evaporation Source | 2 groups of resistance evaporation source | ||||
Ion Source | power 2KW, max anode current 6A. double filaments which increase the attaching force, density and reflective index of film layer (Kerr) | ||||
Crystal Film Thickness Controller | crystal film thickness controller SQC-310(America)and PLC make up the fully automatic pumping and E-beam evaporation system. | ||||
Ultimate Vacuum | 8×104paclean and unloaded | ||||
Pump Time | From atmosphere to 5×103pa less than 15 minutes | ||||
Controlling Method | manual, semi-automatic, fully automatic / touching screen & PLC | ||||
Remark | Can be designed according to customers request | ||||

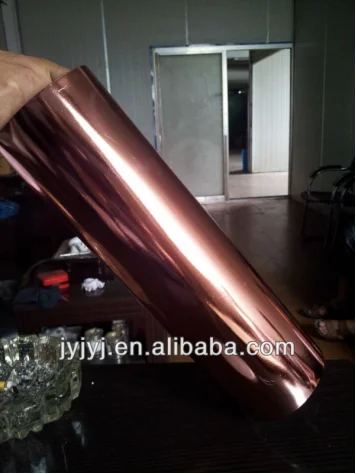

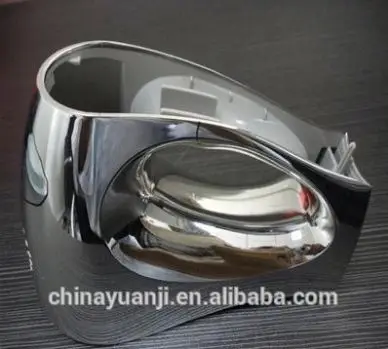

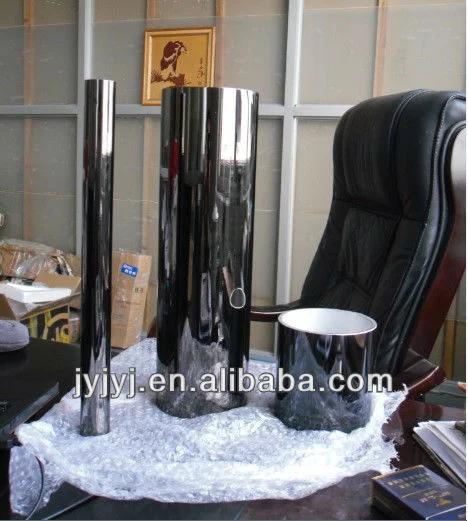

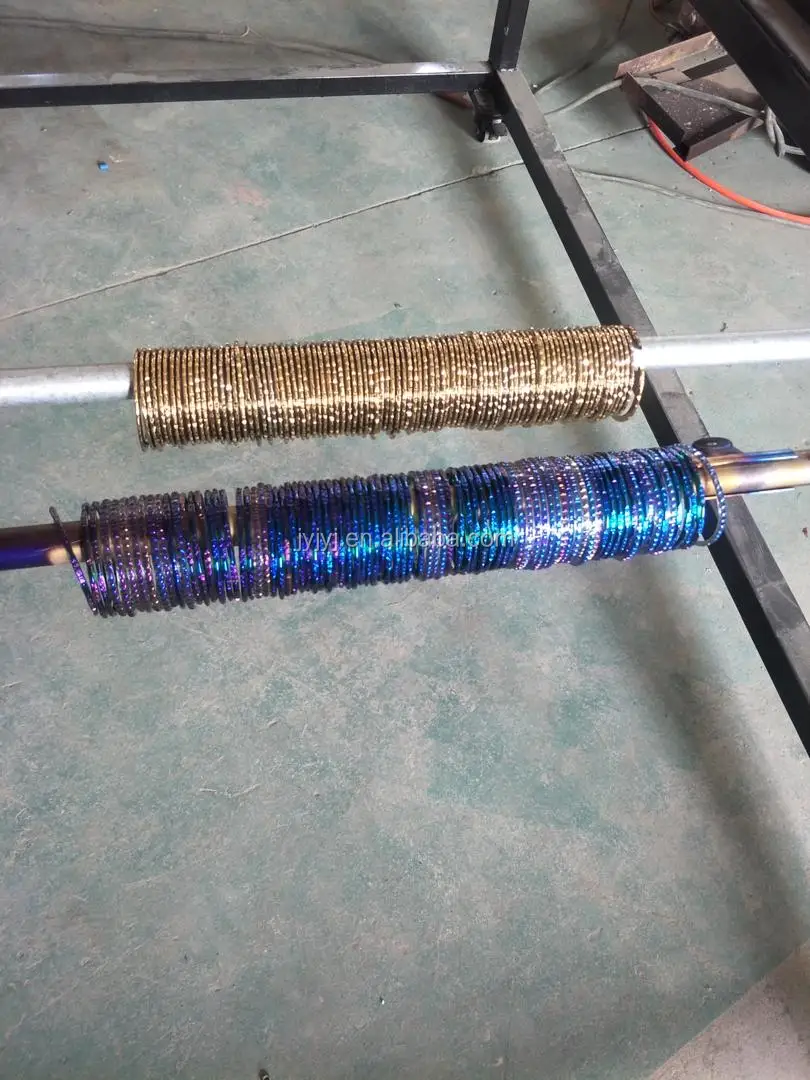

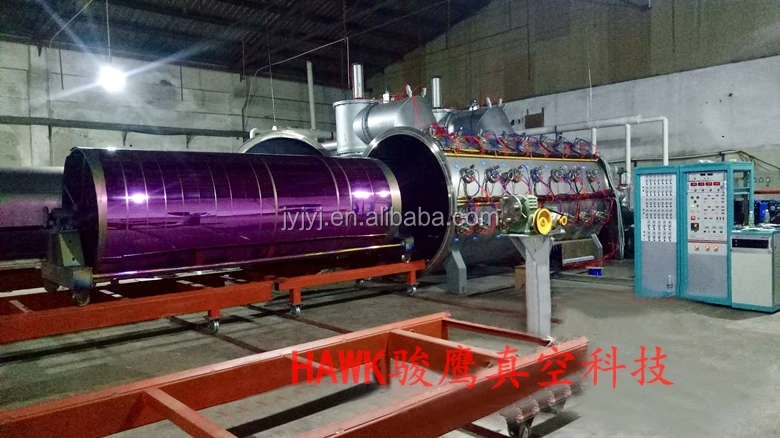

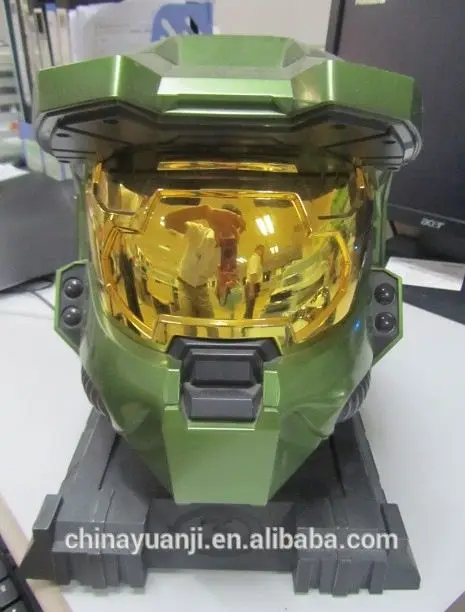

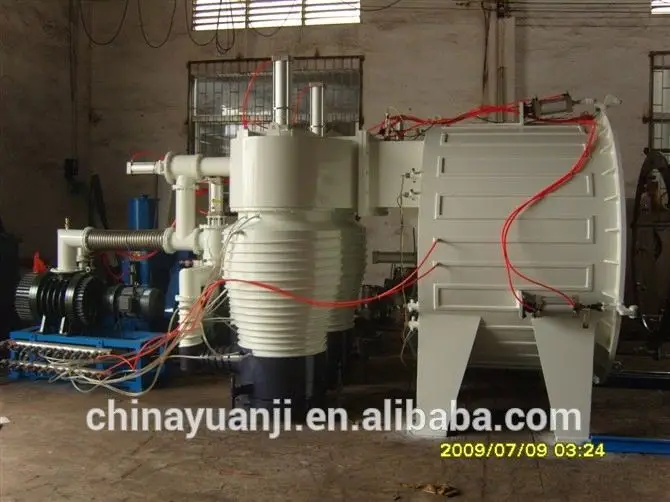

Picture show
Company Information
Ningbo Yuanji Vacuum Technology Co., Ltd.that is a leading vacuum coating engineering integrated provider in China. Is a collection development, design, production, foreign trade and service of high-tech enterprises. we create maximum value for customers through our close dedication to customer-centric innovation.
The products we manufacture are as follows: evaporative coating machine, multi-arc ion coating machine, multi-arc ion magnetron sputtering machine, medium frequency magnetron sputtering coating machines ,electron beam coating machine, continuous evaporation (magnetron sputtering) coating production lines, more than features such as multi-layer film coating machine series vacuum coating equipment.
Our company have perfect R&D and manufacture system,customer service system.There are many domestic and foreign experts working with us.Our products and craft have been deployed all over the world. Selling products in Russia, India, Malaysia, Turkey, Brazil, Mexico and Egypt Syria, Ian and Israel American etc
The company's aim is first-class quality, first-class service ,Dedication to the community. Customer demand is really our goal.
Packaging & Shipping
Our Services
1. Professional sales person and technical team to lead you to invest the project with best budget.Turn-key project offering.
2. Quality control,high technology productivity to make sure the good quality machine production.
3.1 year warranty was provided since the date of delivery. In 1 year's warranty,For small problems about the machine,our profesional after-sales team will help to solve on line.For big problem,we will dispatch the engineer to your factory to solve problem.Large experienced engineer team is ready to serve all of you in the whole of the world.
Contact us
We can design the dimension of the vacuum chamber according to your requirements. We can also design and configure the vacuum unit and electric controlling system according to your requirement. .
