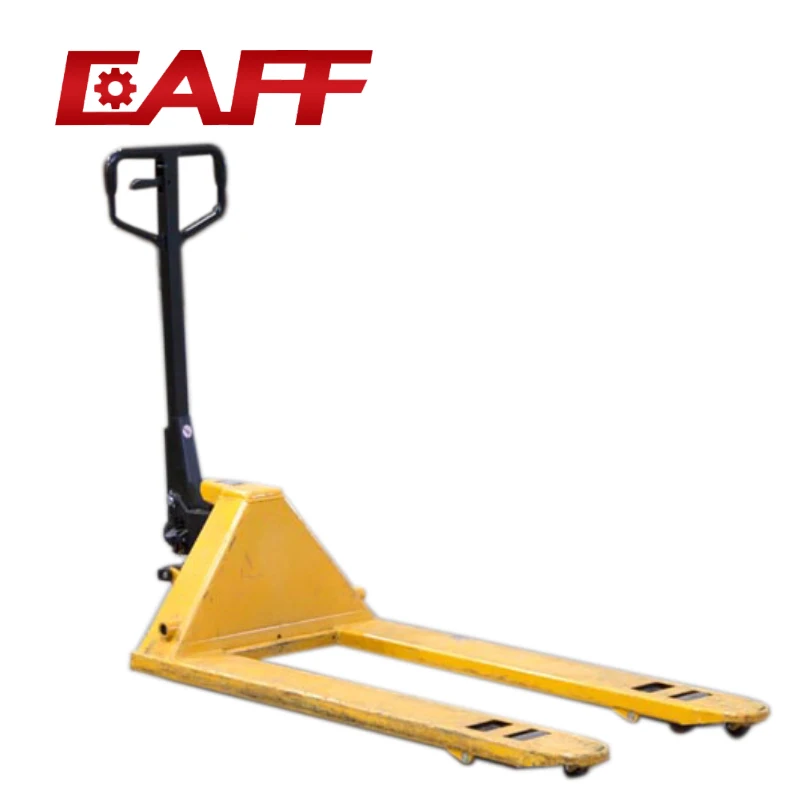

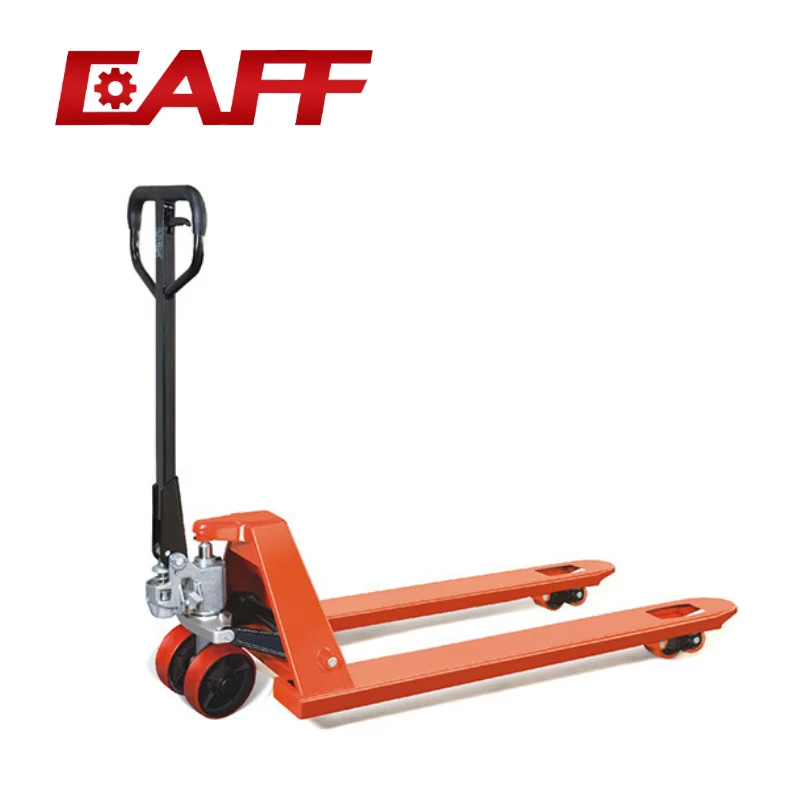

1.Hand pallet truck also known as manual pallet truck, hand pallet truck when use the carrying goods fork into the tray hole,by the ability to drive hydraulic system to realize the pallet load lifting and falling, and pulled by human complete handling operations.

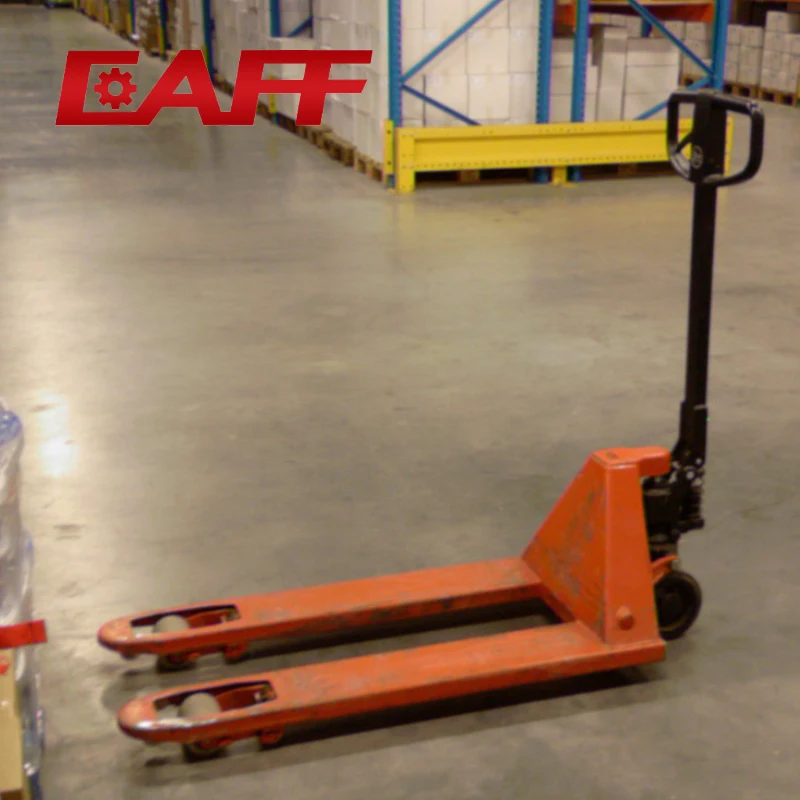

2.It is the simplest and most effective tray in the transport, the most common type of loading and unloading, handling tools,widely used in logistics,warehouses, factories, hospitals, schools, shopping malls, airports, stadiums, station, airport and so on
Capacity | 2 | 2 | 2.5 | 2.5 | 3 | 3 | 5 |
Minimum height (mm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
Max lift height (mm) | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
Length(mm) | 1150 | 1220 | 1150 | 1220 | 1150 | 1220 | 1220 |
Width(mm) | 550 | 685 | 550 | 685 | 550 | 685 | 685 |
Wheel type | Rubber/PU/Nylon | Rubber/PU/Nylon | Rubber/PU/Nylon | Rubber/PU/Nylon | Rubber/PU/Nylon | Rubber/PU/Nylon | Rubber/PU/Nylon |
Load wheel size(mm) | 70*80 | 70*80 | 70*80 | 70*80 | 70*80 | 70*80 | 70*80 |
Steer wheel size(mm) | 180*50 | 180*50 | 180*50 | 180*50 | 180*50 | 180*50 | 180*50 |

AC/DF two type :
The difference between the two:
AC oil pump is a pump, one-time casting molding.
DF oil pump is split pump is separate welded, the advantages of an integral pump is raised after loading effort,
The valve core is an integral whole, and the valve core has the advantages of long service life, little trouble and labor saving.


DF welding pump
Reduce the whole pallet truck costs, affordable,
with the following advantages:

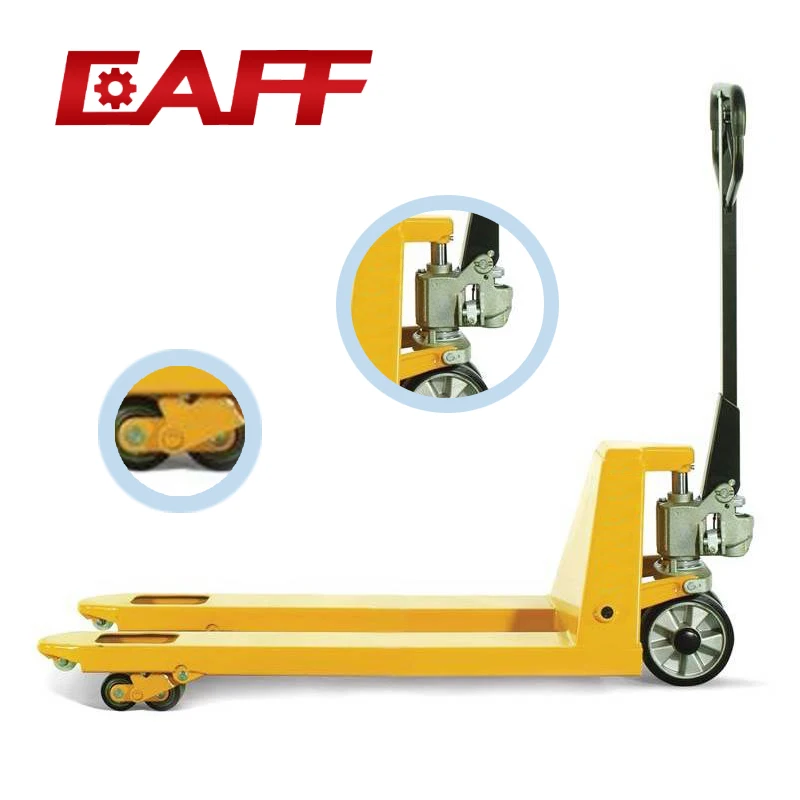

1. Oil pump with manual slow down control valve, high safety
2. Three adjustable handle for easy operation
3. In the front of fork is cambered, easy to insert the pallet
4. C-type fork can support heavy load, durable
5. The fork can be manually adjusted to control
the minimum height of the fork
Notice:The min lifting height is 75mm

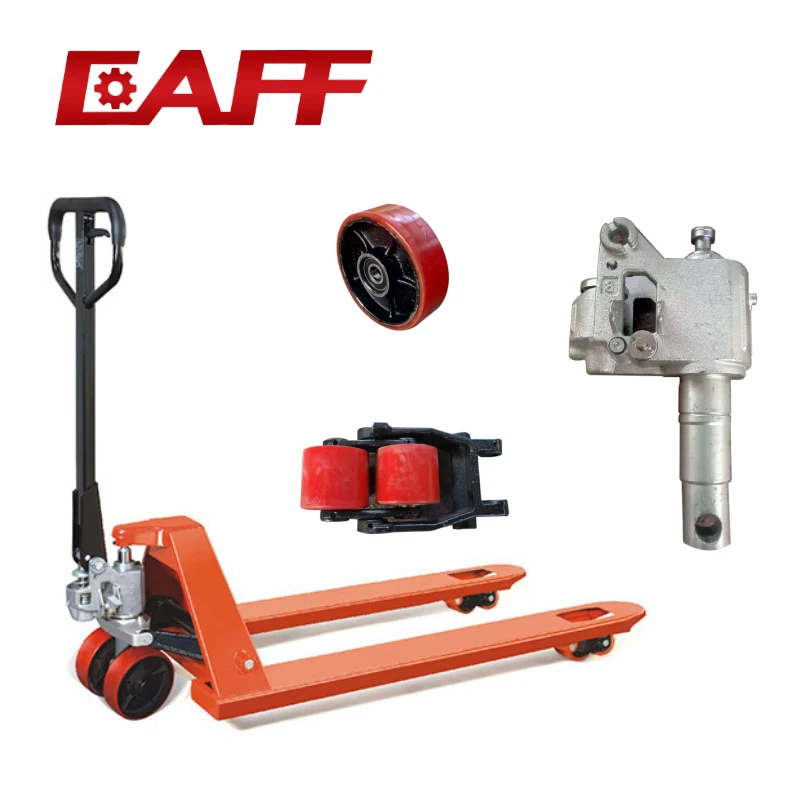

Wheel Selection :


PU wheel (also called polyurethane wheel)
Wear resistance, no indentation, mute, shock absorption,
It is suitable for marble, paint and epoxy floor
The nylon wheel has low turning power,
Light pulling, stable chemical properties and so on,
Suitable for the use of cement ground
