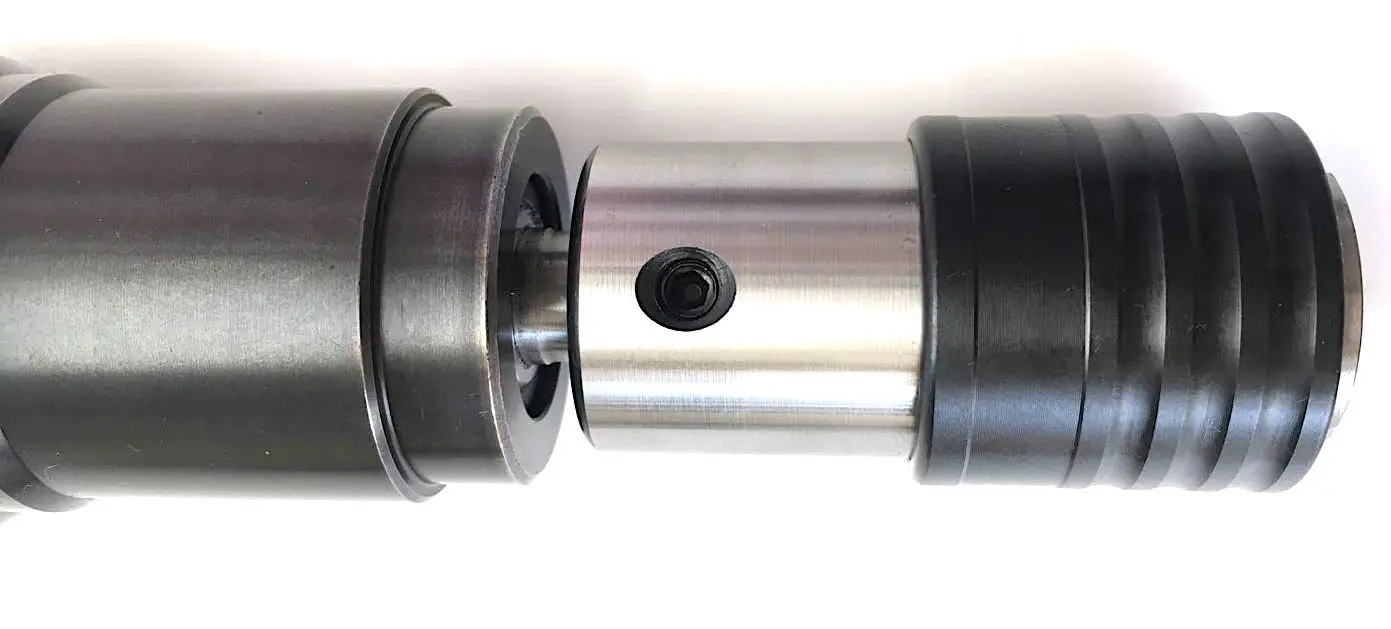

Pneumatic Tapping Machine TAP HOLDERS PRECISION TAP HOLDERS permit to work rapidly and with high precision

Product Overview

Description

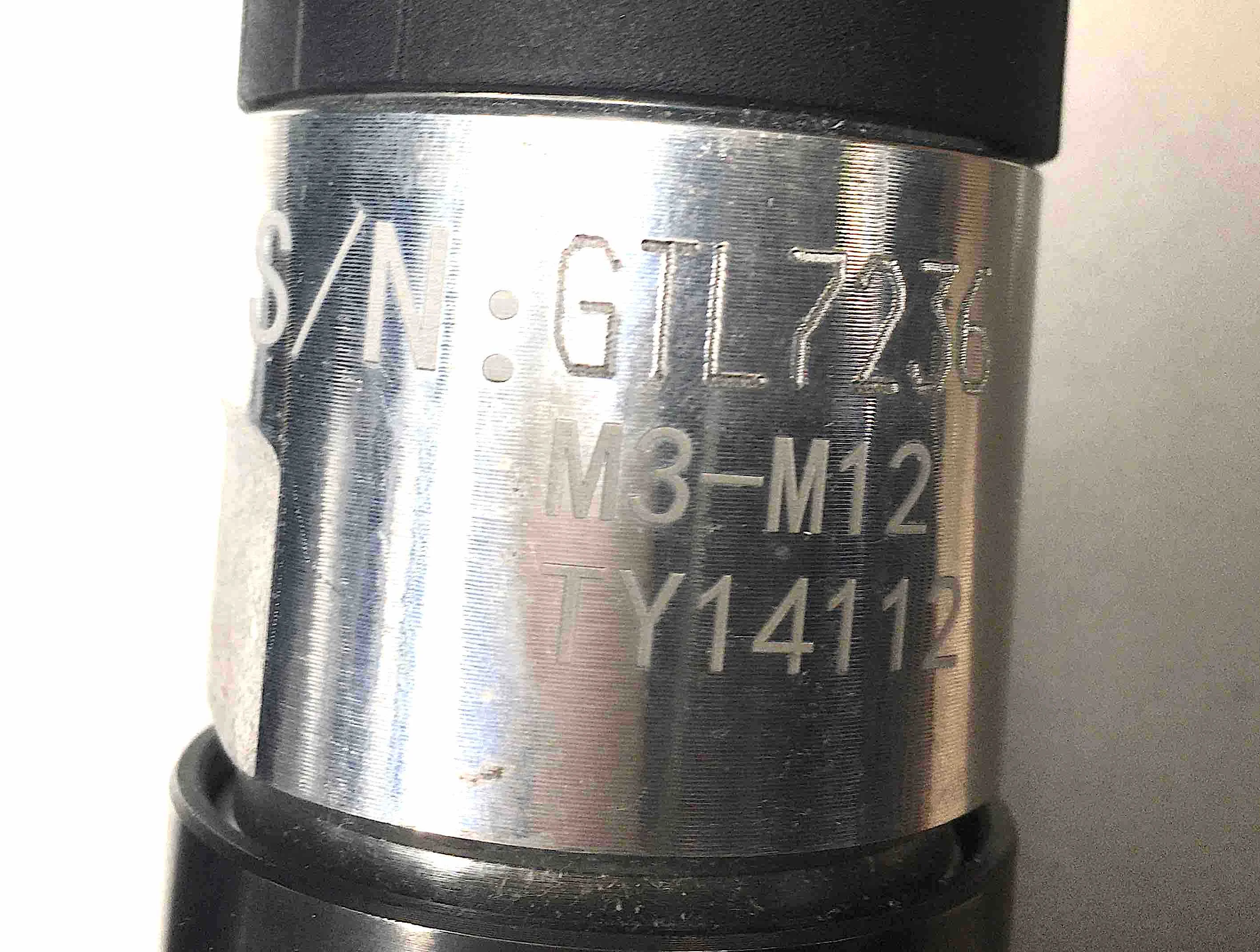

MODEL	TY14112
MODEL NUMBER DESIGNATION	1: Drilling Tools 4: Inline Tapper 1: Reversible 12: Max Tap Capacity
TAP CAPACITY	M3-M12

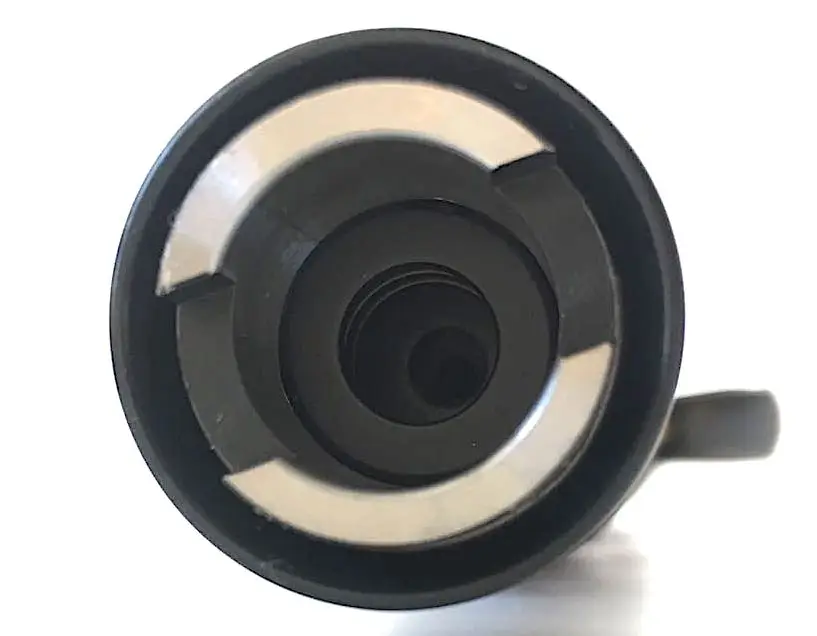

SPINDLE	B12
TORQUE	35 NM
POWER	300W
GRIP	IN LINE
VELOCITY	400RPM

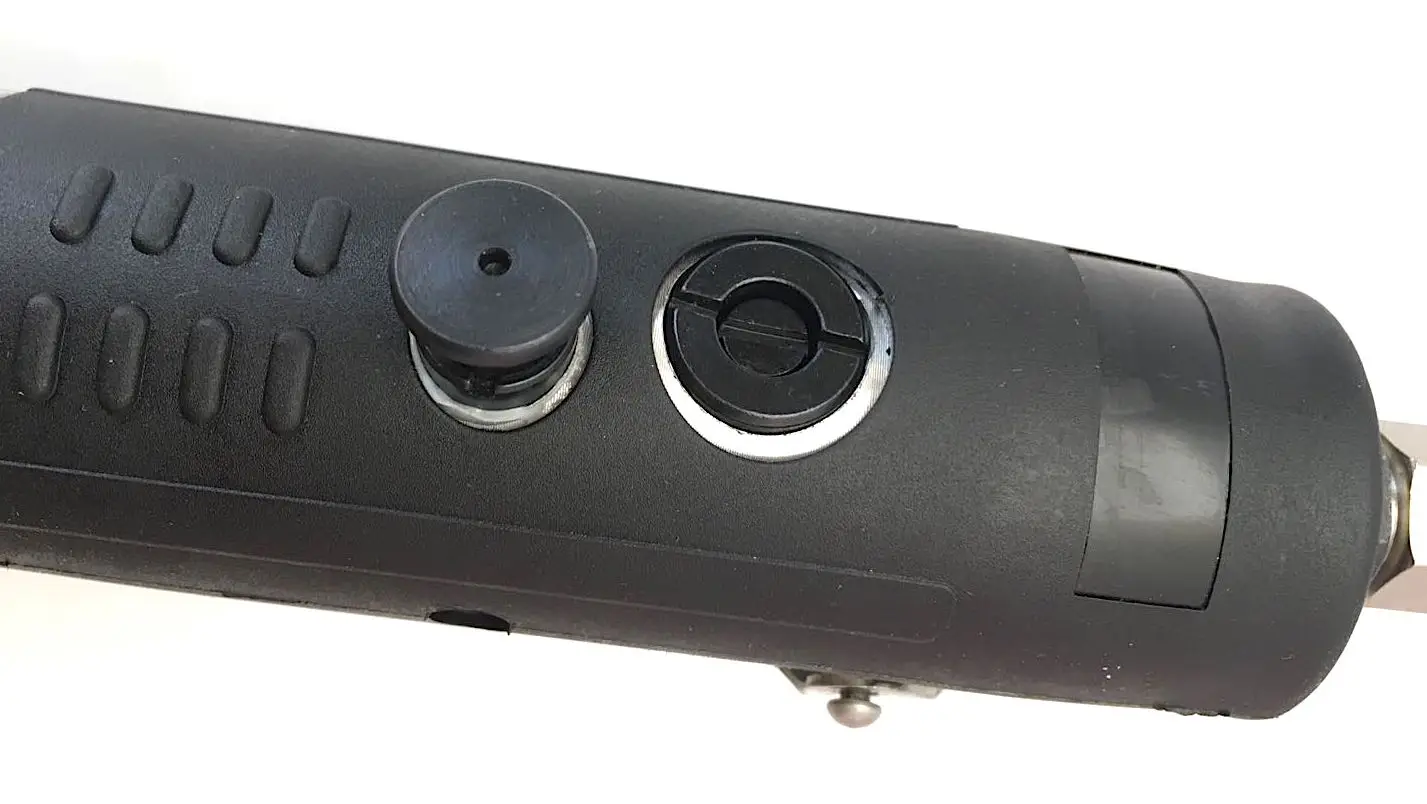

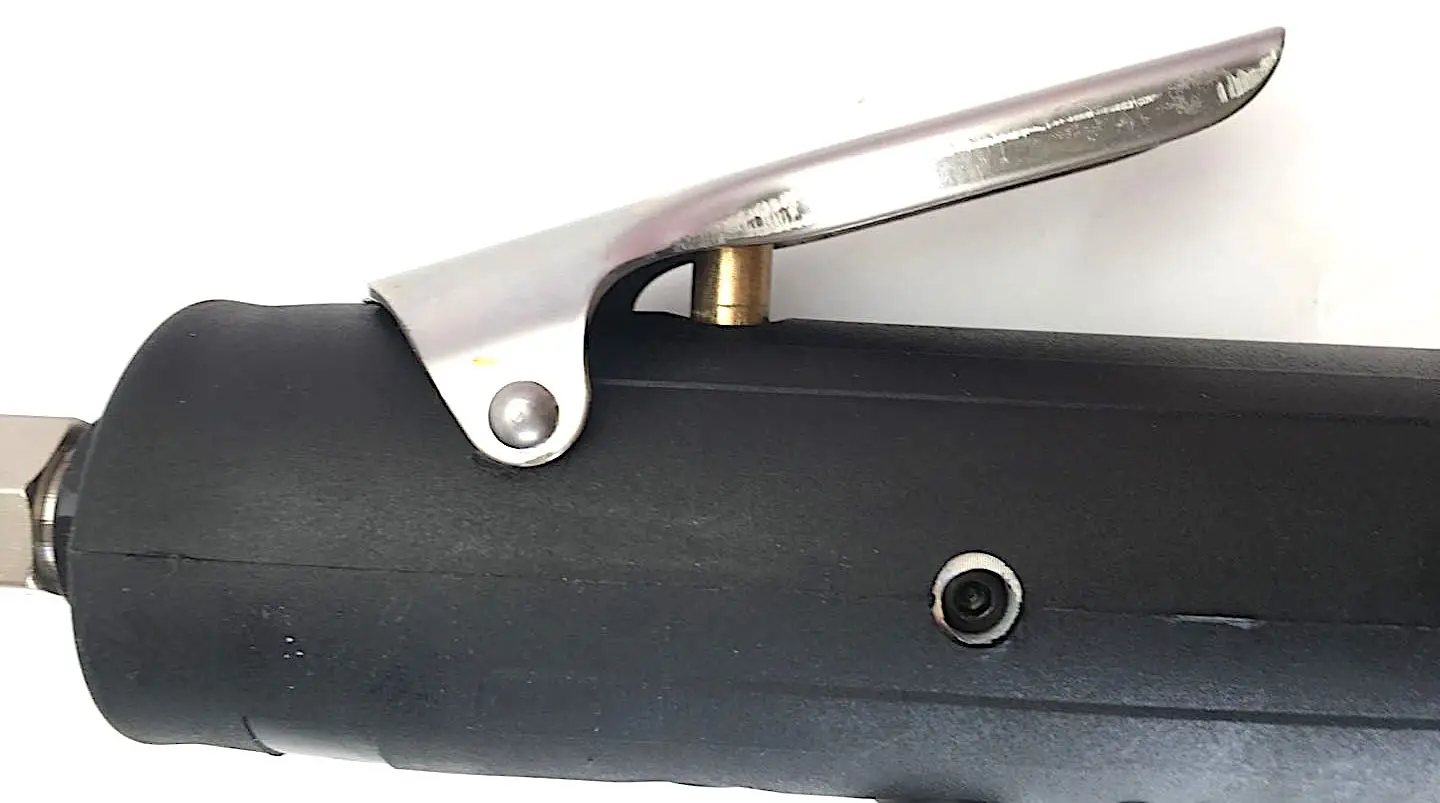

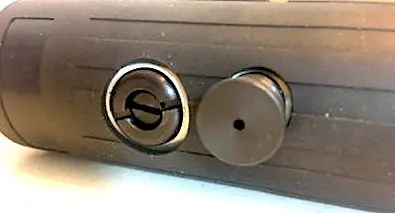

START	LEVER+PUSH
REVERSIBILITY	YES
WEIGHT	1.7KG(3.7LBS)
AIR CONSUMPTION	0.3 m3/min(11CFM)
HOUSING Ø	38MM(25.8 ft. lb)
AIR PRESSURE	0.63MPA
CURRENT	PNEUMATIC

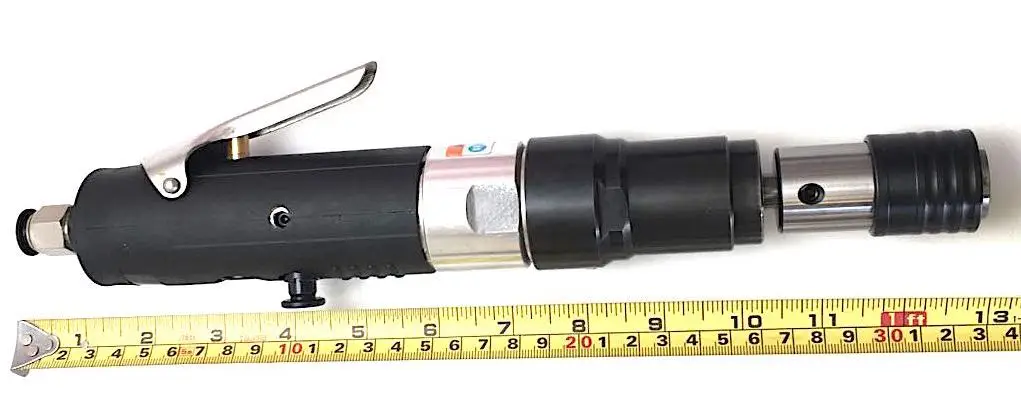

LENGTH	300mm
AIR INLET	1/4”
REC AIR HOSE	3/8”
SOUND PRESSURE LEVER	74 dB(A)
SKU	353410

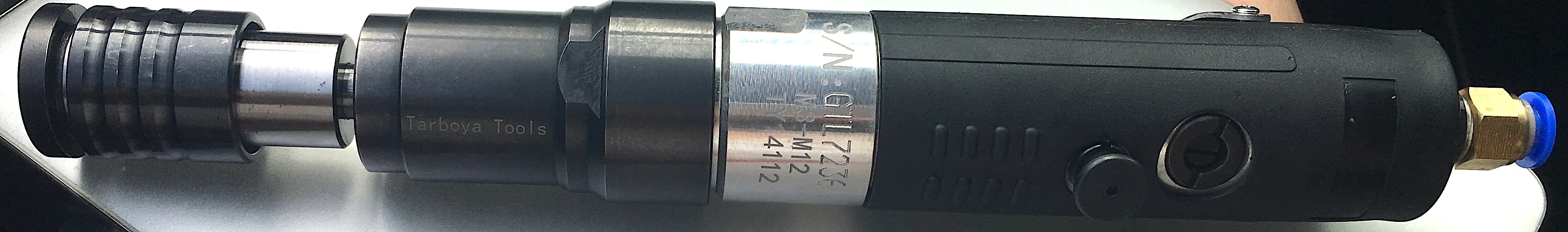

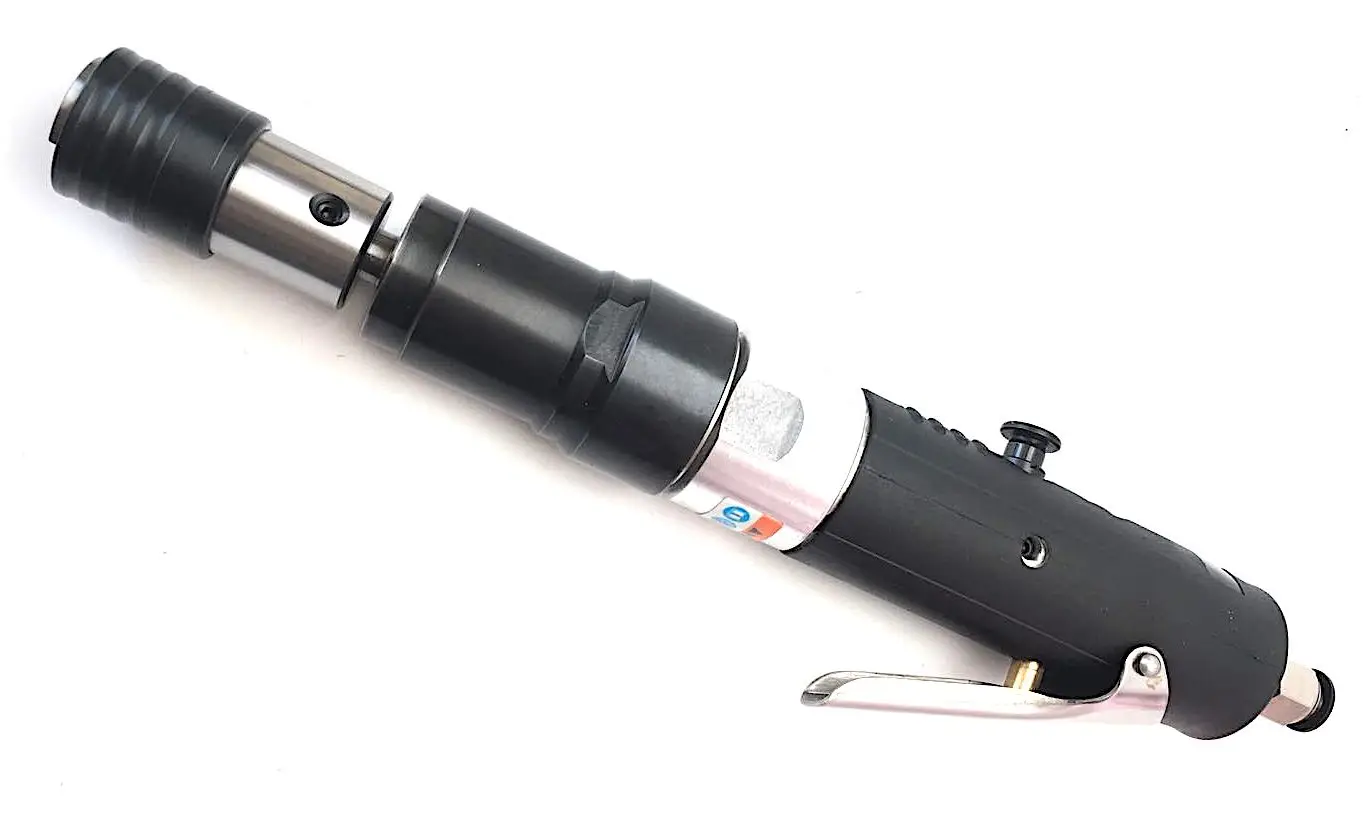

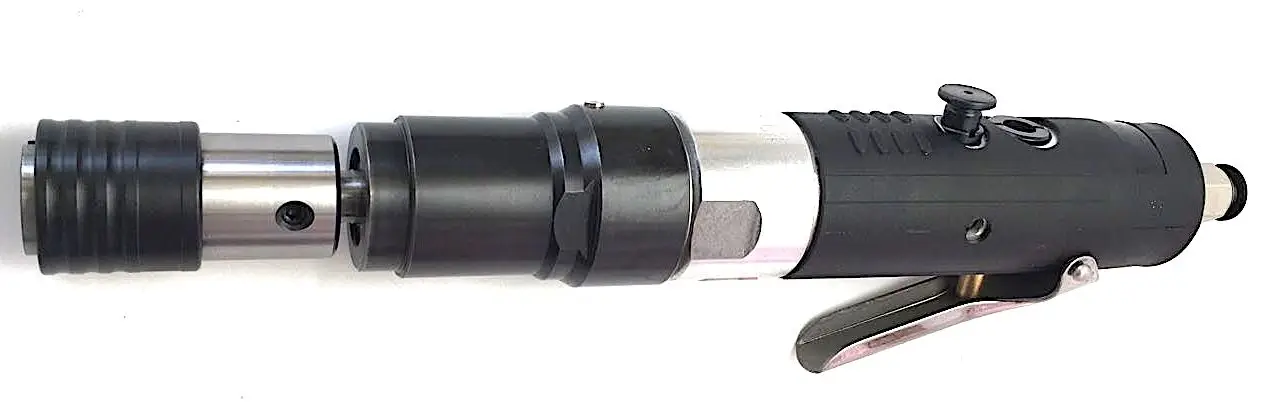

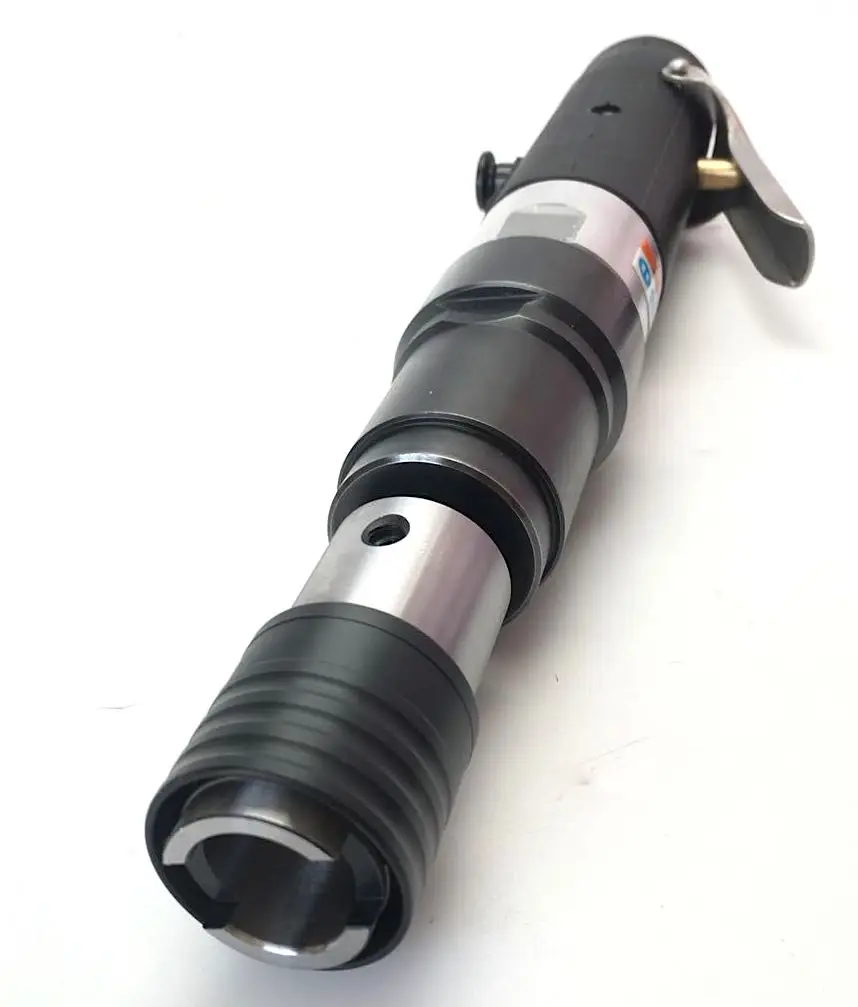

TY14112 Tapper is the best solution for manual machine tapping, being fast to use and easy to handle, even when high quality standards are required. It combines an excellent power to weight ratio with tremendous ease of handling and versatility. This model could cut threads ranging from M3 to M12 in any material, inserting studs and threaded sleeves, used in the metal industry, car body plants, plastics processing companies, the timber/wood sector, apparatus, ventilator and container building as well as repair and maintenance companies.



Tarboya Drilling Tools Brochure could be downloaded from www.tarboya.com









At Tarboya, we bring you only two things: great products and exceptional service. Whenever you are using your pneumatic tools , we make sure you have the technology you need to be safe and efficient. Tarboya supplies both Russia pneumatics and ordinary air tools. Our team, capable of designing, developing, CNC modification and production, supports multiple industries with innovative, high quality air tools and accessories for the most demanding applications. Tarboya’s export starts in Mid 2018, our Alibaba shop was incepted in 2019 but we   a-r-e   d-i-f-f-e-r-e-n-t !

Wait.. Are you kidding me? What the f**k Tarboya, you are only 2 years old and even do not know the ABCs of air tools.

Before 2018, we are doing inland sales. That is the point. Our production and marketing team have been in air tools line for more than 10 years. These backbones have in-depth knowledge and knows air tools very well.

You will find Tarboya owner’s manual, here in Tarboya we name it Passport, is not the simply exploded view or general safety rules translated by Google, but the detailed technical description and operating instructions accurately written.

We assure you only the best designs, materials and production methods are used to make the tools that carry the Tarboya Name.

Quality tool, favorable price, professional papers, swift after-sale service. These are the very four Tarboya wanna to put in your hand.

Tarboya warrants TY14112 air tapper will not have any material or manufacturing defects for the period of 12 months from the date of delivery. The warranty for flawless function of the goods and the materials used is granted for the period of 12 months from the date of delivery of the goods.

Tarboya undertakes to remove any possible defects covered by the warranty free of charge and without undue delay, so that the buyer of the goods can use the product properly. Should the buyer exercise rights arising form the liability for the defects which are not covered by the warranty, he/she shall pay all related costs.

Tarboya’s  warranty shall be deemed void in the event of:

• Improper use of the machine,
• Use contrary to national or international standards,
• Incorrect installation,
• Faulty supply of compressed air or its poor quality
• Serious deficiencies in maintenance,
• Unauthorized modifications and/or interventions,
• Total or partial non-compliance with the instructions included in the manual
• Exceptional events, natural disasters and others.
