CHEO1 1034 DC6V, 12V or 24V Sroke 6mm frame Push Pull type solenoid Electromagnets
- Category: >>>
- Supplier: Wenzhou Chen Intelligent Technology Co. Ltd.
Share on (62022343575):
Product Overview
Description

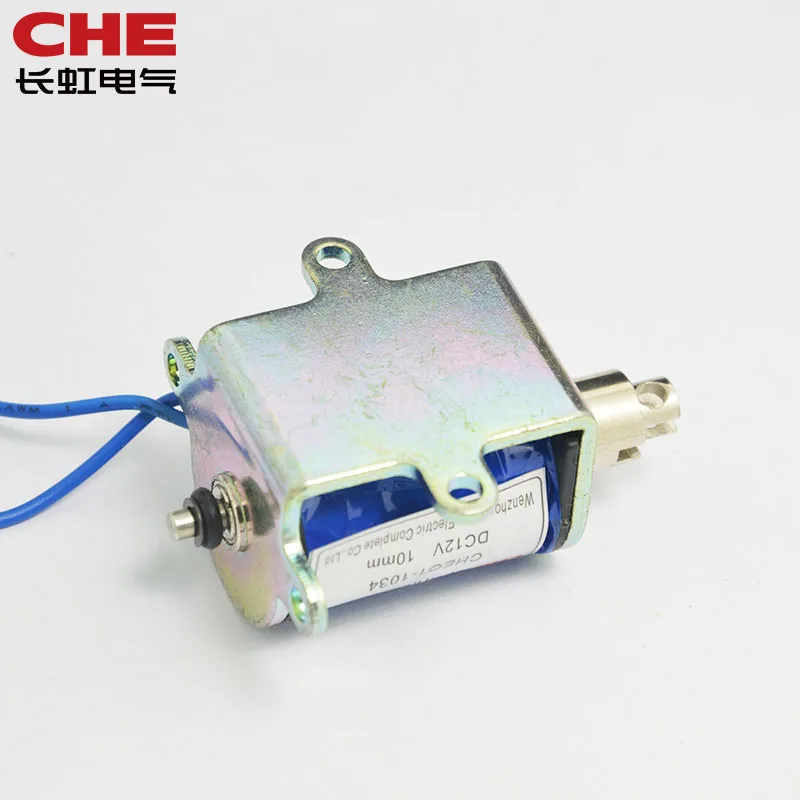

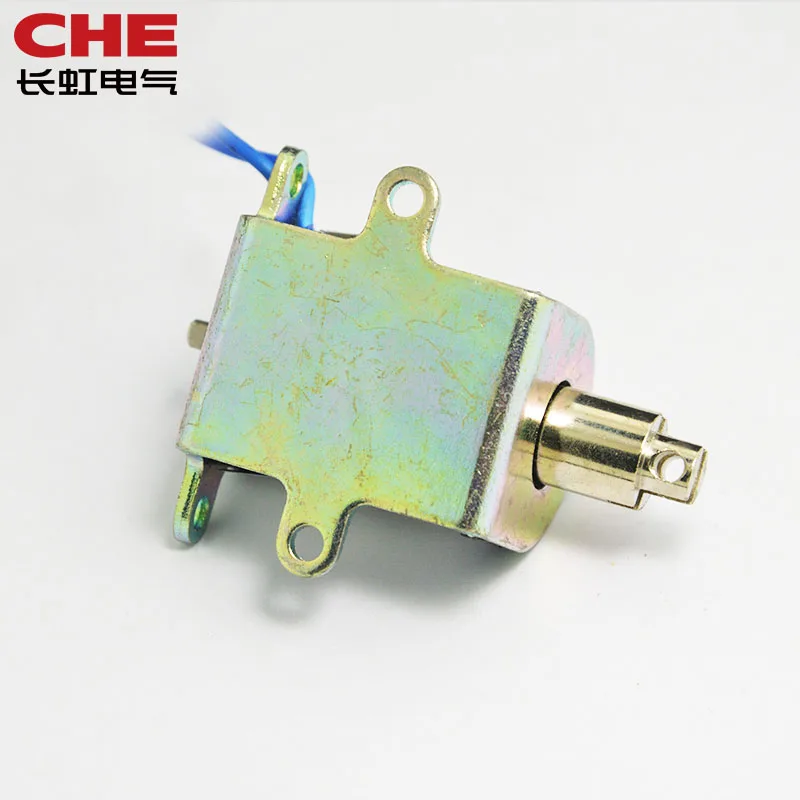

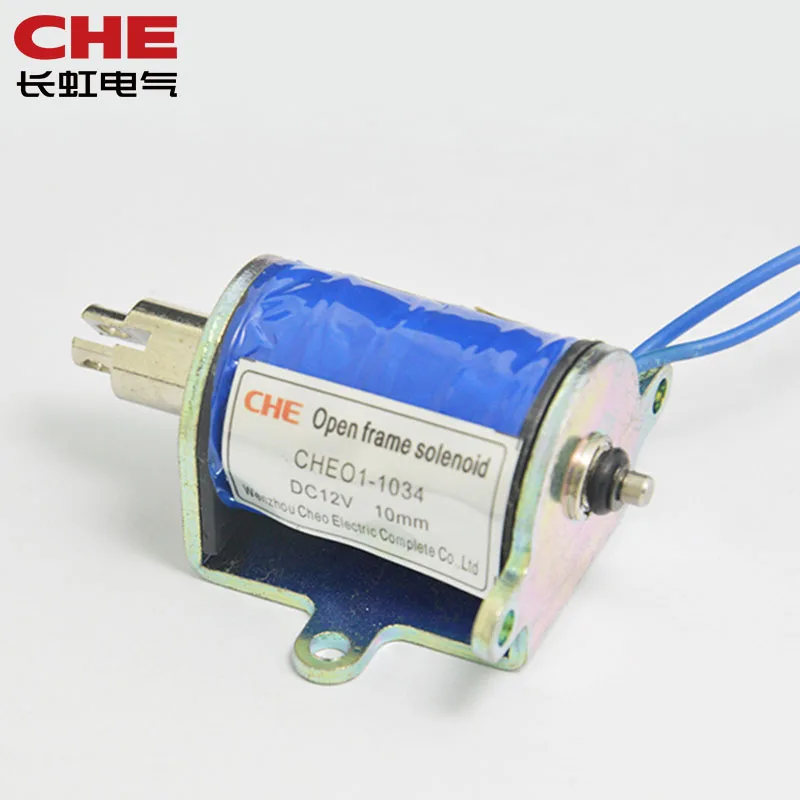

CHEO1-1034 DC6V, 12V or 24V Sroke 6mm frame Push Pull type solenoid Electromagnets
Product Description
| Type | Outline size(mm) | Total weight(g) | Loss efficiency (W) | Continue | Gravitation(g) | ||
| W×H×L | Movable core (g) | 0mm | 2mm | 4mm | |||
| E1-0416 | 10×11×16 | 10 | --- | --- | --- | --- | |
| 2 | 4.0 | 300 | 75 | 25 | |||
| E1-0520 | 13×15×20 | 17 | --- | --- | --- | --- | |
| 3 | 6.0 | 400 | 65 | 20 | |||
| E1-0530 | 10×15×30 | 26 | --- | --- | --- | --- | |
| 4 | 7.2 | 530 | 120 | 50 | |||
| E1-0630 | 16×19×30 | 46 | --- | --- | --- | --- | |
| 6 | 9.6 | 1030 | 400 | 220 | |||
| E1-0730 | 14×16×30 | 35 | --- | --- | --- | --- | |
| 8 | 8.0 | 1100 | 220 | 110 | |||
| E1-0826 | 22×25×26 | 63 | 2.5 | 2200 | 380 | 180 | |
| 9 | 10.0 | 2800 | 1000 | 660 | |||
| E1-0837 | 20×26×37 | 90 | 3.8 | 1900 | 470 | 230 | |
| 12 | 15.2 | 2500 | 1050 | 780 | |||
| E1-1039 | 20×26×39 | 98 | 3.8 | 4100 | 420 | 200 | |
| 20 | 15.2 | 5000 | 1300 | 720 | |||
| E1-1040 | 24×29×40 | 130 | 4.5 | 2400 | 670 | 330 | |
| 20 | 18.0 | 3100 | 1600 | 1150 | |||
| E1-1050 | 37×41×50 | 320 | 5.25 | 6300 | 1120 | 840 | |
| 26 | 21.0 | 8050 | 2100 | 1960 | |||
| E1-1250 | 37×41×50 | 320 | 7.5 | 9000 | 1600 | 1200 | |
| 36 | 30.0 | 11500 | 3000 | 2800 | |||
| E1-1253 | 27×30×53 | 195 | 6.0 | 4200 | 930 | 600 | |
| 40 | 24.0 | 5000 | 1800 | 1500 | |||
| E1-1264 | 30×38×64 | 310 | 8.0 | 8700 | 1650 | 1400 | |
| 42 | 32.0 | 11000 | 2800 | 2650 | |||
| E1-1564 | 30×38×64 | 350 | 8.0 | 7400 | 2250 | 1300 | |
| 60 | 32.0 | 9800 | 4250 | 3400 | |||
| E1-1578 | 44×51×78 | 770 | 12.5 | 6500 | 3600 | 2900 | |
| 91 | 50.0 | 8100 | 5500 | 4900 | |||
| E1-1683 | 52×58×83 | 1200 | 15.0 | 7800 | 4320 | 3480 | |
| 130 | 60.0 | 9720 | 6600 | 5880 | |||
