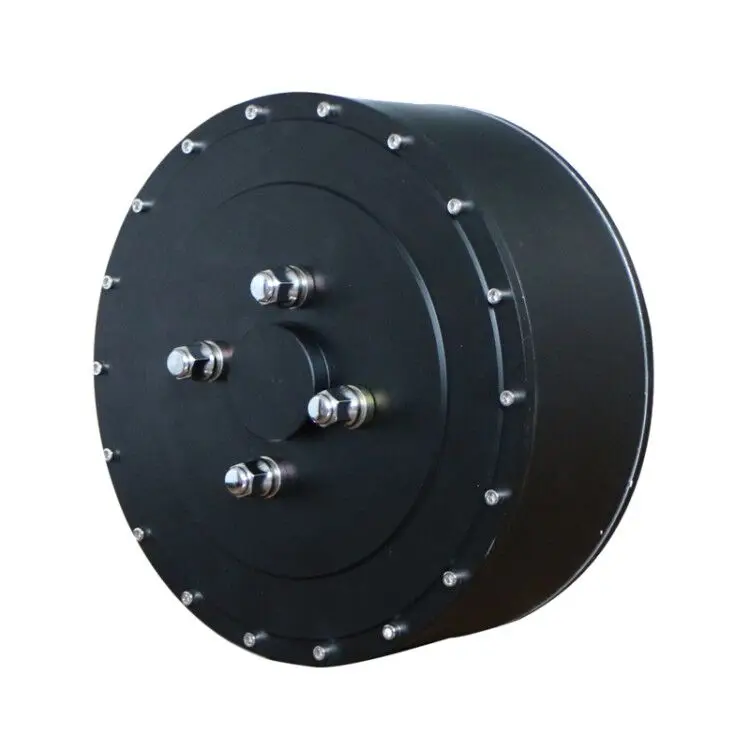

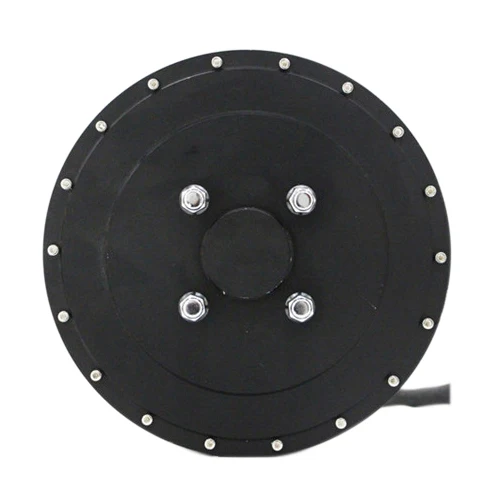

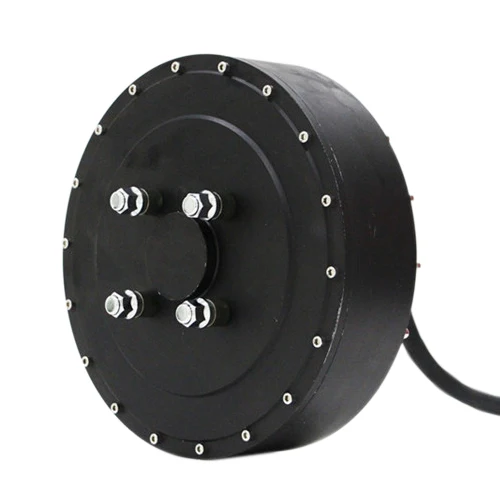

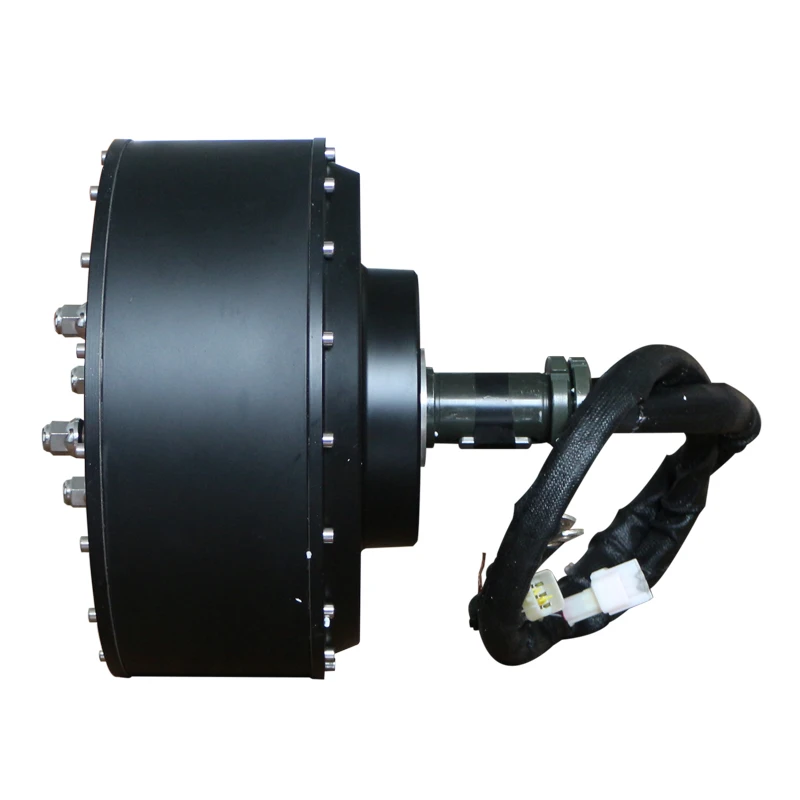

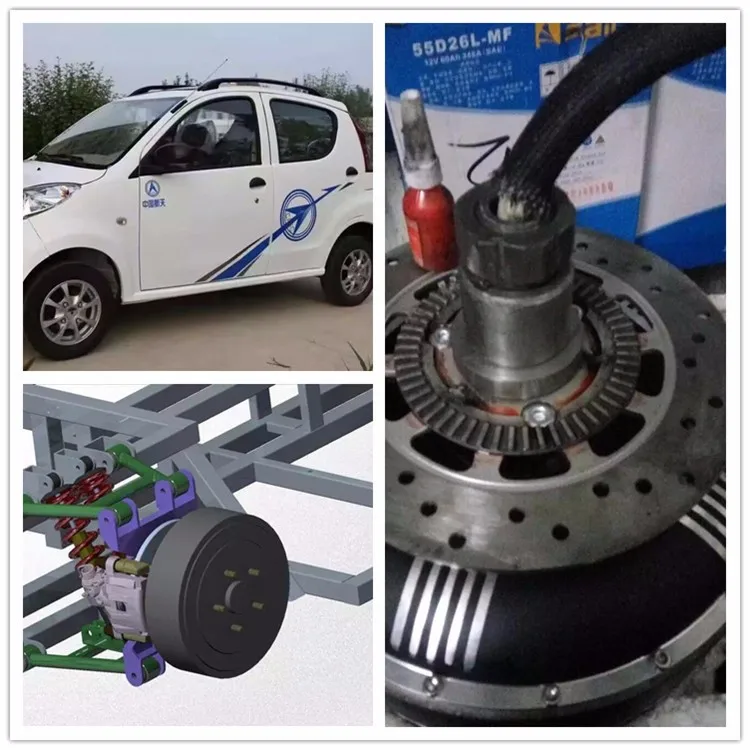

QSMOTOR 273 12KW E-CAR Hub Motor

Motor Type: BLDC Hub Motor with Hall Sensor
Matching Wheel:14inch-17inch Car Wheel

Bolt pattern for wheel: PCD 4 x 100mm CB60 , PCD 5 X 112mm CB60 or cusmozied
Pole Pairs: 16 Pairs

Winding and magnet width: 70MM
Rated Power: 12000W
Rated Voltage: 96V as default (48V-144V, optional)
Max.Speed: 130-140KPH
Different RPM can be customized
Max Torque: more than400N.m
Max Efficiency: 90%
Peak Battery Current: 250A (96V)
Temp. Sensor: KTY83/122
Brake type: Disc brake, PCD4x114.3mm-M12, CB 67mm
Dual Hall Set with waterproof connectors
Cross Section of Phase Cable: 25mm2
Hall Sensor Phasing angle: 120 degree
Waterproof Grade: IP54
Color: Black
Net weight: 30kgs
