Agricultural machinery UCHA 206 bearing

Share on (62022369709):


Price:

Quantity:


Product Overview

Description

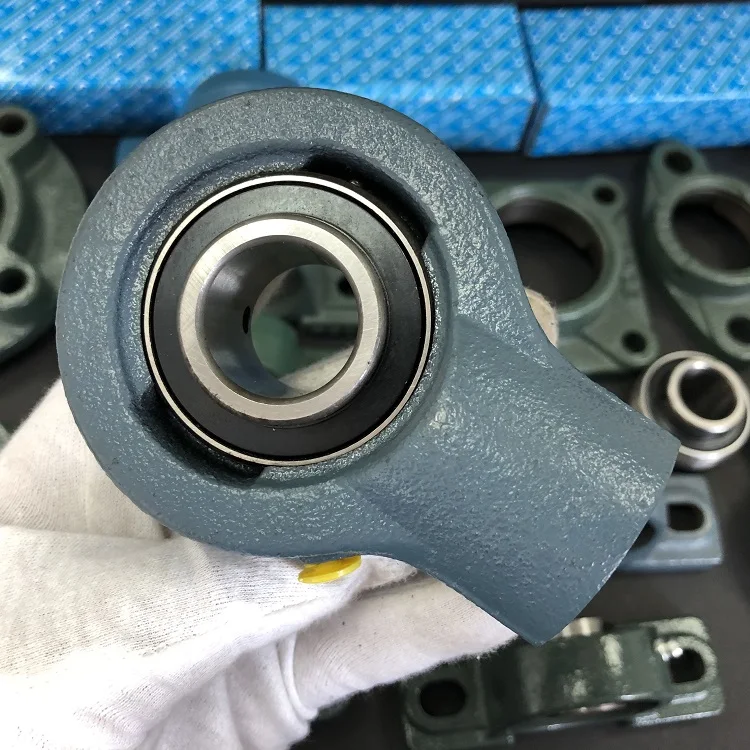

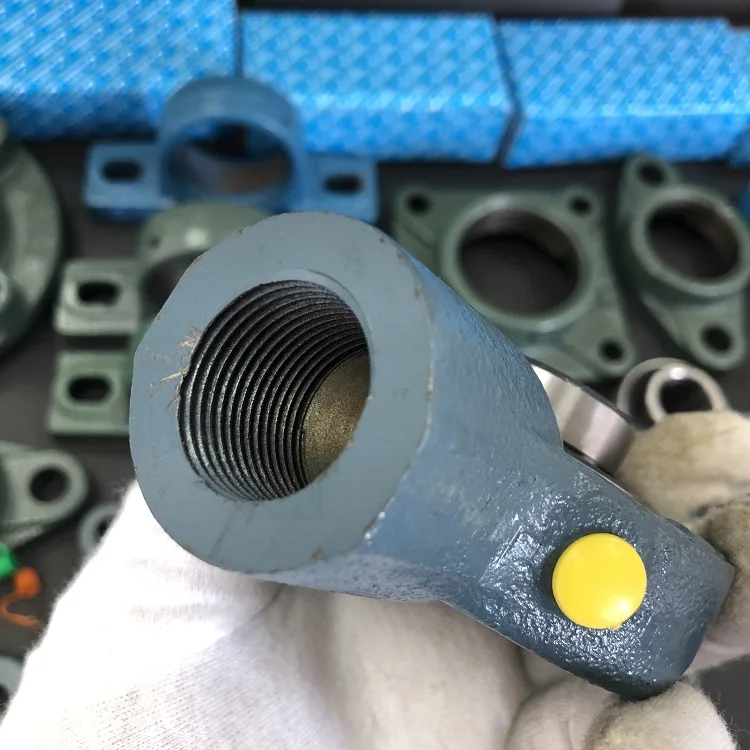

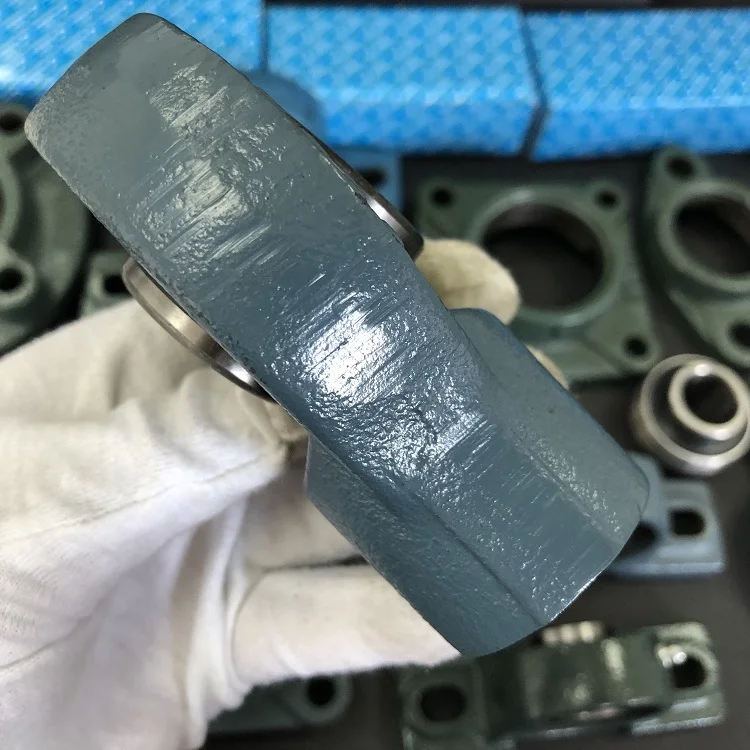

Agricultural machinery UCHA 206 bearing




Product  Features


  • Housing: Gray Cast Iron HT200

  • Bearing Insert:  Chrome Steel

  • Bearing Seal: Standard Nitrile Rubber protected with Slinger

  • Slinger: Sheet Steel

  • Grease Nipple:  Carbon Steel - Clear Zinc Plated

  • Set Screw: Carbon Steel - Oxided Black

  • Grease: Chevron SRI-2

  • Working Temperature range: -20°C to +90°C  ( -4°F  to  + 248°F )



Specifications

UCHA2
































































d (mm)30
L (mm)78
H0 (mm)103
H (mm)64
A (mm)40

(in)


G3/4
F (mm)19
C (mm)0
A1 (mm)28
B (mm)38.1
S (mm)15.9
Bearing Insert UC206
Housing NoHA206
Weight (kg)0.91



Packing & Delivery


pillow block packing



Hanger Bearing Units - With blue Color





ucha204_4ucha204_1ucha204_2ucha204_3
