Dry Powder granulator pharmaceutical roller compactor
- Category: >>>
- Supplier: Jiangyin Junzhuo Machinery Manufacturing Co. Ltd.
Share on (62022375010):
Product Overview
Description
Product Description

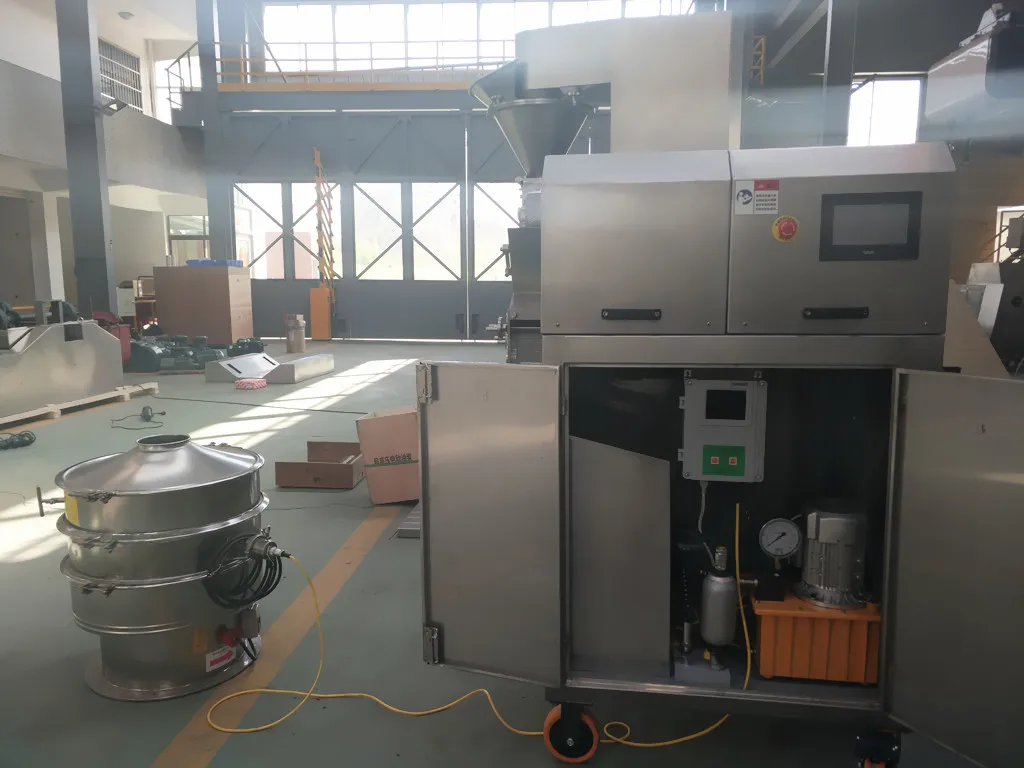

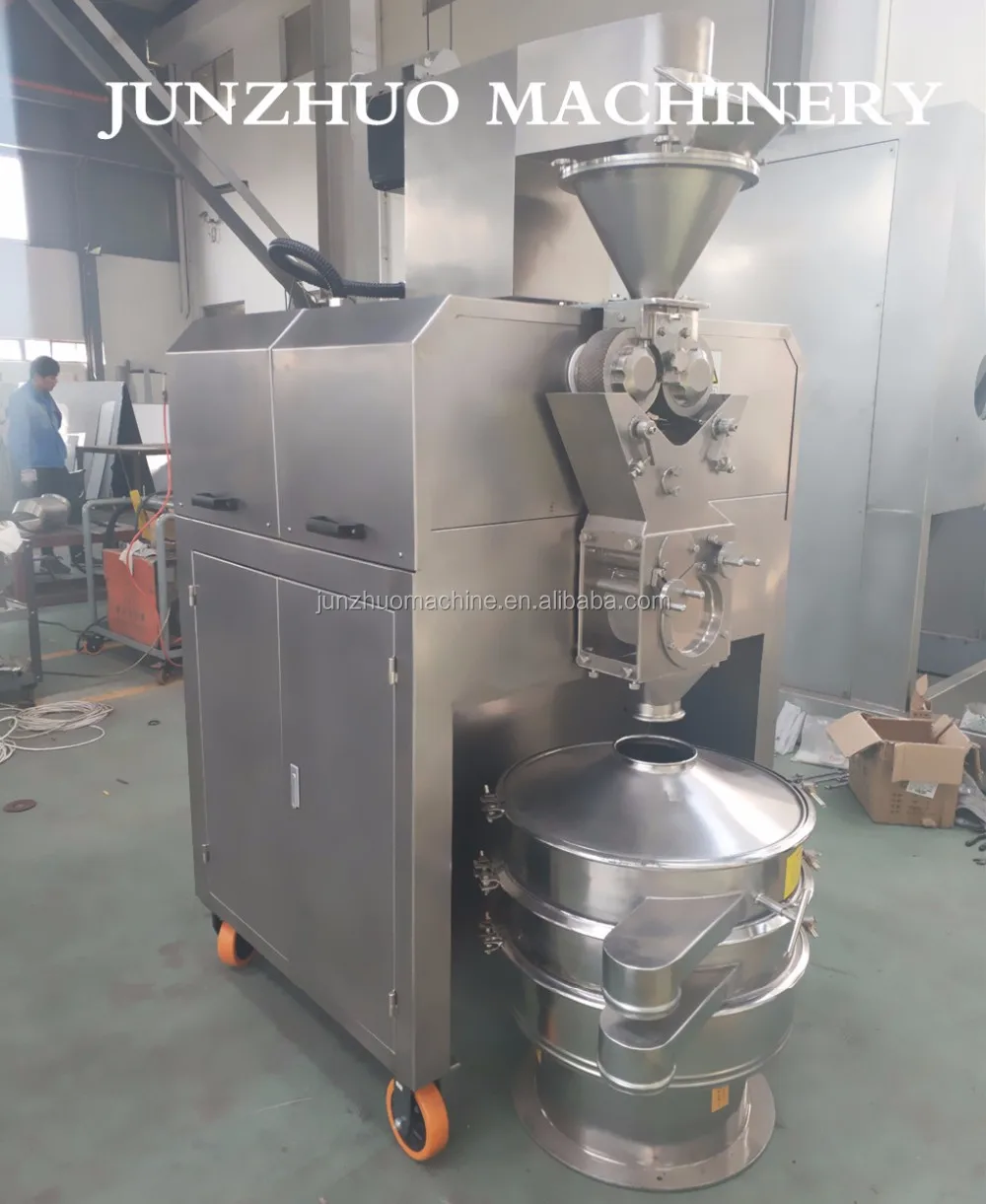

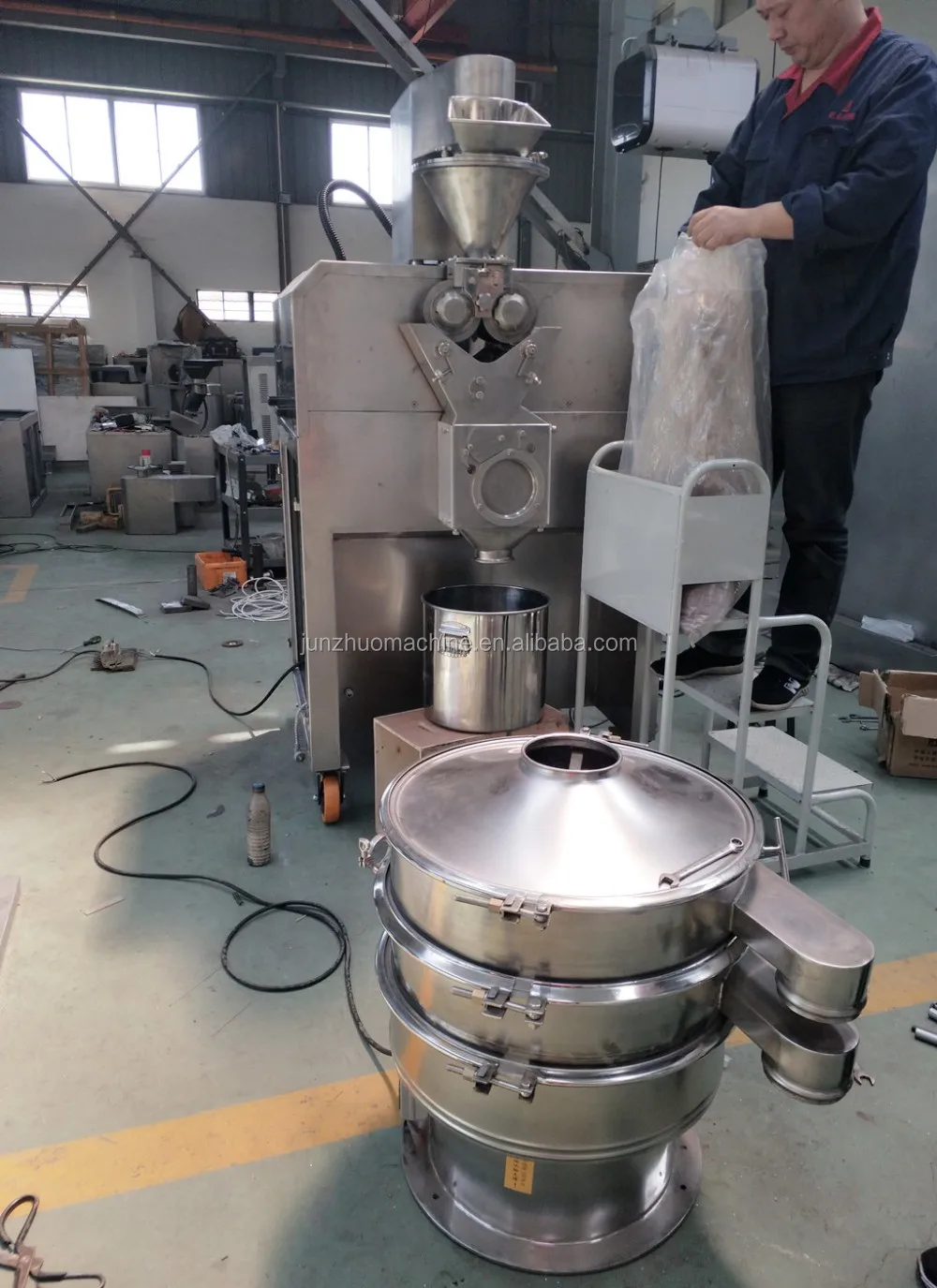

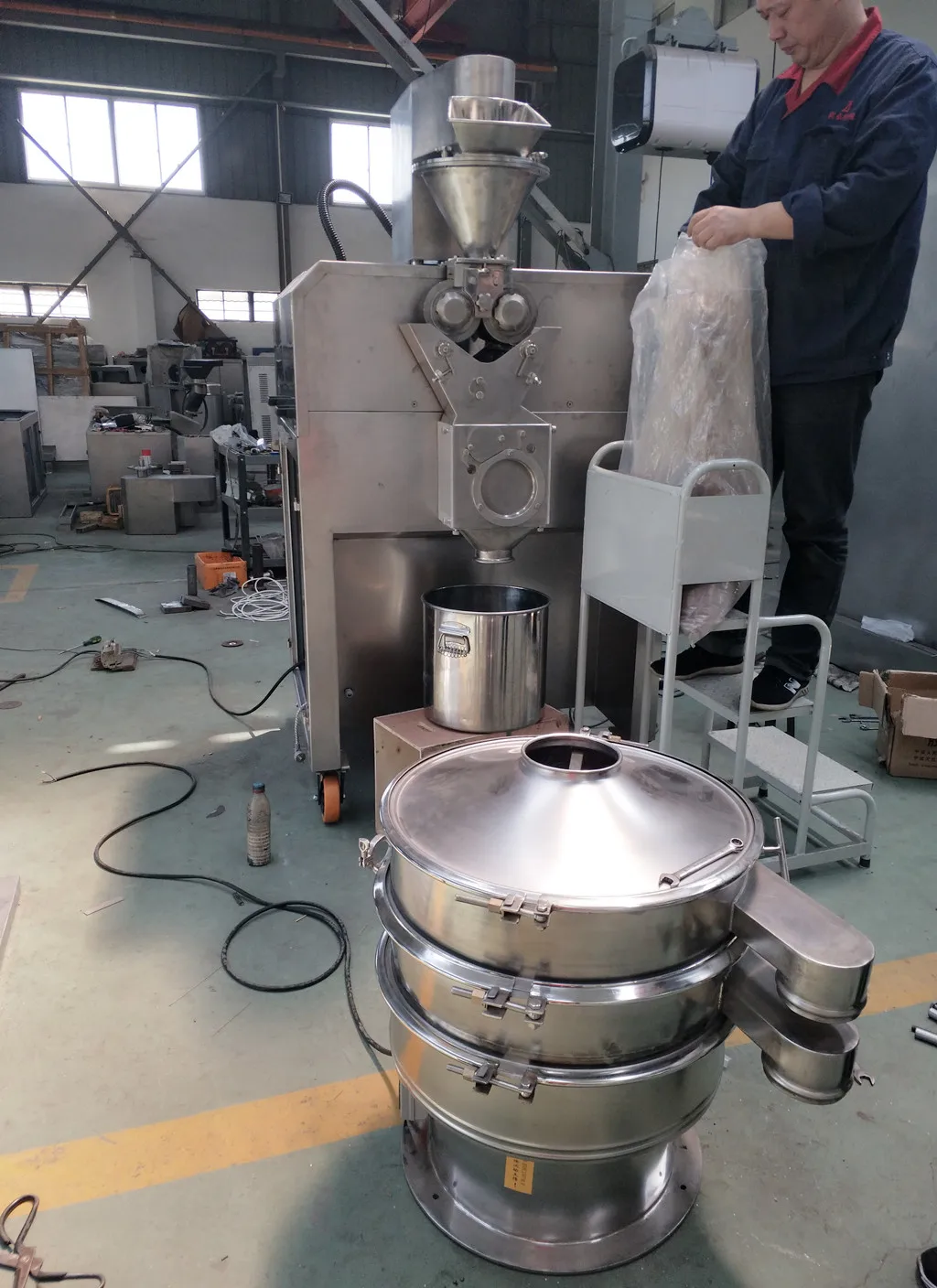

GK-60 Pharmaceutical Roller Compactor With Ultrasonic vibrating screen
In pharmaceutical industry, roller compaction has become the method of choice for dry granulation. Because of its reasonable design, the process technology can be almost completely disassembled without special tools. The movable design provides great flexibility during compaction feasibility studies and allows an easy maintenance.

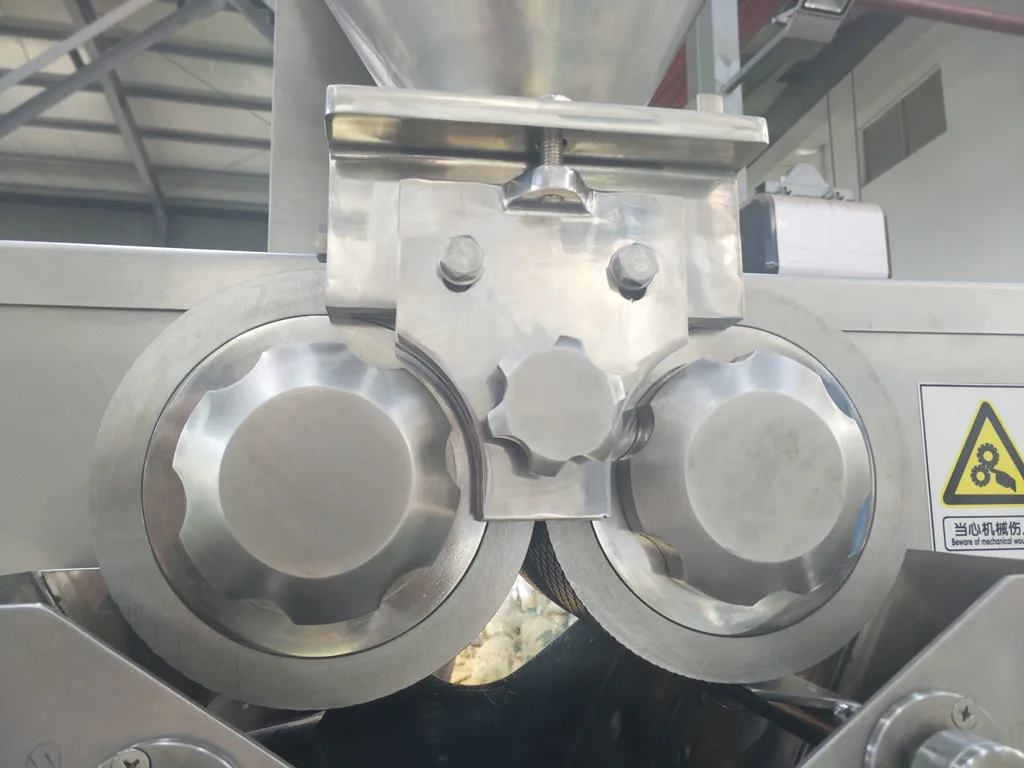

The GK-60 dry powder granulator is a clean type, a vertical product flow system uses a tapered feed screw to deliver the material to the fully contained compaction zone of the cantilevered rolls, increasing product yields and minimizing product fines. Roll compactor utilizes a unique roll system to compact powders into sheets or briquettes. The compacted sheets are milled to produce granules of a specific size.

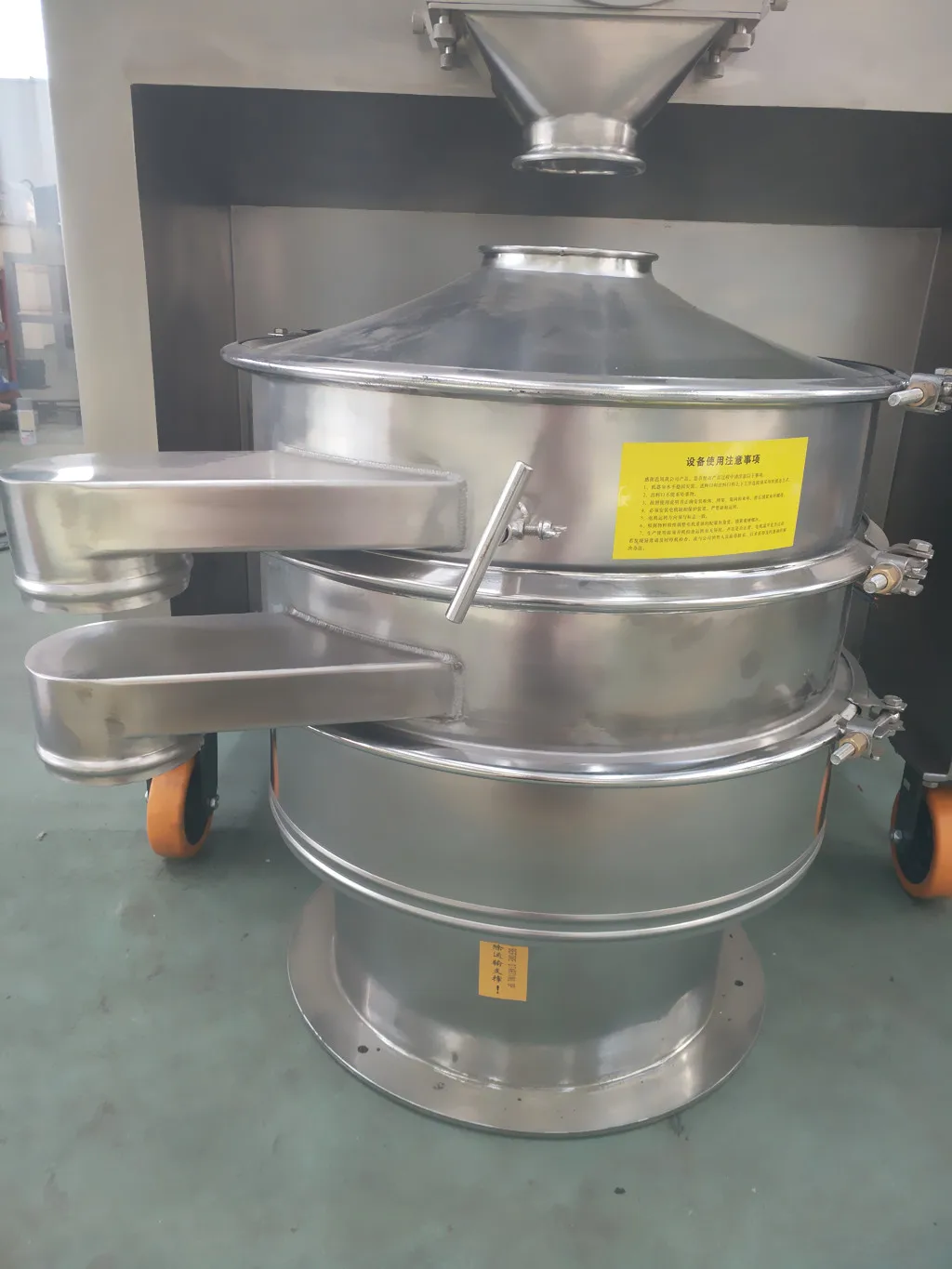

This unit has a ultrasonic vibrating sifter, so the total size will be larger than normal type. The overall size of GK-60 dry granulator is 1250*1150*2000mm.
Technical Parameter
Model | GK-30 | GK-80 | GK-100 | GK-120 |
Output of sheet(kg/h) | 3~10 | 80~150 | 120~200 | 150~250 |
Output of granule(kg/h) | 0.5~2 | 20~50 | 40~100 | 75~100 |
Granules diameter(mm) | 0.5~3 | 0.5~4 | 0.5~4 | 0.5~4 |
Total power(kw) | 2.5 | 8.5 | 12.5 | 12.5 |
Feed Screw Speed(r/min) | 6~33 | 6~60 | 6~60 | 6~60 |
Roll speed(r/min) | 4~25 | 4~25 | 4~25 | 4~25 |
Overall size(mm) | 880*550*1300 | 1600*1000*2300 | 1800*900*2300 | 1880*1020*2300 |
Approx. weight(kg) | 750 | 1800 | 2000 | 2300 |
Company Profile
Since 2008
JUNZHUO MACHINERY was set up to 2008 with the objective to develop & provide process technology offering of international standards. We keep the mission of staying committed to innovation and by consistently exceeding customer expectations, helping companies do business more efficiently and profitably. Our customers range from small family run operations to famous companies. Regardless of customer size, our philosophy for each is the same, to achieve a creative process solution that efficiently and economically meets the requirements of the application with a smiling service.
Our dry granulation system comprising of roll compactor and cone mill, wet granulation system including of oscillating granulator,basket extruder and screw granulator. All of the products have scale up capability from lab to production equipment, we make over 90% of our machine parts in-house, ensuring stringent quality control. JUNZHUO MACHINERY also provide mixing machine, crushing machine, grinding machine, sifting machine and other machines. The main motto of the company is to deliver best quality products at most economic price & excellent customer service after delivery.
Product packaging
Spare Parts
It will be packed into a wodden case, such as motor, screen sieves, O-ring and so on.
