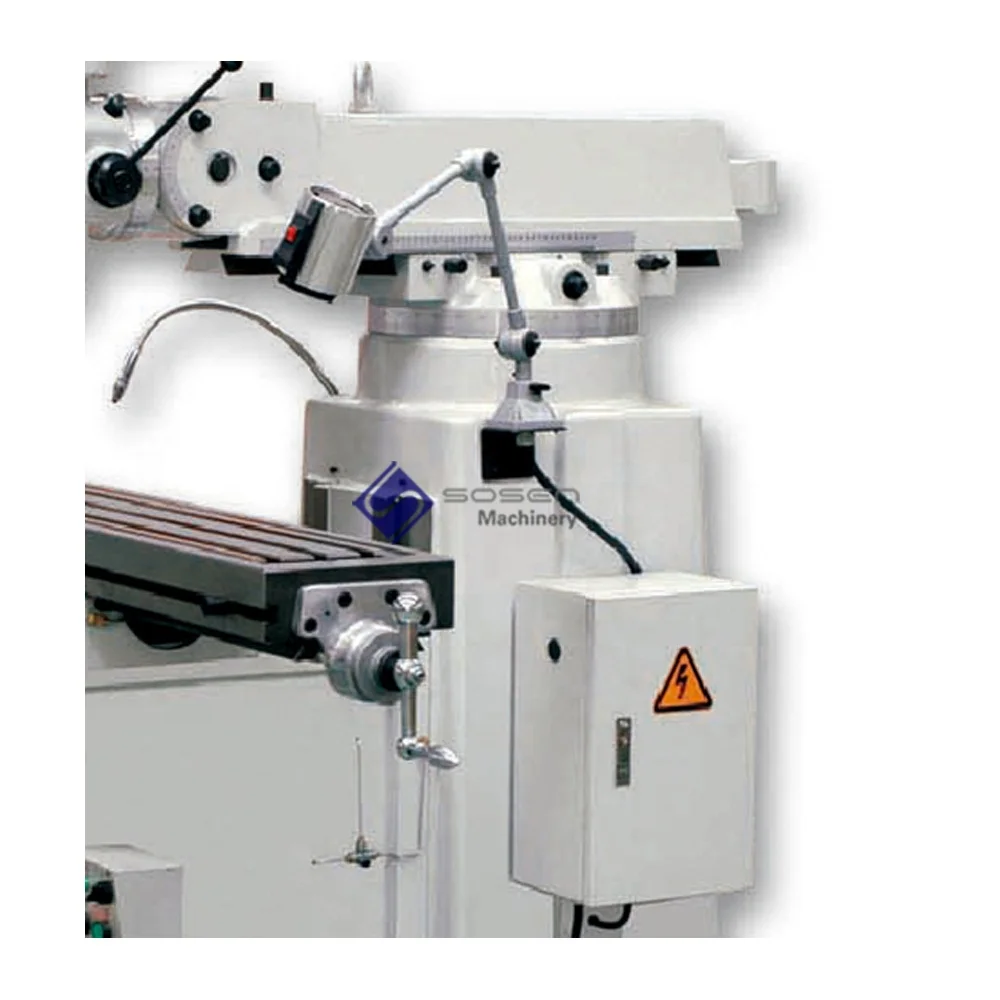

X6325 ISO40 Spindle Universal Taiwan Turret Milling Machine with Power Feed
- Category: >>>
- Supplier: Tengzhou Sosen Co. Ltd.
Share on (62022446685):
Product Overview
Description

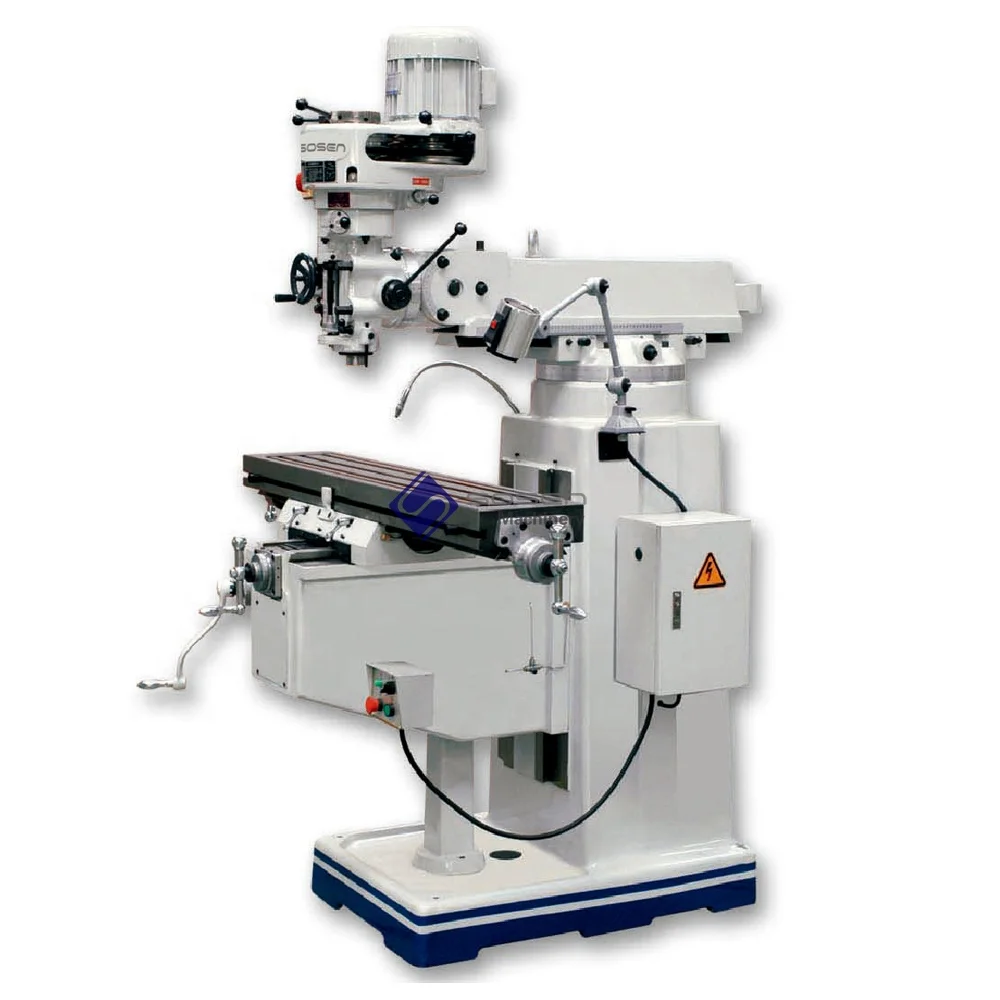

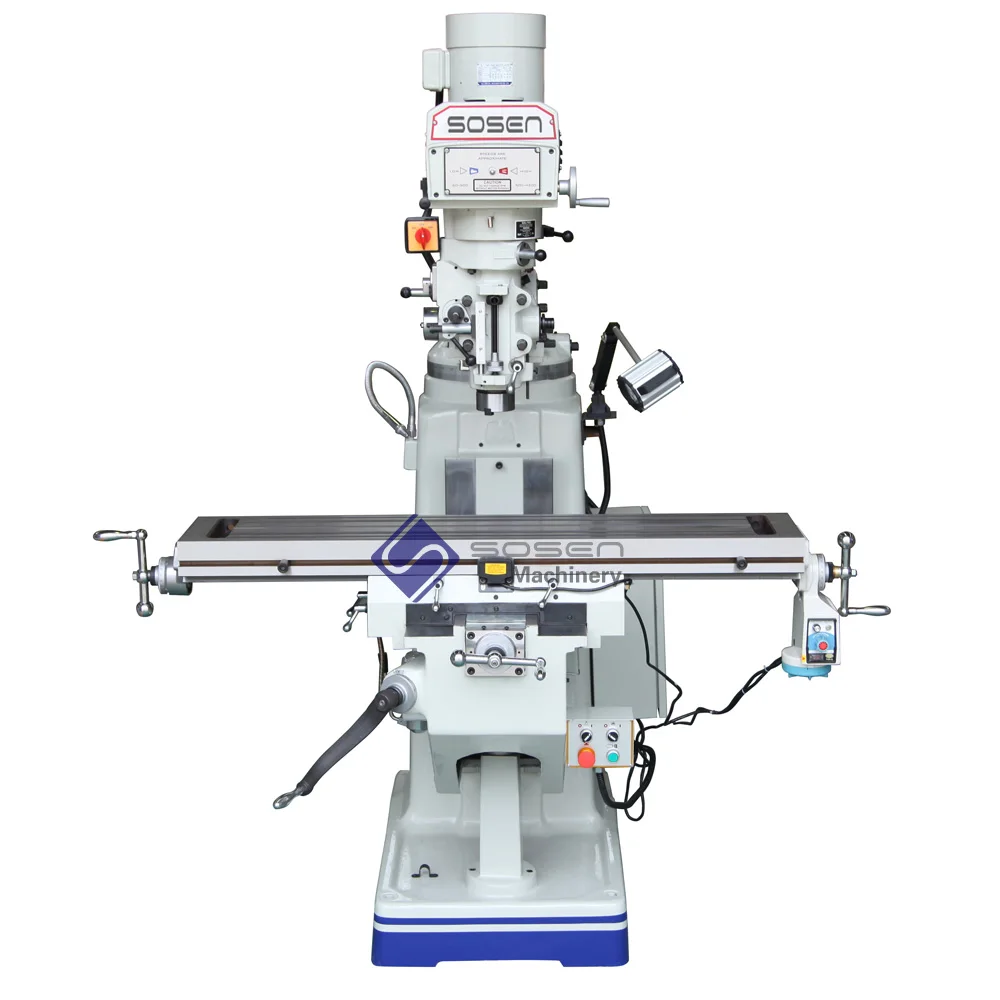

X6325 ISO40 Spindle Universal Taiwan Turret Milling Machine with Power Feed
Product Description
Main features:
1.High rigidityand quality casting iron, and saddle guide-way is coated by TF-material.

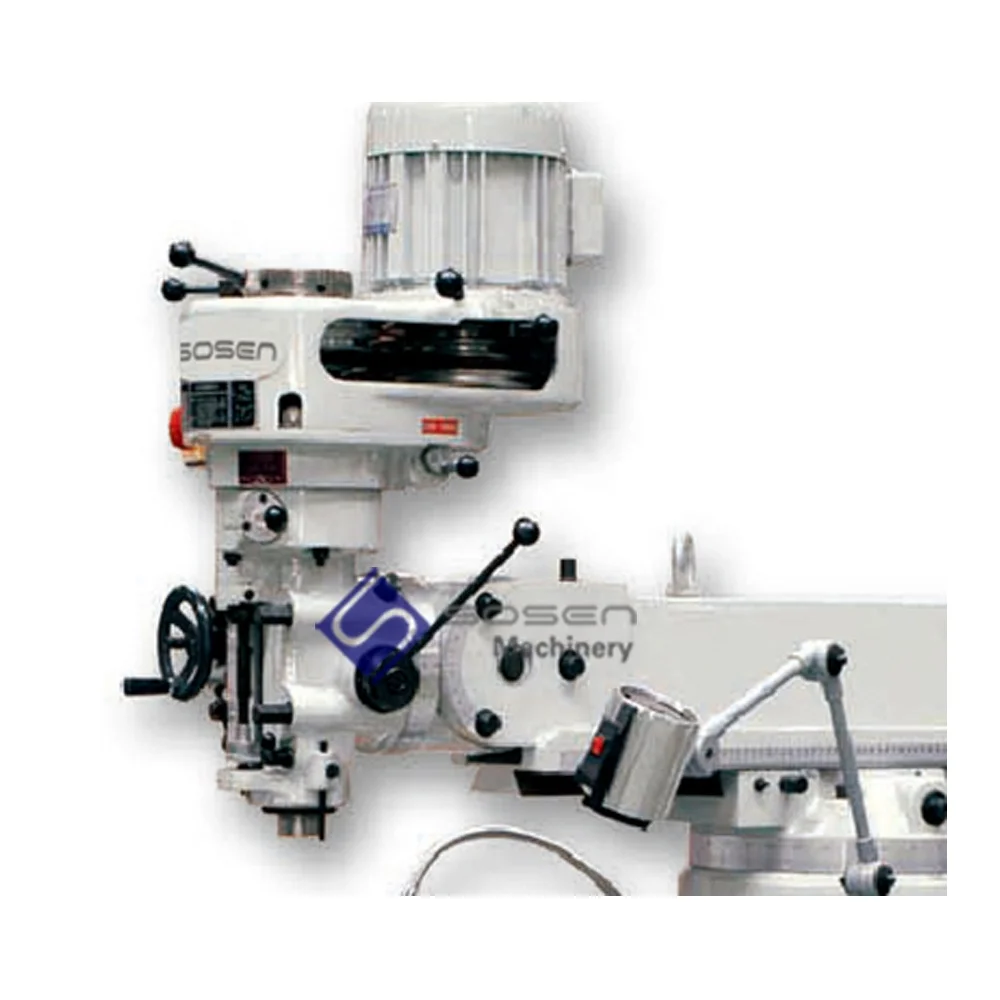

2.16 speedmilling head made in Taiwan, variable speed milling head and inverter millinghead can be equipped as optional accessories.
3.X/Y/Z-axisscrew are made in Taiwan with good smooth and reliable features.
4.Table surfaceis treated specially to harden HRC45-55.
5.X/Y/Z-axisguide way surface are treated specially to harden HRC45-55.
6.Standardelectrical box with domestic brand electronics components, we also can selectoptional SIEMENS and SCHNEIDER brand.
X6325
1. Rectangularguideway on Y and Z-axis is featured a good rigidity and stability.
2. Theguideway on saddle is lined with TF wear.
Specifications:
| Item/Model | X6325 | X6325A | X6325B | |
| Table size | mm | 254×1270(10"×50") 254×1370(10"×54") | ||
| Long travel | mm | 820 920 | 800 900 | 820 920 |
| Cross travel | mm | 410 380 | ||
| Vertical travel | mm | 400 350 | ||
| T-slot No.and size | mm | 3×16 | ||
| Ram travel | mm | 470 | ||
| Distance from spindle nose to table surface | mm | 0-400 | ||
| Spindle hole taper | (standard):ISO40 | |||
| Spindle travel | mm | 127 | ||
| Spindle speed | rmp | (standard):(shiftgrade)50HZ65-4500 60HZ:80-5440 | ||
| (optional):(variable)65-3750 | ||||
| Auto.quill feed | (threesteps):0.04(0.0015")/0.08(0.003")/0.15(0.006")mm/revolution | |||
| Spindle motor | KW | 2.2KW/3HP | ||
| Head swivel | ° | 90 | ||
| Head tilting | ° | 45 | ||
| Dimension of package | mm | One miller per case | 1516×1550×2080 | |
| Two miller per case | 1650×1790×2170 | |||
| Three miller per case | 1650×2285×2235 | |||
| G.W/set | KG | 1320 | 1280 | 1320 |
Standard Accessories:

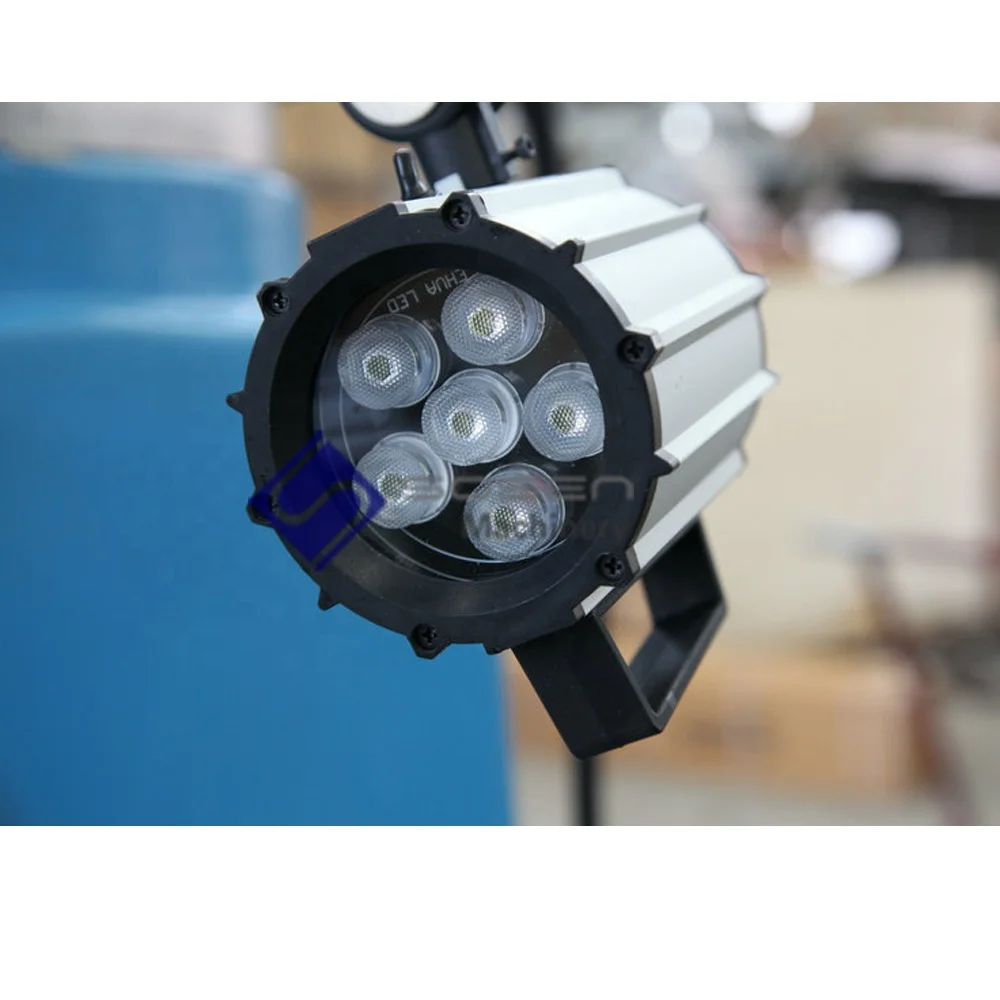

worklight, Tooland tool box, English Operation Manual,
Painting oil, Wooden palletpackage.
Coolant, Chiptray, Guideway protection .
Optional Accessories:

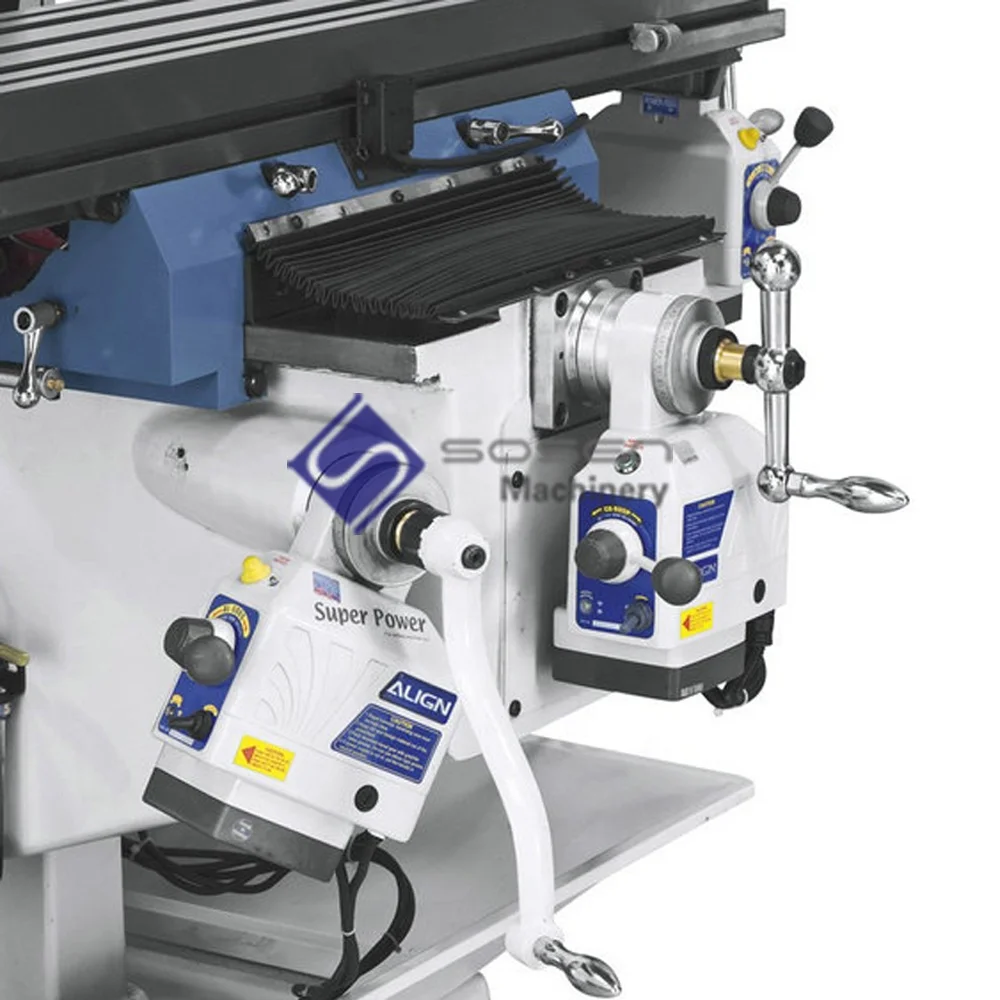

Electric Powerfeed X,Y axis
DRO on X/Y/Z-axis
Slotting head
Machine Vice
Variable/Frequency speed milling head
Milling chuck collets
58pcs set clamping kits
Packaging & Shipping

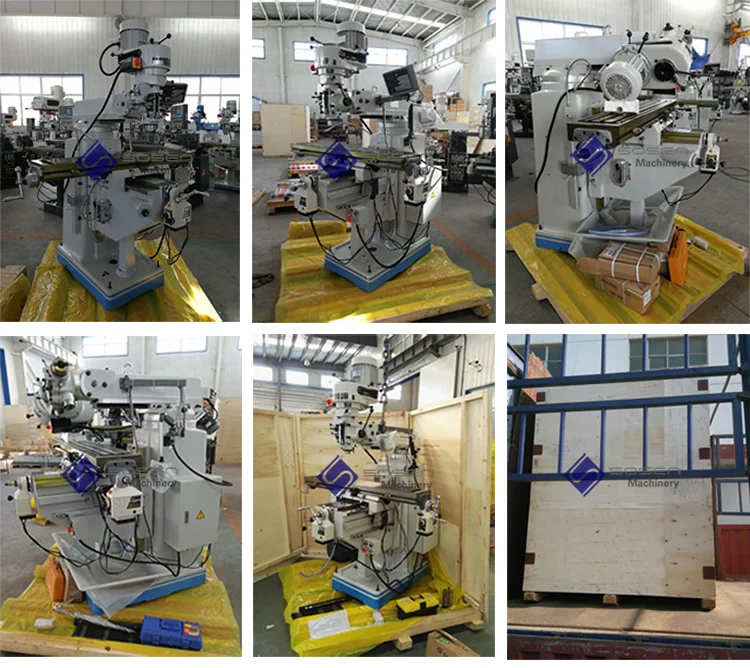

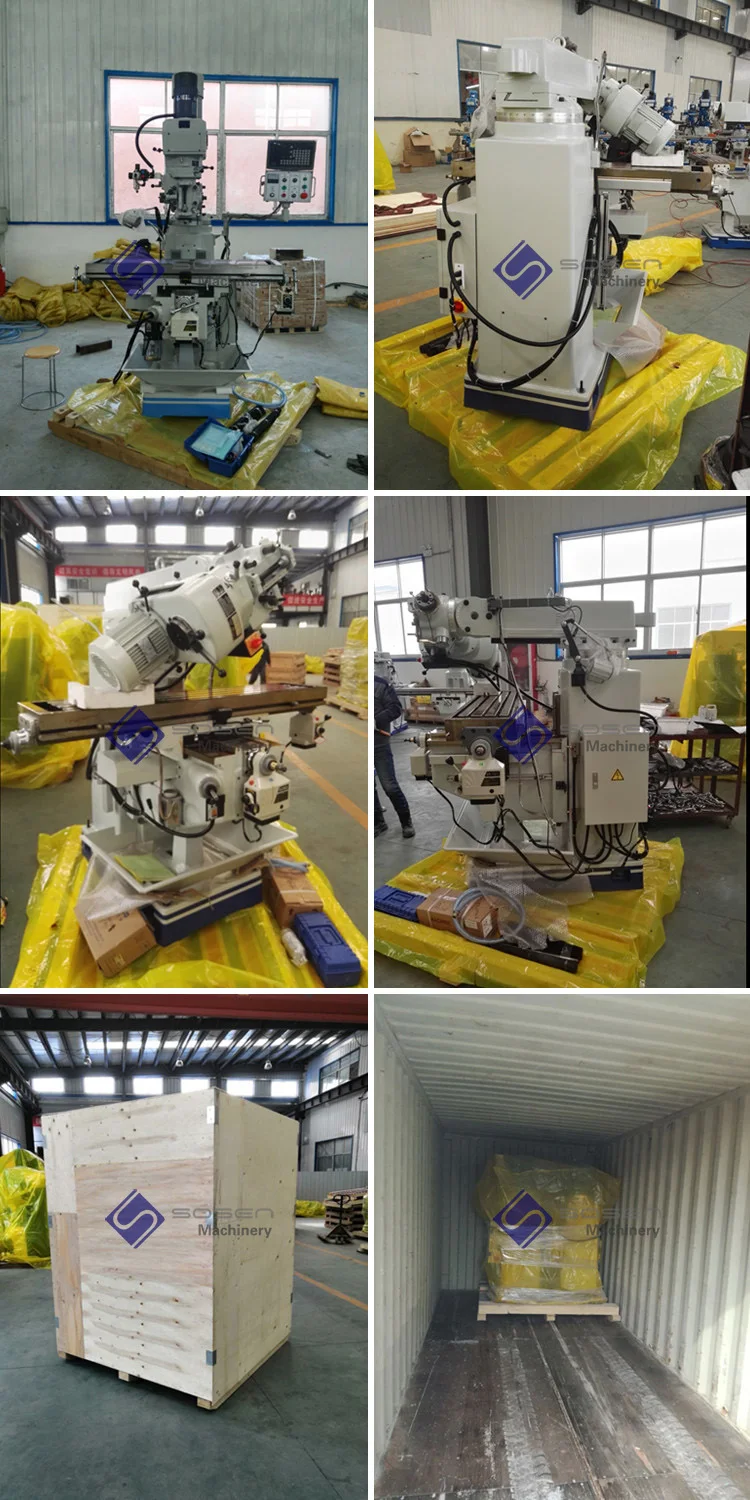

Standard is wooden pallet package, packing size as following:
One unit X6325 per pallet: 1516x1550x2080mm
Two units X6325 per pallet: 1650x1790x2170mm
Three units X6325 per pallet: 1650x2285x2235mm
Full closed plywood case package for your choice as optional, it is suitable for shipment by LCL.
Company Information
FAQ
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we’re Alibaba Gold Suppliers, Alibaba Assessed Supplier, Alibaba Trade Assurance Supplier.
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact our SOSEN sales representative for details.
Q8.How about your after-sale service?
Our after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 3 days.
Q9.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
