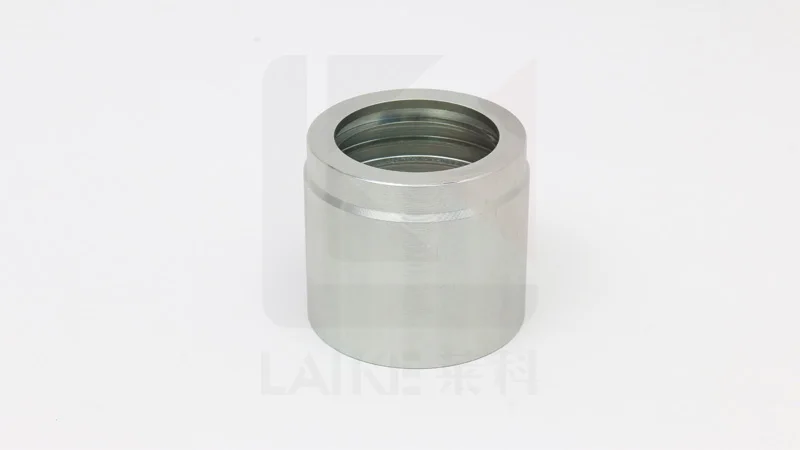

03310 Non Skive Hose Sleeves Hydraulic Ferrules Medium Pressure Sockets for One/Two Wire Hose SAE 100 R1AT/1SN R2AT/2SN
- Category: >>>
- Supplier: Ningbo Laike Hydraulics Co. Ltd.
Share on (62022450113):
Product Overview
Description
Product Description
Ferrule Parameter

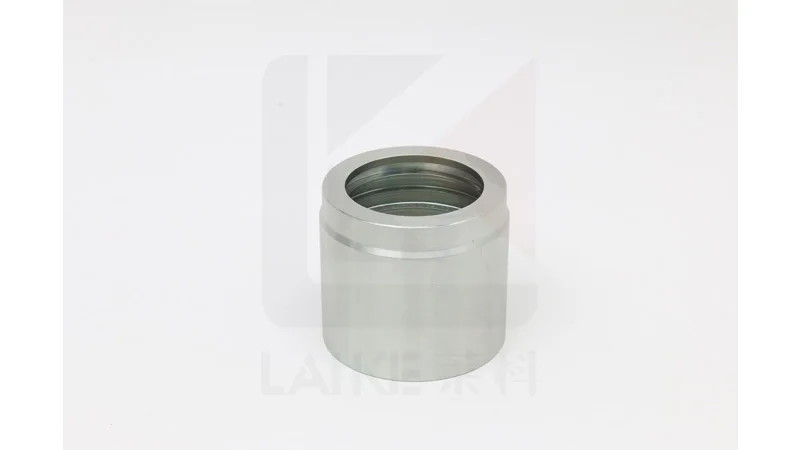

Non-Skive Ferrule for One/Two Wire Braid Hose
Laike: 03310 | Gates: M03400
| PART NO | HOSE O.D | DASH | L (MM) | D (MM) |
| 03310-03 | 5 | 3 | 23 | 21 |
| 03310-04 | 6 | 4 | 30.5 | 23 |
| 03310-05 | 8 | 5 | 30 | 24 |
| 03310-06 | 10 | 6 | 32 | 26 |
| 03310-08 | 12 | 8 | 34 | 29.1 |
| 03310-10 | 16 | 10 | 37 | 33 |
| 03310-12 | 20 | 12 | 42 | 37.1 |
| 03310-14 | 22 | 14 | 45 | 40.5 |
| 03310-16 | 25 | 16 | 51 | 46.8 |
| 03310-20 | 32 | 20 | 59 | 59 |
| 03310-24 | 40 | 24 | 67 | 67 |
| 03310-32 | 50 | 32 | 72 | 80 |

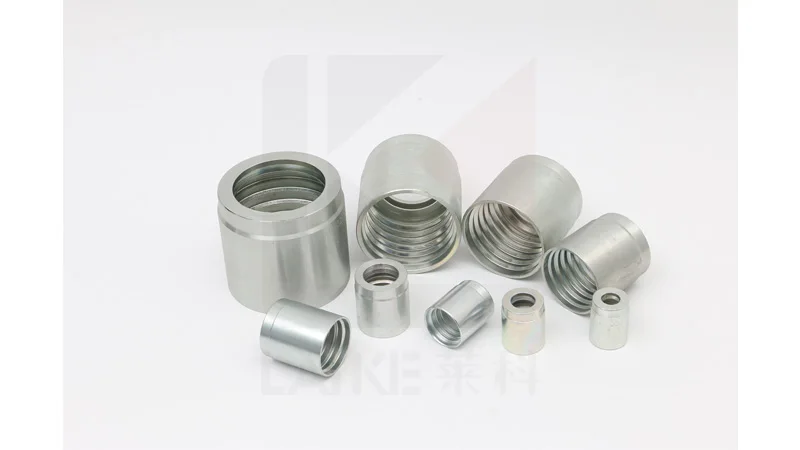

Product Image
Company Information
FAQ
Q. Are you factory?
A. Yes, we are.
Q. What do you manufacture?
A. We produce fittings, adapters, ferrules, flanges, hose assemblies etc.
Q. What is the lowest price?
A. Send us the specification and we will quote.
Q. What is the lead time?
A. 30 - 45 days.
Q. Can I get samples?
A. Yes, free samples upon request.
Q. Do you support OEM/ODM/Customization?
A. Yes we do.
Q. Any other concerns?
A. Contact us for a within-24 hours reply.
