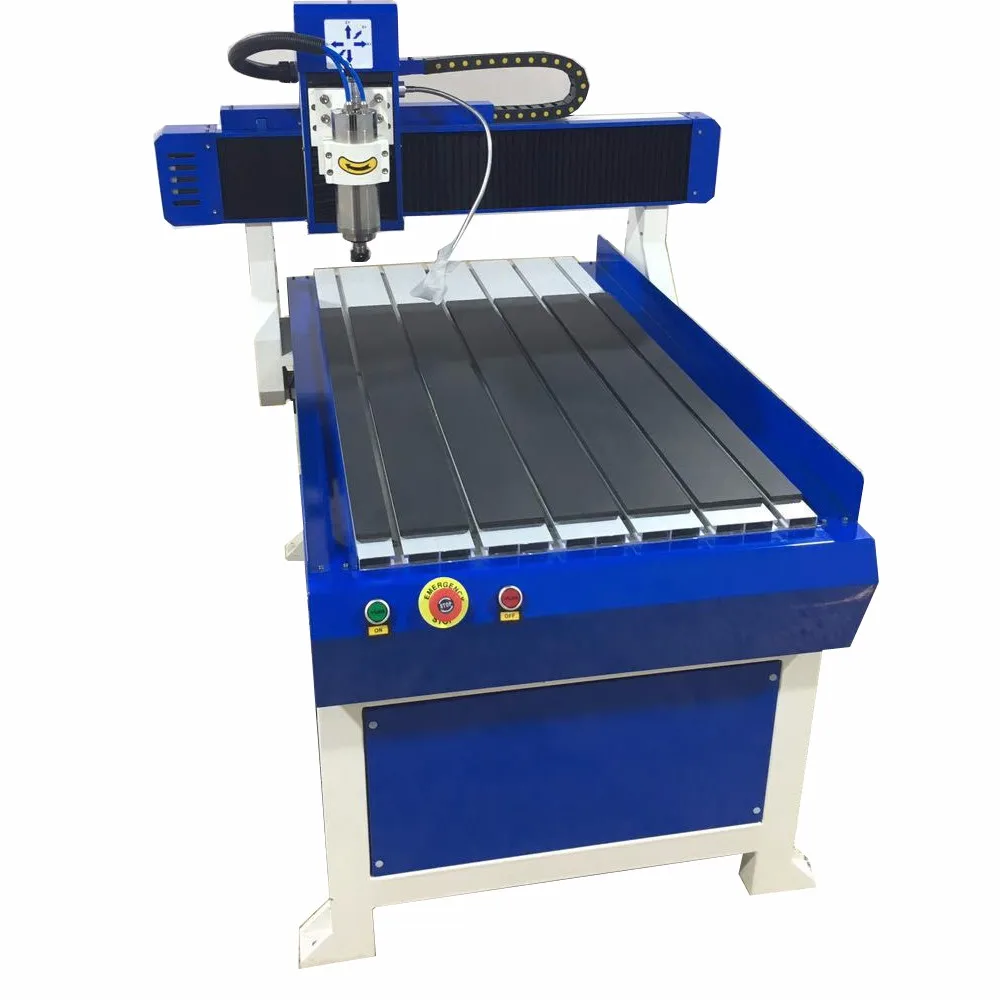

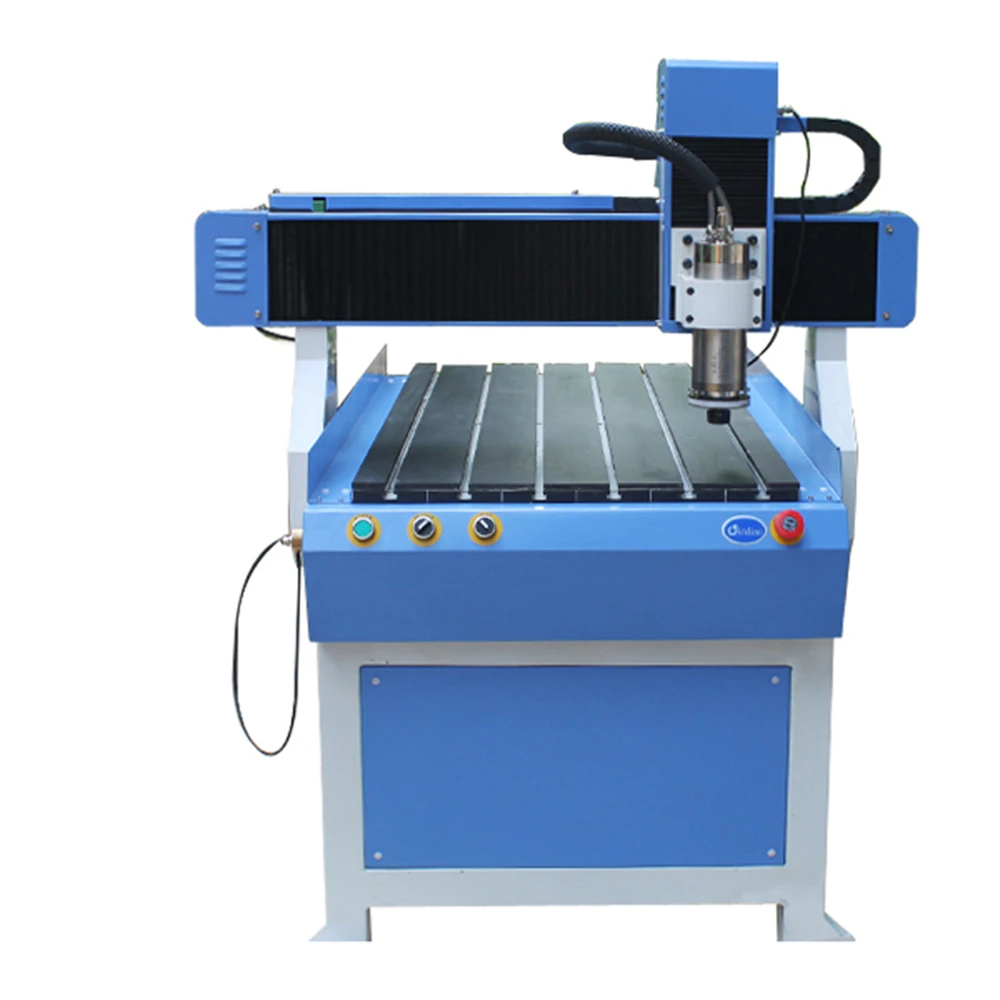

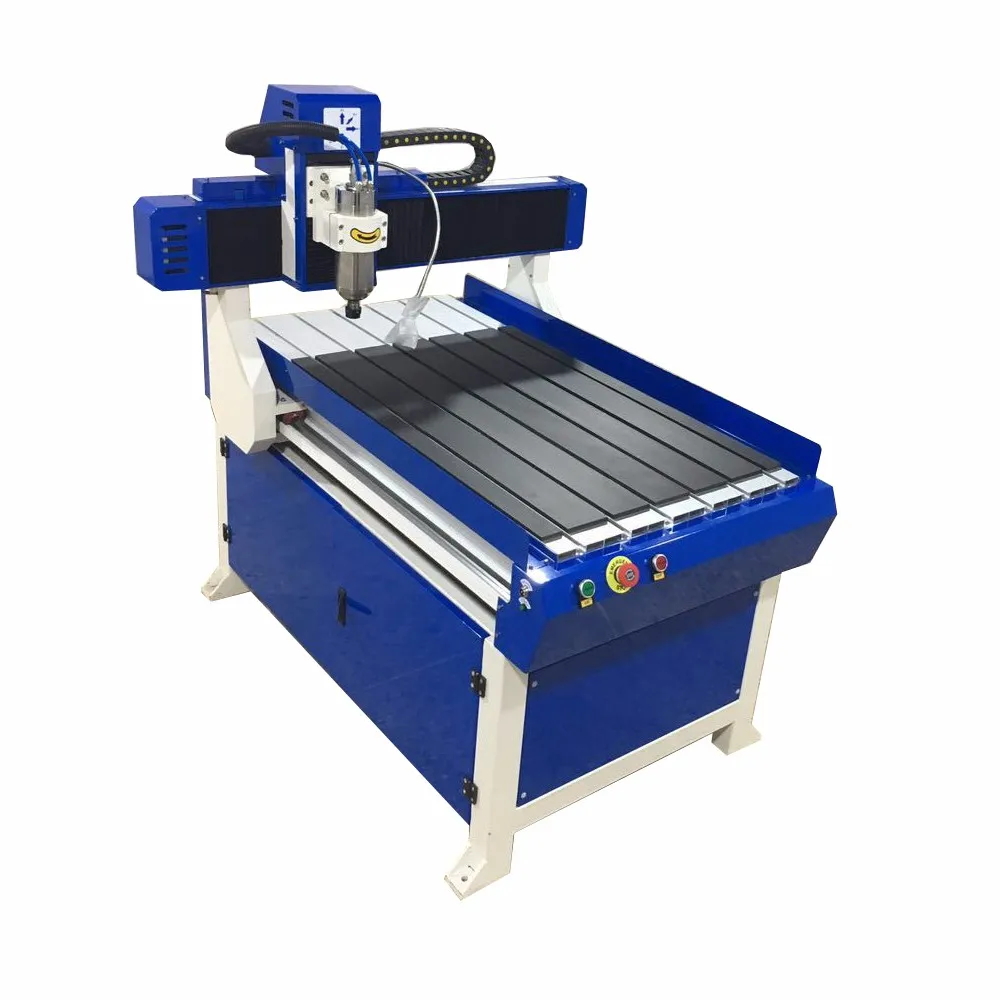

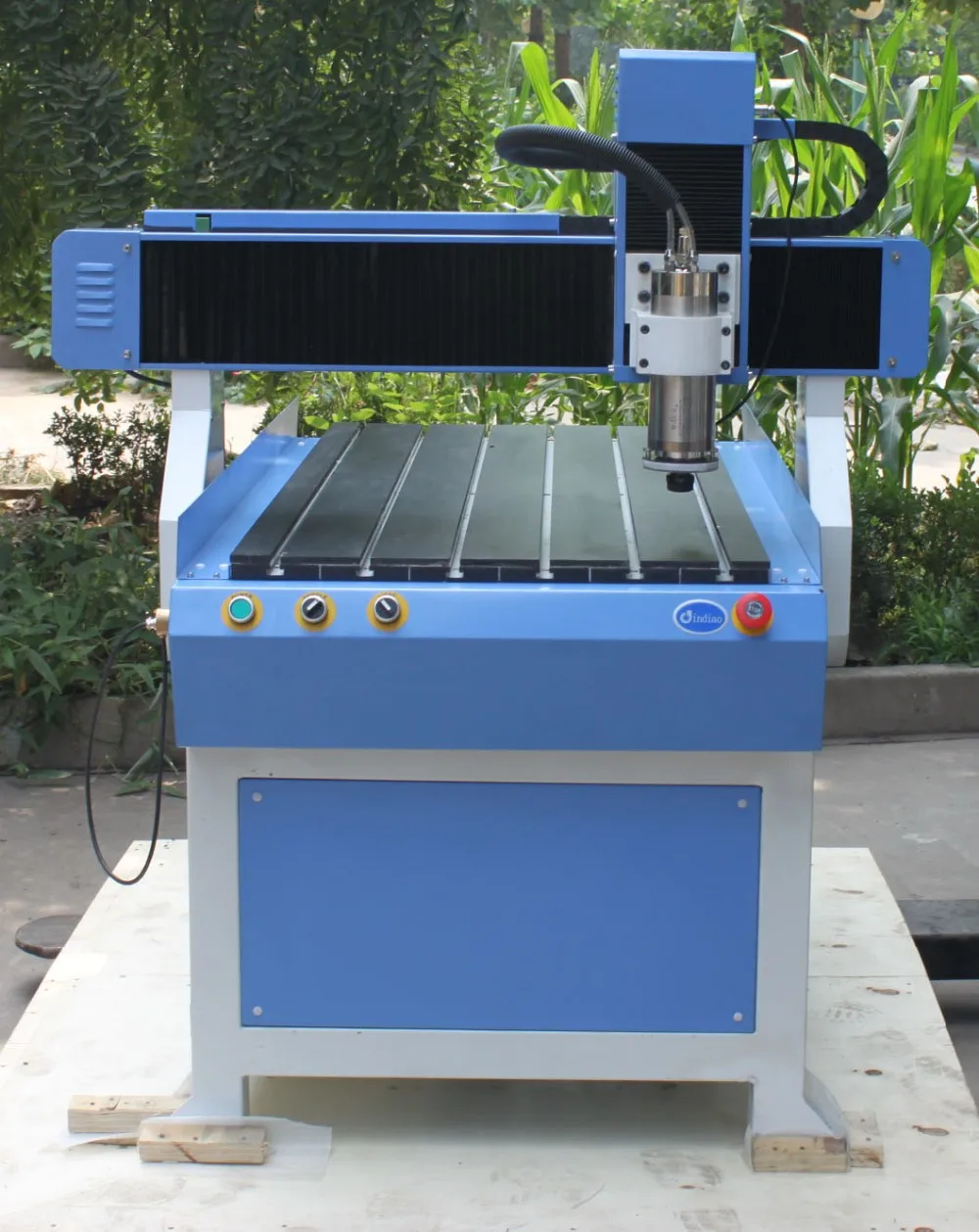

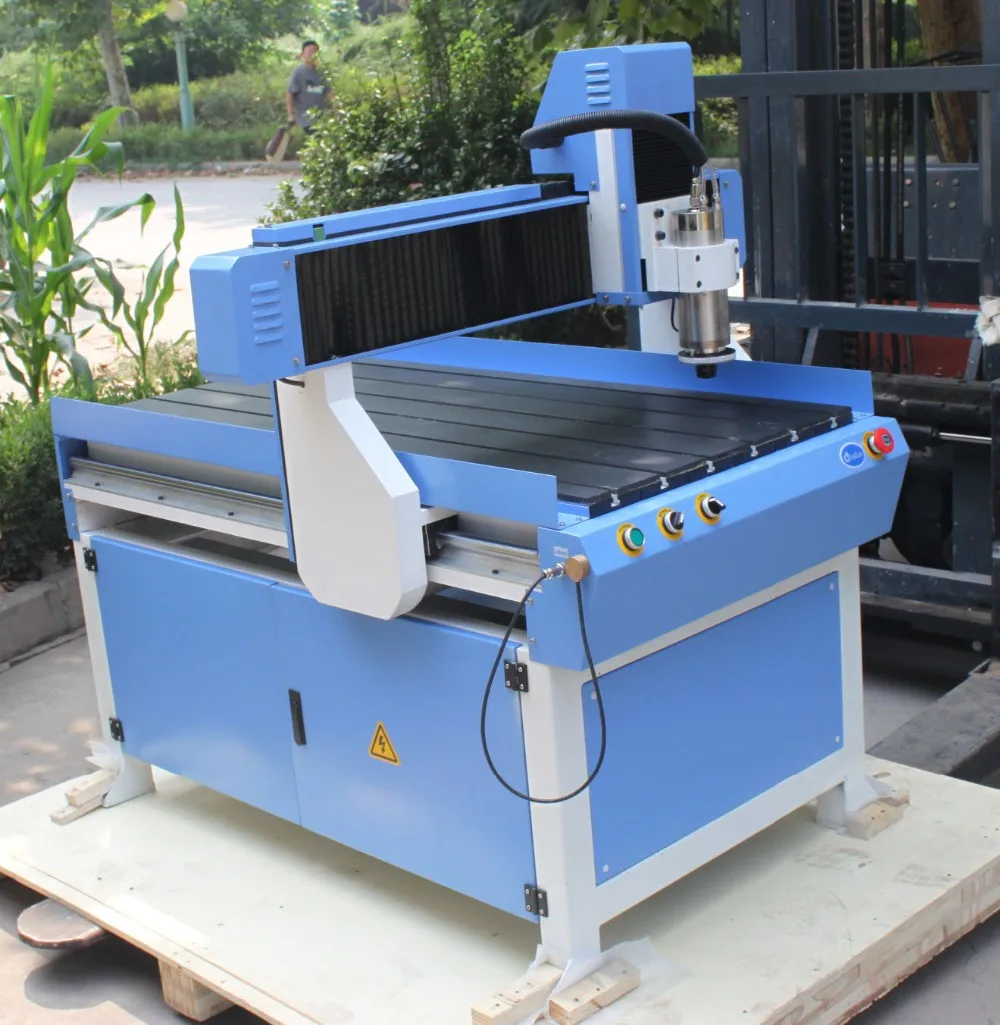

Multi Purpose cnc 9060 router for steel engraver machine parts

Product Overview

Description

GMulti-Purpose cnc 9060 router for steel engraver machine parts





Advertising industry, seal industry, craft and gift, art mould, wood working, mould etc. applicable material including on acrylic, double-color board, PVC, ABS board, stone, imitation stone, metal, Aluminum Mold etc.













Main application profession: The engraving machines are professionally used to engrave iron,steel,aluminum and bronze board and so on hard material.The machine can engrave letters and relief designs.



Performance:

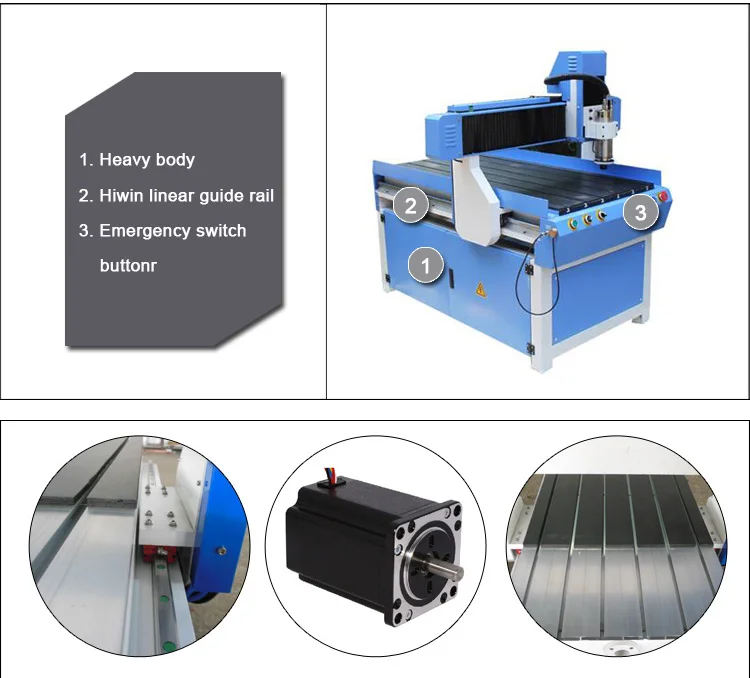

• Matches with the German double nut and ball bearing guide screw.
• Adopts straight line guide rail. The load-bearing surface with straight line guide rail is a surface contact and the life is 2200 times longer than ordinary rails. Its precision keeps high even with long time use.
• Uses high speed drive motor. Its speed is enhanced nearly 2 meters higher than original type.
• X axis uses the popular dustproof structure, which guarantee long-term performance characteristic.
• Memory to insure the processing point when the blade is broken or postpone situation.
• With good compatibility. This machine can work with many programs, such as Type3/artcarm/castmate/proe/Corelerow/CAD/CAM. The machine can do fine relief, 2D and 3D products.
• Big power water cooled frequency spindle motor,which can ensure to work on hard material.

Technical parameter:



Modle	JD6090L
Machine body	Cast iron or cast aluminum
Work dimensions	600×900mm
Body dimensions	800×1200×1200mm
X,Y, Z Structure	Linear guide, Ball screw (Y axis double nuts)
Z-zxis working area	100mm
Cut thickness of material	30mm
Max.Speed	6000mm/min
Working speed	0-4000mm/min
Mechanical precision	0.01mm
Software	Artcut,TYPE3,ARTCAM
Max.Powwer consumption	1800W
Power source	AC 220V/50Hz
Driver type	stepper motor
Spindle	2.2KW water cooling spindle
Spindle speed	0-24,000rpm
Blade diameter	1-6mm
Control system	Ncstudio(computer control) or   (Optional: DSP black handle control system with USB interface)
Command	HPGL.G code,u00,mmg,plt
