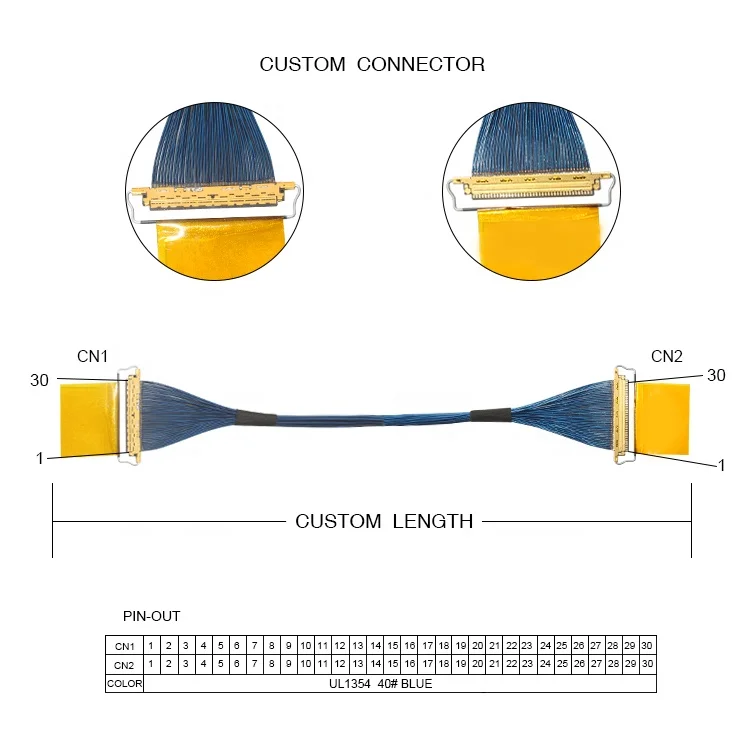

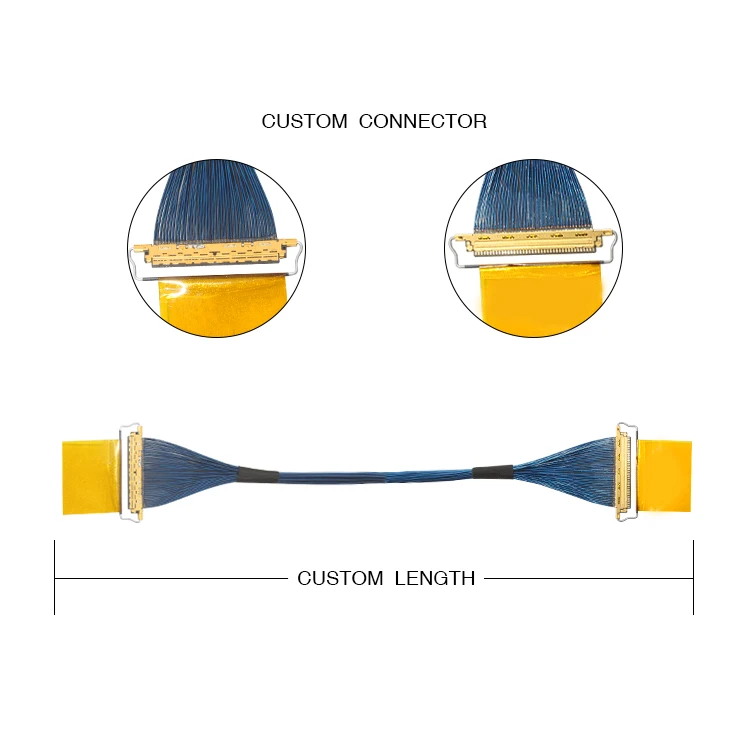

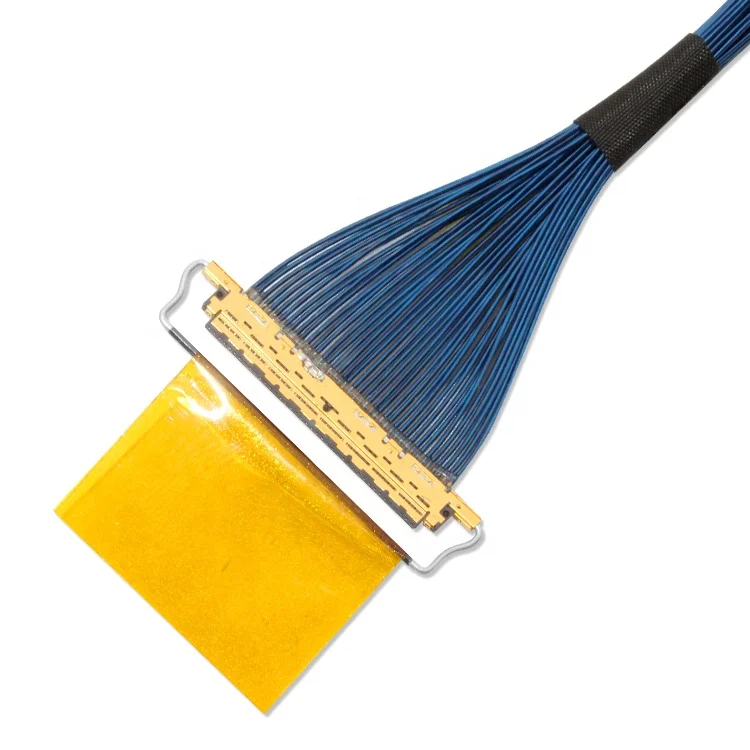

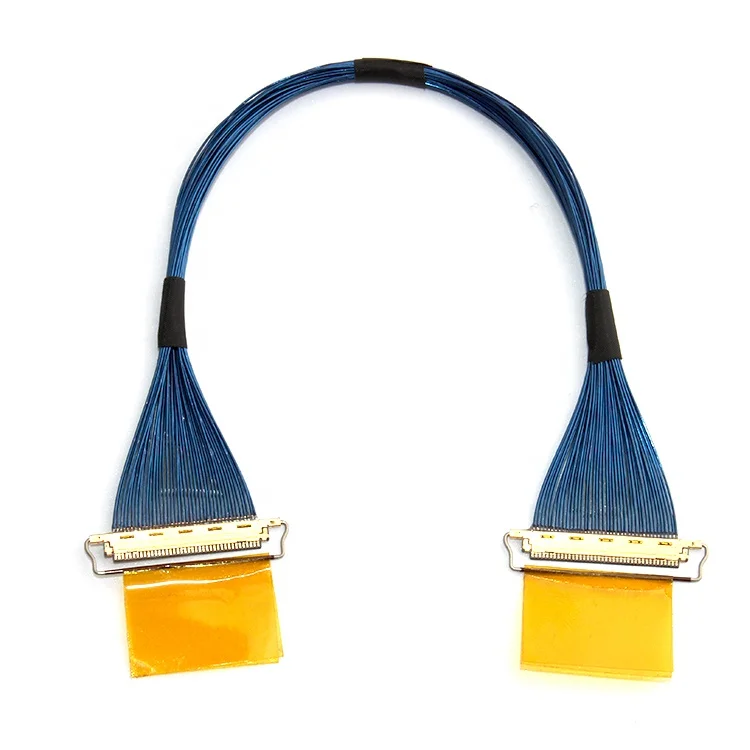

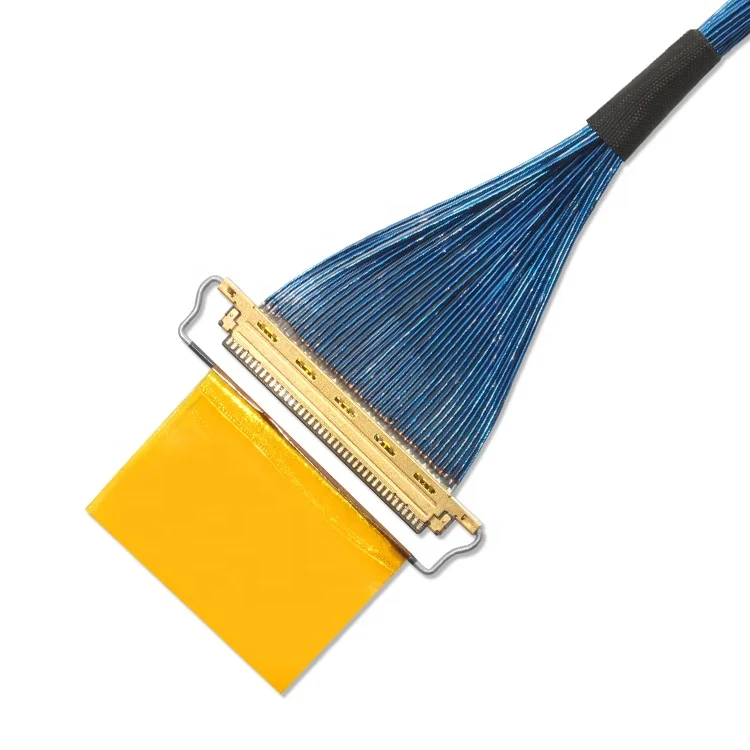

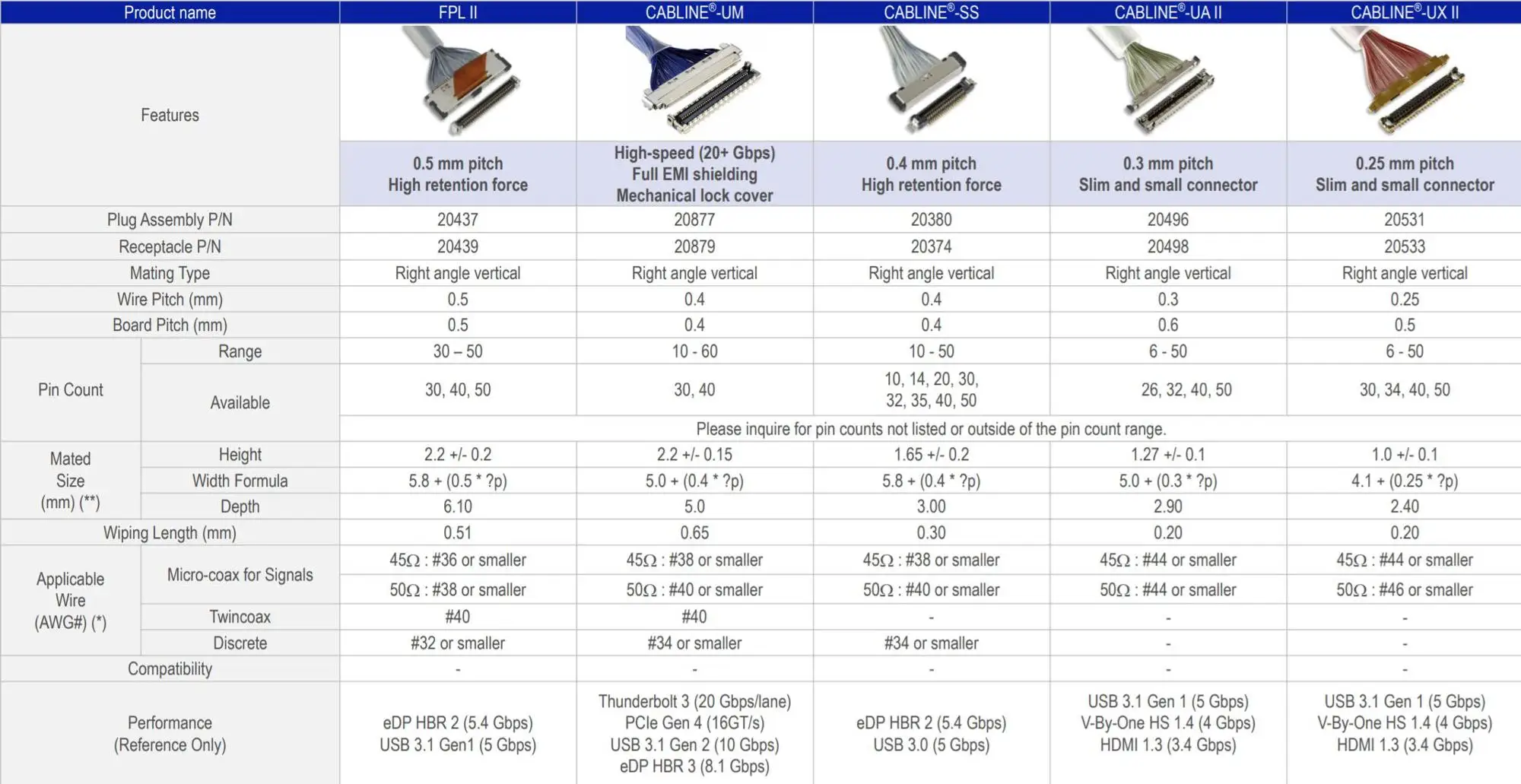

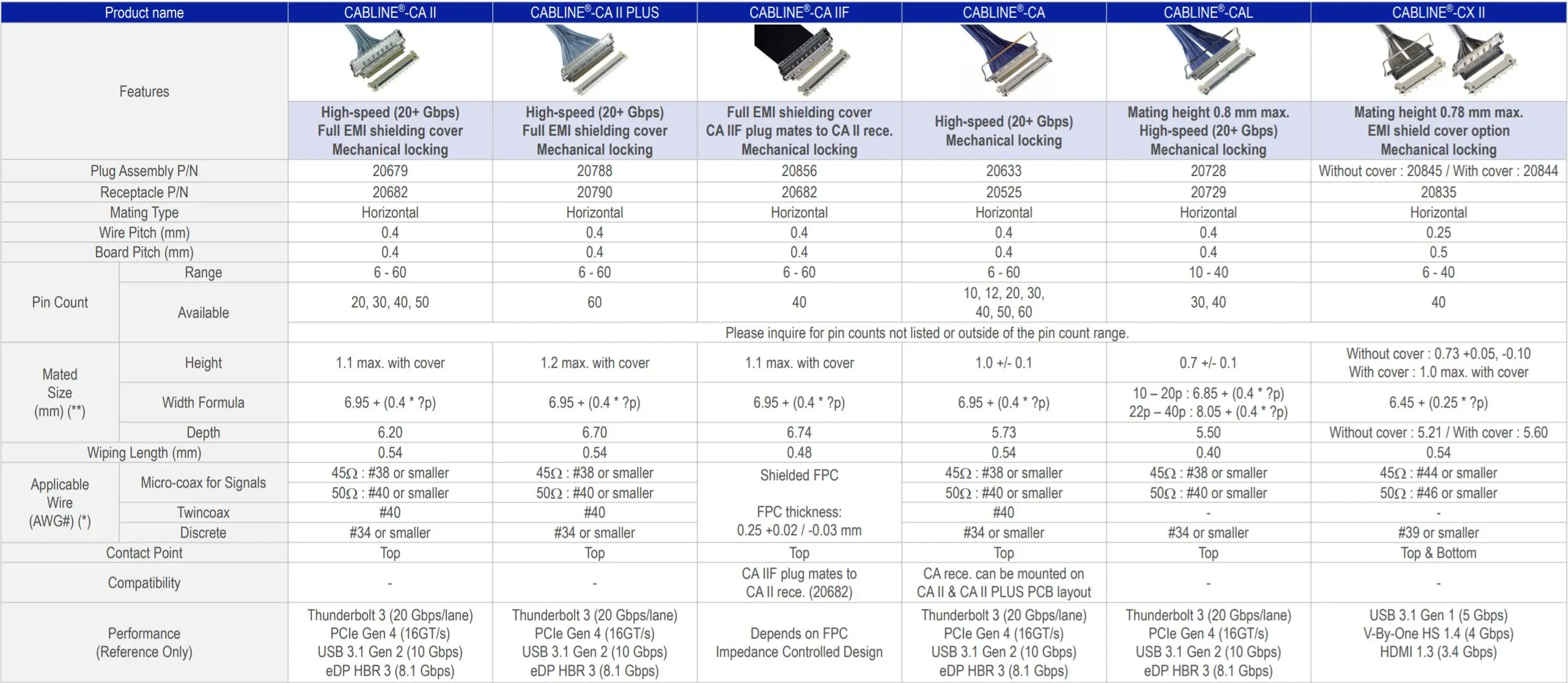

Sino-Media I-PEX 20455 20454 20453 20 30 pin micro coaxial lvds cable 20 pin
Produst Show

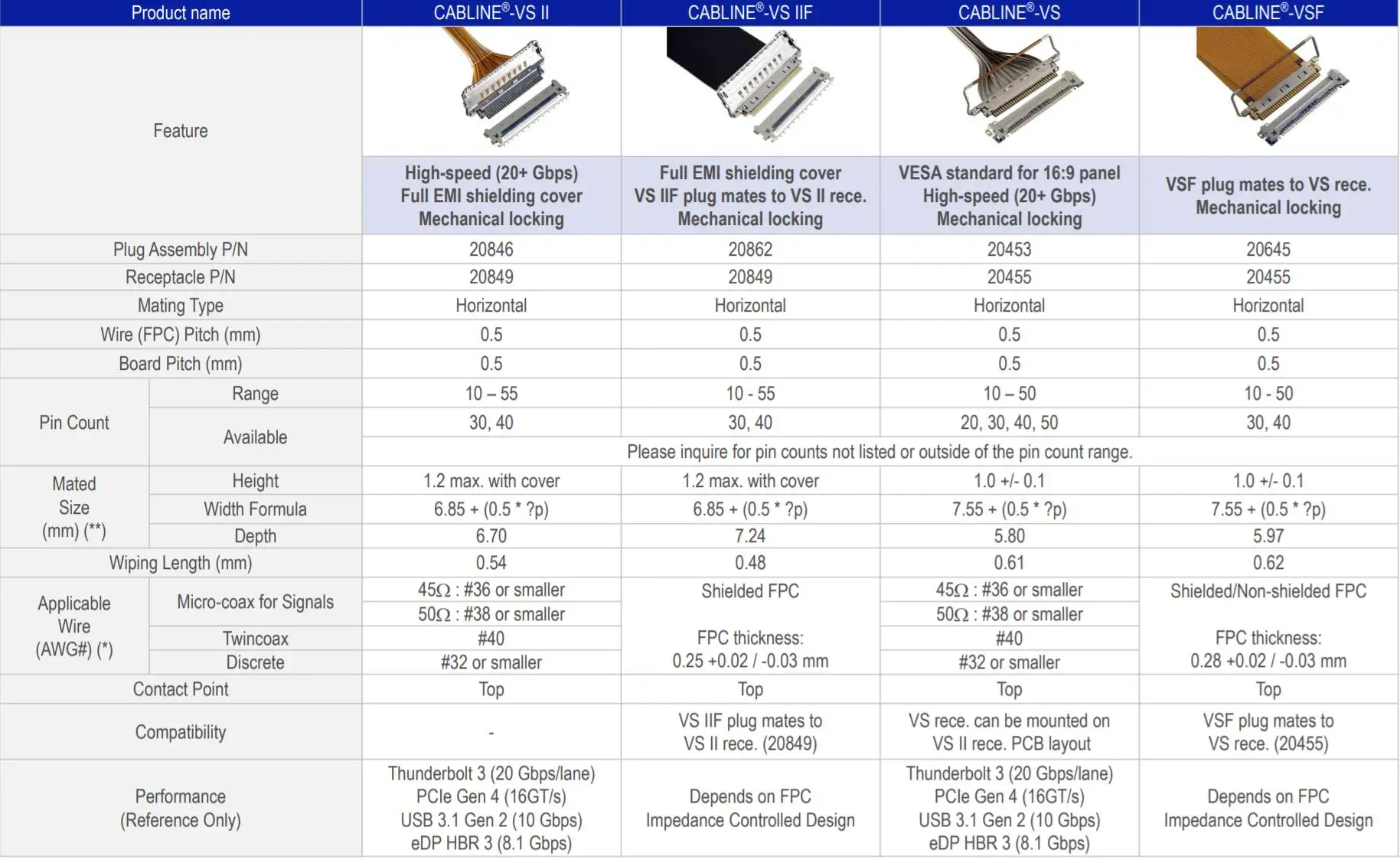

0.5 mm pitch, Horizontal mating Micro-coaxial cable connector
VESA standard connector for 16:9 panel application
High-data-rate transfer, ideal for Thunderbolt™ 3 (20 Gbps/lane) applications
High level EMI shield performance and multi-point ground design
Physical locking bar stops back-out/un-mating
| Mating | Horizontal | ||
| Pitch | Cable | 0.5 | |
| Board | 0.5 | ||
| Pin count | Available | 20,30,40,50 | |
| Mated size | Height | Nominal | 1 |
| Maximum | 1.1 | ||
| Depth | 5.8 | ||
| - | |||
| Width | 7.55+(0.5*?p) | ||
| With pull bar | |||
| Applicable cable | Micro-Coax | 45Ω : #36 or smaller 50Ω : #38 or smaller | |
| TWINCOAX | AWG #40 | ||
| Discrete | #32 or smaller | ||
| Ratings | Amperage | 0.1A AC/DC[AWG#44]/pin 0.24A AC/DC[AWG#42]/pin 0.3A AC/DC[AWG#40]/pin 0.8A AC/DC[AWG#36]/pin 1.0A AC/DC[AWG#34,32]/pin | |
| Performance(reference only) | Thunderbolt 3 (20 Gbps/lane) PCIe Gen 4 (16 GT/s) USB 3.1 Gen 2 (10 Gbps) eDP HBR 3 (8.1 Gbps) | ||
| Mating parts | Cable | Cable | Cable | PCB | Cable |
| Plug | Plug | Plug | Receptacle | Plug | |
| Housing | Shell A | Pull bar | - | Cable assembly | |

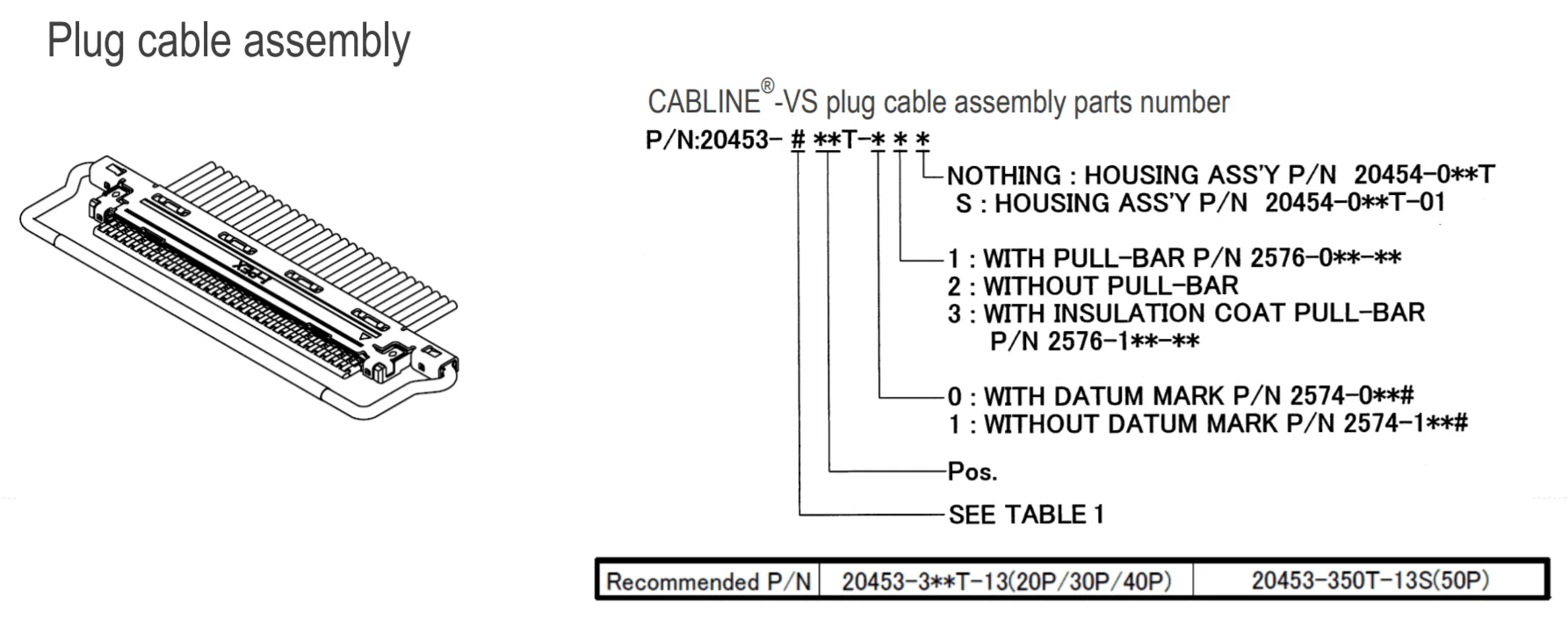

| Prefix number | 20454 | 2574 | 2576 | 20455 | 20453 |
| Recommend part no. | 20454-320T | 2574-1203 | 2576-120-00 | 20455-A20E-99 | 20453-320T-13 |
| 20454-330T | 2574-1303 | 2576-130-00 | 20455-030E-99 | 20453-330T-13 | |
| 20454-340T | 2574-1403 | 2576-140-00 | 20455-040E-99 | 20453-340T-13 | |
| 20454-350T-01 | 2574-1503 | 2576-150-00 | 20455-050E-99 | 20453-350T-13S | |
| Note | - | - | Option | - | - |
