Mobile Handheld Hydraulic Concrete Breaker For Municipal Engineering

Mobile Handheld Hydraulic Concrete Breaker For Municipal Engineering

Category: Hydraulic Impact Hammer Drills >>>
Supplier: Shandong Longpeng Fire Equipment Co. Ltd.

Price:RUB 149,958.97

Quantity:

Product Overview

Description

Product Description

Product Application

1 , Small volume, light weight, great impact energy and efficiency 2~3 times of air pick.

2 , Low noise, excellent quality, high reliability and durability.

3 , It can install various forms of pick, shovel, tamping head and so on.

4 , It is equipped with a shock-absorbing handle with excellent shock absorption. The vibration intensity is only 2.8M/S2, which is comfortable to operate, ensuring that the operator can work for a long time without feeling tired.

	Hydraulic pickaxe BK18S/BK20S/BK28S
Model	BK18S	BK20S	BK28S
weight kg	18	20	28
Flow range lpm	26-34	26-34	26-34

Working pressure bar	90-140	105-140	105-140
Shock frequency bpm	1800-2400	1800-2400	1800-2400
Shock energy J	110-120	110-120	110-120
Brazing size	1*4-1/4	1*4-1/4	1-1/46 1-1/86

Handle form	Shock absorber handle	Shock absorber handle	Shock absorber handle
Dimensions mm	650×450	650×450	670×465

Main Features

1) Small size, light weight, high impact energy, and work efficiency is 2~3 times that of the wind;

2) Low noise, excellent quality, high reliability and durability;3) High pressure double crank to control the die opening and closing.

4) Can be installed in various forms of brazing, shovel, hoe, etc;

5) It is equipped with a shock-absorbing handle with excellent shock absorption. The vibration intensity is only 2.8M/S2, which is comfortable to operate, ensuring that the operator can work for a long time without feeling tired.

Certifications

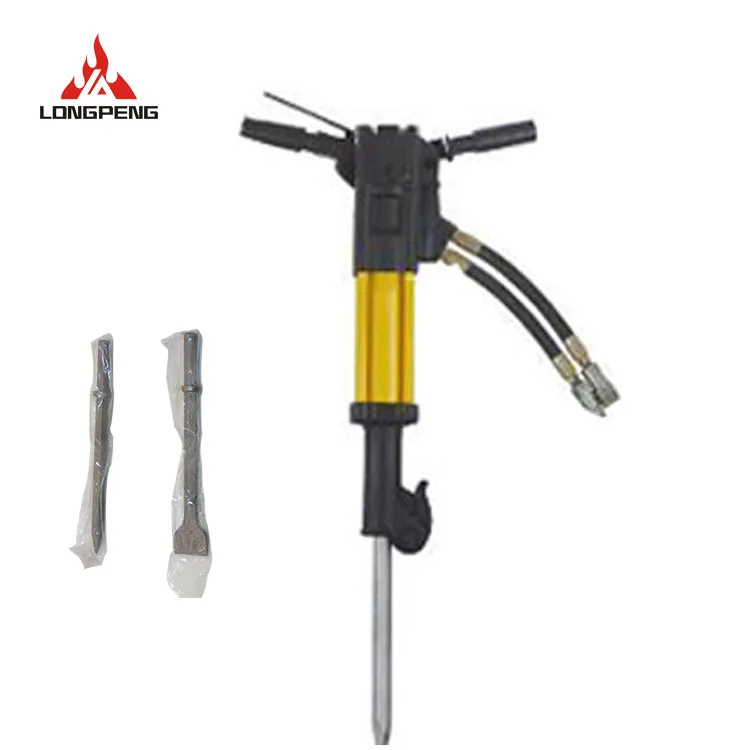

Detailed Images

Whether in harsh conditions or in cities with harsh environmental and noise requirements, concrete, reinforced concrete, asphalt, rock, frozen soil, and beatings can be efficiently completed.

The hydraulic breaker is operated by high-pressure hydraulic oil to compress the energy released by the nitrogen chamber.

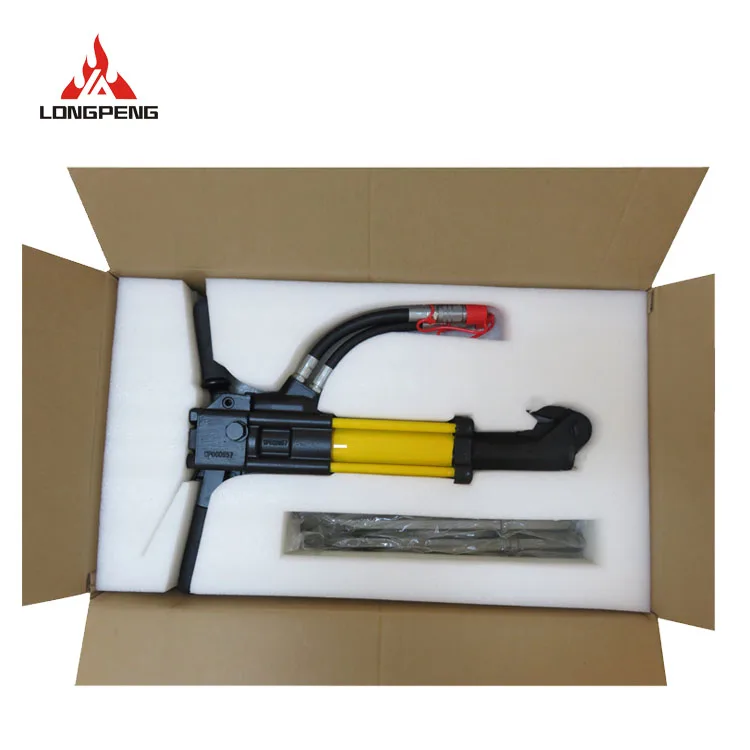

Package product

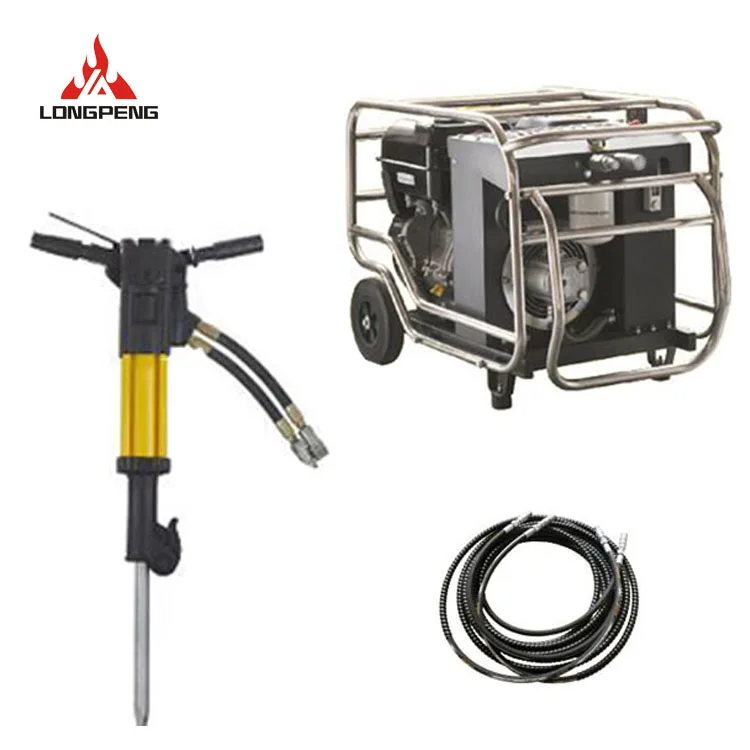

Name: Hydraulic power combination

Products have hydraulic power station and hydraulic output pipe

Packing & Delivery

Packaging
Size	700 (L) * 450 (W) * 180 (D)
Weight	18 kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
