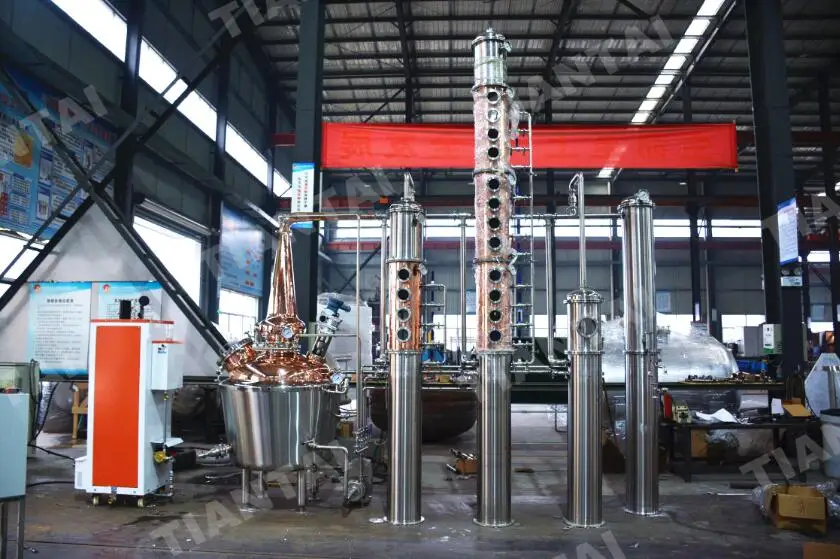

100l TIANTAI whiskey rum Distiller electric pilot still copper column still
- Category: >>>
- Supplier: Shandong Tiantai Beer Equipment Co. Ltd.
Share on (62022560563):
Product Overview
Description
TIANTAI whiskey rum Distiller 100l electric pilot still copper column still
Product Description
Pot Capacity: 100L
Pot spec: stainless steel 304,single walled,with electric heater
Column spec : stainless steel 304,copper,glass available. 4",6",8" diameter available.
Dephlegmator: stainless steel 304,pipe and shell type
Condenser:stainless steel 304,pipe and shell type
Variety is key in the distillation community. Available in 4", 6",and 8" columns made by copper or glass. Our still configurations are made of the highest quality material for a long lasting finish.
Structure | copper boiler+copper copper distilling column+copper condenser+SS304 support base |
Working capacity | according to needs |
Function | alcohol purification/making spiced liquor/vodka,gin,rum,brandy,tequila,whisky and other spirits distilling/cleaning system |
Diameter of column | according to design |
Jacket pressure | 15PSI |
Running time | 4 to 5 hours per batch |
Raw material | fermentable substrate / low concentration alcohol |
Heating method | Electric/Steam/Gas |
Control method | control cabinet |
Accessories | top of pot with mixer, motor with certificate, outlet with valve,safety valve, thermometer, pressure gauge,CIP ball,sight glass,electrical heating element, adjustable feet etc. |
Detailed Images

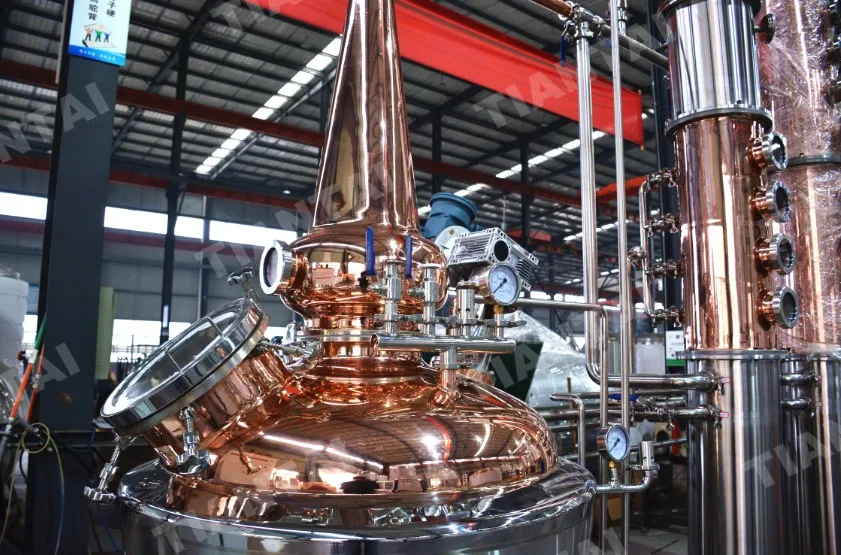

100l electric pilot still copper column still
1. Function:Hold mash or impurity alcohol
2. Material:food grade stainless steel 304 or red copper inner shell for option

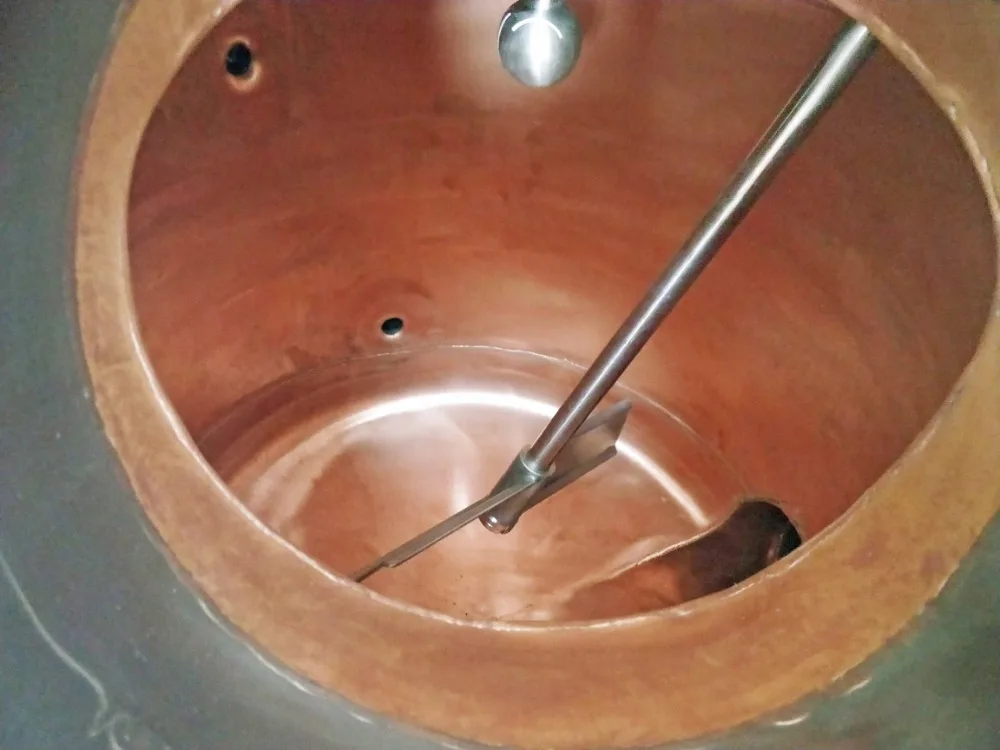

3. Top with agitator which can be used to distill any wash,even washes full of fruit pulp or grain mash can be heated in this configuration of boiler without any risk of burning on bottom of pot. Also, by constantly agitating the wash throughout the distillation run, your distillery can save 20% on the heating required to perform the distillation.

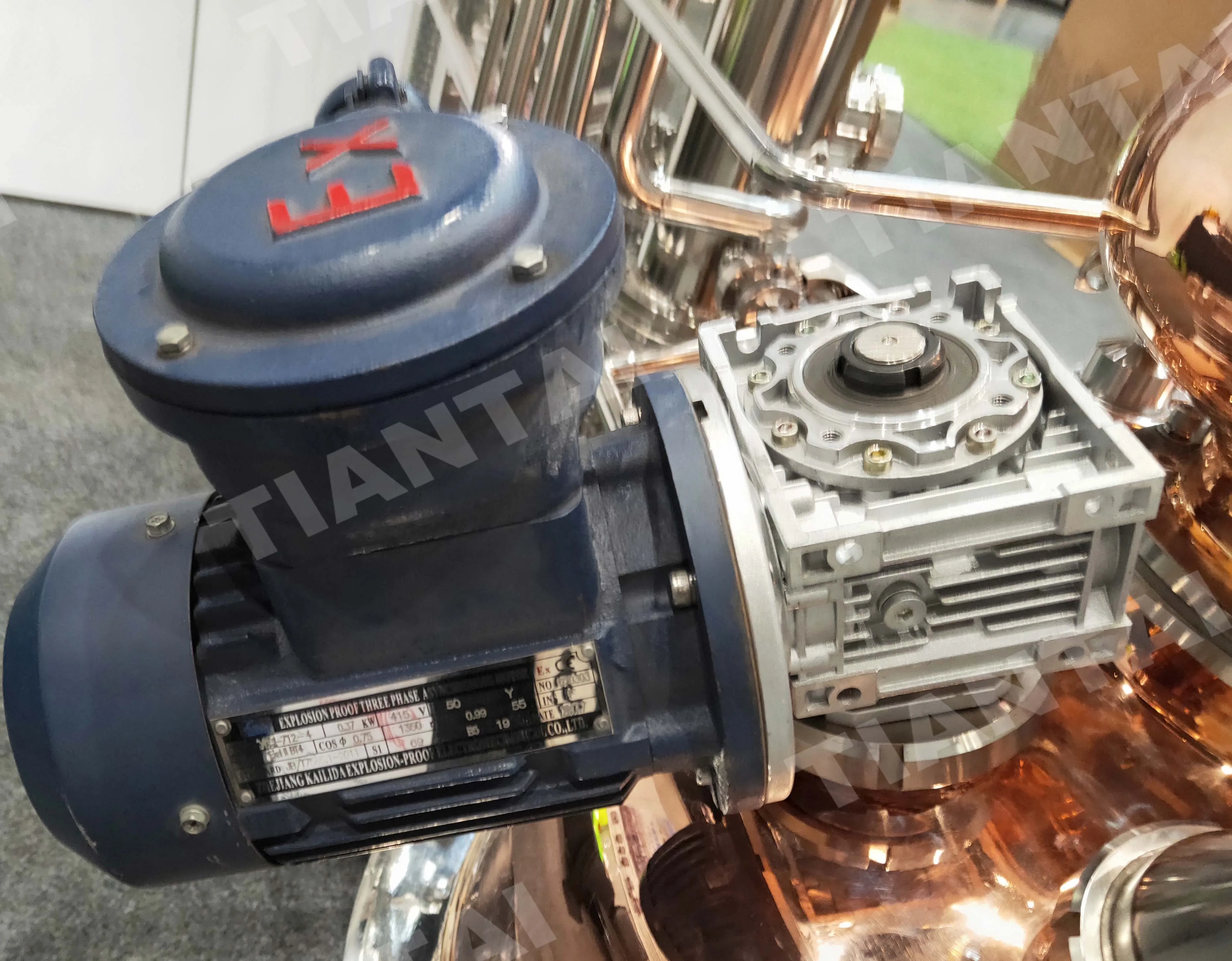

[Motor certificate: UL/CSA/CE/ATEX for option]
[Voltage:208/220/240/380/400/415/460V 3 phase 50/60Hz for option]
800l electric pilot still copper column still
About us
We have more than 15 years experience about designing, manufacturing, installing and training the beer brewery equipment. We have exported to USA, Canada, Brazil, Korea, Australia, Italy, Spain, Belgium, South Africa etc. All of our beer equipment details are taken the humanized and brewmasters’ intention into consideration. Reliable quality is guaranteed by certificated raw material, professional technical support, advanced processing equipment, strict quality control and complete personal training etc. We always keep our system affordable which will support more brew masters to approach their brewing dream.
Please email me if you want to learn more details on our distiller.
We will reply within 12 hours
Cheers
Laura
