Stainless steel sanitary embalming electric centrifugal water pump manufacturer price

Product Overview

Description

Introduction

Chengyi machinery is a professional supplier of stainless steel sanitary centrifugal pump, high clean sanitation pump,  sanitary centrifugal self- priming pump, circulation pump, dairy pump, food pump, milk pump.

By introducing advanced CNC machining equipment, we produce pumps in strict accordance with EHEDG, 3A, GMP and other standards.



Application

This centrifugal pump is kind of highly-efficient and economic centrifugal pump. It is widely used for conveying various liquid materials in pharmaceutical, biological engineering, food, beverage, fine chemical industries.

It can be used to convey ordinary solution of low and medium viscosity, and solutions containing suspension or corrosive solutions. (CKH centrifugal pump is suits for the solid supension, such as 10mm grai for 1.5~2.2kw, 12mm for 3~4kw, 15mm for 5.5~7.5kw)



It is single stage, single suctiom and open type impeller. The pump shell and impeller are elaborately designed to reduce the resistance and thoroughly eliminate the dead corner.  As for its unique structure, the flow speed of liquid in the pump is enhanced, so that with excellent sanitary performance, so it is easy to be cleaned. It can meets the requirements for sanittion and soft treatment to products and has the chemical corrosion resistancew.



Standard design

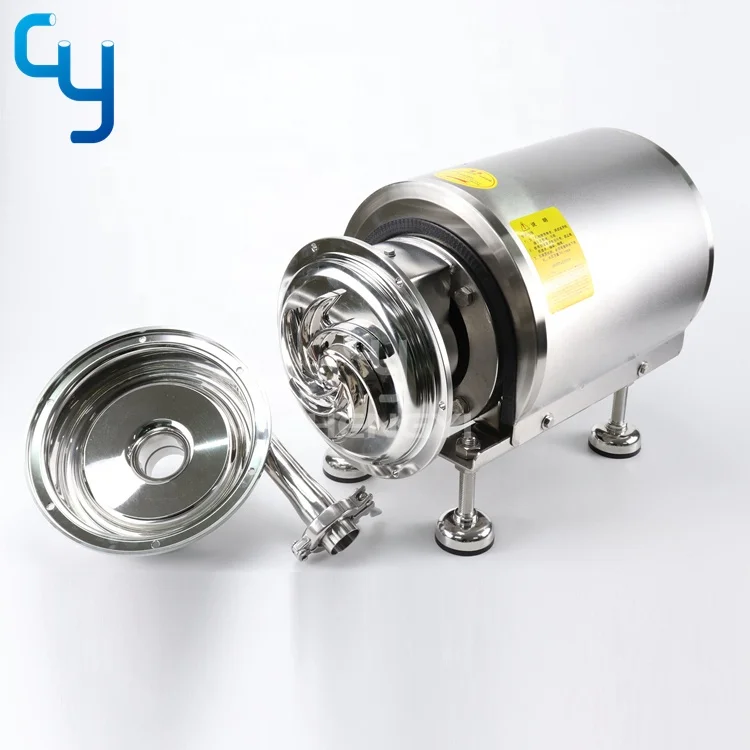

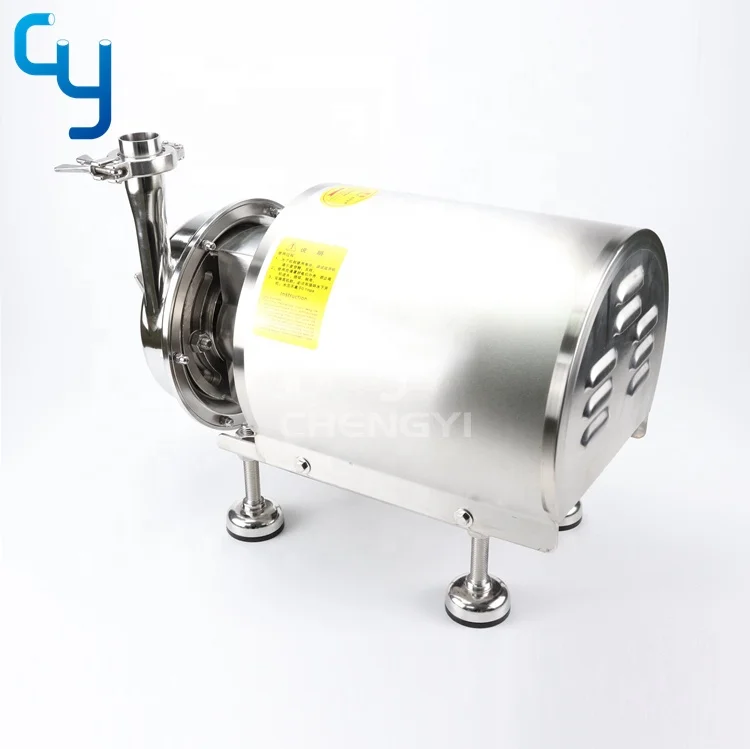

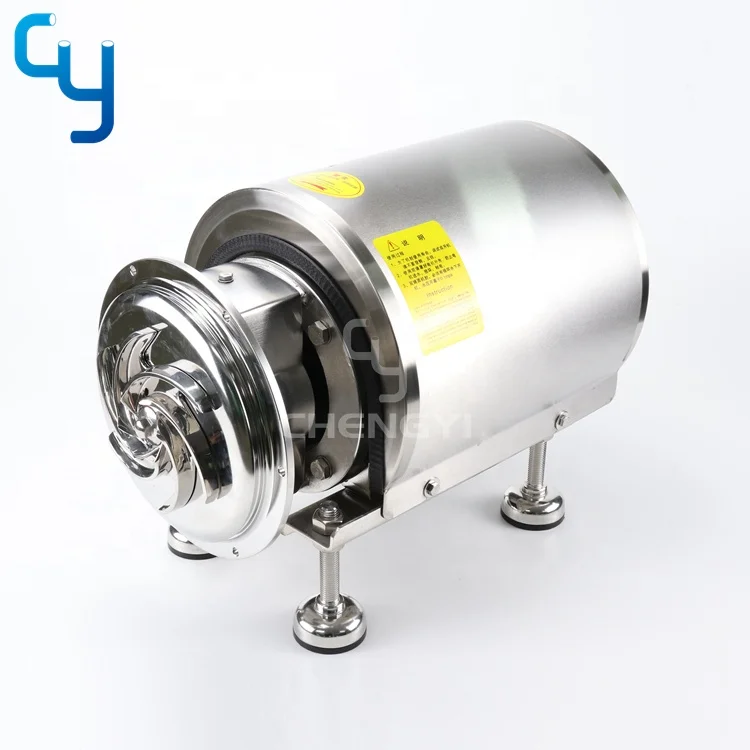

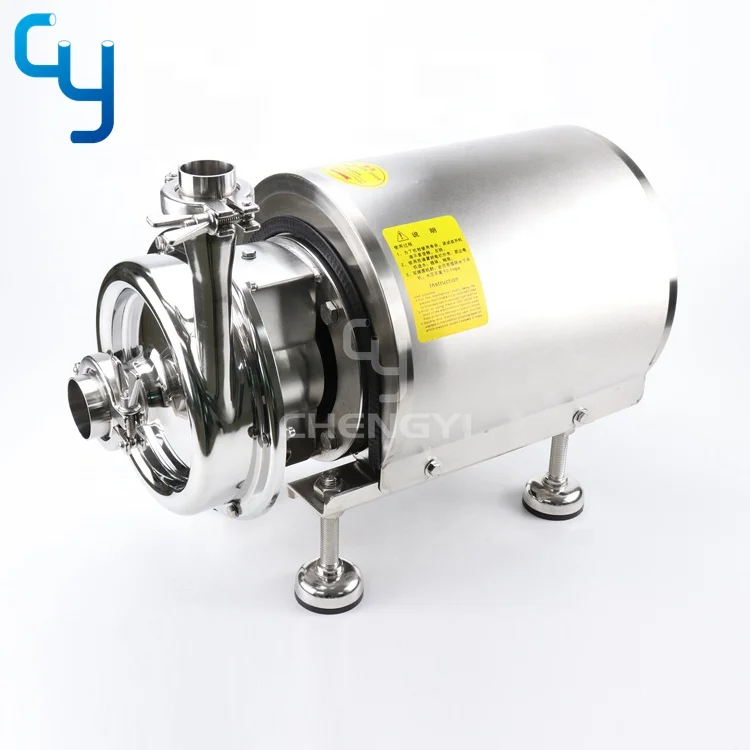

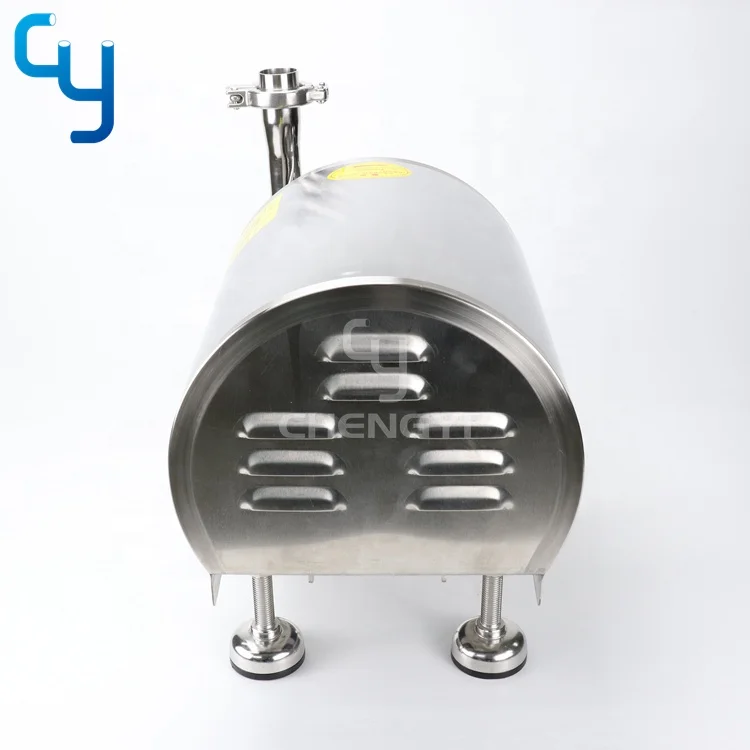

The CKH sanitary centrifugal pump is composed of motor, pump shaft, mechanical clamping jacket, sanitary mechancial seal, connection support, rear plate cover, impeller, pump shell, etc.  It has large internal round chamfer and cleaning type seal. It specially desigined for CIP. It has the stainless steel protection cover used for protecting the motor, and the equipment is supported by four adjustale feet.



Shaft seal

This pump is provided with a set of externally mounted single mechanical seal or water injection mechanical seal (double mechanical seal). The static ring of the mechanical seal is made of stainless steel seal, silcone carbide or tungsten alloy. The dynamic ring is made of stainless seal, carbon, graphite or tungsten alloy. The seal ring of the water injection type seal (double mechanical seal is durable lip seal. The searies of pump products can also be equipped with the double end mechancial seal.



Technical parameters

Max inlet pressure: 0.5 Mpa

Temperature range: -10℃ ~ 140℃

Speed:2900rpm



Single mechanical seal:

Hydraulic pressure: max. 0.1mpa

water volume: 0.25-0.5 l/min

usually suits for -10℃ ~ 100℃



Double mechanical seal:

Hydraulic pressure: max. 0.1mpa

water volume: 0.25-0.5 l/min

usually suits for -10℃ ~ 140℃



Material

Contacting parts: AISI 316L or AISI 304

Other parts: AISI 304

Standard seal for pump head is silicone , mechanical seal o ring is FRM.  EPDM or NBR is optional





Surface treament:

Outside is shot blasting in satin finish

External is mirror polish at 0.4um, or shot blasting in satin finish



Motor

1. usually standard is domestic brand motor. International is optional. when you order, please contact with us for it.

2. Excellent electric performance, low noise, low vibration, protection grade of high permance IP54, IP55. special IP56 can optional, please contact with us.

3. Standard power is 380V/50HZ/3phase, we can make speical power and special power, please contact with us when ordering.

4. If you need explosion proof pump, please also contact with us.



Standard design

Standard: DIN, 3A, SMS, ISO/ IDF, BS/RJT, ASME/BPE etc.

The parts of valves: an actuator, diaphragm and body which assemble together with bolts and nuts. The entire valve assembly in meticulously. The actuator is manual, the diaphragm made of artificial rubber which can have all kinds of soft and hard degree.





Material	Contact with the product parts	304 or 316L
	Non contact product parts	304
Sealing material	Standard	Silicone for pump head, FRM for mechancial seal
	Option	EPDM, NBR
Pressure	Working pressure	Max 5bar
Temperature	Single mechancial seal temp.	-10℃ ~ 100℃
	Double mechanical seal temp.	-10℃ ~ 140℃
Surface treatment	Internal surface finish	Mirror Ra0.4~0.6μm or satin finish
	External surface finish	Satin finish
Connection	clamp, weld, thread
Power	380V/50Hz/ 3phase,can be customized as optional
Motor power	0.37kw ~ 37kw



 For more information or any question, please feel freely to contact with us here!

Installation instructions

Installation Method and Place:

It is very necessary to check the following before installation:

The drive is in good condition.

Whether the on-site power supply is the same as the rated power on the motor nameplate.

Whether it meets the environmental conditions (avoid flammable and explosive environment or acid corrosion environment).



Installation Location:

The installation foundation of the pump should generally be level and sufficient-strengthened ground. Install it as far as possible on the lowest position of the equipment, that is, at the position with the maximum head height.



Piping Installation:

The diameter of pump, pipe and the inlet and outlet of the pump should be the same, and the diameter of the inlet pipe should not be too small. When the diameter of the pipe is smaller than the diameter of the pump, adjust it with an eccentric reducer to shorten the diameter of the pipe so as to avoid formation of a gas leak. The outlet pipe diameter must not be too large either. When the outlet pipe diameter is larger than the pump outlet, try to extend it. Distance from the pump outlet to avoid overloading the pump motor.

Q: What is the delivery time?
A: We have strong stock of standard products, generally delivery time within 8-10days.

Non-standard products or big quantity will take 8-30days depend on quantity.
Q: How long is the guarantee?
A: We promise guarantee as one year for non-human damage factor.
Q: What is the MOQ?
A: 1 set
Q: Can you do OEM & ODM?
A: Yes
Q: Where is your nearest port?
A: Ningbo/Shanghai Port
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Wenzhou City, China.You can fly to Wenzhou Yongqiang airport directly.

Q:Why do you choose us?

We have wide range stock of stainless steel products.
We have experienced technical people, labor worksers. High effective sales team. Some of us had been in this industry for more than 17 years.

Mass production capacity ensure on time deivery.
One year warranty; perfect after-sales service for spare parts
Best prices with good quality and reliable performance
Easy maintenance.
Our logo or OEM

 About company

Wenzhou chengyi machinery co., ltd. is a company integrating design, production, sales and service. The main products are sanitary diaphragm valves, sanitary ball valves, butterfly valves, sampling valves, angle seat valves, check valves, safety valves, filters, strainers, centrifugal pumps, negative pumps, self-priming pumps, fittings, elblows, tees, cross, reducers, clamps, unions, cleaning ball, sight glass, manholes, pipings, bottom magnetic mixers, emulsifer, and  stainless steel tanks. Comply with GMP, QS, HACCP requirements. Chengyi machinery technology team has more than 10 years of mechanical manufacturing experience and professional equipment knowledge, to provide customers with reasonable and effective solutions. Chengyi machinery professional technology, high quality products, meet the pharmaceutical, food, biological, daily chemical, chemical and other fields.



The company introduces professional production equipment and manufacturing technology, and the vessels are manufactured in accordance with GB, JB, ASME, CE standards. Pipe fittings in accordance with ISO, DIN, IDF, 3A and SMS industrial standards; All kinds of non-standard products are customized according to the requirements of customers. Our products meet international standards and are in the leading position in the industry. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.



The company adheres to the "quality first, reputation first, service first" business purpose, adheres to the "honest, pragmatic, win-win" business philosophy, to provide clients with the best service, best product quality and perfect after-sales service to win the majority of customers rely on and support. Chengyi machinery is willing to work together with every new and old customer to create brilliant future!



YOUR RELIABLE PARTNER



For more information or any question, please feel freely to contact with us here!

1. The Quick reply: We will reply you right now in work time, if it is not in work time, we will reply no more than 12 hours.

2. The Strong package: Our package group is professional, steps: bubble-plastic bag-carton or plywood wooden case or metal frame.

3. The Quick Delivery: We usually will arrange valves and fitting no more than 2~7days, if quantity is big, no more than 30 days.

4. The Best After-sales service: If the problems existing problem itself, we will responsible for it.

5. Long life services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.



How to place an order?

Step 1: please contact with salesman, tell him the URS (user requirements), including item name/size/material/standard. For example: manual diaphragm valve/ DN25, clamp end/ SS316L/ 3A.

Step 2: After you confirm the details with salesman, he will send you an offer accordingly.

Step 3: If you are agree with the price, you can tell the salesman you want to finalize the order.

Step 4:Our sales man will make an Order with you at the first time, then you can pay for it.

Step 5:Will arrange the products as soon as you pay for it and we will delievery you at the speedy way.
