CODACA Ferrite electronic CSAB1040A 150M car audio filter molding power choke SMD inductor coil 15uH
- Category: >>>
- Supplier: Shenzhen Codaca Electronic Co. Ltd.
Share on (62022644497):
Product Overview
Description
Features
- Magnetic shielded structure: excellent resistance to electro magnetic interference(EMI).
- A composite structure, ultra low buzz noise.
- Low loss, high efficiency, wide application frequency.
- Lightweight design, save space, suitable for high density SMT.
- Die-casting by low loss alloy powder: low impedance, small parasitic capacitance.
- Operating temperature : -40 +125 (Including coil’s temperature rise)
Product Description
1. Key Parameter
| Type | Molding Power Choke |
| Inductance (μH) | 15 |
| Tolerance | 20% |
| DCR(mΩ) | 12.0mΩ Typical, 20.0mΩ Max |
| Isat(A) | 7.0 |
| Irms(A) | 5.8 |
| Temp.Range(℃) | -40~+125 |
| Dimension(mm) | 11.5*10.0*3.8 |
| Construction | SMD |

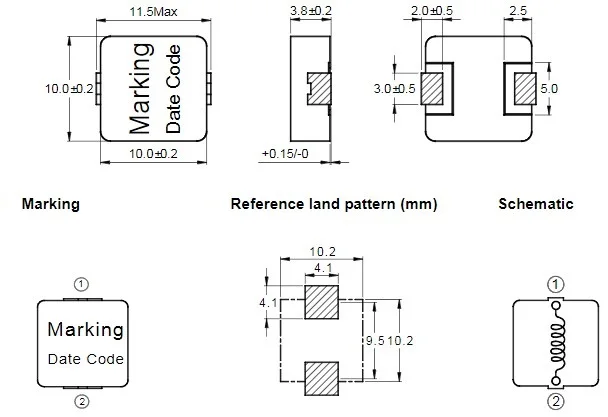

2. Appearance and Dimension (mm)

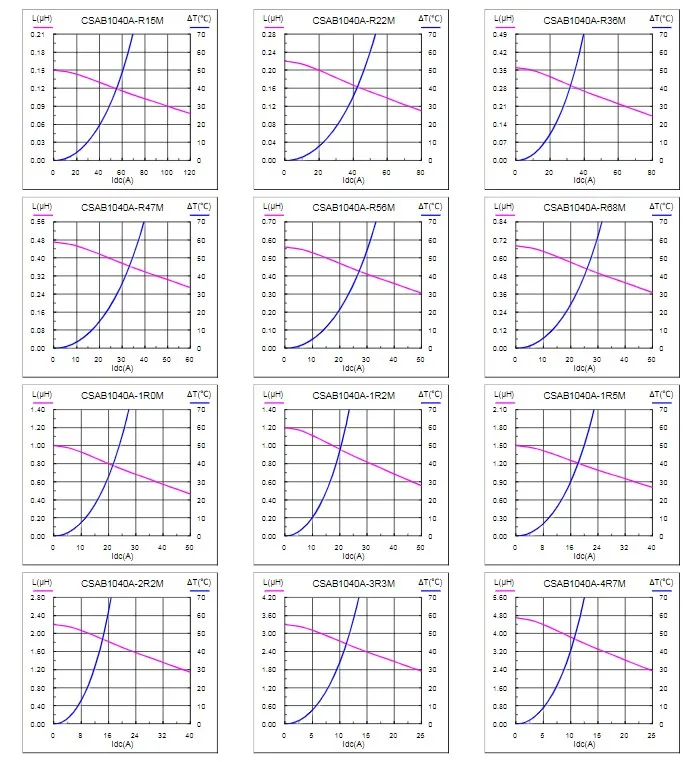

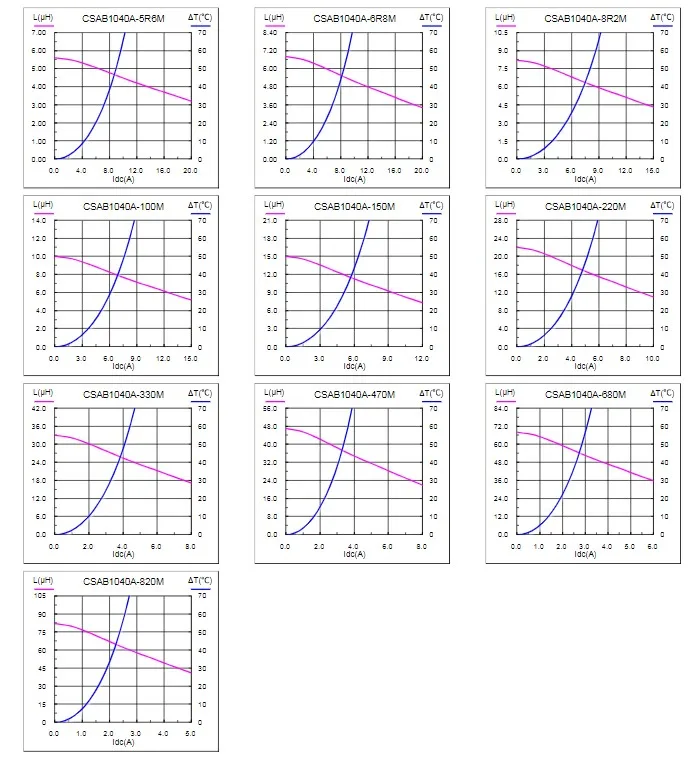

3. Saturation Current VS Temperature Rise Current Curve
4. Series Reference
| Part No. | Inductance (uH) ±20% | D.C.R. (mΩ) | Saturation Current (A) | Termperature Rise Current (A) | |
| Typical | Max | Typical | Typical | ||
| CSAB1040A-R15M | 0.15 | 0.39 | 0.65 | 75 | 55 |
| CSAB1040A-R22M | 0.22 | 0.67 | 1.0 | 48 | 42 |
| CSAB1040A-R36M | 0.36 | 1.2 | 1.5 | 46 | 31 |
| CSAB1040A-R47M | 0.47 | 1.2 | 1.6 | 42 | 31 |
| CSAB1040A-R56M | 0.56 | 1.7 | 2.0 | 33 | 26.5 |
| CSAB1040A-R68M | 0.68 | 1.9 | 2.4 | 33 | 25 |
| CSAB1040A-1R0M | 1.0 | 2.5 | 3.3 | 28 | 21.5 |
| CSAB1040A-1R2M | 1.2 | 3.4 | 3.9 | 28 | 18.5 |
| CSAB1040A-1R5M | 1.5 | 3.6 | 4.2 | 26 | 18 |
| CSAB1040A-2R2M | 2.2 | 6.7 | 8.0 | 25 | 13.2 |
| CSAB1040A-3R3M | 3.3 | 10.3 | 11.8 | 16 | 10.7 |
| CSAB1040A-4R7M | 4.7 | 12 | 20 | 15 | 9.9 |
| CSAB1040A-5R6M | 5.6 | 17.9 | 23 | 14 | 8.1 |
| CSAB1040A-6R8M | 6.8 | 20 | 23.5 | 12 | 7.7 |
| CSAB1040A-8R2M | 8.2 | 22.2 | 27 | 9.5 | 7.3 |
| CSAB1040A-100M | 10 | 24.7 | 30 | 9.3 | 6.9 |
| CSAB1040A-150M | 15 | 35.4 | 45 | 7.0 | 5.8 |
| CSAB1040A-220M | 22 | 54 | 66 | 6.0 | 4.7 |
| CSAB1040A-330M | 33 | 86 | 92 | 5.0 | 3.7 |
| CSAB1040A-470M | 47 | 126 | 145 | 4.5 | 3.1 |
| CSAB1040A-680M | 68 | 176 | 195 | 3.8 | 2.6 |
| CSAB1040A-820M | 82 | 254 | 305 | 3.0 | 2.2 |
