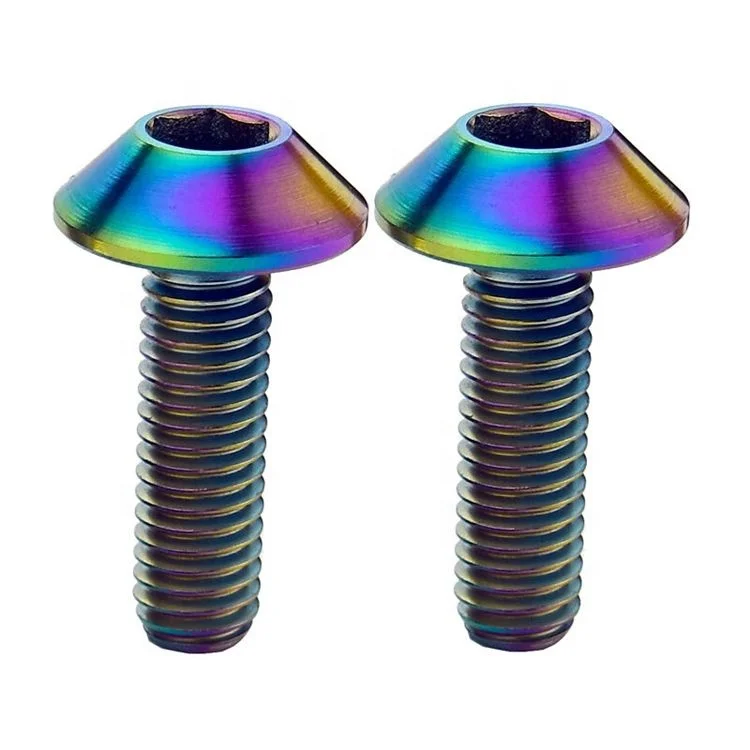

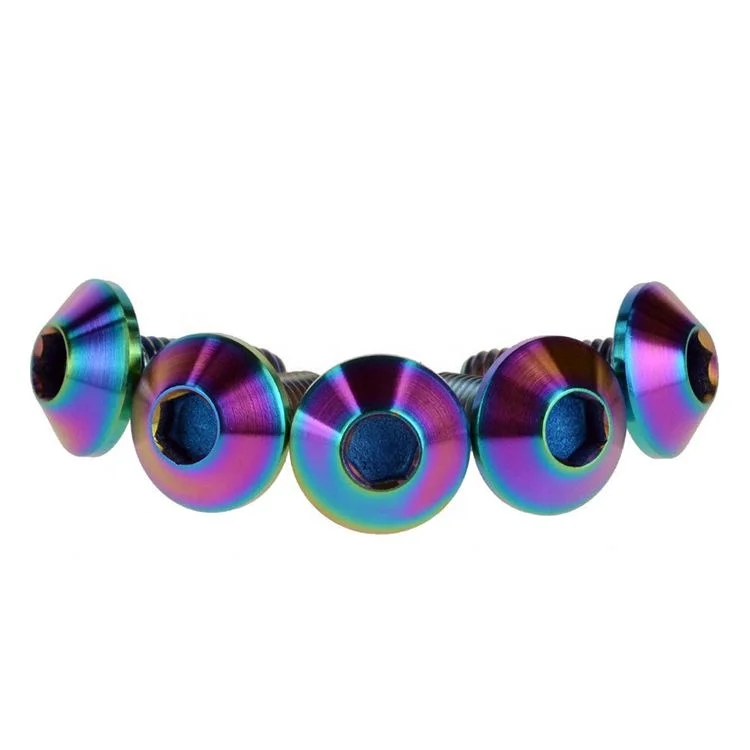

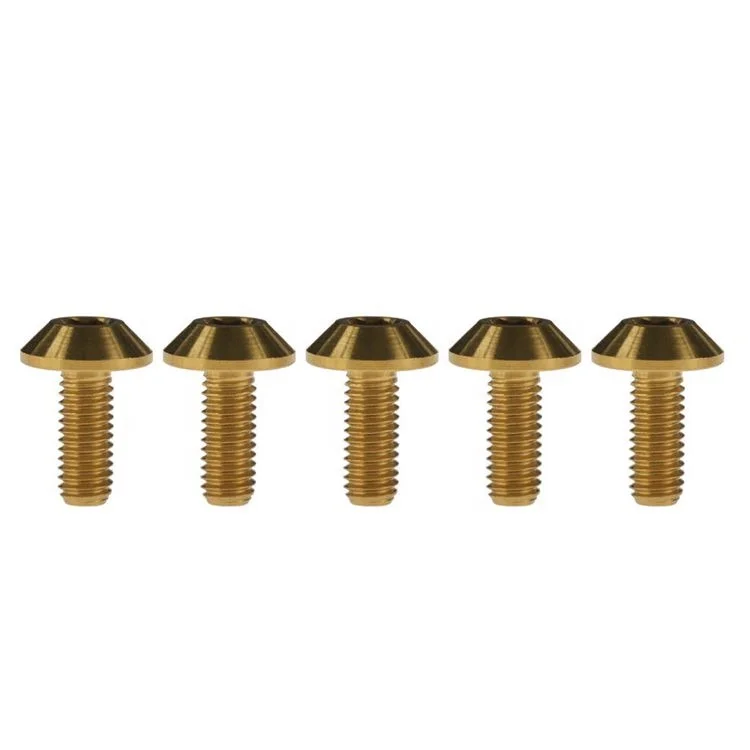

M3 M4 m5 m6 m8 m10 Titanium Button Head screw self tapping screw
- Category: >>>
- Supplier: Baoji Lihua Non-Ferrous Metals Co. Ltd.
Share on (62022674502):
Product Overview
Description
M3 M4 m5 m6 m8 m10 Titanium Button Head screw self tapping screw
Product Description
Features:
100% quality and Brand new.
Fantastic corrosion resistance,No rust
High-performance, corrosion-resistant, light weight, high strength and durability titanium bolts and nuts have many applications.
Especially in sports,mountain bike,bicyle,motorcycle, automotive, racing, aerospace and medical industries.
100% quality and Brand new.
Fantastic corrosion resistance,No rust
High-performance, corrosion-resistant, light weight, high strength and durability titanium bolts and nuts have many applications.
Especially in sports,mountain bike,bicyle,motorcycle, automotive, racing, aerospace and medical industries.
Description:
Brand: LHTI
Size: M3/M4/M5/M6/M8/M10
Color Available:Colorful
Material: 6AL/4V(TC4)Titanium Alloy,Grade 5
Brand: LHTI
Size: M3/M4/M5/M6/M8/M10
Color Available:Colorful
Material: 6AL/4V(TC4)Titanium Alloy,Grade 5
Thread Pitch:0.5/0.6/0.8/1.0/1.25/1.5MM
Thread Diameter:3/4/5/6/8/10mm
Thread Diameter:3/4/5/6/8/10mm
Head Style:Button
Fastener Type: Socket Screws
Drive Type: Socket,Hex or Allen
Fastener Type: Socket Screws
Drive Type: Socket,Hex or Allen
Note:
(1)The following information is for reference only, please check your bike model as well as the size of the screw carefully before making your order.
(1)The following information is for reference only, please check your bike model as well as the size of the screw carefully before making your order.
(2) We do not responsible for the wrong purchase without contacting us. Thanks for your understand!
Specifications and Applications of different Titanium Screw Bolt:
The definition of bolt specifications: MA * B
A(mm)= The diameter of the thread.(The normal diameter is 3,4, 5, 6,7,8,10,12)
B(mm)= The length of the stud. (Not included the length of screw head)
A(mm)= The diameter of the thread.(The normal diameter is 3,4, 5, 6,7,8,10,12)
B(mm)= The length of the stud. (Not included the length of screw head)
M5*9 :for front Derailleur,Rear Derailleur etc
M5*10 :for fixing bottle cage , disc-Brake , Rear Derailleur etc
M5*12 :for fixing bottle cage , disc-Brake etc
M5*18 :for fixing front Derailleur , fixing Seatpost, Clamps Stems etc
M5*20 :for Brake lever , Derailleur etc
M5*35 :for Gusset etc
M5*40 :for Seatpost etc
M6*10 :for V brake etc
M6*12 :for V brake etc
M6*16 :for Thumb Shifter,Brake Lever etc
M6*19 :for Crank Only,Stem
M6*20 :for Brake lever ,Derailleur , Stems etc
M6*25 :for V brake, handlebar etc
M6*30 :for seatpost,Headsets etc
M6*35 :for seatpost etc
M6*40 :for Stems, seatpost etc
M8*18 :for head tube etc
M8 :for V brake, Forks etc
M10 :for V brake, Rear Forks, fold bike etc
M5*10 :for fixing bottle cage , disc-Brake , Rear Derailleur etc
M5*12 :for fixing bottle cage , disc-Brake etc
M5*18 :for fixing front Derailleur , fixing Seatpost, Clamps Stems etc
M5*20 :for Brake lever , Derailleur etc
M5*35 :for Gusset etc
M5*40 :for Seatpost etc
M6*10 :for V brake etc
M6*12 :for V brake etc
M6*16 :for Thumb Shifter,Brake Lever etc
M6*19 :for Crank Only,Stem
M6*20 :for Brake lever ,Derailleur , Stems etc
M6*25 :for V brake, handlebar etc
M6*30 :for seatpost,Headsets etc
M6*35 :for seatpost etc
M6*40 :for Stems, seatpost etc
M8*18 :for head tube etc
M8 :for V brake, Forks etc
M10 :for V brake, Rear Forks, fold bike etc
Item Name | titanium bolts for bicycle |
Material | Pure Titanium, Titanium Alloy |
Grade |
GR5 (Ti-6AL-4V), |
| Specification | BOLT: M3-M36, Length 6~300mm |
Supply non-standard and special size according to customer's requirement | |
Standard | 1.IS |
Surface Treatment | Polishing, Milling, Anodised Gold, Blue, Green, Purple , Black,rainbow etc |
| Features | Light Weight, Excellent Resistance, Anti-Corrosion, Excellent Mechanical Strength etc. |
| Applications | Equipment accessories: airplane, ship, bicycle, motorcycle, auto, wheelchair, sports, anchor, weapon, etc. |
| Test and Quality |
1. ISO 9001:2008 |
Payment | T/T, L/C, Westener Union, MoneyGram, Paypal |

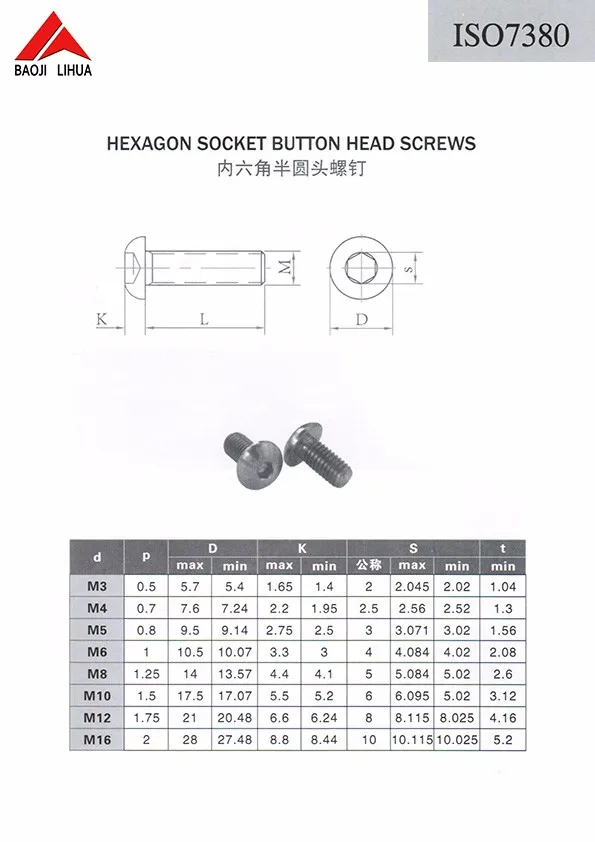

Product standard

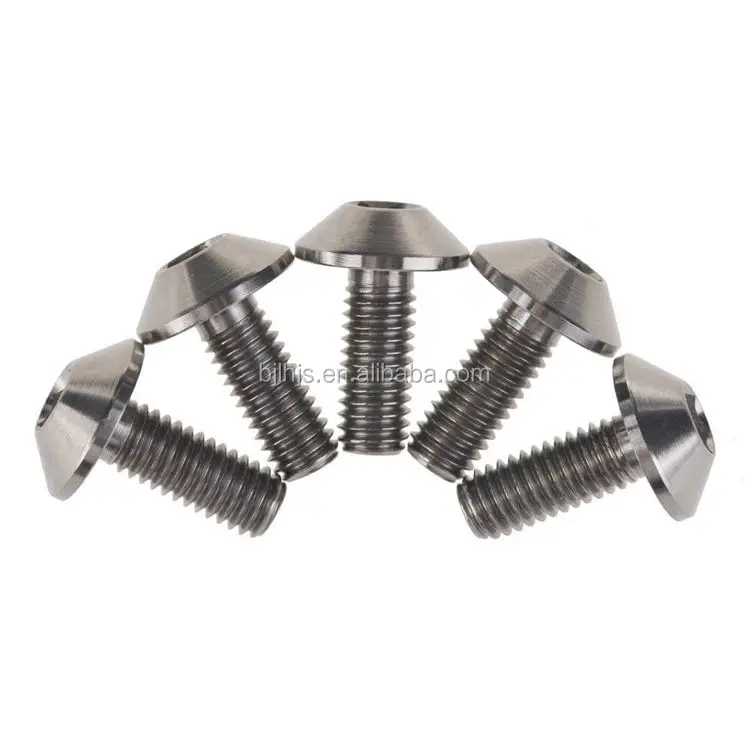

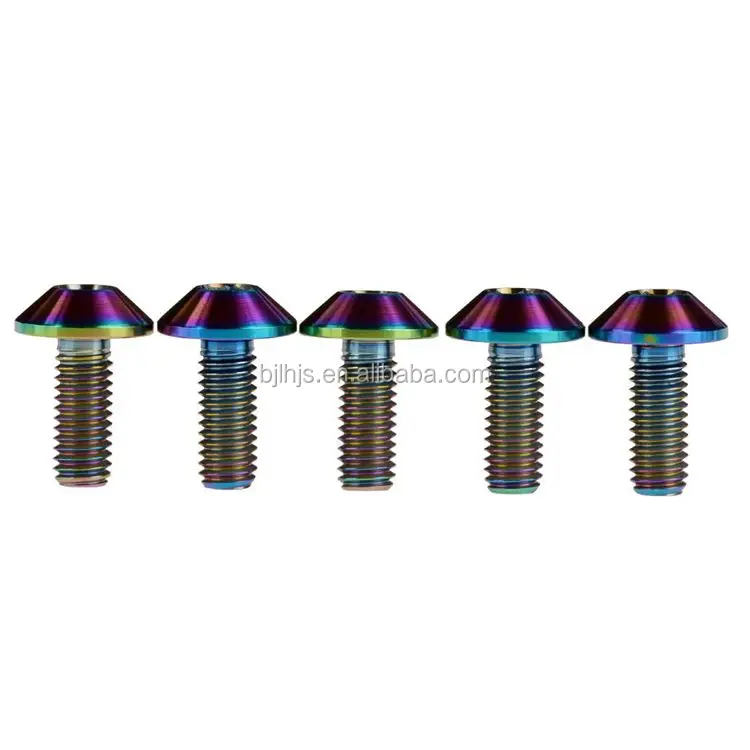

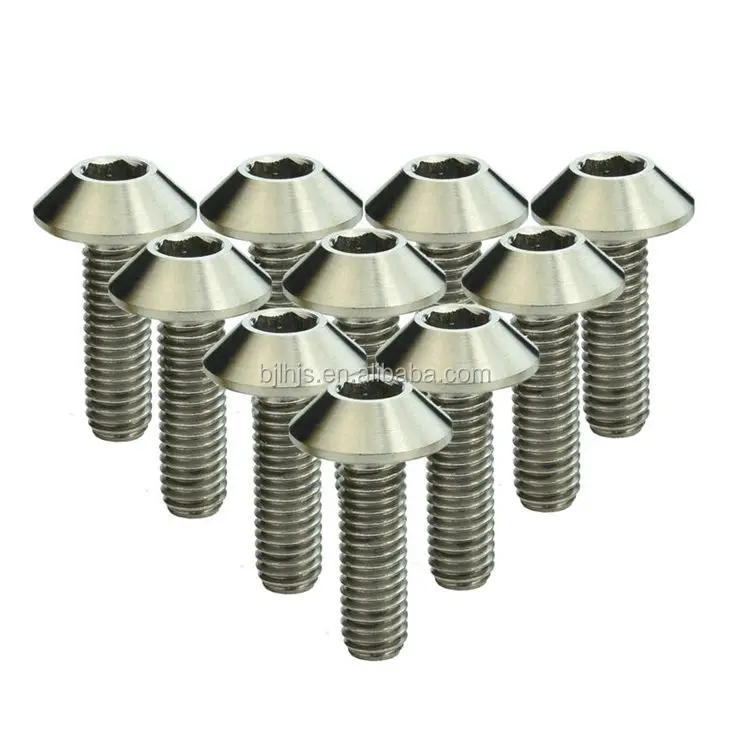

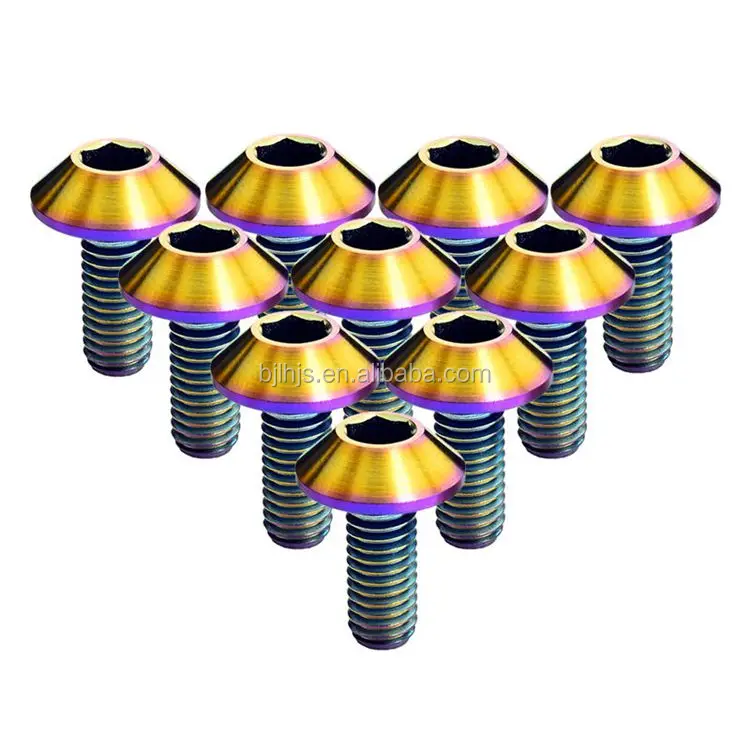

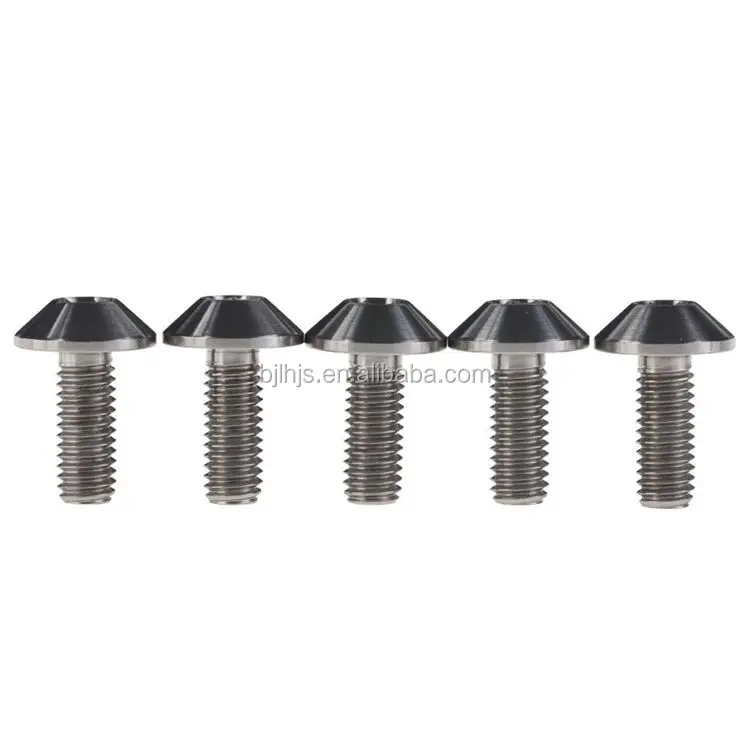

Detailed Images
mechanical property
Mechanical info about our Ti alloy bolts | |
| Thread | Rolled thread for better fatigue resistance and avoid galling, Instead of cut thread |
| Tensile strength | Heat treated to 950Mpa~1000Mpa |
| Yield strength | 870Mpa~925Mpa (126,000psi~134,000psi) |
| Hardness | 30 HRC-40HRC |
| Shear strength | 500Mpa~550Mpa |
| Elongation | 14%~18% |
| Working temp | Up to 500°c |
My buyer feedback
Packaging & Shipping
Company Information
FAQ |
Q1.--How can you ensure the product quality? --All products are manufactured according to ASTM standard (Bolts are according to ASME standard and DIN standard),and we make 100% inspection before shipment,also we can provide the MTC Material Test Certification. |
Q2.--Can you print our LOGO on the products? --Sure, and we welcome the customerized products. |
Q3.--Can we get the free sample? --Sure. |
Q4.--What about the payment terms? --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
Q5.--Do you have your website? --Yes, Please click here. //www.lihua-group.com (Independent website) |
Q6.--What is the necessary information for a inquiry? --Product name, specification, material grade and quantity. |
