CNC 4 four axis milling machine machine for embossing roller


6040A

Product Description

1.Description of CNC Machine



Parameter/ModelDC-6040A
AccuracyPositioning accuracy0.01/300mm
Repeat positioning accuracy0.005mm
WorktableWorktable size625*450mm
T-slot size4T-12-120mm
Max. load150Kg
TravelX/Y/Z axis travel600/400/140mm
Gantry width705mm
Beam to worktable300mm
Spindle nose to worktable140-280mm
FeedMax. feeding speed G0012m/min
Max. working speed G018m/min
X/Y/Z axis motor power400/400/400w
SpindleSpindle motor power1.5KW
Spindle Max. speed24000rpm
Tool holderER16(Φ3.17-Φ8)
CommonPower supply and total capacity1P/220V/50Hz/5KVA
Machine weight2000Kg
Dimension1810*1550*1870mm
Main partsControllerSyntec 21MA/Taiwan
AC servo motor(Driver)Yaskawa/Japan
Spindle inverterInovance/China
Linear guide wayHiwin,PMI/Taiwan
Ball screwHiwin,PMI/Taiwan
Electronic hand-wheelEHDW-BA5S-1 Future/Taiwan
Lubrication systemYET-A2P2 ISHAN/Taiwan

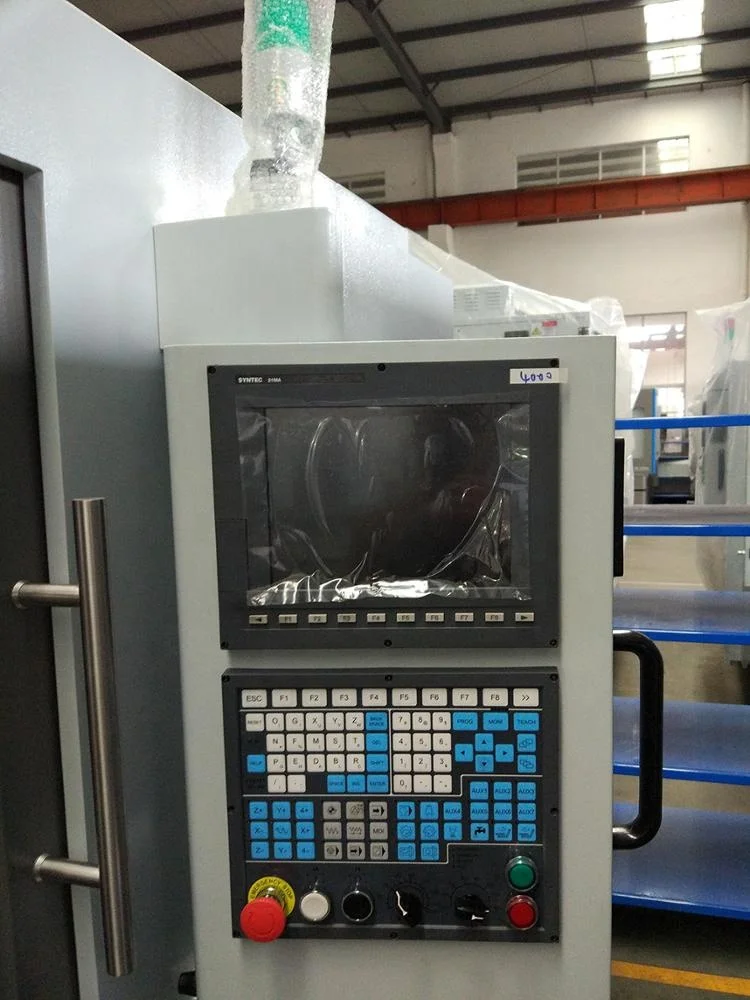

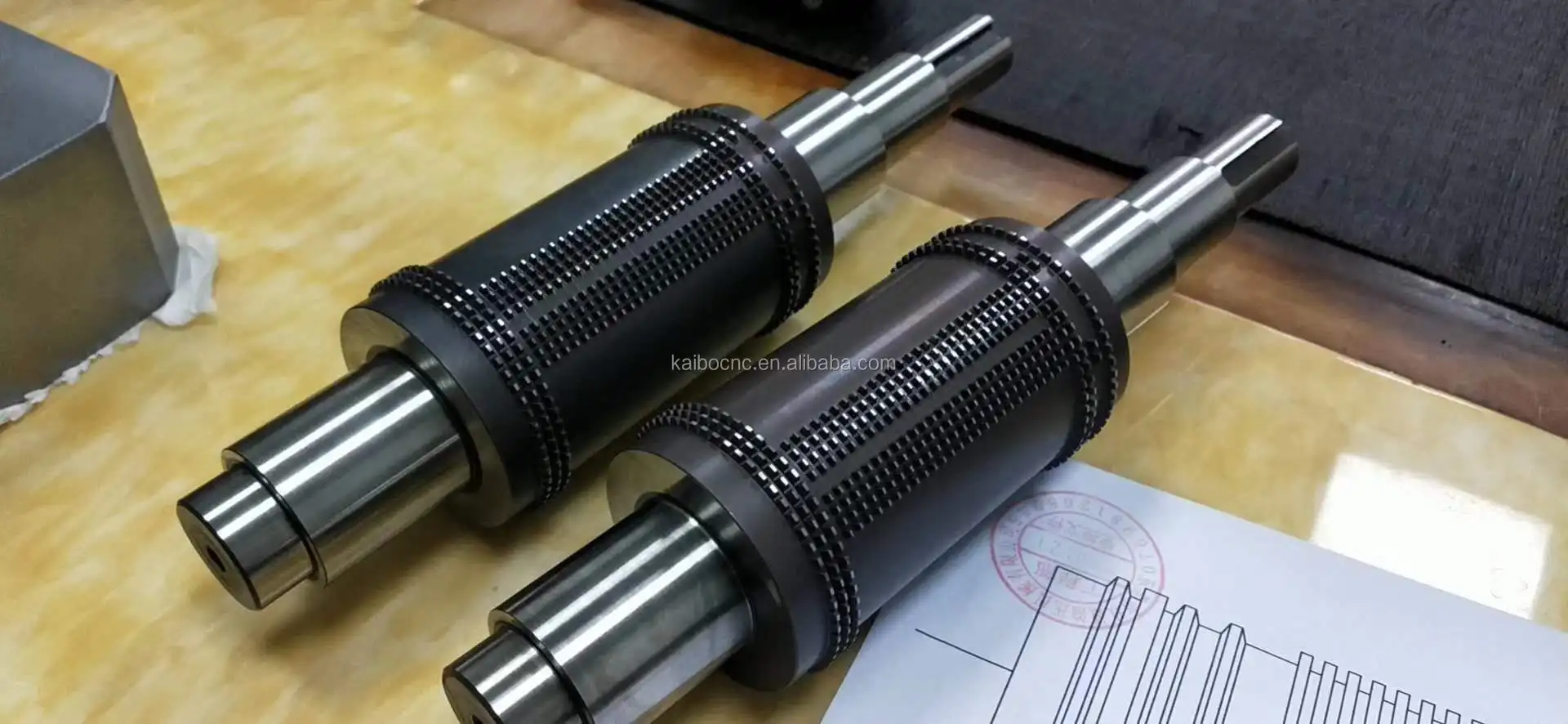

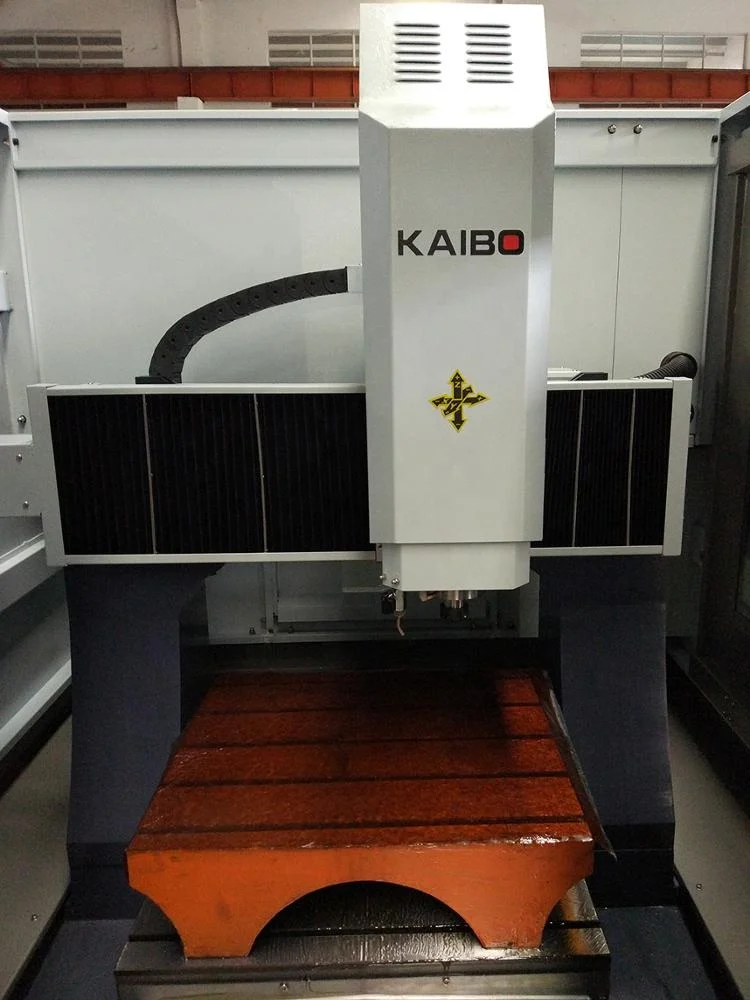

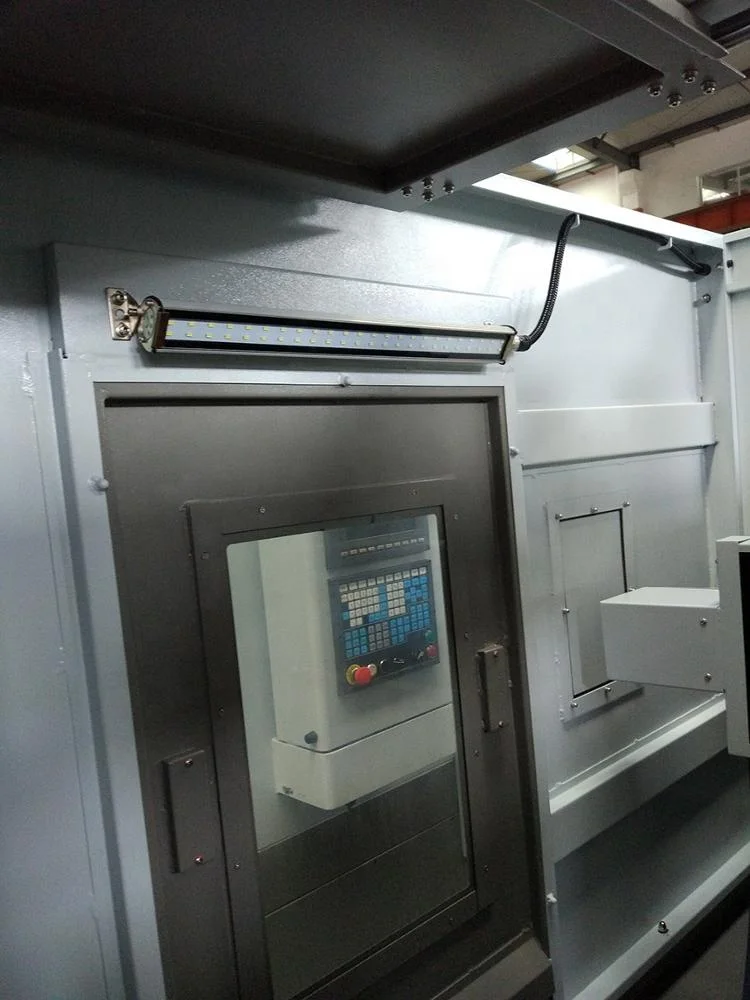

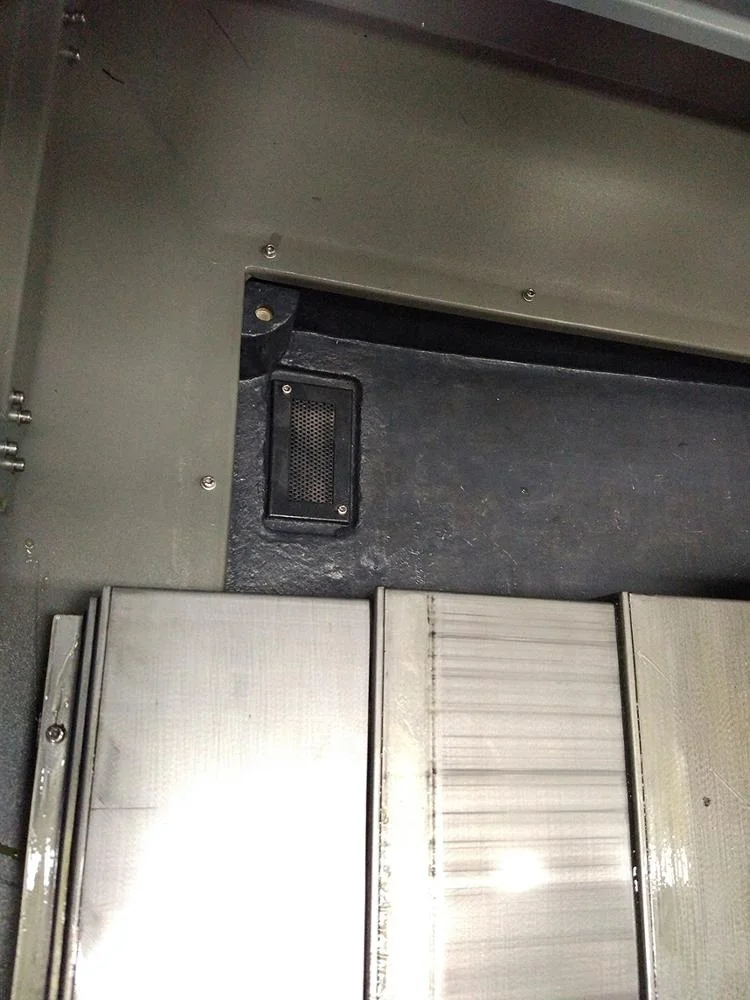

2.Pictures of CNC Machine

HTB1wYQHIFXXXXaDXpXXq6xXFXXXi



.jpg



Packaging & Shipping

Trade Item Of Products



Transportationalways by sea
Payment termsT/T,L/C At Sight or as your request
Package1 piece/carton,piece into a master carton
Delivery timeby sea,within 45 work days
