HF Welding Turning Roller Beds Self Adjusting Pipe Welding Rotator
welding rotator welding rotator machine rotating welding pipe welding rotator welding turning roll pipe welding roller
welding turning roller welding roller beds fit up welding rotator welding rotator equipment self align welding rotator
welding roller machine adjustable welding rotator welding cylinder rotators anti-channeling welding rotator welding pipe rotat
Product Overviews

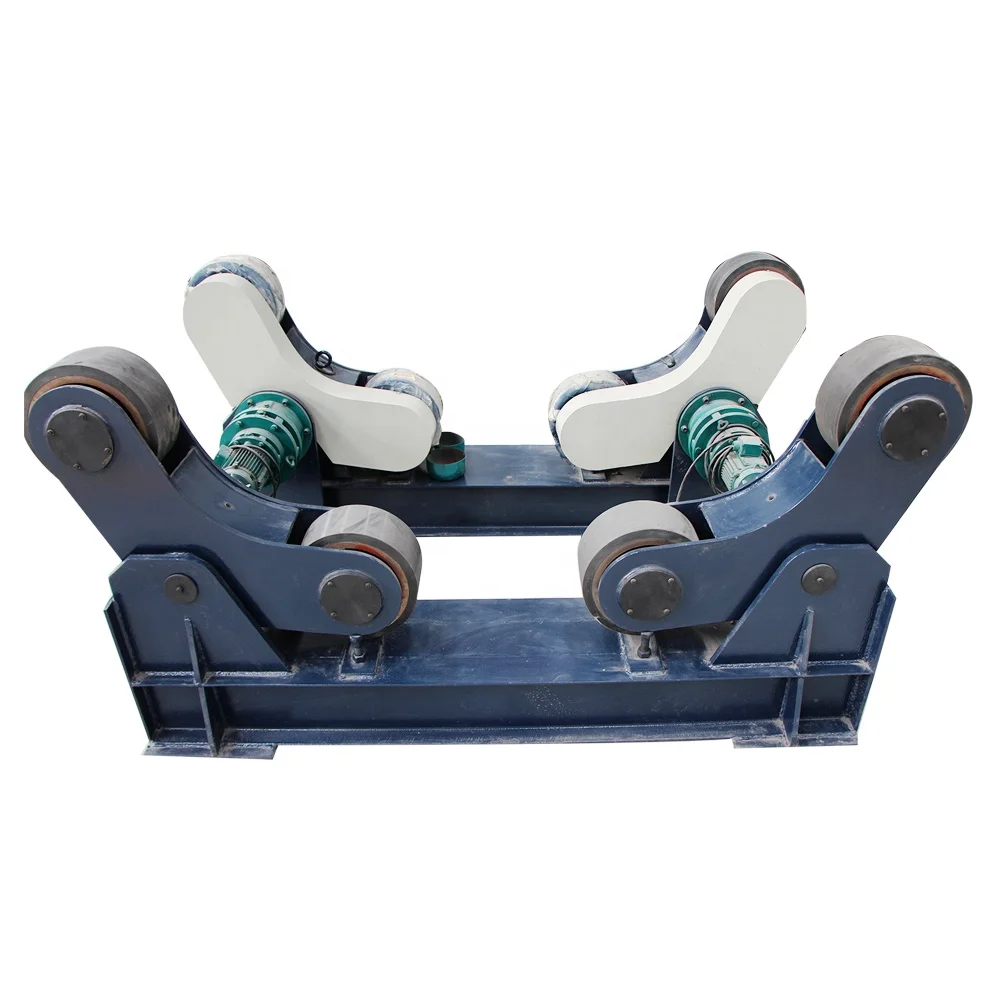

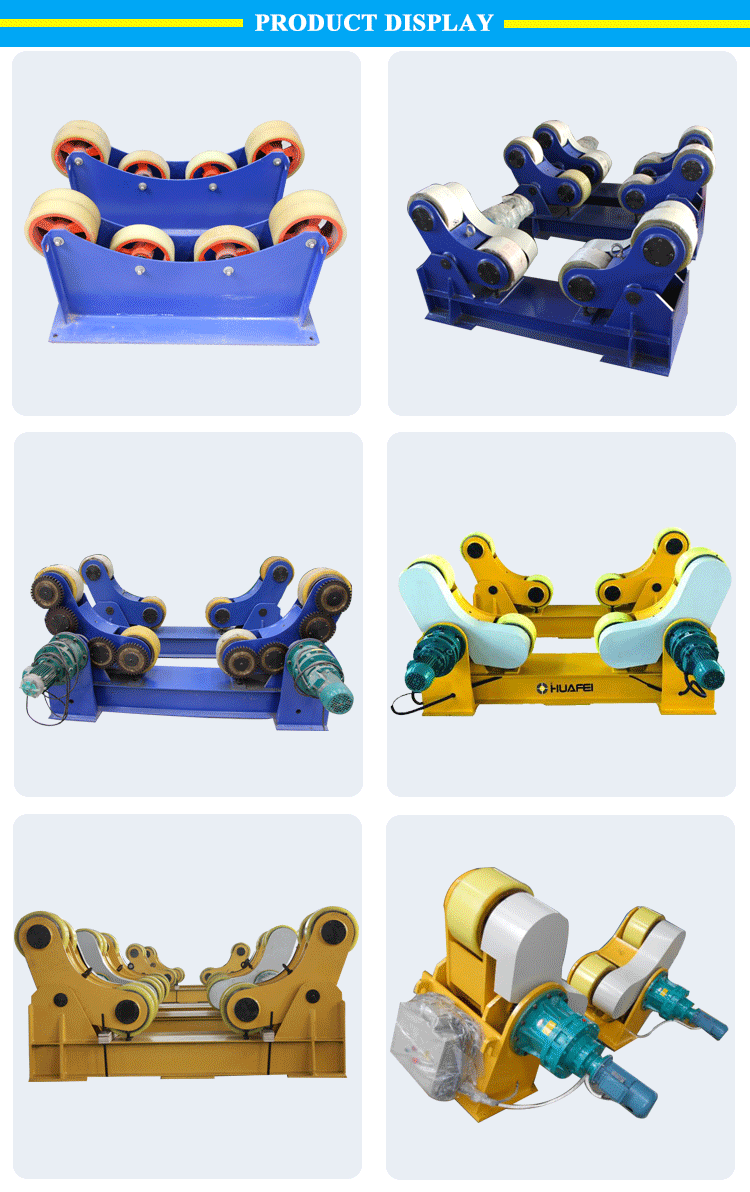

welding rotator/welding turning roll

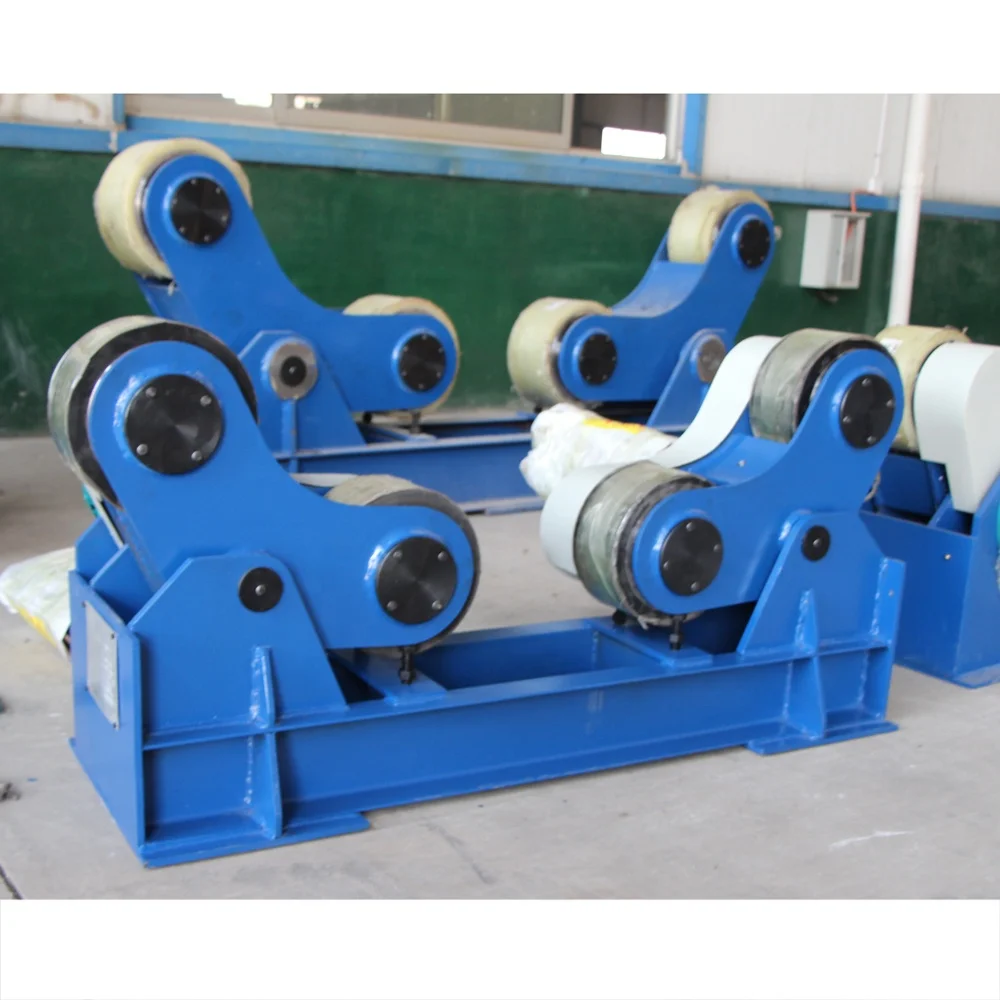

welding rotator/welding turning roll

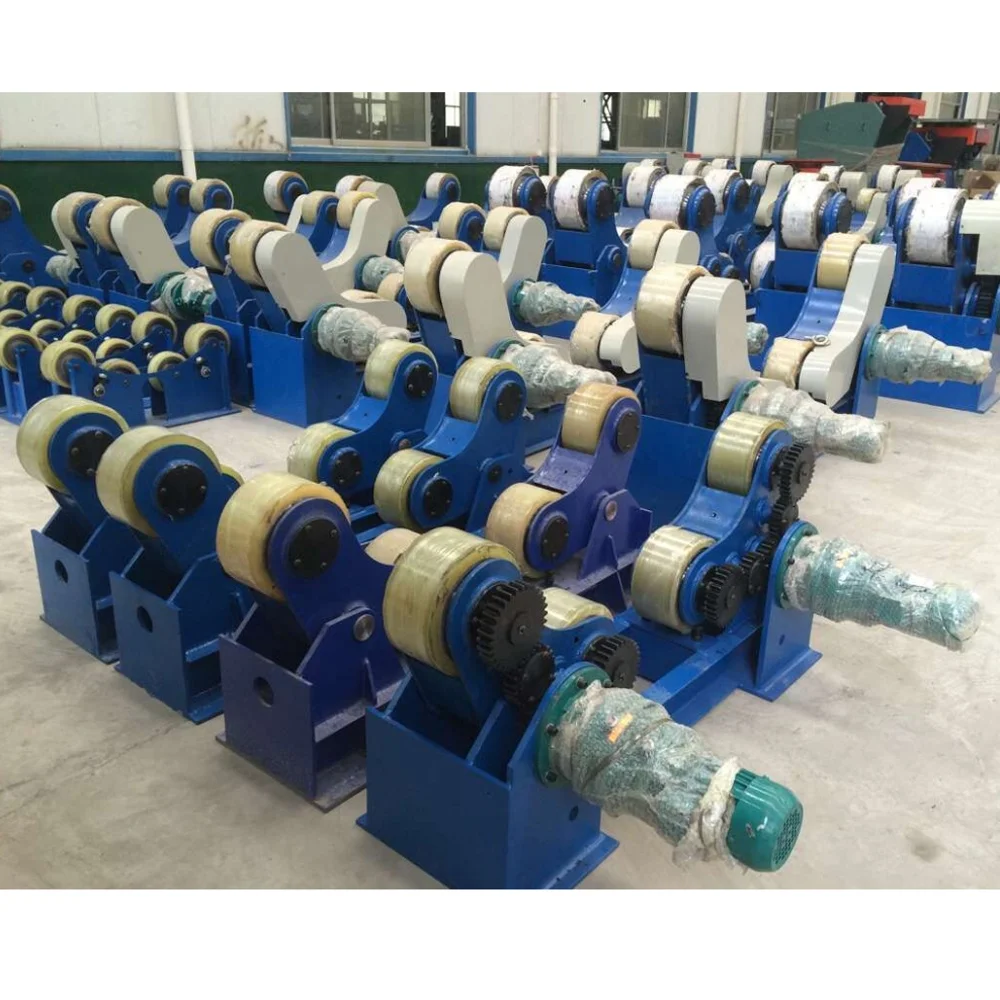

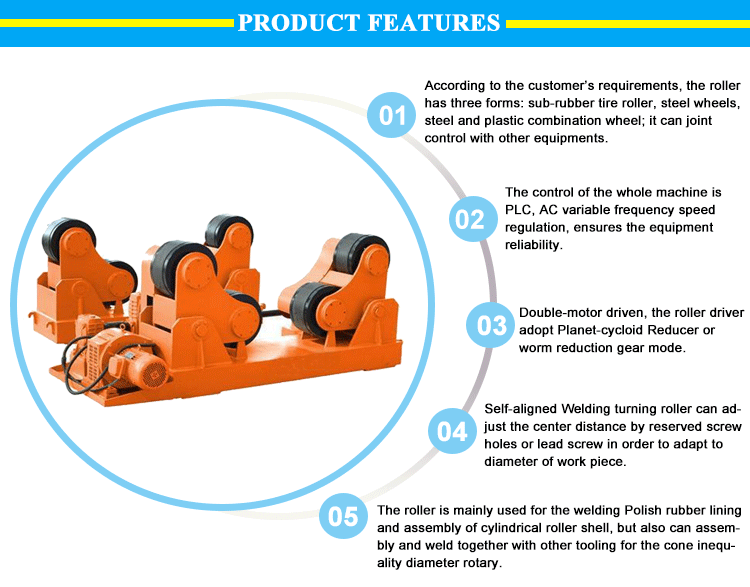

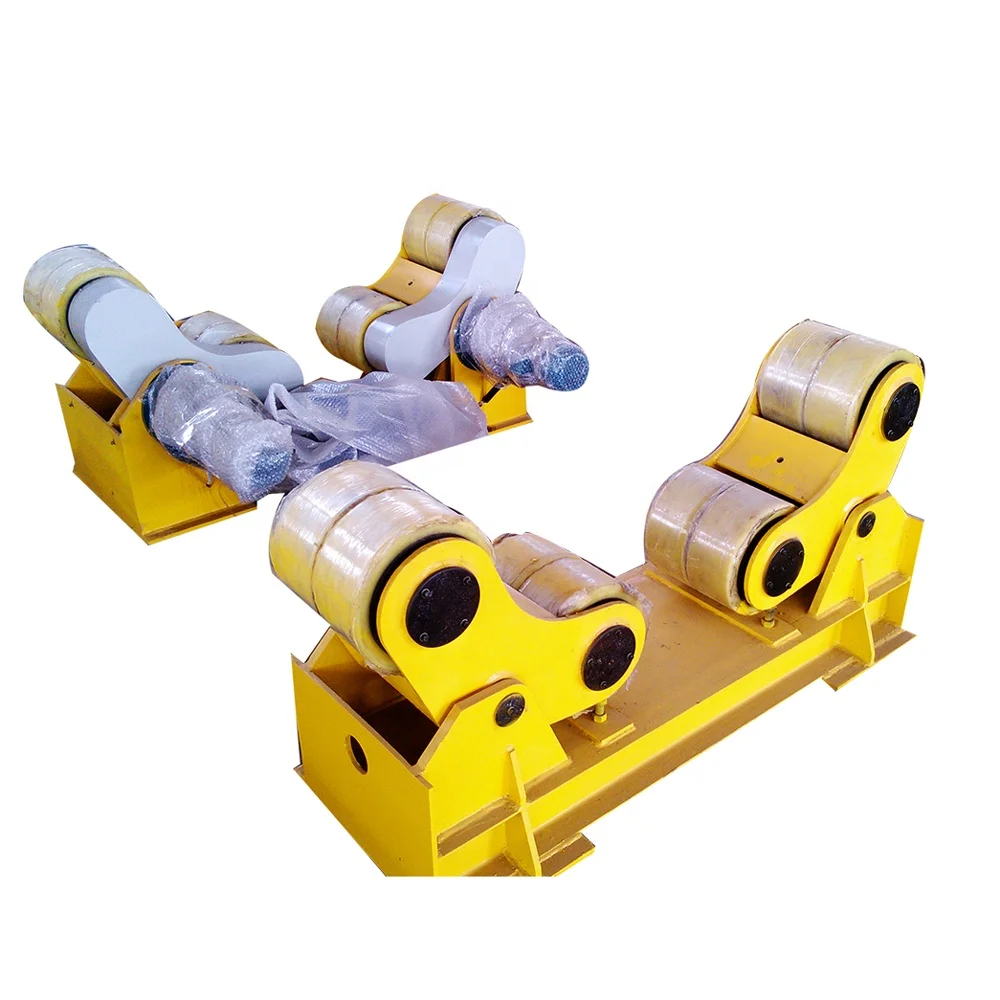

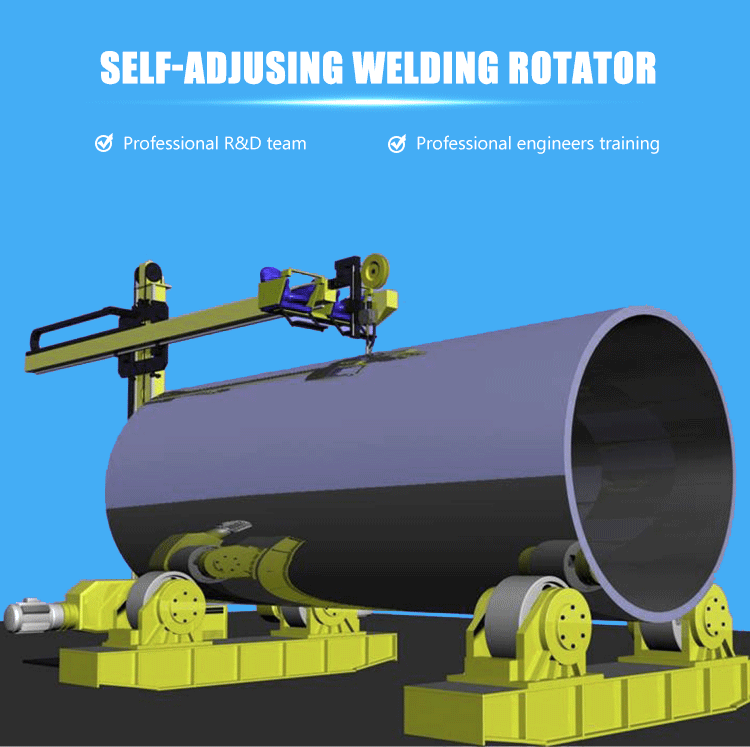

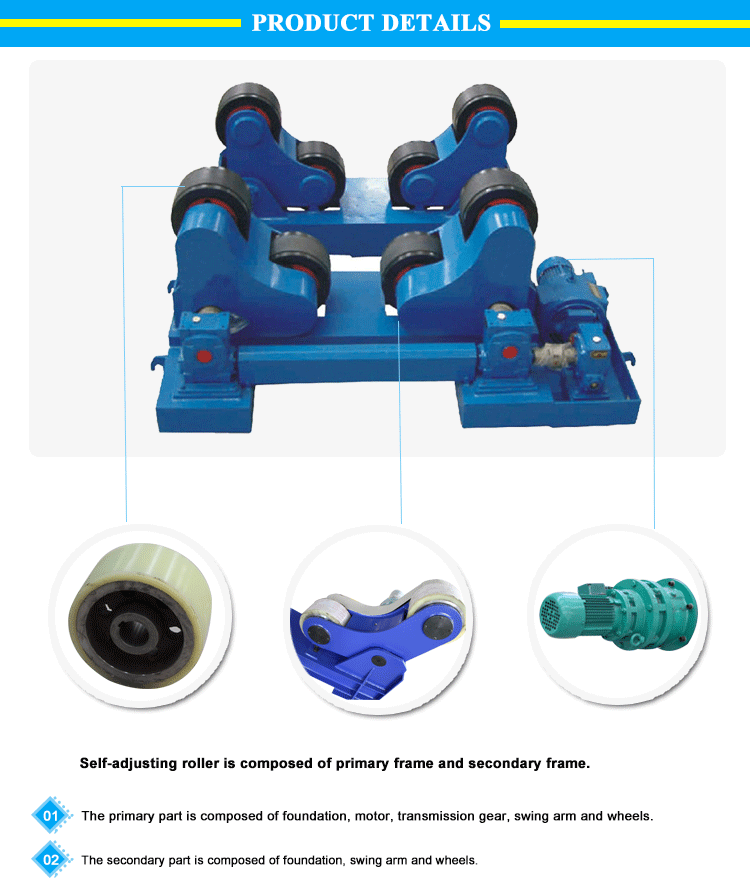

The working way of Self-adjusting rollers is that active frame, two motors and reducer controlled by the same ac motor driver realize the two motors stepless speed change and synchronization operation. The motor drive the main driving wheel working through drive system. The work piece is putted on the primary and secondary wheels, when the primary wheel running, the friction between work piece and primary wheel can drive the work piece rotating. the friction between rotating work piece and secondary wheel can drive the secondary wheel running. Each swing arms of the self-adjusting roller can drive work piece to adjust the diameter by itself, so that the labor power is saved much and the work efficiency is increased.
Main Parameters welding rotator/welding turning roll
welding rotator/welding turning roll
Model No. | HG1-5 | HG1 -10 | HG1-20 | HG1-30 | HG1-40 | HG1-50 | HG1-60 | HG1-80 | HG1-100 | |
Loading (t) | 5 | 10 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | |
Shell Diameter | Min(mm) | 350 | 600 | 600 | 600 | 750 | 800 | 900 | 900 | 900 |
| Max(mm) | 2500 | 4000 | 4500 | 5000 | 5000 | 5000 | 5500 | 5500 | 5500 |
Roller speed (m/h) | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | |
Motor power (Kw) | 2×0.18 | 2×0.25 | 2×0.37 | 2×0.37 | 2×0.55 | 2×0.75 | 2×0.75 | 2×1.1 | 2×1.5 | |
Regulating mode | Frequency control | |||||||||
Dimension | Length (mm) | Active 1585 1450 | Active 1585 1450 | Active 2165 2125 | Active 2410 2410 | Active 2410 2410 | Active 2600 2600 | Active 2600 2600 | Active 3020 3020 | Active 3020 3020 |
| Width (mm) | Active 872 392 | Active 872 392 | Active 1010 425 | Active 1260 550 | Active 1290 550 | Active 1360 590 | Active 1360 590 | Active 1745 760 | Active 1770 760 |
| Height (mm) | 660 | 660 | 945 | 1125 | 1135 | 1135 | 1135 | 1400 | 1400 |
welding rotator/welding turning roll
