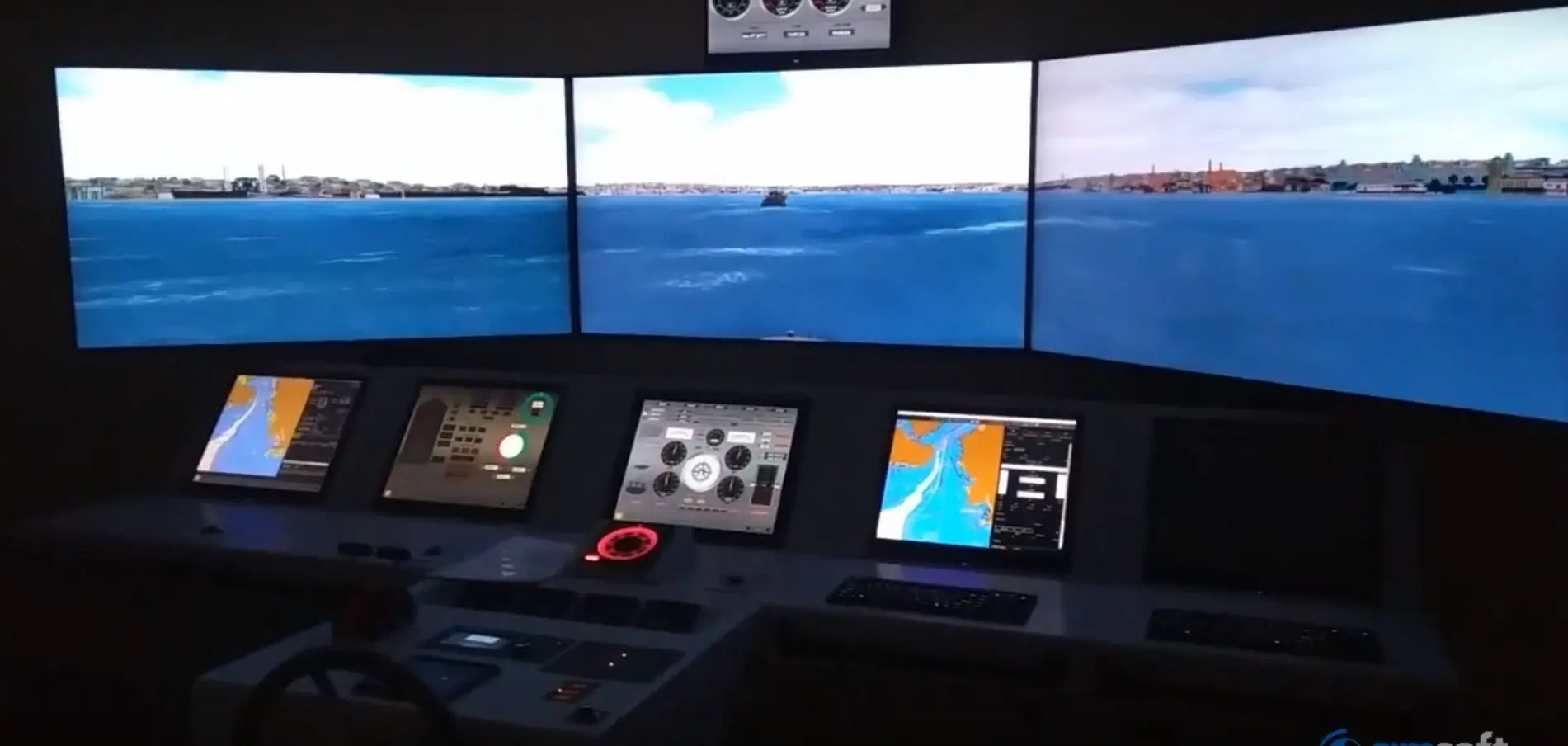

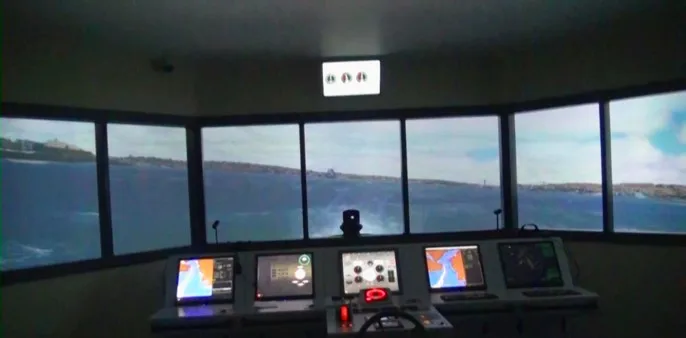

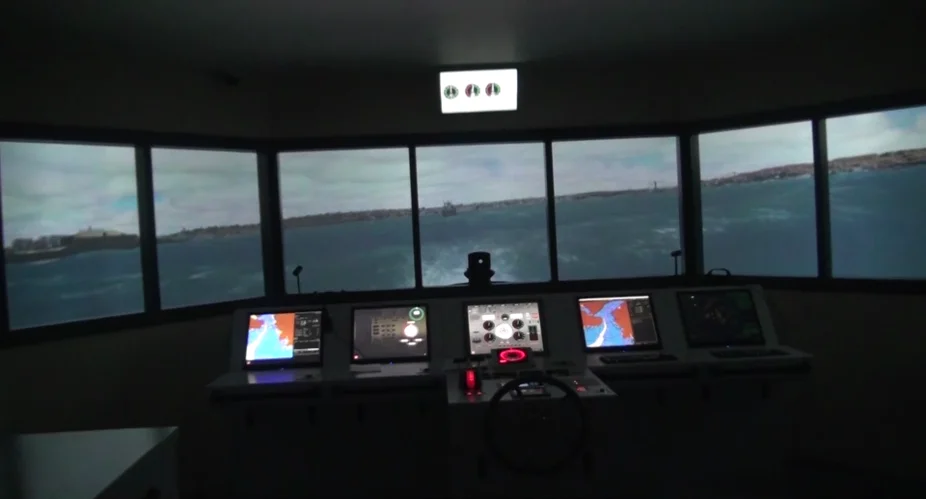

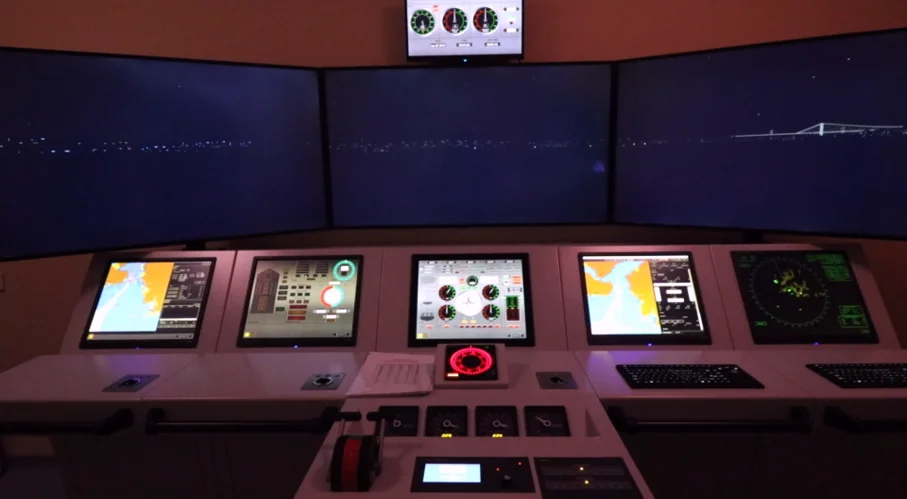

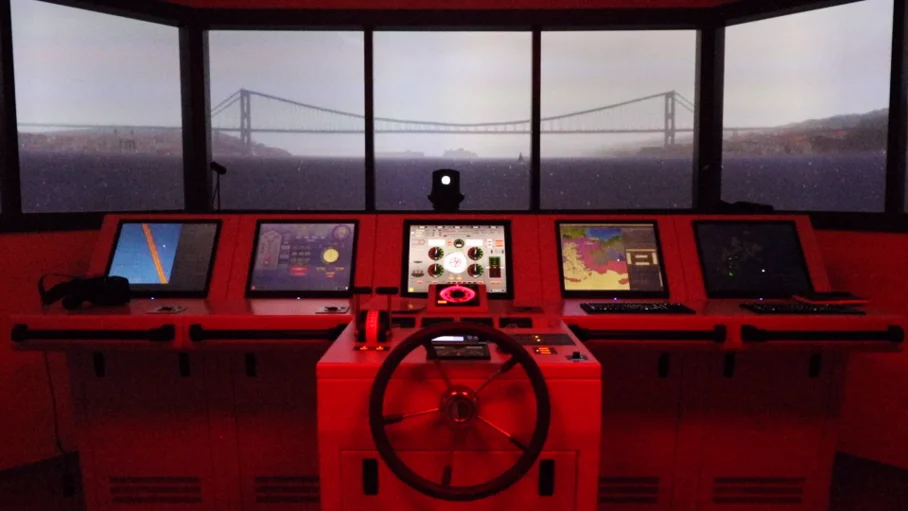

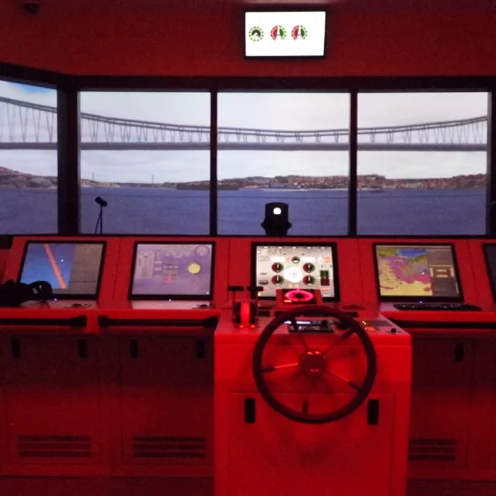

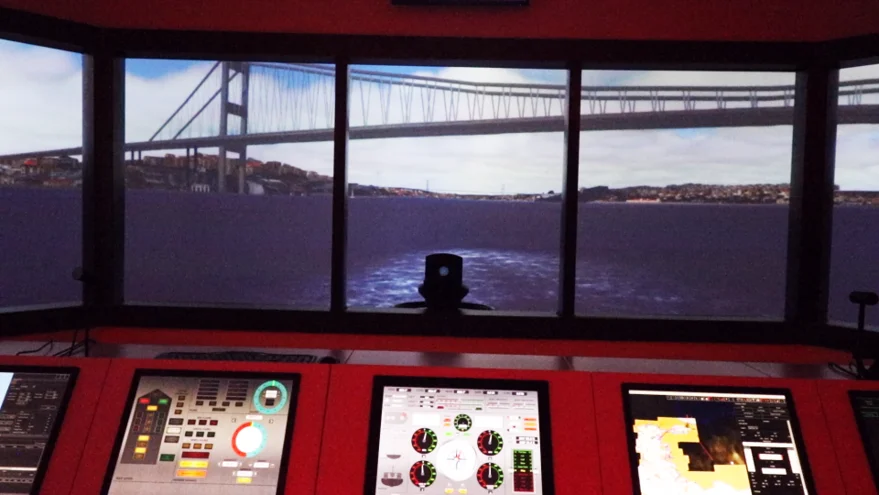

STCW APPROVED FULL MISSION SHIP BRIDGE SIMULATOR (High Quality) (Ranges from Desktop to Full Mission Bridge Simulator)

COMPLY with (CERTIFIED by TURK LOYDU)

•  STCW Convention, Regulation I/12
• TURK LOYDU Rules Part B, Chapter 5 Section 10 [2017]

COMPONENTS

• Full-Mission Bridge Room
• Wings
• Instructor Room
• Briefing Room

FEATURES

• Special training scenarios with various environment conditions
• OwnShip all controls and instrumentations
• 240 Degrees of view
• 4+ visualization channels
• High quality projectors
• Touch screens for all consoles
• 4-5 seperate operator consoles (ECDIS, Radar, OwnShip control instruments)
• ECDIS Simulation
• Radar Simulation
• Auto Pilot, Binoculars, Gyro, Magnetic Compass, GPS, WAIS, NAVTEX, Echo Sounder, Log Speed, VHF Simulations
• High fidelity own ship mathematical model
• High fidelity sea state simulation and visualization
• Special 3D port models

 ARCHITECTURE FEATURES

• Extendable Architecture,
  • New Math Ship Models,
  • New 3D Models,
  • New Subcomponents,
• Configurable Architecture,
  • Extendable Visualization System (More Screens),
  • Addable New Consoles,
• Interoperability,
  • HLA Compatible with Other Simulators.

 VISUALIZATION & REALISM

• High Resolution & Realistic Sea View,
• Multi Channel and Parallel Visualization,
• Advanced Shading & Dynamic Shadowing,
• Special Effects,
• Waves, Horizon, Surface Reflection,
• Realistic Visualization at Day, Dusk and Night,
• Weather Effects,
• Snow, Hail, Rain, Fog etc.,
• Environmental Effects,
• Sun, Moon, Clouds, Stars etc.

IMAGE GENERATOR

• 200.000 Polygons / Channel,
• Maximum Transport Delay of 50 Miliseconds,
• Single or Multiple Channels (Up to 25 channels),
• 60 Hz. Image Refresh Rate,
• Minimum QXGA (2048x1536) Resolution Full-Color Raster Image,
• Visibility Range of up to 50 NM in Clear Weather Conditions,
• 5 Different Levels of Sea States,
• Able to Utilize CDB Format 3D Models and Databases,
• Able to Import DTED-1, DTED-2 files and GeoTIFF Satellite Images with Various Resolution (40 cm, 50 cm, 60 cm, 1 m, 5m , 15 m etc.),
• Able to Utilize Models in Native or Converted OpenFlight (.flt) format,
• Able to Generate Explosions, Smoke, Muzzle Flashes, Flare, Missile Trails.

MODEL DATABASES

• Model Database of Own Ships in 6 Degrees of Freedom (6 DOF),
  • 2 Frigates,
  • 1 Patrol Ship,
  • 1 Logistics Support Ship,
  • 1 Fast Attack Craft (FAC)
• Model Database of Target Ships in 3 Degrees of Freedom (3 DOF),
  • 20 Commercial Ships,
  • 1 ASW Helicopter,
  • 1 Maritime Patrol Aircraft.
• Model Database of Ports and Straits,
  • 4 Overseas Ports (Le Havre, Odessa, Constanta, Novorossisk),
  • 3 Domestic Ports (Izmir, Samsun, Antalya),
  • 4 Straits (Istabul, Canakkale, Gibraltar, Izmir),
  • Gulf models are constructed in high fidelity using high-resolution satellite imagery.

ECDIS SIMULATION

• Support for S-57 / S-63 Map Formats,
• Chart Displaying Features,
  • Head-up, North-up
• Drawng Features,
  • Ship, Ship Vector etc.
• Route Planning,
• Alarms
  • Guard Zone, Position Monitoring
• Man Overboard,
• Anchor Watch,
• Navigation, Datum Calculator.

ADDITIONAL SIMULATION FEATURES

• Pluggable Different Radar Model Support,
• AN / SPN Radar Models,
• Mathematical Model,
• RCS Calculators,
• Environment Effects,
• Track Operations,
• ECDIS Integration.

OTHER COMPONENTS

• Magnetic Compass,
• Speed Gauge,
• Depth Gauge,
• Meteorology Sensors,
• Plump / Sinker,
• Log,
• GPS,
• WAIS - AIS,
• Ship Controls.

INSTRUCTOR CONSOLE

• 5 LCD Screens for;
  • Large Display of any Bridge Simulator,
  • ECDIS,
  • Scenario Creation,
  • Radar,
  • CCTV Screen of all Bridge Simulators.
• Communication Console and SP phone for communication with all bridge simulators,
• Scenario creation in multi ships / multiplayers simulation which share the same or different,
• GIS-based Scenario Control,
• Operation Planning,
• Search & Rescue, Dynamic Positioning, Off Shore Operations etc.
• Configuration of Parameters specifying ship characteristics,
• Advanced Artificially Intelligent Scenario Generation,
• Autonomus Object Controls.

PERFORMANCE EVALUATION, RECORDING & DEBRIEFING

• Dynamic Criteria Defining,
• Recording all Simulations in Exercise,
• Replaying Simulation with the Options of Different Camera Positions,
• Reports with Detailed Criteria and Options.
