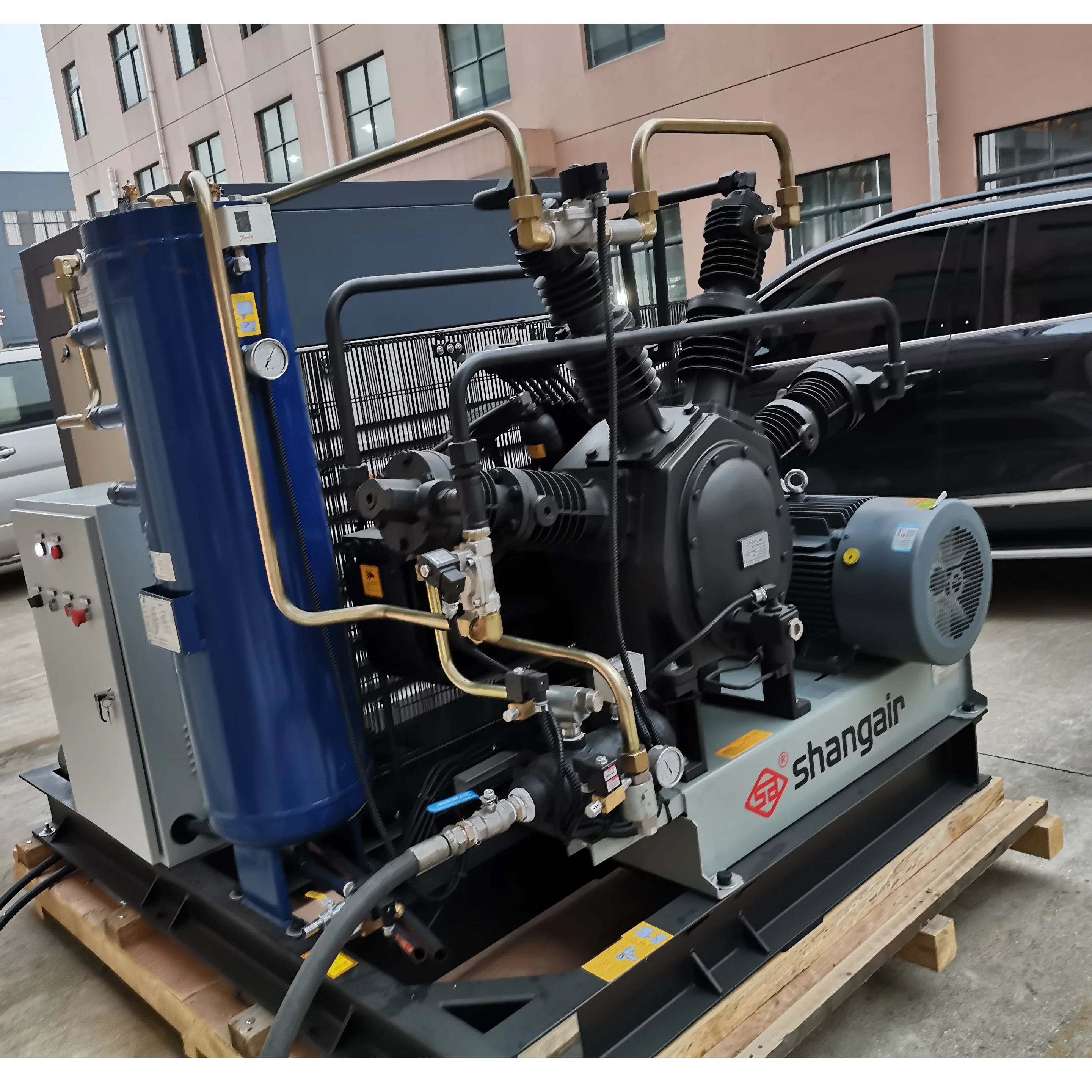

EXW Factory Price Stationary High Pressure Booster Air Compressor
- Category: >>>
- Supplier: Taizhou Huangyan Ouge Machine Mould Co. Ltd.
Share on (62022862408):
Product Overview
Description
Product Description
Authority in air supply field for plastic blow molding machinery,leakage detection with more than 10-year experience and sale products over 60 countries and districts on the world.
This type of machine is with compact structure,less cover area,and easier installation.
Lower noise,lower vibration and easier operation.
Proven technique,more economic and practical.
Model | Power (KW) | Air Discharge (m3/min) | Working Pressure | Weight (KG) | Overall Dimension (mm) |
LZ-4.0/10/40 | 48.5 | 4.0 | 4.0Mpa | 1335 | 2200×1600×2000 |
LZ-6.0/10/40 | 67 | 6.0 | 3.0 | 1720 | 2200×1600×2000 |
LZ-8.0/10/40 | 92 | 8.0 | 3.0 | 2517 | 2500×2100×1800 |
LZ-10.0/10/40 | 112 | 10.0 | 3.0 | 2709 | 2600×2300×1900 |
1.The valve made from the stainless steel belt imported from Sweden.
2.To ensure the safe and reliable operation of the air compressor,the redundancy design concept it adopted and multi-preotection measures are taken.Such as loss of phase,under voltage,discharge of load,drainage while stop running,air discharge,startup under the condition pressure is zero.
3.Totally automatic flow rate adjusting,automatically drain the water while discharge.The remaining air between the different levels is discharged and so ensure the unit is started up with no any load each time.
4.Periodical drainage valve facilitates the adjustable time point of drainage as well as the drainage intervvals.This ensures the periodical drainage between the levels when the air compressor is running for a long period of time and effectively prevents the collection of water to a big extent.Thus,it prevents the liquid slugging from happening.
5.Low discharge temperature(the discharge temperature is less than 170℃ when the discharge pressure is 7.0Mpa,after it is treated by the sub-coolers,the discharge temperature at the outlet is only 15℃ to 20℃ higher than the ambient temperature.)
6.The oil consumption per hour is less than 0.17g/KW.
7.High reliability,long maintenance cycle,very low oil consumption(oil-saving);low energy(power saving),these dramatically reduce the general operating cost of the unit.
4.Periodical drainage valve facilitates the adjustable time point of drainage as well as the drainage intervvals.This ensures the periodical drainage between the levels when the air compressor is running for a long period of time and effectively prevents the collection of water to a big extent.Thus,it prevents the liquid slugging from happening.
5.Low discharge temperature(the discharge temperature is less than 170℃ when the discharge pressure is 7.0Mpa,after it is treated by the sub-coolers,the discharge temperature at the outlet is only 15℃ to 20℃ higher than the ambient temperature.)
6.The oil consumption per hour is less than 0.17g/KW.
7.High reliability,long maintenance cycle,very low oil consumption(oil-saving);low energy(power saving),these dramatically reduce the general operating cost of the unit.
Packing&Shipping
Company Introduction
Ouge company is located in the East China Sea coast, the famous "mould hometown"---- Huangyan Taizhou,Zhejiang. Specializes in the production of PET automatic and semi-automatic blowing machines, preform moulds and bottle moulds. It consists of many professional engineers with rich experience in the PET industry and high-quality staff. The main products include: PET automatic and semi-automatic blowing machines, all kinds of moulds for carbonated beverage bottles, juice bottles, alcohol drinks bottles, and cosmetic containers, PMMA lamps, PP infusion bottles, edible oil bottles, etc. Over the past several years, Ouge has always been devoting its utmost efforts to improving the technology, researching the market and developing new products to suit for all customer needs.
FAQ
1.Where is your factory?
We are located at HunagyanTaizhou, Zhejiang Province, China mainland. 40 minutes from Luqiao Airport. 20 minutes from Taizhou Railway Station.
3.How about the quality control in factory?
We are located at HunagyanTaizhou, Zhejiang Province, China mainland. 40 minutes from Luqiao Airport. 20 minutes from Taizhou Railway Station.
2.What's the lead time of one set of compressor?
Generally speaking 15 working days ( not including Chinese official holidays ) after deposit received.
Generally speaking 15 working days ( not including Chinese official holidays ) after deposit received.
3.How about the quality control in factory?
Quality is the key point, we have professional team to inspect during machining,assembly and trial.
4.What about after service?
We guarantee 1 year warranty,any spare parts in free change within warranty period.Then we have engineers can service oversea.
5. Can you help us with the shipment of this parts?
Yes. with honor, we have our agent shipping company which already cooperate with us for a long time,they will give us the best price as they can.Also you can ask your own shipping forwarders to compare,Customer satisfaction is our pleasure.
We guarantee 1 year warranty,any spare parts in free change within warranty period.Then we have engineers can service oversea.
5. Can you help us with the shipment of this parts?
Yes. with honor, we have our agent shipping company which already cooperate with us for a long time,they will give us the best price as they can.Also you can ask your own shipping forwarders to compare,Customer satisfaction is our pleasure.
Rita here will reply you in 12 hours.
