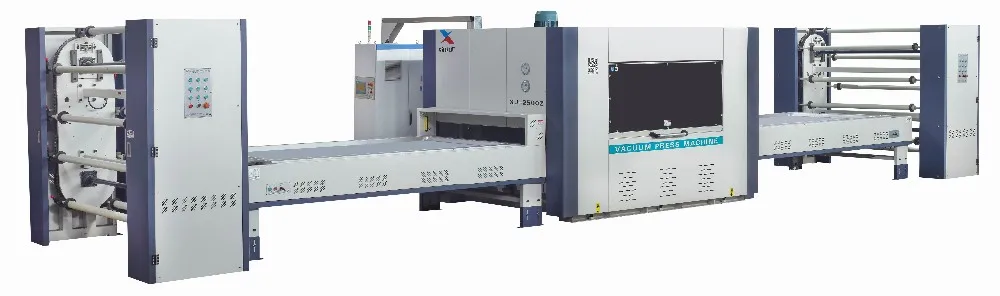

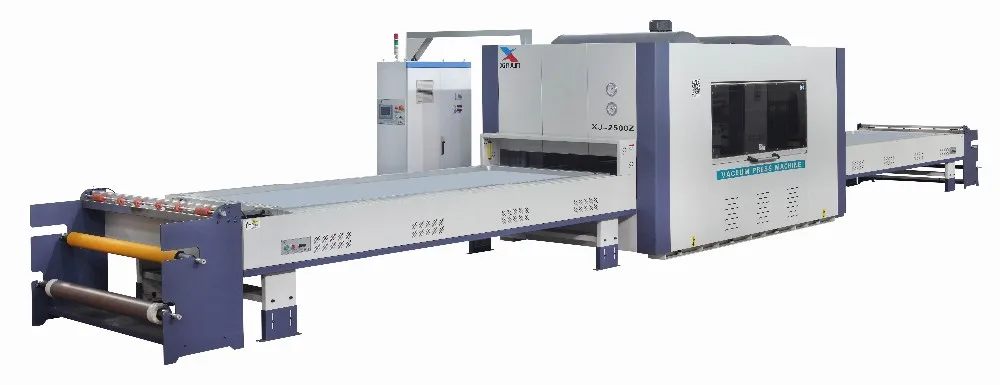

vacuum membrane press machine with 3000 mm working table for wood woorking furniture
This vacuum press machine is suitable for pressing PVC film on wood, for the kitchen cabinrt, sliding door, wardrobe, house door, speaker, photo frame,etc.
This machine adopt double working table to improve work effective.
Working table size | 2730/3000/3400 mm | Total Power | 28.5 KW |
PVC film rack | two | Control system | Siemens |
Operate style | PLC touch screen | Machine weight | 15 T |
working width | 1300 mm | Working height | 50 mm |
Main Features
1) The whole machine adopt 6-8 pieces of steel machine frame, solid train track which is different from I-shape steel;
2) Working table feeding automatically, no welding and the seal effect is good;
3) The PVC film rack has two style, standard one can put 3 roller PVC film and high quality one can put 9 roller PVC film;
4) Chinese Local brand vacuum pump with 3 kw and 200L tank.
5) It doesn't need silicon sheet when process PVC film.
Detailed Images
Machine Parts

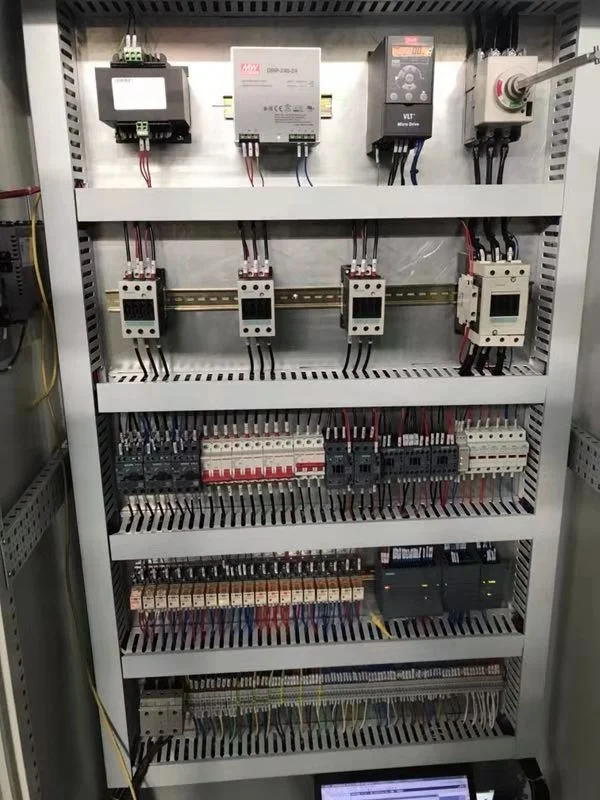

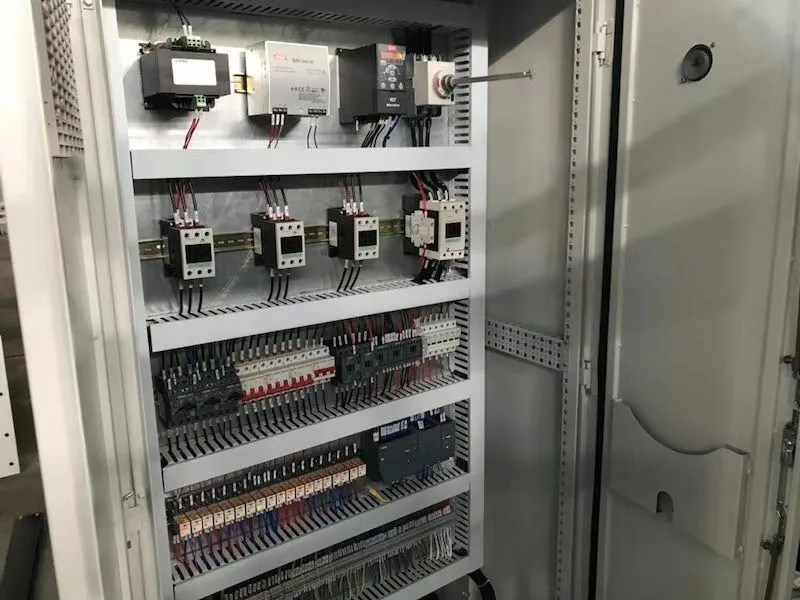

Name: Electric cabinet
Brand: Siemens and Danfoss
Original: China
Imported electrical components such as Siemens and Danfoss are used for important electrical appliances in the control cabinet.The machine is equipped with power-off protection switch.Under
normal working conditions,the cabinet door wll be power-off when it opens.Wire instalation adopts
international standard layout.Every wire is dearly marked.it is easy to instal and maintain by separate
instalation.
Special protective devices are used for cables connecting cabinets and machines.The product forming
process is monitored and guided wth instruction.the faults such as lack of pressure,lack of gas,lack of
phase,return phase,superelevation and misoperation are al indicated by the alarm.
Main Features
Name: Working table
Brand: Xinjun
Original: China
The whole table(including multi-functional frame,inBatable frame)is not welded,which is
with qualty of sealing and increases the fuselage life.
Machine Parts
Name: Control system
Brand: Xinjun
Original: China
This machine is equipped with Sierens PLC man-machine interface control system,global joint insurance,and Chinese and English operating
languages.All parameters and function options have recipe checkist/saved,which is convenient and fast to store parameters and can be
downloaded by one click.
Main Features

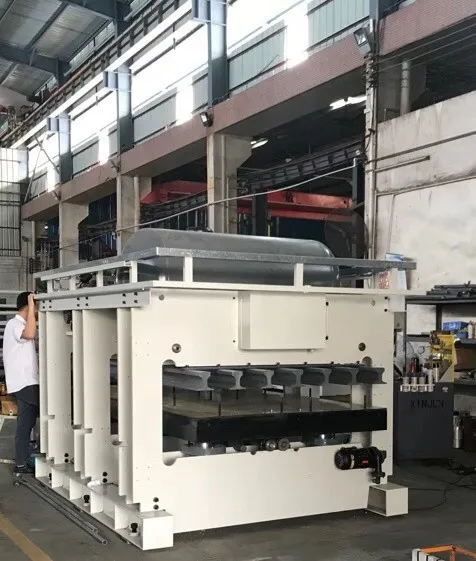

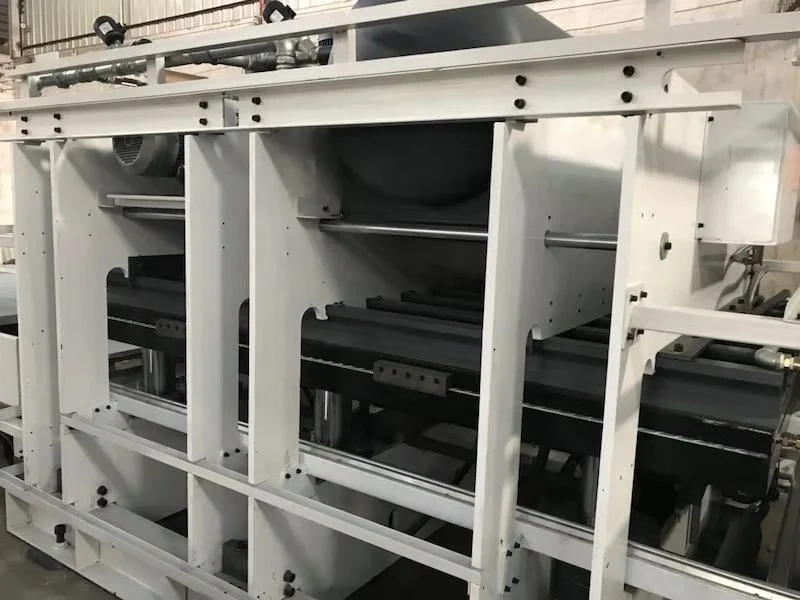

Name: Machine body and electric cabinet
Brand: Xinjun
Original: China
The whole machine adopts 6-8 pieces thick frames which are quenched by high temperature,and the
frame is unwelded.The thick Boor can withstand 400 tons of pressure. The whole machine adopts solid train track,which is different from l-shaped steel structure on the market. This structure can withstand more pressure,and is suitable for the performance of machine pieces starrping
and ensures the stability of the machine.
Metal baking varnish is used for surface treatment of the whole machine.
Silicon Free Properties
The positive and negative pressure machine,combined with vacuum adsorption,
hydraulic pressure,conductive ol circulation heating etc,completes the pim coating
CURCHIEXGHNS
process with good machine sealing and mature pressure technology,which can
achieve silicone-free production.In the absence of silicon,the product
edges,concave and convex surfaces,and corners which are made by this positive and negative pressure machine wll have a better stereoscopic
feeling.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 11700 (L) * 2230 (W) * 2230 (D) | |
Weight | 15T | |
Packaging Details | Shrink film and EPE | |
Packaging | ||
Size | 11700 (L) * 2300 (W) * 2500 (D) | |
Weight | 15 T | |
Packaging Details | Wooden box need more place and cost | |
