IP67 DC12V 12W 2A LED Constant Voltage Switching Power Supply
- Category: >>>
- Supplier: Jianghai Soluxled Lighting Electron Factory
Share on (62022957629):
Product Overview
Description
h2>IP67 DC12V 12W 2A LED Constant Voltage Switching Power Supply
| MODEL | HG-2224V | |
| OUTPUT | CONSTANT DC VOLTAGE | 12V |
| CURRENT REGION | 2000mA | |
| RATED CURRENT | 2000mA | |
| RATED POWER | 24W | |
| INPUT | VOLTAGE RANGE | AC100-260V |
| FREQUENCY RANGE | 47-63Hz | |
| POWER FACTOR(Typ.) | 0.5 | |
| EFFICIENCY(Typ.) | ≥80% | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed. |
| OVER LOAD | Protection type: Shut down o/p voltage, re-power on to recover | |
| EMC | EMC EMISSION | Compliance to EN55015 |

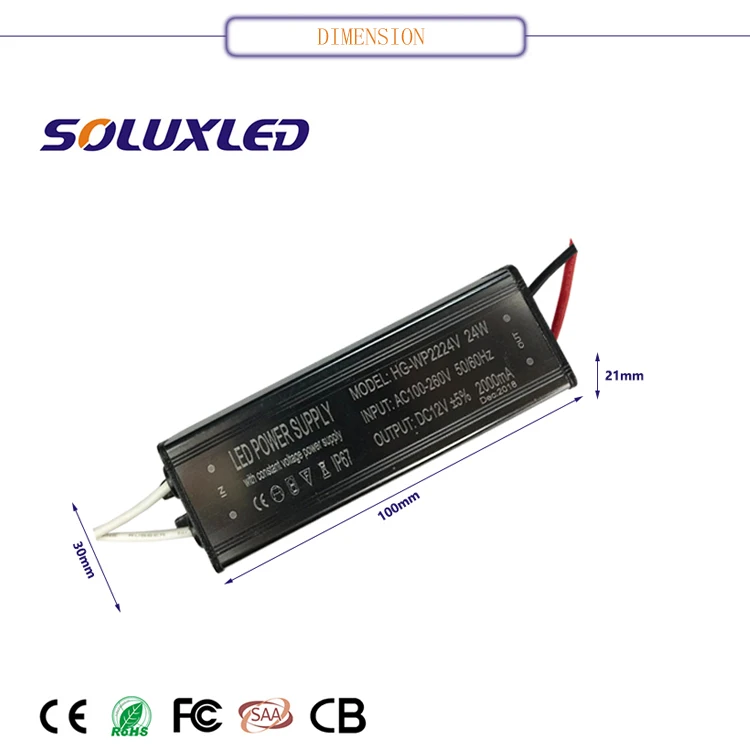

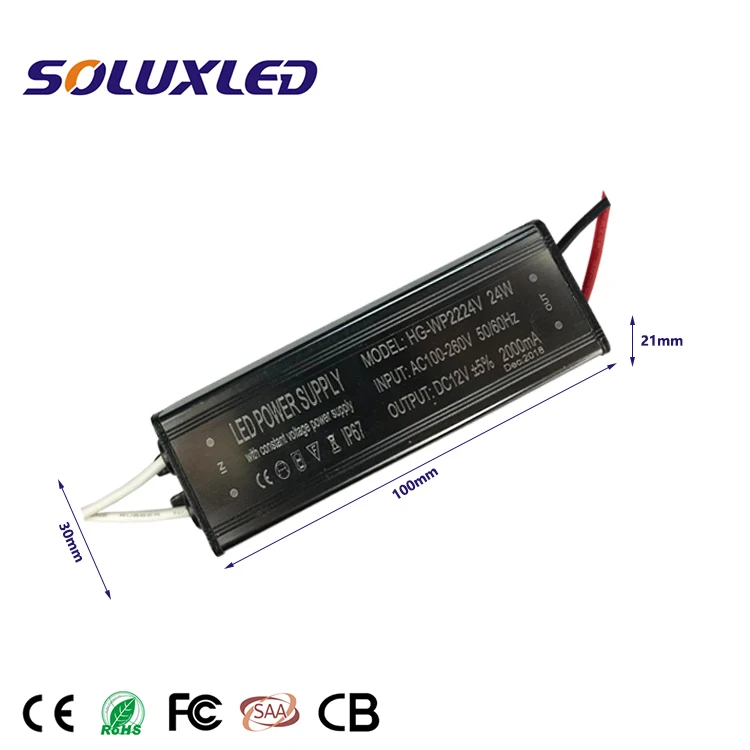

| OTHERS | DIMENSION | L100*W30*H21mm |
| PACKING | 109g | |
| WORKING TEMP. | -30~+70℃ | |
| WORKING HUMIDITY | 20~95% RH non-condensing | |
