capacity 100 350 TPD HCL acid 37% automatic graphite synthetic furnace industry grade food grade hydrochloric 37% plant
- Category: Other Graphite Products >>>
- Supplier: Shanghai Xinqiu Environmental Sci-Tech Co. Ltd.
Share on (62023034693):
Product Overview
Description
Company Information
Xinqiu Technology can provide you with a full range of specialized chemical process products including:pressure vessel,graphite chemical equipment, reactors, columns, chemical pump,valve,PTFE pipe lining, instrumentation and control system.Being a holistic solution provider,we of course also provide engineering installation and related technical support.
Xinqiu Technology has several business units focused on various specialized chemical procss solutions.Xinqiu Graphite is the unit that is focused on graphite chemical products and technology, to provide you with HCL synthesis,absorption,HCL acid stripping and drying,sulfuric acid concentration,MVR evaporators and other products.

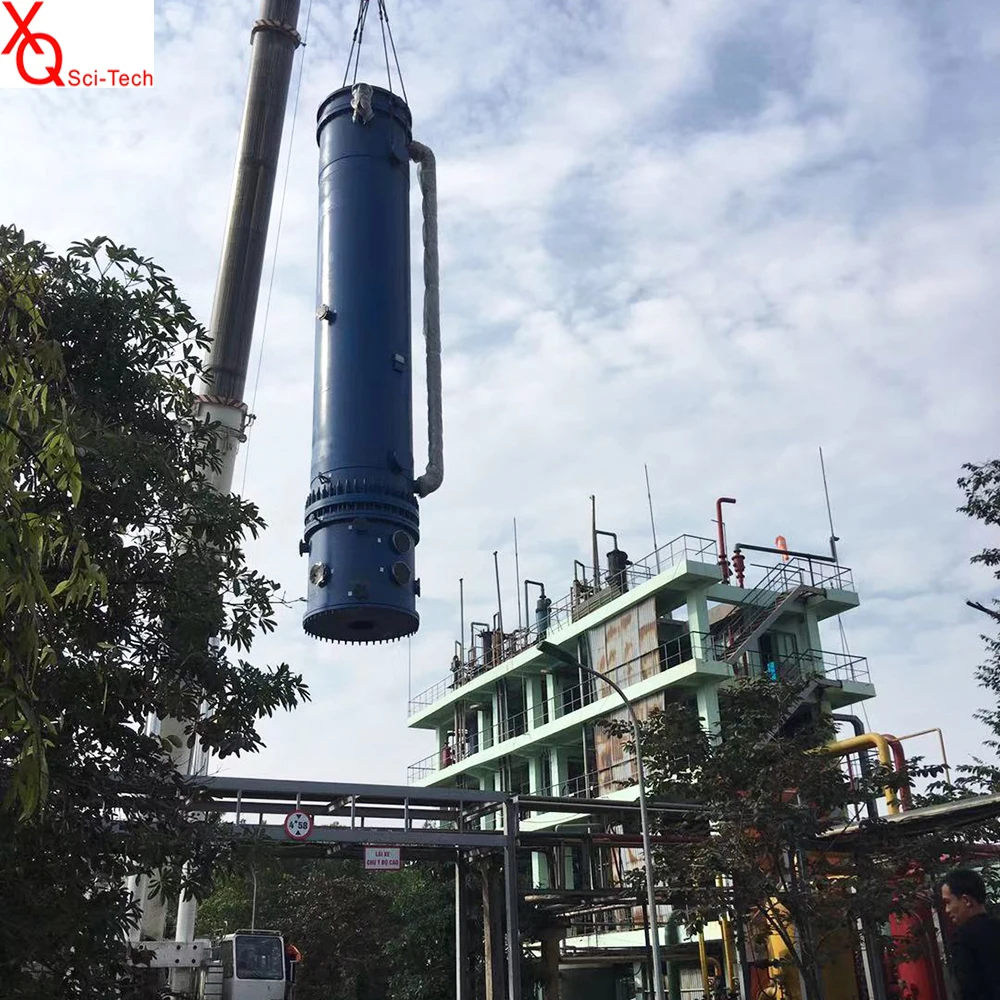

SZL COMBINED TYPE BYPRODUCT STEAM TWO-IN-ONE GRAPHITE SYNTHETIC FURNACE
Product Description

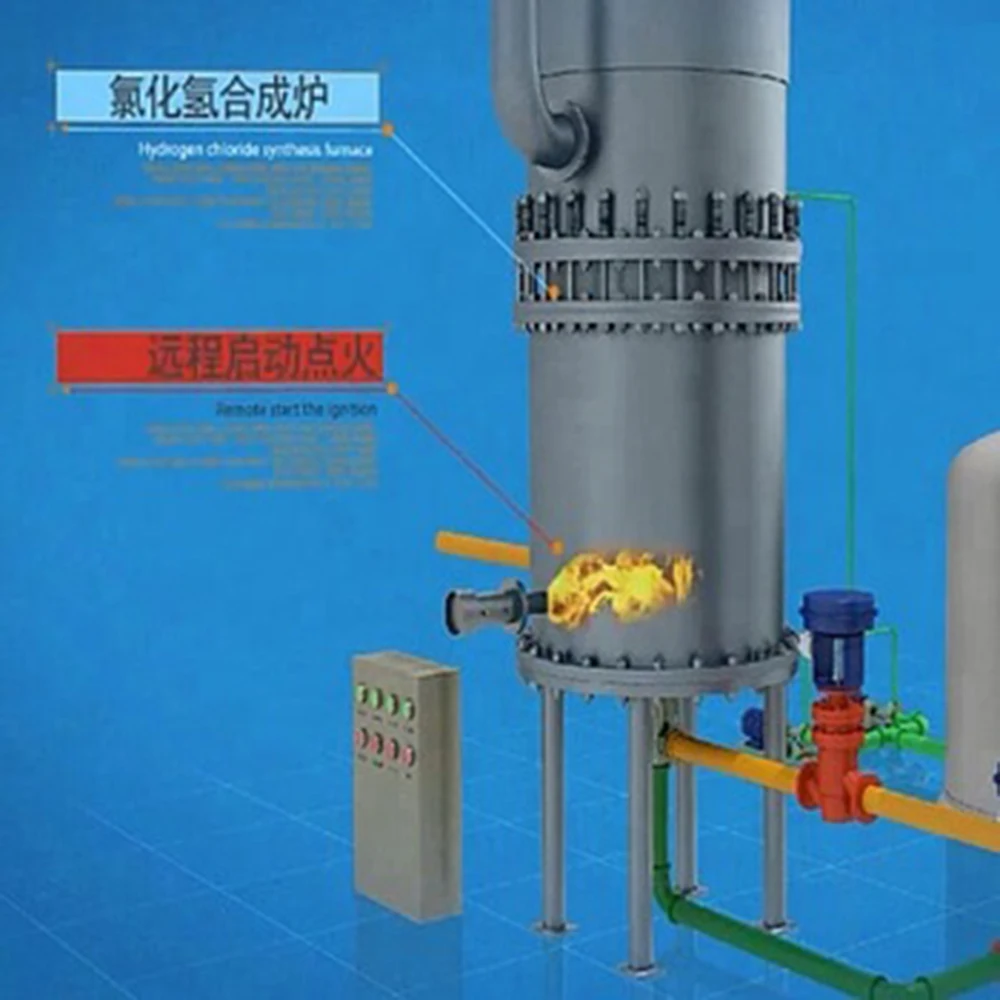

I.Structure And Features
The production is made up with fixed burner, HCL compound part, byproduce steam pass and top furnace cooler. With the merits of compact,small occupation area,runs steadily,high heat energy utilization,operational flexibility high and it can realize automatic control.

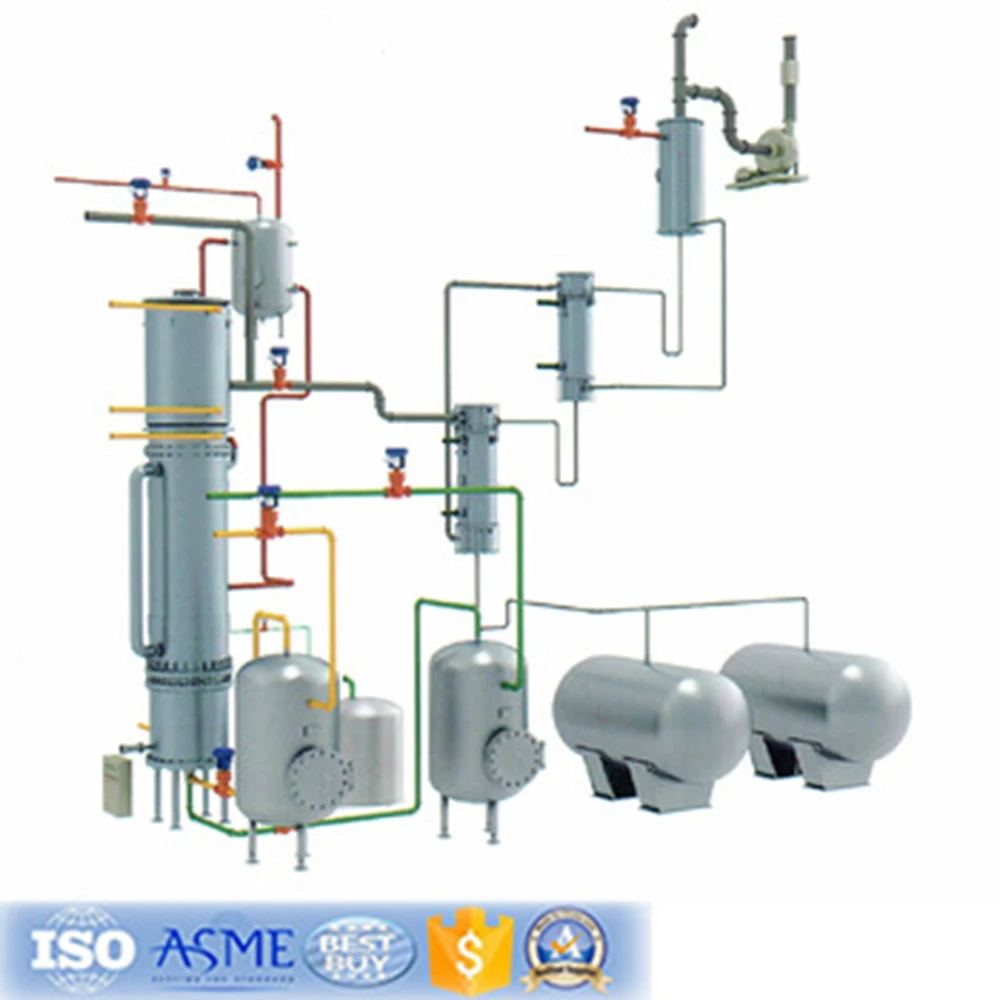

The unit consists of synthesis and cooling sections.H2 gas will bind into HCL gas in the synthesis section,then cooling to 45℃ through the cooler,and feed to absorber or other process.
II.Absorption of HCL Gas
The absorber can absorb the HCL gas from synthesis uint, incinerator or other devices.
HCL gas is absorbed by water or weak acid,with model selection based on specific calculations.The temperature will be increased with the reaction of gas and absorbent.The absorption is an exothermic process, so that the absorption device is usually composed of falling film absorber and columns.
The two common mode of absorption are Isothermal absorption and Adiabatic absorption.
Isothermal Absorption

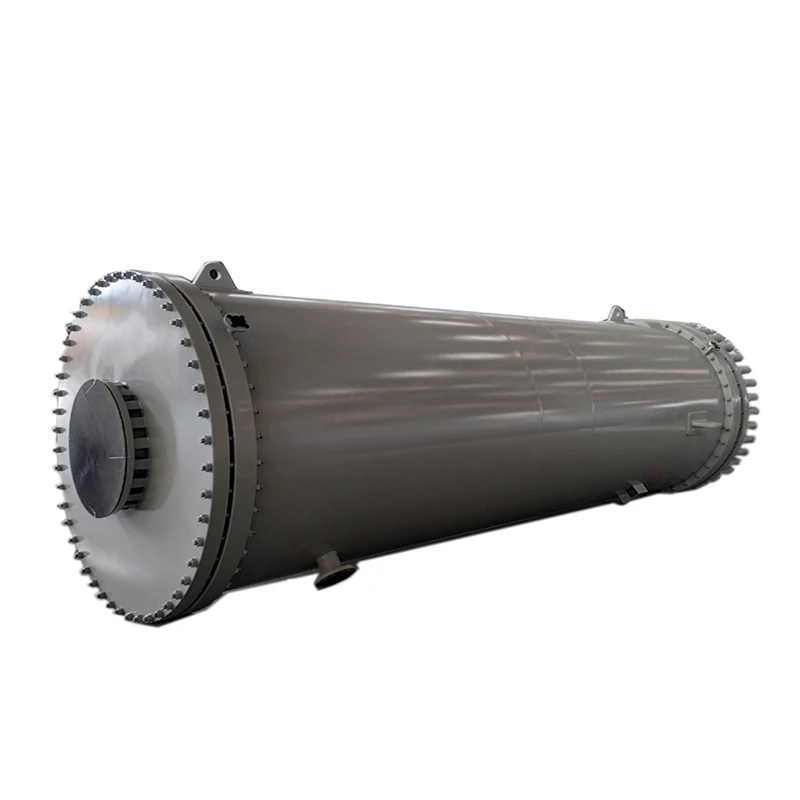

Isothermal absorption is more economical for higher concentrated HCL gases.Therefore a water-cooled falling-film absorber is used for the absorption and cooling of the produced HCL acid.The falling-film heat exchanger can be operated in a co-current or counter-current mode.In a co-current absorption,both liquid and gas are fed at the top of the heat exchanger. The produced acid and the vent gas with unabsorbed HCL leave the equipment at the bottom outlet.This vent gas is scrubbed in a downstream absorption column. The weak acid leaving at the bottom is used ad absorption liquid for the falling film absorber.An appropriate design with trays or packing ensures that the specified emission limits are met.
Adiabatic absorption
Adiabatic absorption is normally used for weak HCL gases
HCL gas is fed through the bottom of colum,while the absorption liquid is fed at the top.Gas and liquid flow are counter-current to ensure optimum absorption.The height,diameter and internals are designed in such a way that the desired acid concentration is abtained and the purity of the vent gas is maximized.The absorption generates a lot of heat the hot acid is cooled by an integral or separate heat exchanger.
Iical Features
Design temperature:
tube pass: compound wall temperature 220℃
Shell pass: byproduce steam pass 175℃
HCL exit temperature 50℃
Design pressure:tube pass 0.4MPaG.
Shell pass:byproduce steam pass 0.8MPaG.Top furnace cooler pass 0.4MPaG.
HCL capacity:10-150T per day.
Packaging & Shipping
FAQ
1. Q:Are you a factory or trading company?
A:We are one of the largest heat exchanger manufactory in China
2.Q:Can we visit your factory before placing orders?
A: Sure, warmly welcome to our factory!
3.Q:What ' s the in fo needed if I send one inquiry ?
A : Pls tell us the working conditions, mediums,t emperature ,pressure, equipment ' s m ateria l,size,quantity, and other special requests
4.Q:What is the MOQ?
A:We accept loose quantity order,any trial orders or mixed order
5.Q:How does your factory do quality control?
A:Quality is priority ,we make relevant strict testing before delivery.Our factory has already obtained ISO9001 quality and ISO 14001 ,Environmental management system certificate.ASME certificate.
Our Services
1. One-year free warranty and life-long maintenance service.
2. Equipment o peration and maintenance vedio guide for the c ustomers.
3 . Help to do worker training.
4 . On-line support every day.
Customization:
We can specially customize products if you tell us any special requests, such as spare parts, cylindricaltank, material, output, pump.
We can make according to your requirements!
Process of Business Transaction.
6.Make a meating.
