Price:$33.00 - $47.00

Quantity:


Product Overview

Description



Chongqing Jieheng Peristaltic Pumps Co., Ltd.


1. China leading manufacturer of peristaltic pumps.
2. 18+years of experience in peristaltic pumps.
3. More than 20,000 cooperative customers.
4. Sold over 2 million peristaltic pumps.




Lilian He(Europe , North and South America) :
April Huang(Asia and Africa) :
WhatsApp:+8618983834629
WhatsApp:+8615703016080
Skype：+8618983834629
Skype：jihpump
Email：alan@jihpump.com
Email：april@jihpump.com


Product Discription




Features
High precision & high performance
Long life and high reliability
Tool free tube replacement
Pump cover anti- dropping lock bead
2 &4 rollers in option
3 kinds of motors in option
3 tube diameters
Various pump cover colors


Hot Sale Products






Product Parameters
Product Name
JIHPUMP 24v 12v 6v high flow easy loading pump mini micro small dosing stepper peristaltical pumps pumping peristaltic pump

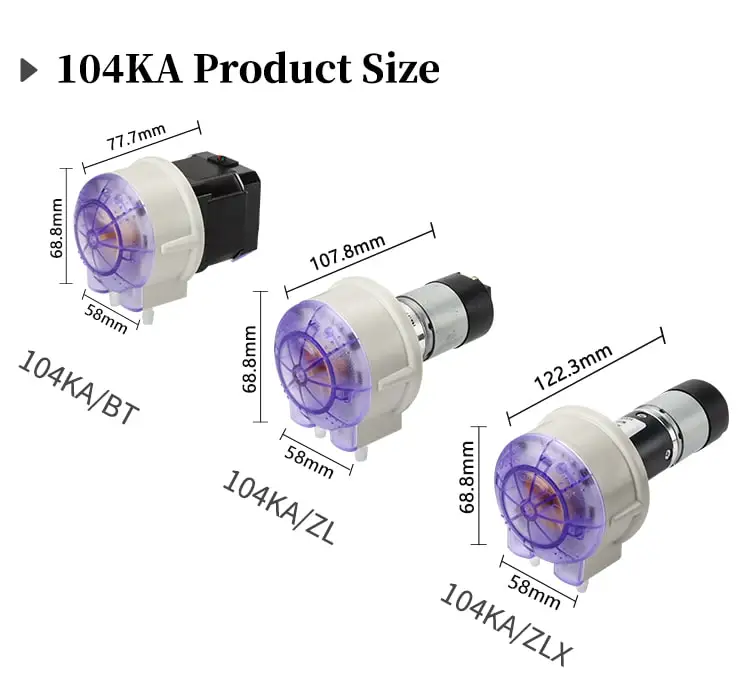

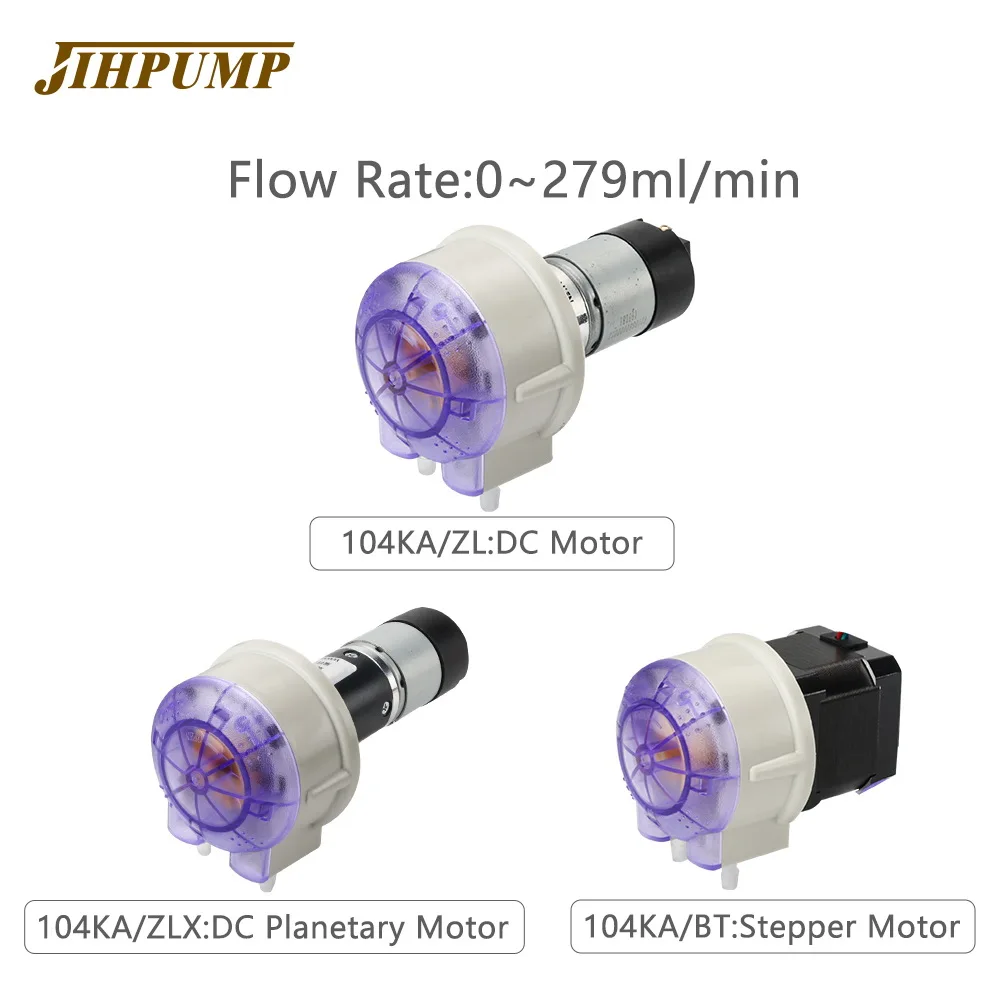

Product Model
104KA/ZL
104KA/ZLX
104KA/BT
Flow Rate
0.6~260ml/min
12~258ml/min
30~279ml/min
Motor Type
DC  motor
DC Planetary Motor
Stepper Motor

Motor Characteristics
1. The accuracy requirement is not high
2. Short interval operation
1. The accuracy requirement is not high
 2. Short interval operation
1. Meet the requirements of high precision 2. Long time continuous operation
Voltage and Current
DC 12V，4A/24V，2A

DC 12V,4A/24V，2A
Power(W)
≤24W
≤24W
≤48W
Motor Life
≥1000 hours
≥2000 hours
≥6000 hours
Weight
170g
230g
350g
The number of rollers
2 or 4 Rollers Optional
Outlet Pressure
≤0.17MPa
Noise
≤80dB
≤70dB
≤52dB
Main Material
Pump cover: Polycarbonate ; Wheels: Polyamide ; Base: POM ; Roller:POM


Reference Flow (unit: ml/min,Liquid:Water)
Product Model
104KA/ZL
104KA/ZLX
104KA/BT
Motor Speed
5rpm
100rpm
300rpm
Rollers
4
4
4
Hose Type
Flow rate
/
/
14#
0.5ml/min
12ml/min
30ml/min
16#
2ml/min
35ml/min
100ml/min
25#
3ml/min
60ml/min
175ml/min






JIHPUMP has sold more than 1 million peristaltic pumps and has always provided users with products of high quality,high precision and high reliability,Meet the metering,transportation and sub packaging distribution needs of various industry applications.

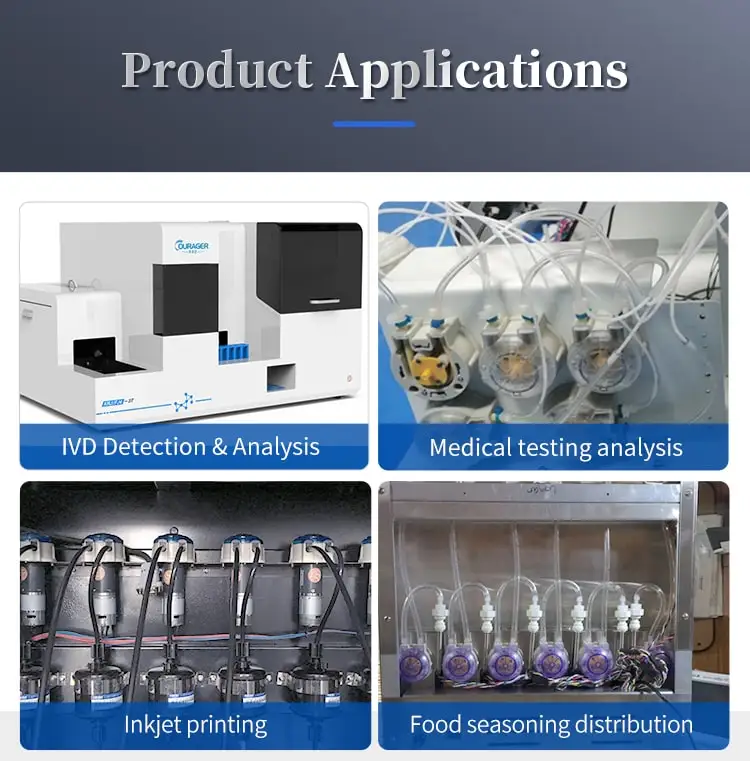

Common Applications: IVD Detection & Analysis , Medical testing , Analysis & testing equipment , Environmental
water quality analysis ，Inkjet printing，Food seasoning distribution,Hydroponic dosing.

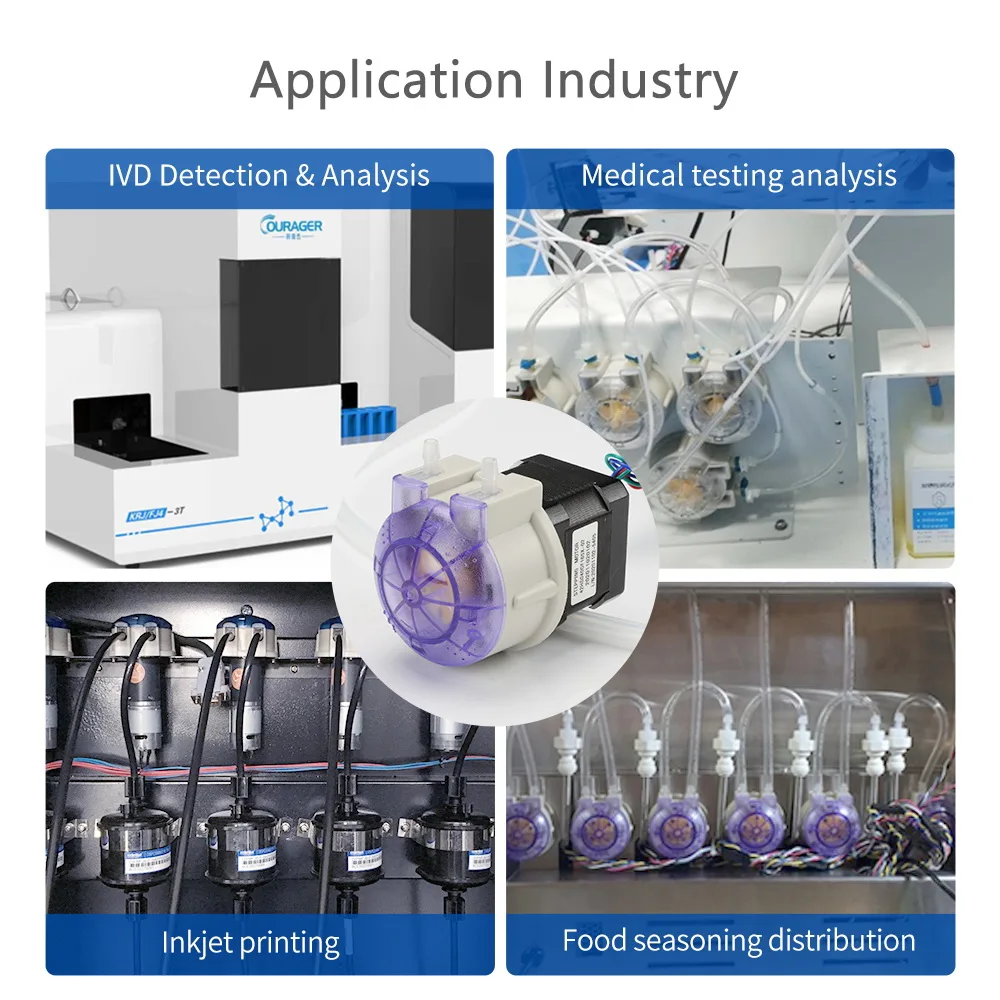

Applications Industry: medical diagnosis, Environmental protection instrument, Analytical Instruments, Inkjet Ink, Washing Cleaning, Food and Drink, Experimental Research, Pharmaceutical Machinery, Smart Appliances, Industrial Machinery.

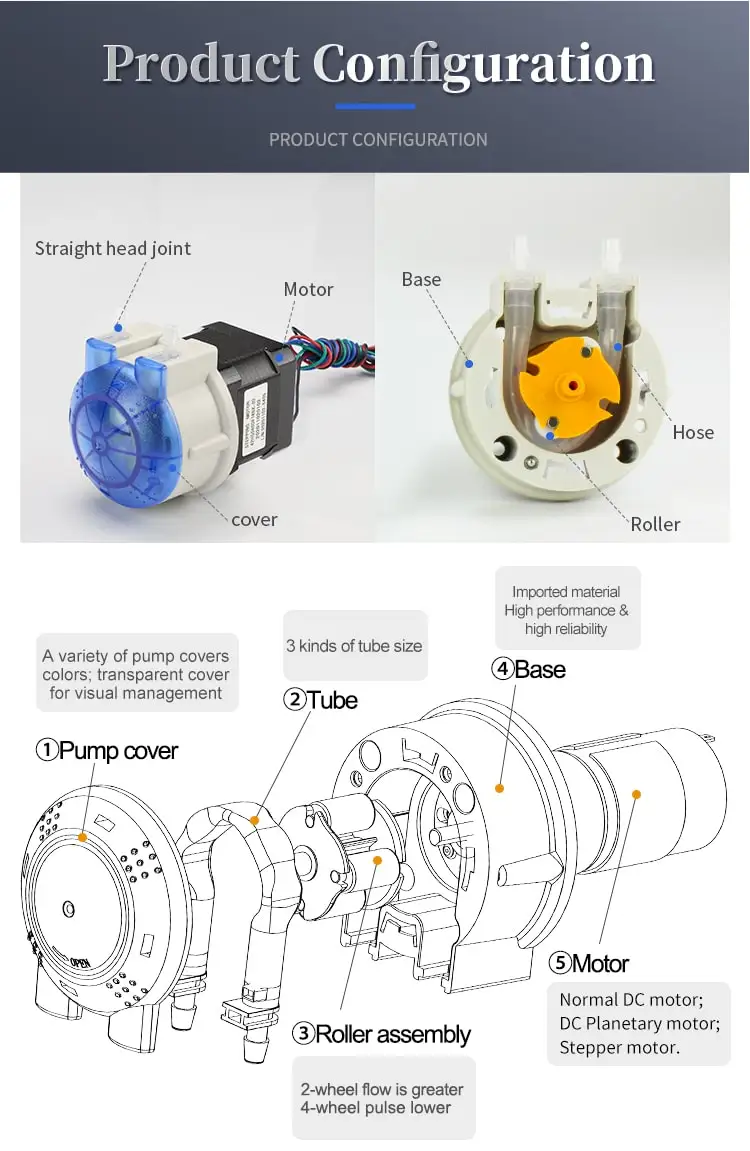

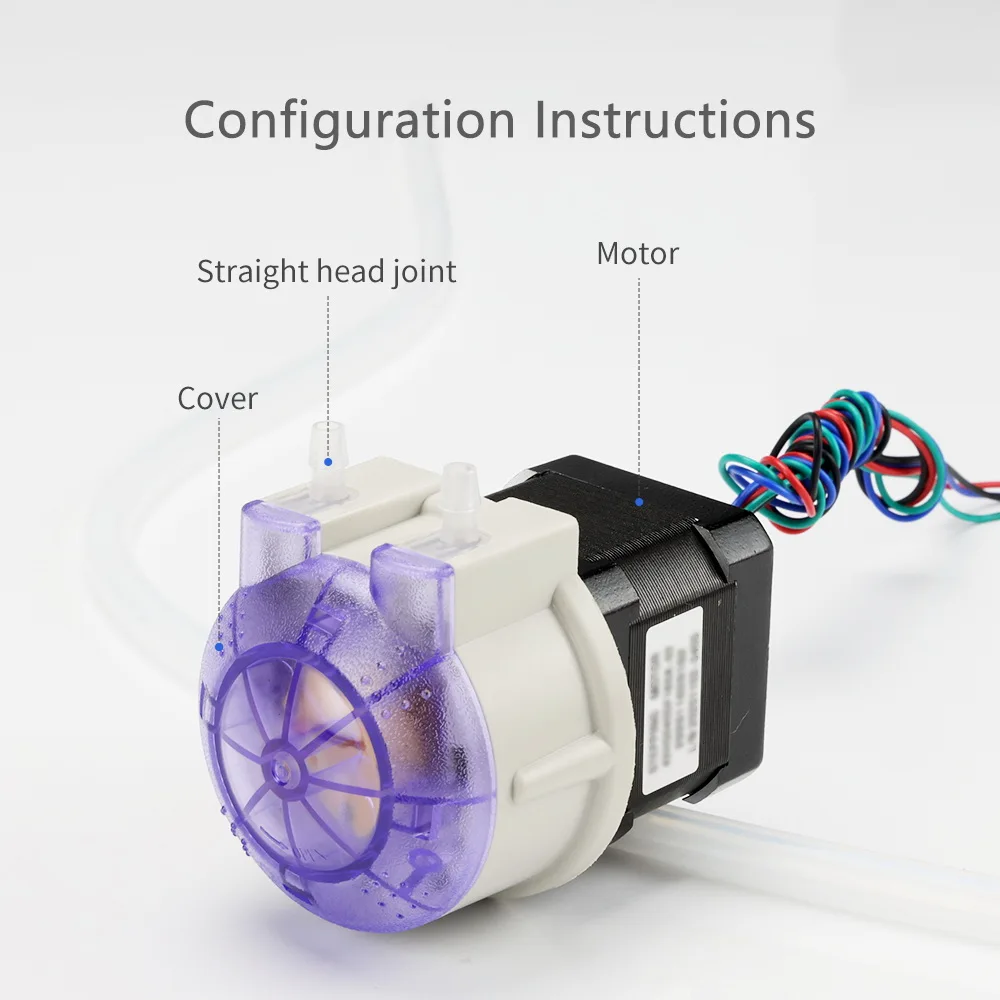

①Pump cover：Transparent pumpcover available in brown and blue
②Tube ：3 kinds of tube size optional

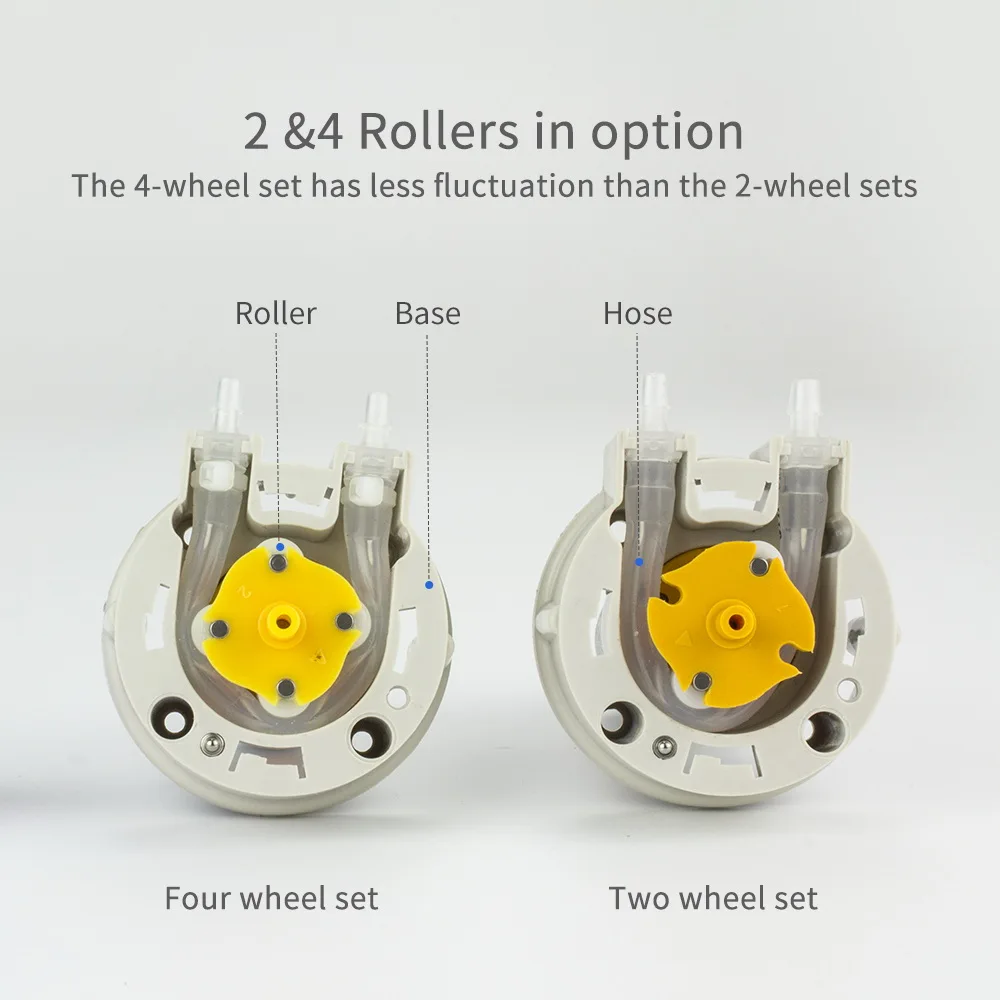

③Roller assembly：2-wheel flow is greater flow rate, 4-wheel pulse is lower
④Base：imported material high performance& high reliability
⑤Motor: normal DC motor; DC Planetary motor; Stepper motor

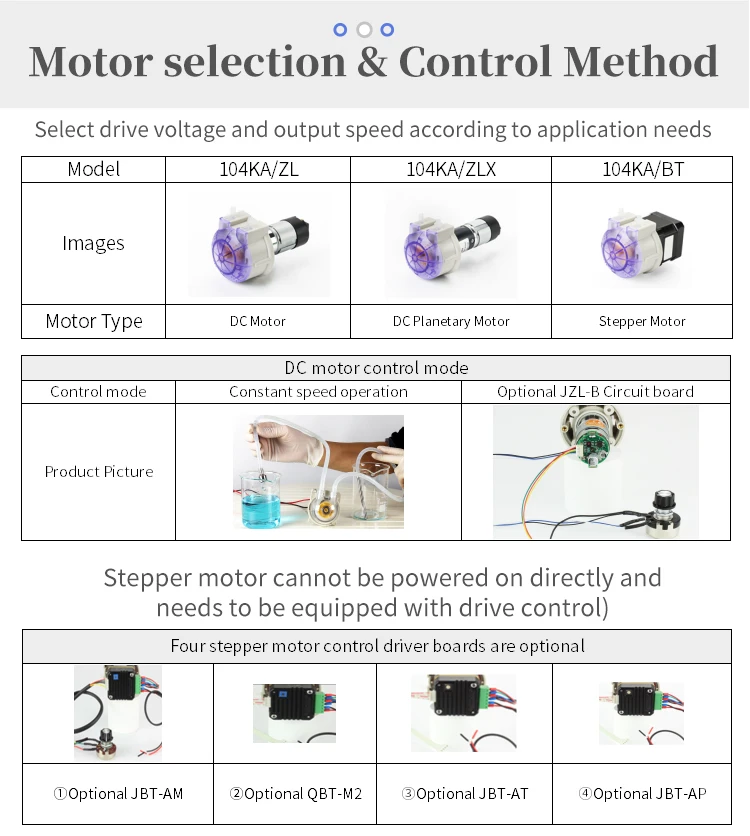

Motor selection &control method
Select drive voltage and output speed according to application needs
Model
104KA/ZL
104KA/ZLX
104KA/BT
Motor Type
DC Motor
DC Planetary Motor
Stepper Motor
DC motor control mode
Constant speed operation : Control the start and stop of the pump through the power on and off

Optional JZL-B Circuit board : Product functions: start and stop, forward and reverse rotation, speed regulation Power supply power: DC 12 ~ 24V, 2A Speed regulation mode 1: built in potentiometer speed regulation Speed regulation mode 2: external potentiometer speed regulation (optional) Suitable motors: 28, 32, 36, 37, tt-555, rg50

Four stepper motor control driver boards are optional
Stepper motor cannot be powered on directly andneeds to be equipped with drive control
①Optional JBT-AM
Start and stop, forward and reverse, speed regulation Speed regulation mode 1: built-in potentiometer speed regulation Speed regulation mode 2: external potentiometer speed regulation (optional) Speed regulation mode 3: analog signal (preset 4-20mA, optional: 0-5V, 0-10V)
Start and stop, forward and reverse, speed regulation Speed regulation mode 1: built-in potentiometer speed regulation Speed
regulation mode 2: external potentiometer speed regulation (optional) Speed regulation mode 3: analog signal (preset 4-20mA,
optional: 0-5V, 0-10V)
②Optional QBT-M2

Product function: start and stop, forward and reverse, speed regulation Speed regulation mode: pulse frequency to adjust the speed
③Optional JBT-AT

Product function: start and stop, forward and reverse, speed regulation Speed regulation mode: MODBUS-RS485 digital communication control
④Optional JBT-AP

Product function: start and stop, forward and reverse, speed regulation. Speed regulation mode 1: PWM pulse to adjust the speed Speed regulation mode 2: external potentiometer to adjust the speed

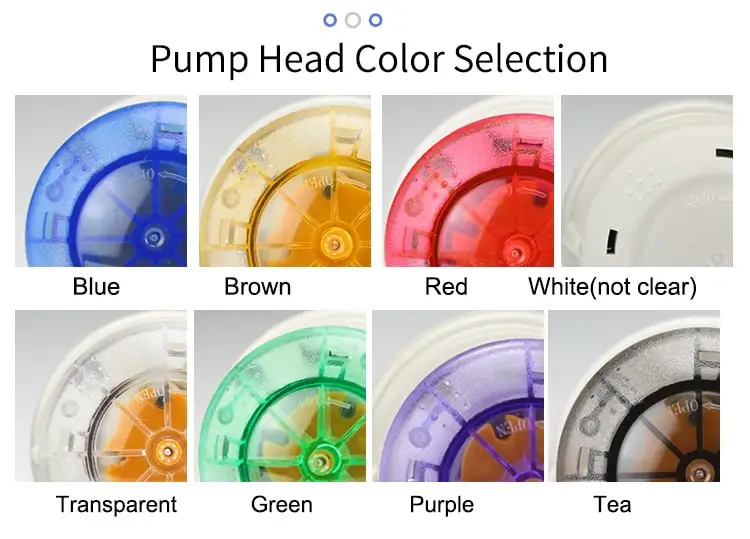

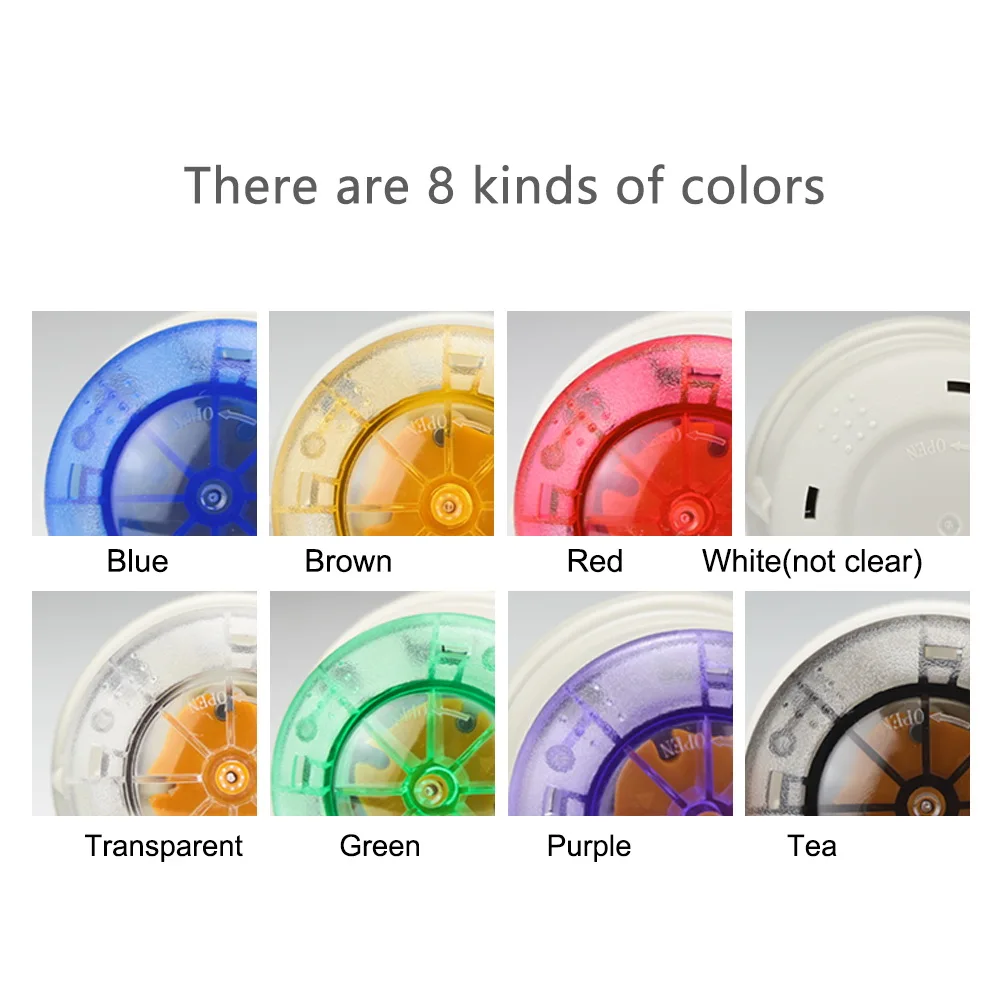

Pump head color selection : Blue/Brown/Red/White/Transparent/Green/Purple/Tea




Certifications


CE,ISO,SGS Other various patterns and certifications
Certificate Details View, Click On "Company profile "in the company profile of shop home page or let me know, we'll send details to you.




Company Profile:


JIHPUMP Chongqing Jieheng Peristaltic Pumps Co., Ltd. is founded in 2006. We are a high-tech enterprise providing professional product application solutions, manufacturer and service provider of peristaltic and constant flow pumps. The company produces more than 50 series and over 200 models of peristaltic pump products. We have shipped more than one million cost-effective,high-reliability peristaltic pumps to users around the world in the food, beverage, chemical reagents, printing inks, detergents,laboratories, analytical instruments, fine chemicals, smart homes, medical care, biopharmaceuticals, environmental and industrial fields.

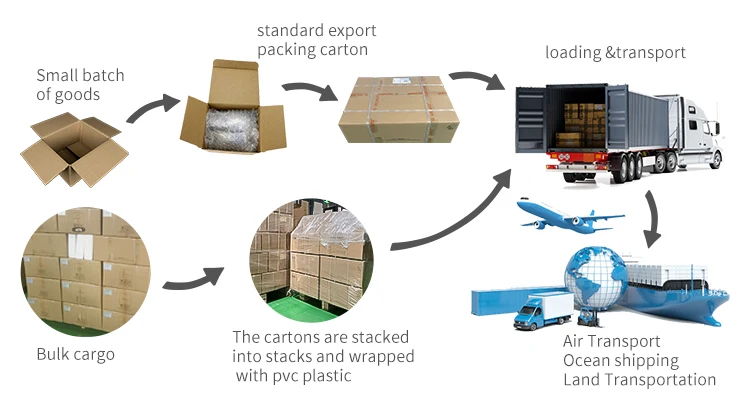

Packing&Shipping:


Standard export packing for JIHPUMP peristaltic pump
A: Small quantities of goods shall be packed in cartons.
B: For mass delivery, the cartons are stacked into stacks and then wrapped with pvc plastic for loading.




FAQ:


1.What's your required liquid flow rate(ml/min) for the peristaltic pump?
After we know your liquid flow rate , we recommend the right peristaltic pump according to the flow rate.


2.What liquid may be moved by the pump?
Different liquids have different viscosities. Some pumps can deliver low viscosity and some pumps can deliver high viscosity. Especially viscous liquids cannot be delivered by peristaltic pumps.


3.Do you prefer to adjust the flow rate ? or fixed flow rate?
Peristaltic pump flow is adjustable or fixed according to your actual situation to choose, please tell our sales manager.


4.Can you please let us know the 3V, 6V, 12V, 24V or 220V pump that you need?
Peristaltic pumps run on electricity, so tell us what voltage you need to run on and we can help you choose the right pump.


5.Do you mount the pump on any equipment or not?
We need to know whether the peristaltic pump you use is installed on the equipment or can be used directly by plugging in the power supply. The types of pumps used in the two cases are different.
