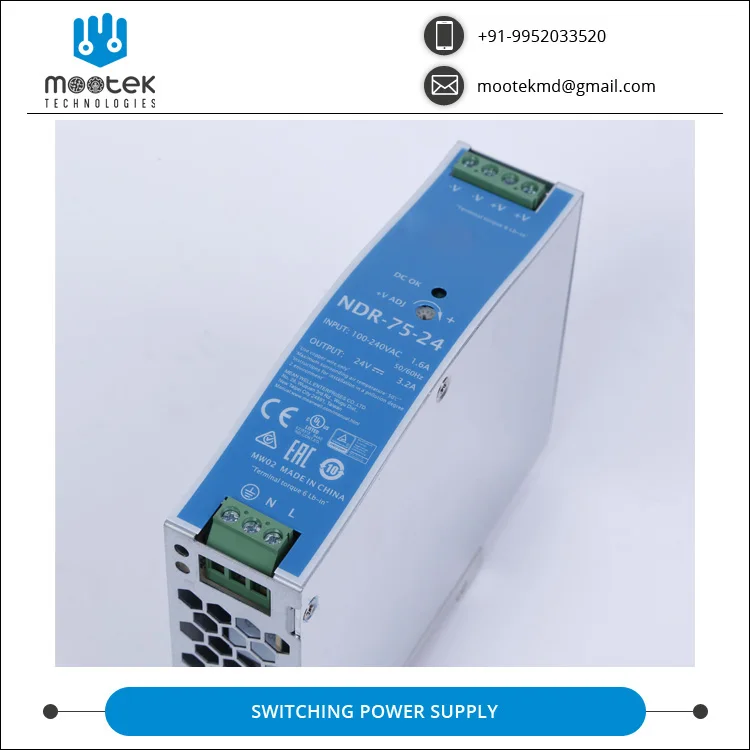

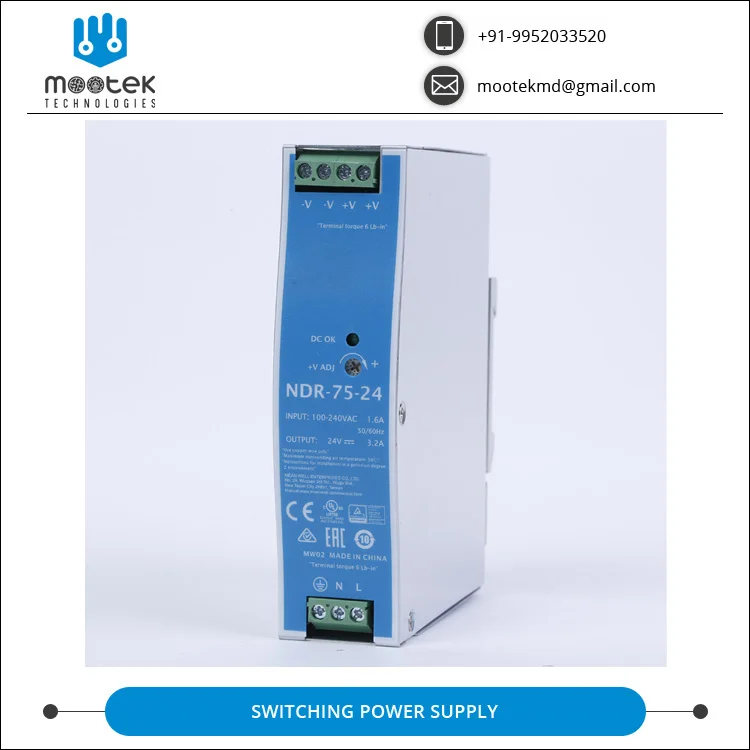

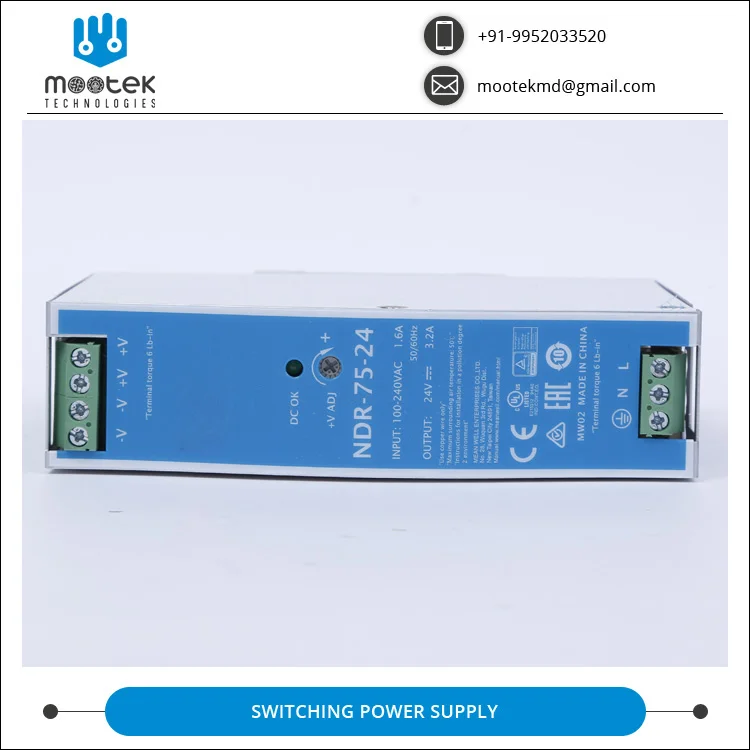

NDR-75 is one economical slim 75W Dinraal power supply series, adapt to be installed on TS-35/7.5 Gr TS-35/15 mounting ralls. The body is designed 32mm in width, which allows space saving inside the cabinets. The entire series adopts the full range input from 90V 264VAC and conforms to EN61000-3-2, the norm the European Union regulations for harmonic current.
NDR-75 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 89%, the entire series can operate at the ambient temperature between -20C and 70°C under air convection. It is equipped with constant current mode tor over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL 508, TUV EN62368-1, and etc.) make NDR-75 a very competitive power supply solution for industrial applications.
Features:
Universal AC input / Full range
Protection: Short circuit / Overload/Over voltage / Over temperature Cooling by free air convection
Can be installed on DIN rail TS-35/7,5 or 15
UL 508 (industrial control equipment) approved
EN61000-6-2(EN50082-2) industrial immunity level
100% full load burn-in test
3 years warranty
Applications:
Industrial control system
Electro-mechanical apparatus
Semiconductor fabrication equipment
Factory automation
Specifications
Product name
Switching Power Supply
Product Size
32*125.2*102
Output voltage
48V
Rated current
0.63A/1.2A/2.2A/3.2A/4.5A/6.5A/8.8A/14.6A
Rated power
15W30W/50W/75W/100W/150W
Protection function
Short circuit, over voltage, overload protection
Housing Material
Aluminum
Product certification
CE certification
Product scope
Engineering level single group power supply, suitable for LED luminous characters, perforated lights, modules, advertising signs, light strips, light bars, monitoring, etc.
