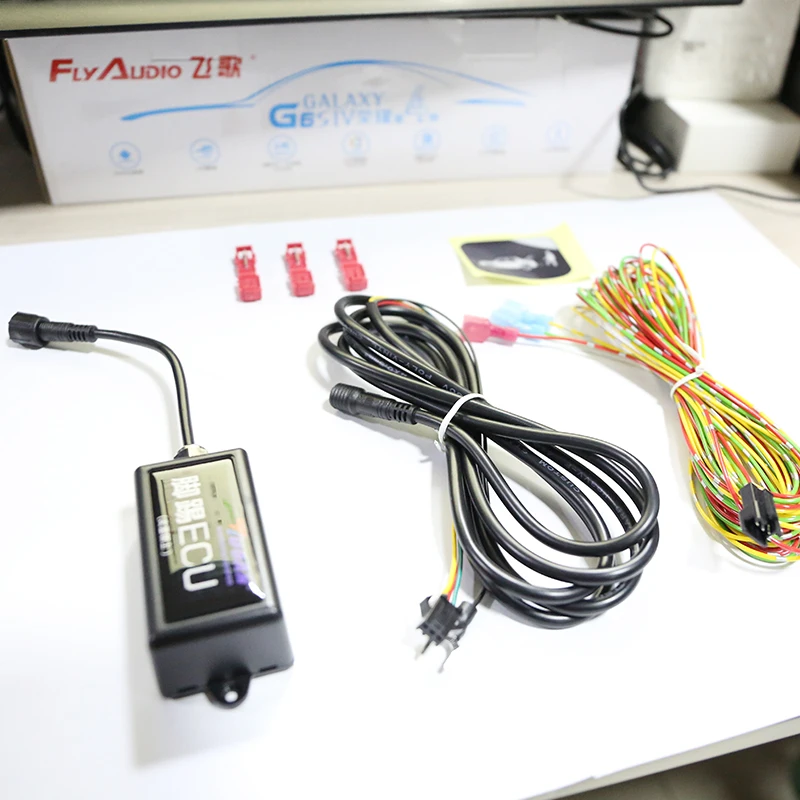

Foot sensor Controlled Opening and Closing of the Powered Tailgate

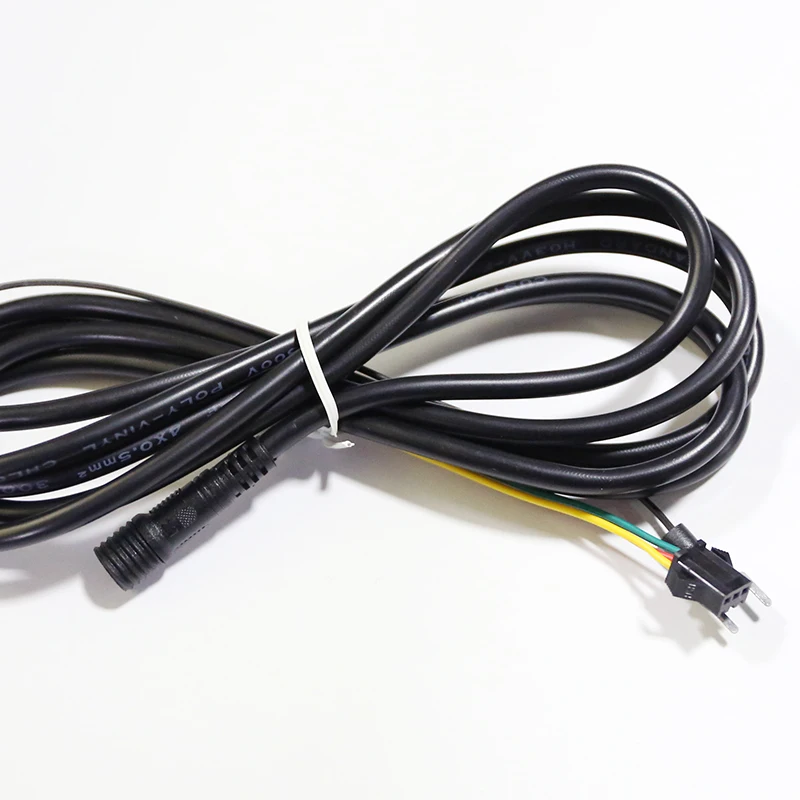

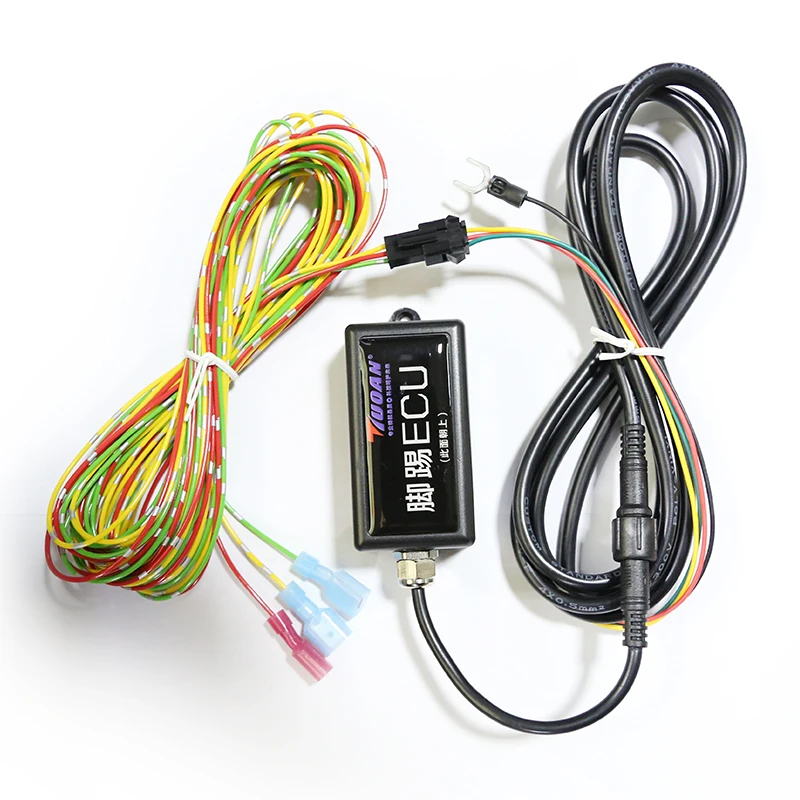

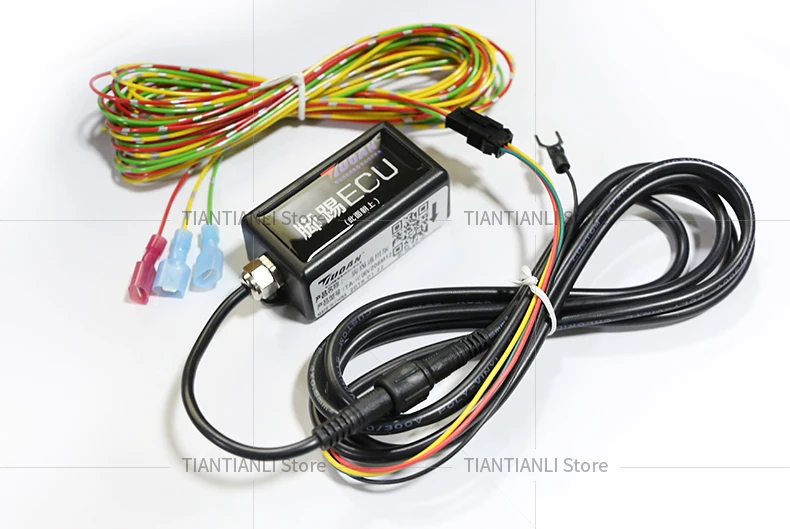

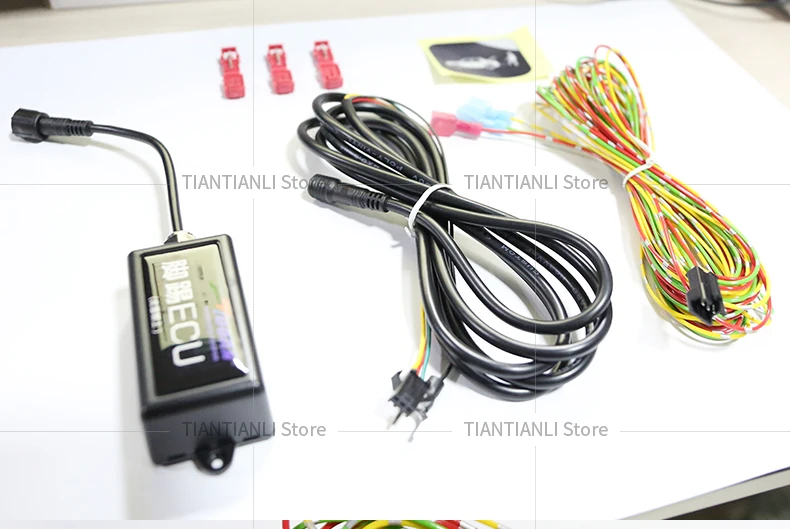

Product Overview

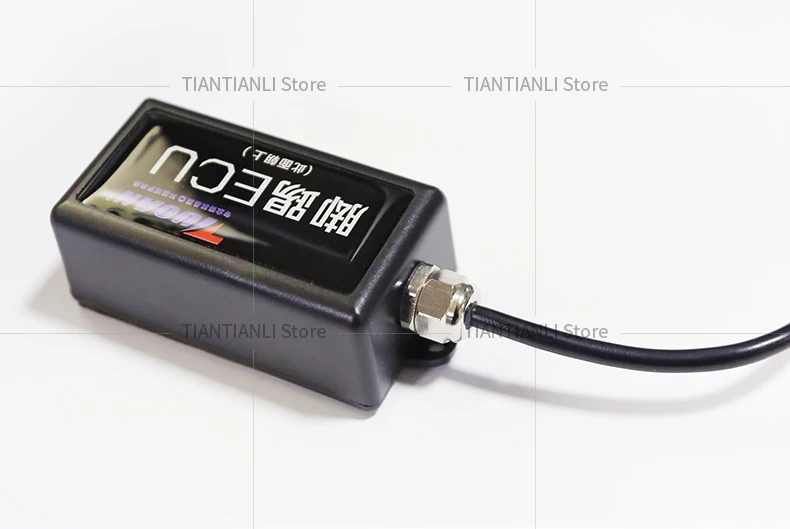

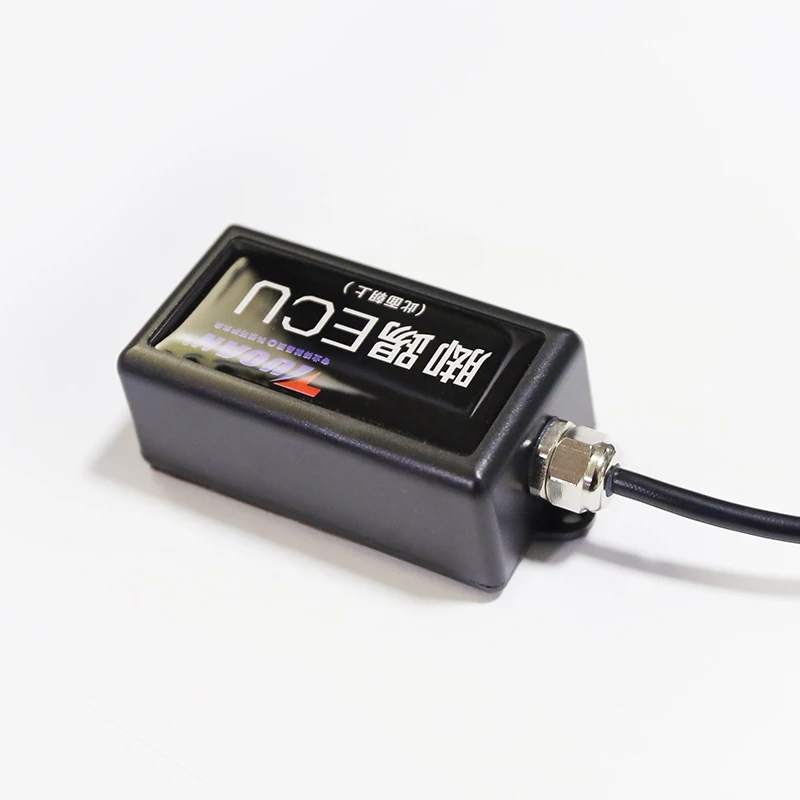

Description

Sensor Controlled Opening and Closing of the Powered Tailgate

 installation method

step one

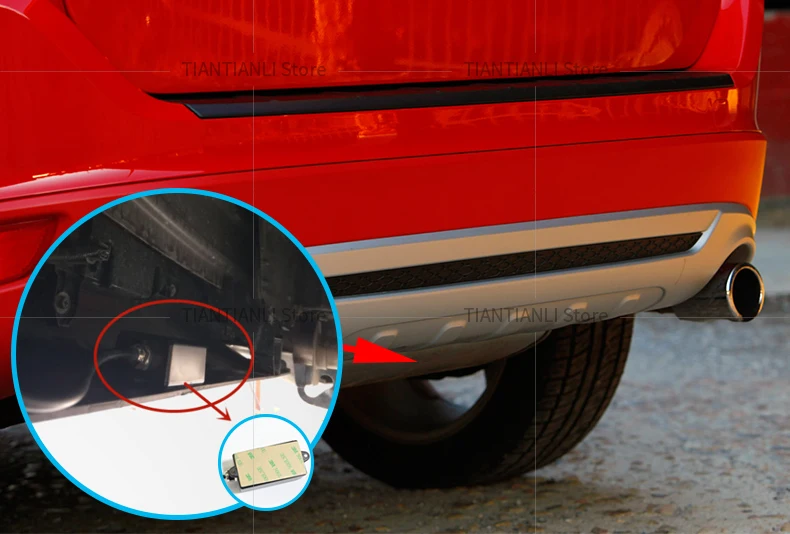

1. Find a suitable position on the rear guard bar of the vehicle.

2. Wipe the location where the sensor is to be attached.

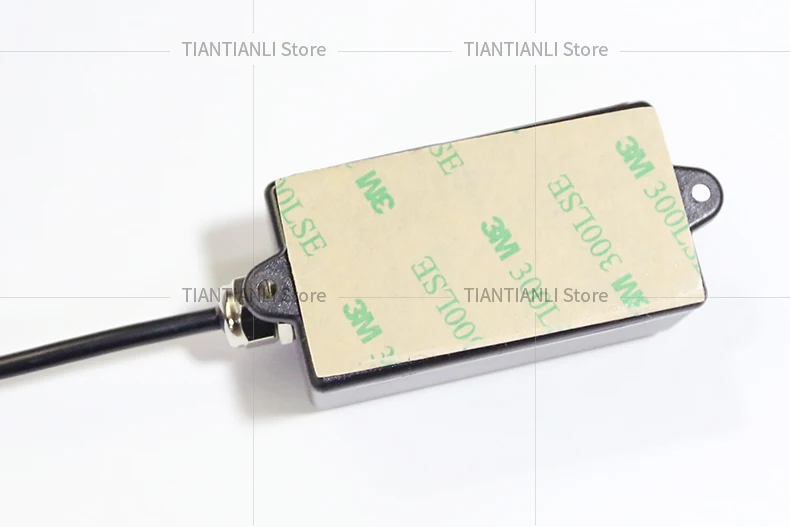

3. Peel the double-sided tape of the sensor (the side surface of the double-sided tape is the detection surface) facing the ground

4. Firmly attach the sensor to the rear guard barnote! The detection surface can only penetrate plastic and cannot penetrate metal objects such as iron and aluminum.

A.Rear tail button trigger line

B.ACC

C.Ordinary electricity

D.Negative connection ground wire metal

Step two

Rear tail switch button trigger line search method: One end of the test pencil is grounded, and the other end is tested (next to the license plate number light) to open the harness above the button outside the tail box.

Possible situation

1. The test pencil touches the wire, and the reaction of the rear tail box is the trigger line.

2. The test light pen touches the test light and the light is always on, and the outer and rear tail switch buttons are pressed.



Release the button outside the rear box, the test light is always on the trigger line, connect the leg sensor

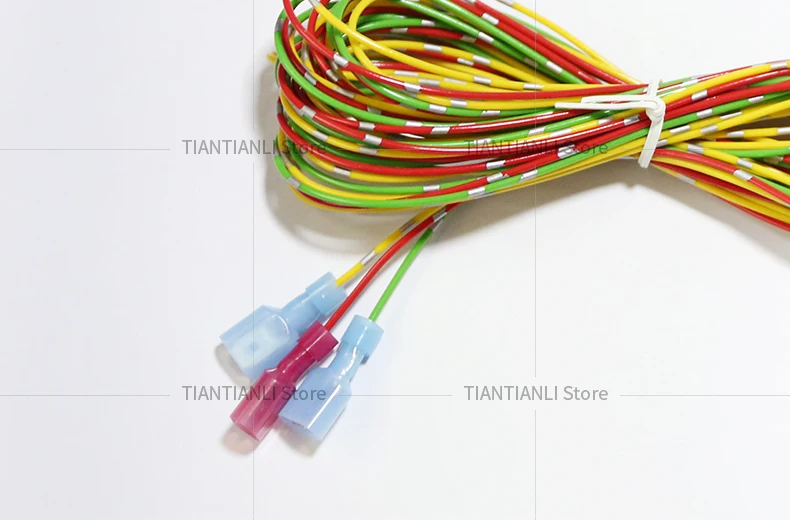

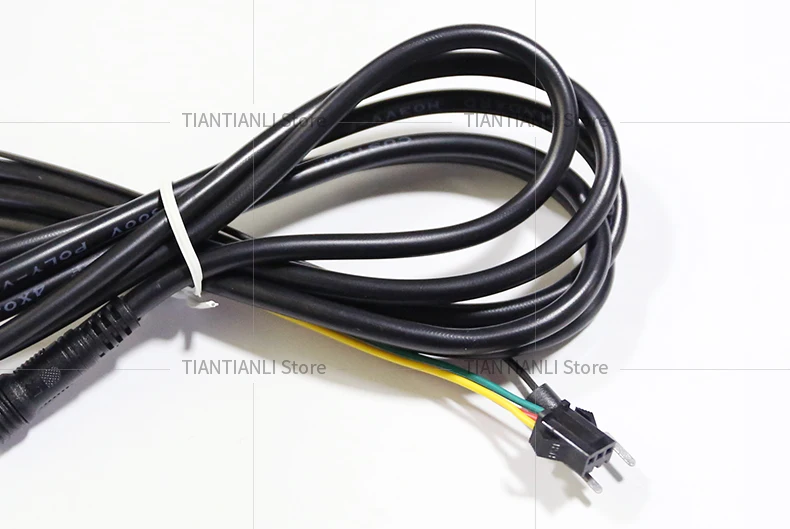

note! After fixing the host, the wiring harness connection:

1. Connect the green negative trigger line first.

2. The black line negative pole (grounded)

3. The red line is connected to the normal through the positive pole and let the host self-test for 20 seconds. Do not do any trigger operation during the self-test. Can the leg sensor be tested after the self-test is completed normal
