Product Overview
Description
Product Description
1.Tubing centralizer is essential for the prevention of cable damage,help to fix the position of
tubes in the deviated or straight well.
2.This product applys a special style for installation of tubes connected more quickly in its
middle part or joint part.There are different sizes of double hollow slot to apply for many
tubes with different types.
3.Simple structure, convenient usage, long service life, relative lower cost and so on.
Features
Name:Tubing stabilizer
Size:OD from 80-136mm
Suitable for pipe pf ID from 3-1/2 to 6''
Other products: Sucker rod stabilizers
Product Name: Tubing stabilizer, sucker rods stabilizer
Size of tubing stabilizer: OD from 80 to 136mm
Suitable for pipe pf ID from 3-1/2'' to 6''
Feature:
It is recommended that centralizers be used on the rods for reduction of rod string and oil well tubing wear. The centralizers can be fixed; they can be installed directly on the rod body by pressure die casting method. The rotating centralizers are located between the locks on the rod body and can rotate on the same. Apart from ensuring wear protection, centralizers prevent deposits formation inside oil well tubing and increase the time between well overhauls.
Custom sized and configurations also available

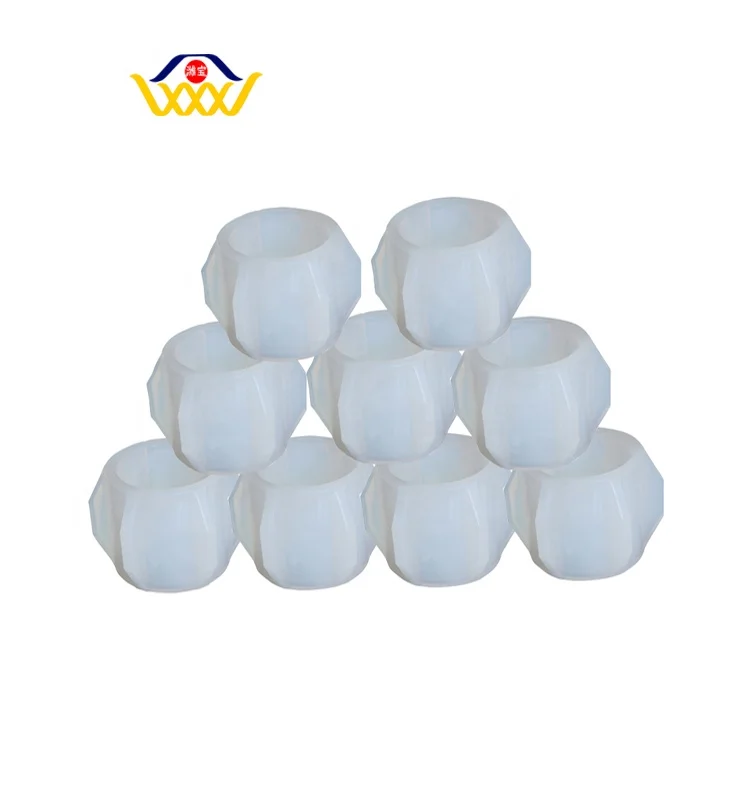

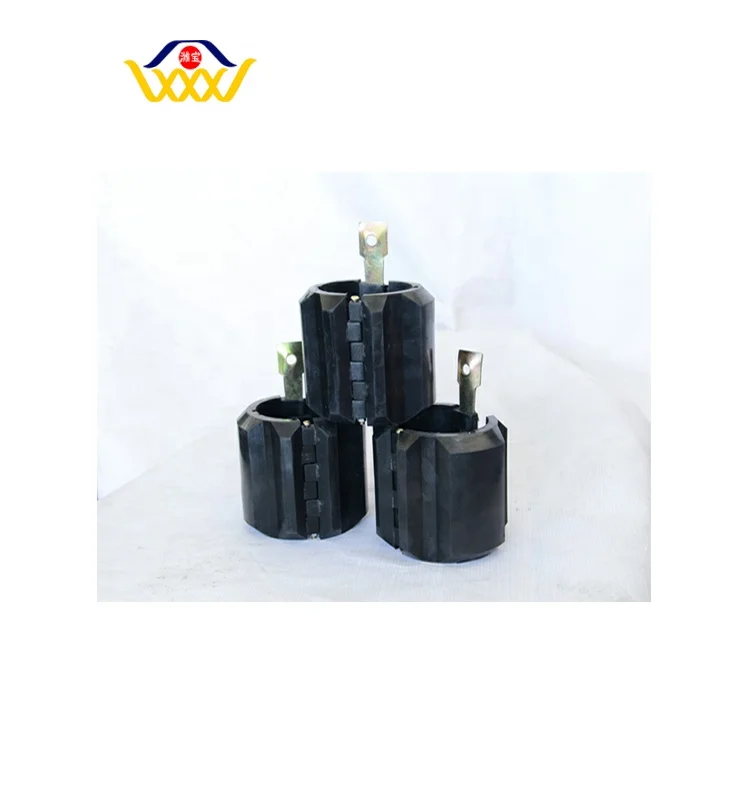

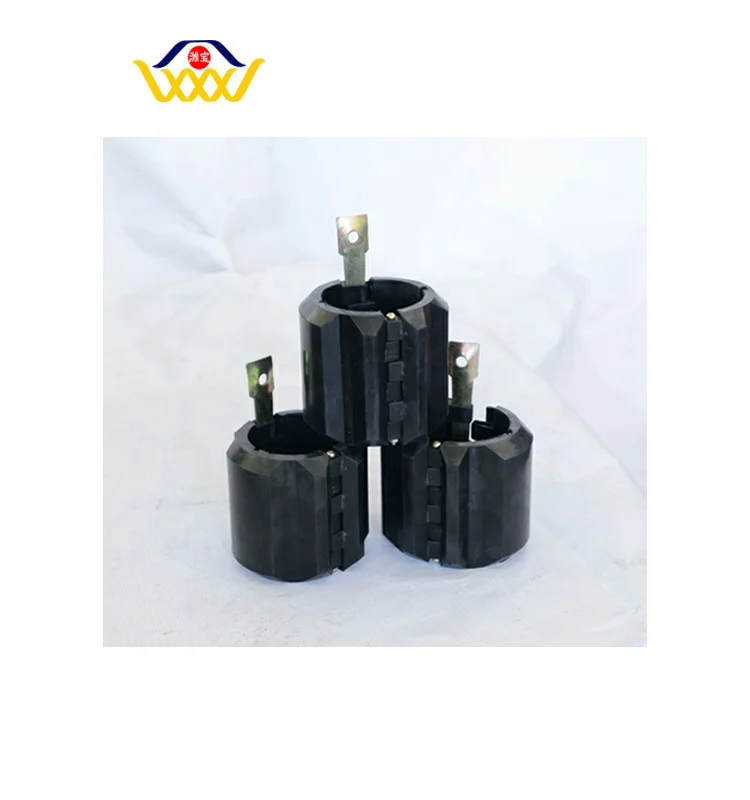

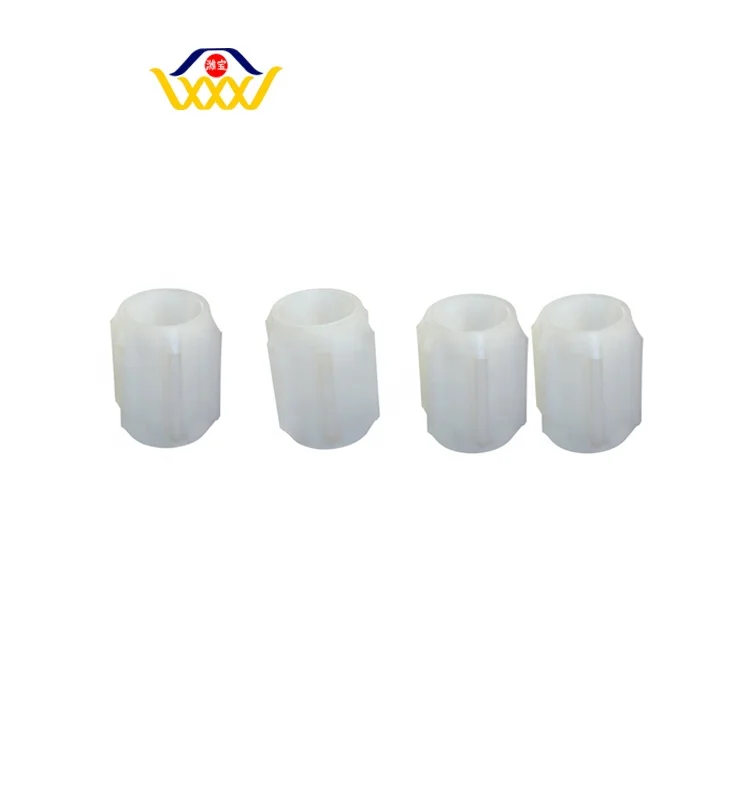

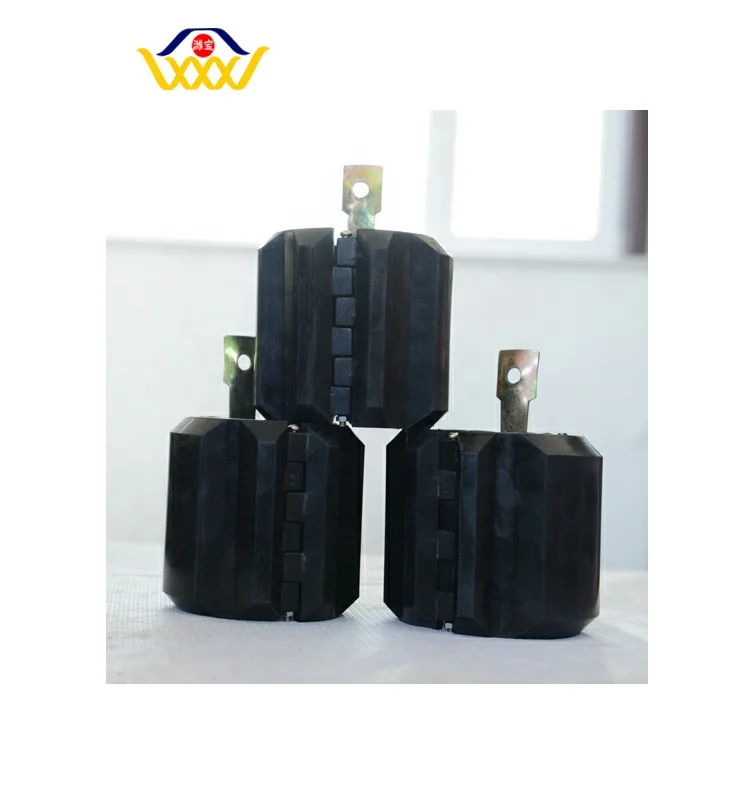

Detailed Images
