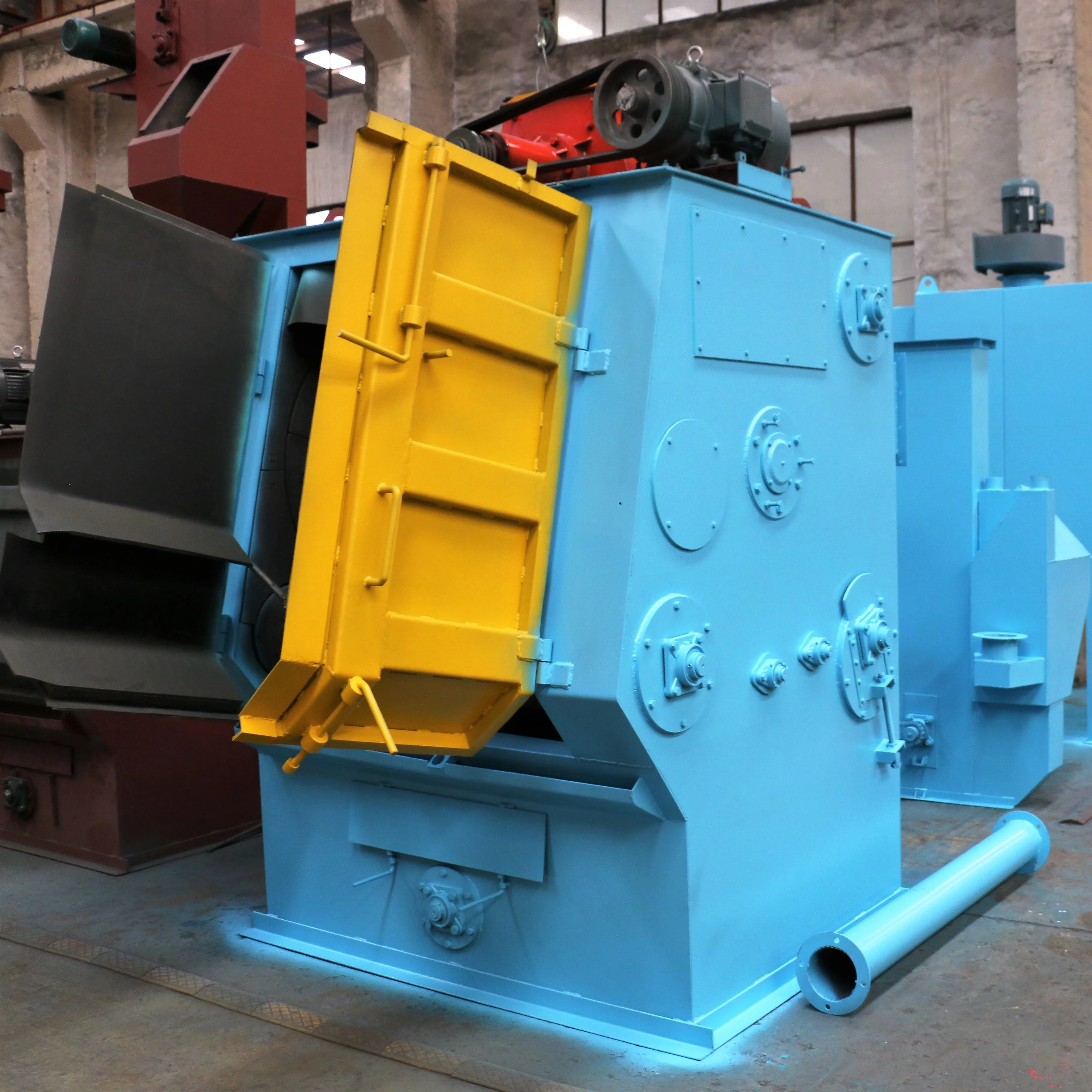

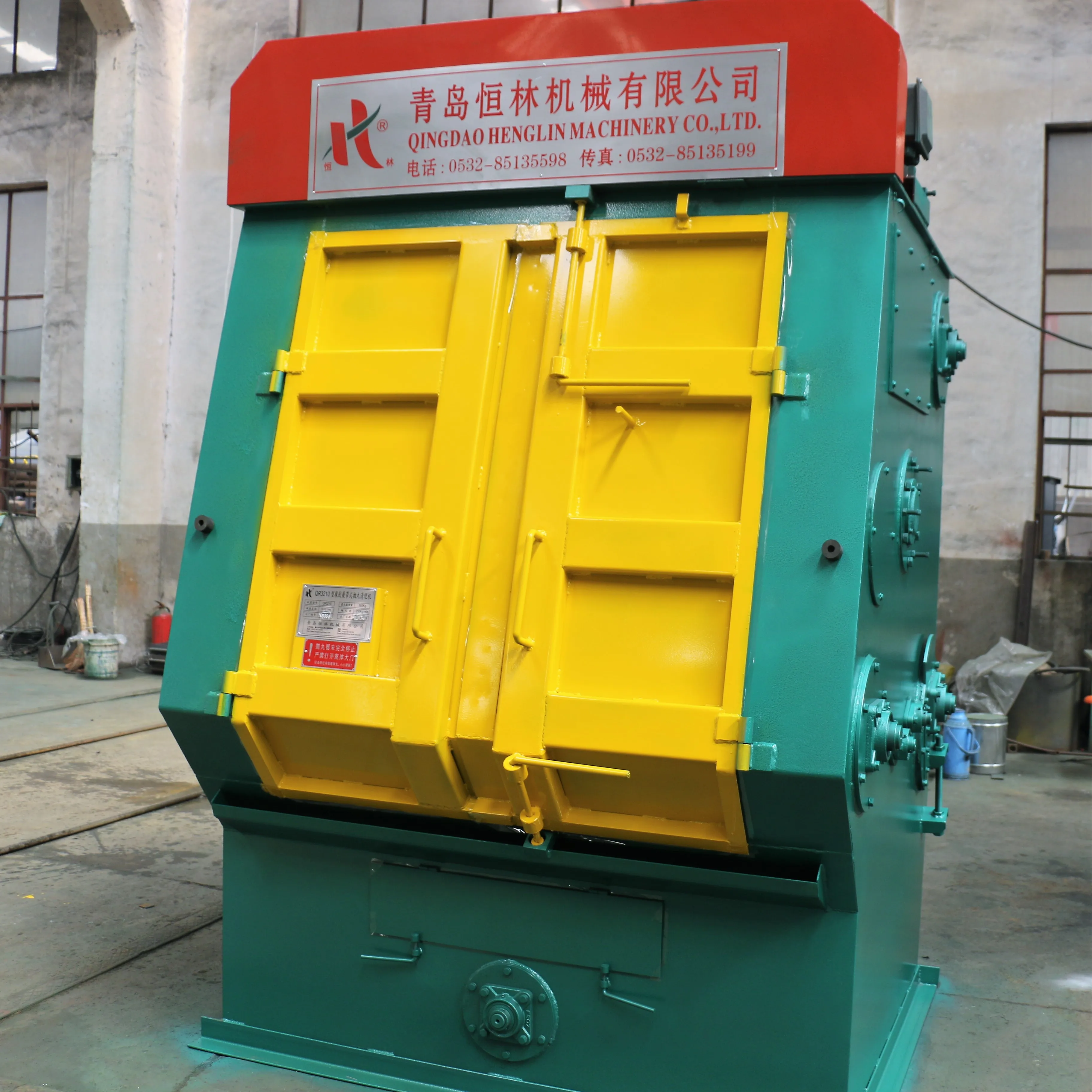

China QR3210 Sand Blasting Machine, Tumble Shot Blasting Machine good as DISA
China QR3210 Sand Blasting Machine, Tumble Shot Blasting Machine good as DISA
China QR3210 Sand Blasting Machine, Tumble Shot Blasting Machine good as DISA
China QR3210 Sand Blasting Machine, Tumble Shot Blasting Machine good as DISA
China QR3210 Sand Blasting Machine, Tumble Shot Blasting Machine good as DISA

China QR3210 Sand Blasting Machine, Tumble Shot Blasting Machine good as DISA

Share on (62023181478):


Price:RUB 228,363.90

Quantity:


Product Overview

Description

Product Description

China QR3210 Sand Blasting Machine, Tumble Shot Blasting Machine good as DISA


Q3210 series Rubber Belt Shot Blasting Machine Abrator can be used for surface cleaning, removing rust and surface intensification of :

Application:

1. Rust and heat scale removal

2. Paint stripping

3. Surface texturing

4. Preparation for painting, bonding and plating

5. Deburring, deflashing

6. Cleaning and Cosmetic finishing


Features:


1. Extremely compact design, minimum floor space required.

2. Totally self-contained, includes dust collector, separator, cartridge filtration system.

3. "Turnkey Project" characteristics, i.e. the machines can be installed and put into operation in the shortest possible time.

4. No special foundations required, no extra ducting needed.

5. US technology high efficiency blast wheel.

6. Full safety interlocks.

7. Low noise levels.



Specification of QR3210 High Efficiency Economical and Cost Effective Automobile Spare Parts Tumble Shot Blasting Machine :

Model
Q326
Q3210
15GN
28GN
Productivity
t/h
0.6-1.2
1.5-2.5
5-6
10-12
Feeding amount
kg
200
600
1300
3500
Maximum weight of single piece
kg
10
30
230
363
Diameter of end disk
mm
Ø650
Ø1000
Ø1092
Ø1245
Effective volume
m³
0.15
0.3
0.43
0.79

Shot-blasting capacity
kg/min

100

250

480

700
Air volume for de-dusting
m³/h
2200
5000
5300
6500
Power consumption
kw
12.6
24.3
49.3
64.5
Outline dimension
mm
3681*1650*3400
3972*2600*4768
4597*3262*5709
5300*5432*6814



Our Service


1. Shot blasting equipment, jolt squeeze sand molding machine,multi-piston static pressure sand casting machine, core shooting machine, dust collector, sand conditioning line, Vacuum Process Casting line, Lost Foam Casting Line, Horizontal and Vertical Flaskless Automatic Production Line.


2. Engineers are available to guide the installation and take care of other problems.

3. 12 months products warranty.

Why choose us?

1.Highest quality of our products following CE, ISO 9001 and Strict Production Guideline standard.
2.Factory and Competitive Price we offer.
3.Our level of after-sale service is second to none.
4.Our equipment is designed and constructed with our customer's safety as a top priority.
5.OEM&ODM service to meet all your requirements.
