TiMOTION TL18 heavy duty electric lifting column
- Category: >>>
- Supplier: TIMOTION TECHNOLOGY CO. LTD.
Share on (62023210934):
Product Overview
Description
The TL18 column is designed for medical applications such as nurse carts, ophthalmological devices, X-ray machines, etc. The TL18 features an extruded aluminum rectangular appearance. Our high capacity, yet economical, TL18 provides stable vertical lifting. This streamlines the engineering design process and replaces the older style, unsafe lifting mechanisms which have many moving stages and pinch points.
General Features
-
Maximum load & self- locking force: 4,500N in push
-
Maximum dynamic bending moment: 250Nm
-
Maximum static bending moment: 500Nm
-
Maximum speed at full load: 28mm/s (with 500N in a push condition)
-
Minimum installation dimension: ≥ Stroke+147mm
-
Stroke: 100~700mm
-
Operational temperature range: +5°C~+45°C
-
Options: Hall sensor(s), cable exit from top or bottom side, direct cut system
-
Certificate: IEC60601-1, ES60601-1, IEC60601-1-2, UL73, EMC

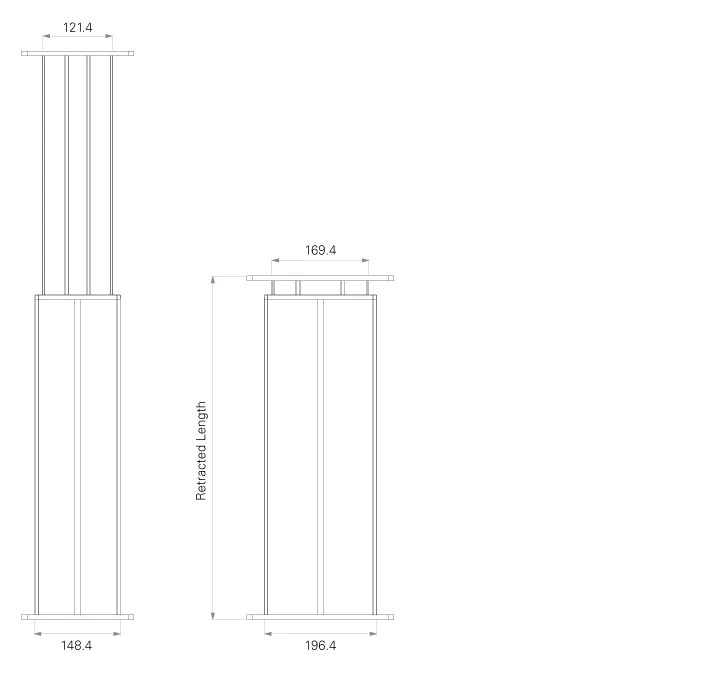

Standard Dimension (mm)
