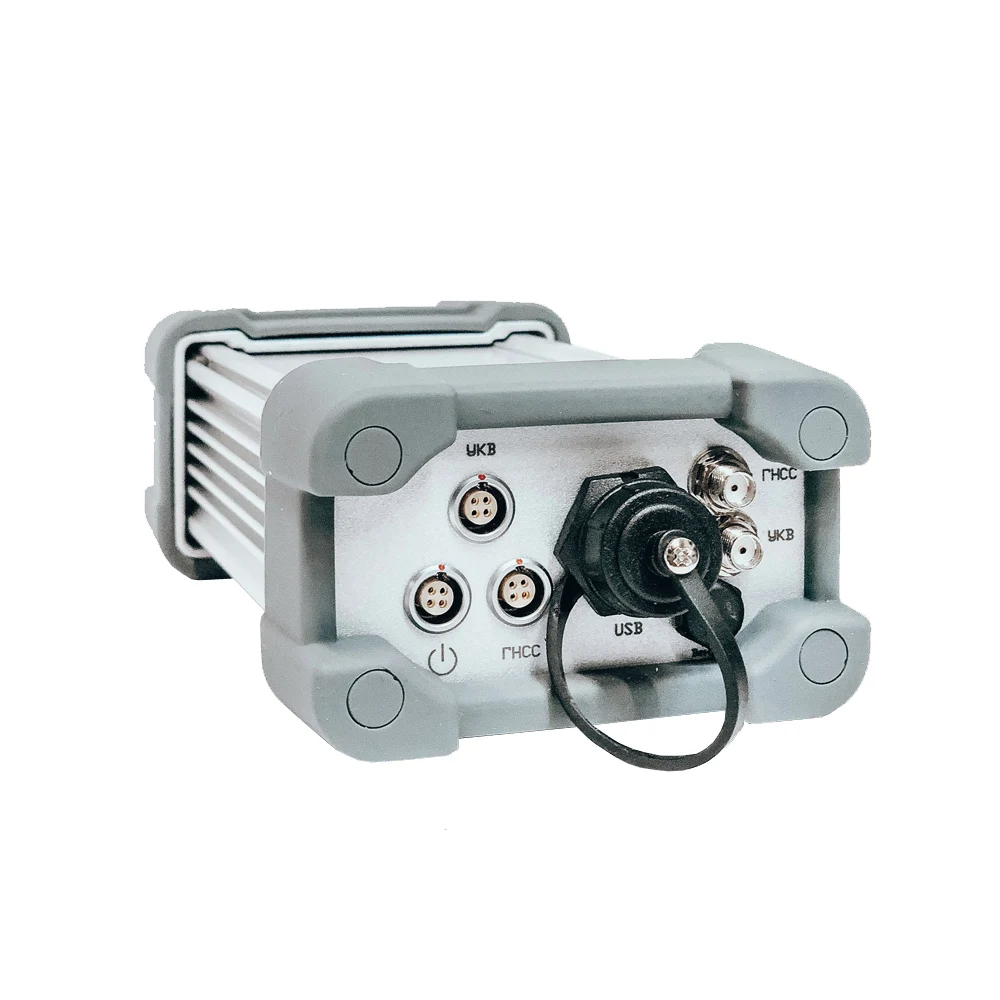

Dual frequency satellite GNSS receiver 4GNSS for Mobile or Base station


Dual-frequency RTK GNSS receiver for Mobile or Base station. Excellent for UAV and RTK applications. Measurements are recorded in the internal memory of 8 GB (optionally 32 GB). Supports RTCM 2.x, 3.x, CMR corrections. Raw data is easily converted to RINEX by the receiver's internal WebUI or PC free utility. WebUI to configure and control the receiver. Includes internal battery for 10h autonomous working.

Purpose: mobile or base station.

Frequencies: GPS L1/L2, BeiDou B1/B2, GLONASS L1/L2, Galileo, QZSS
Size (LxWxH), mm: 164 x 87.4 x 53.6
Weight, kg: 0.8
Design features: supplied with shock absorbing rubber bumpers.


Country of origin
• Russia

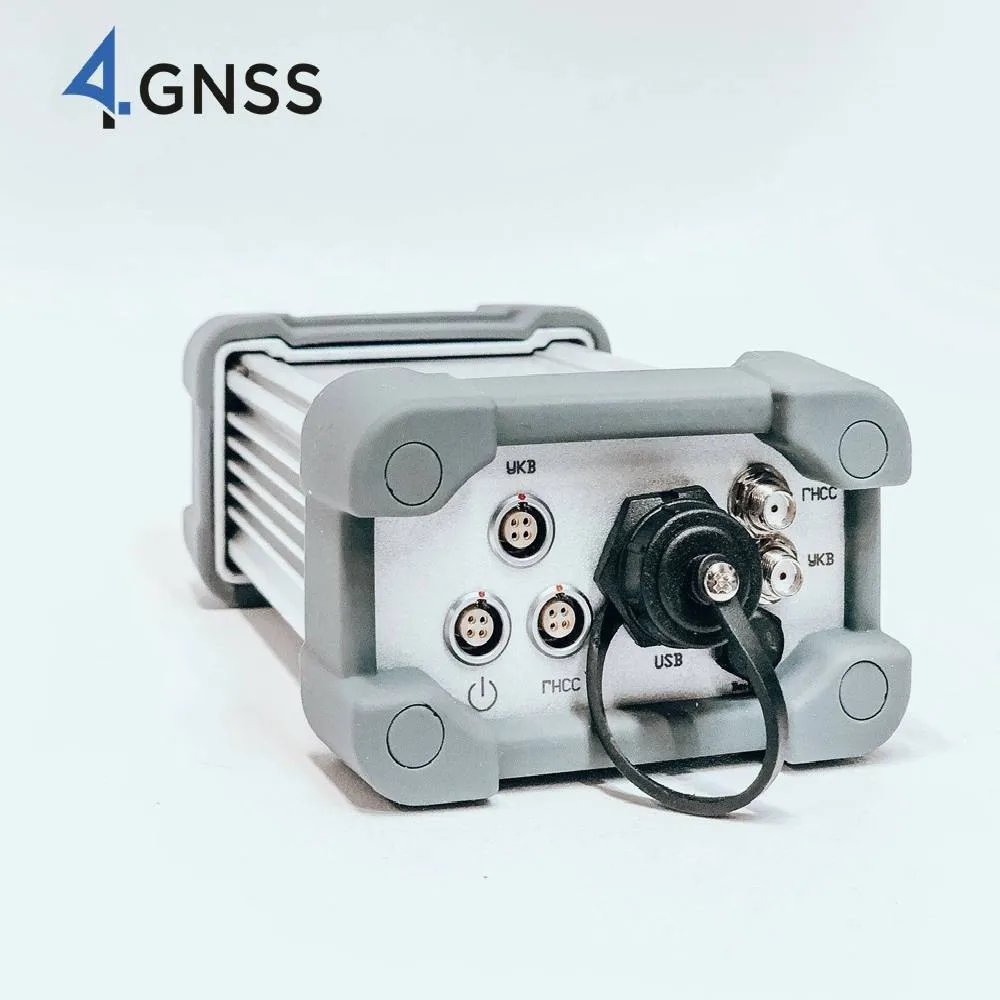

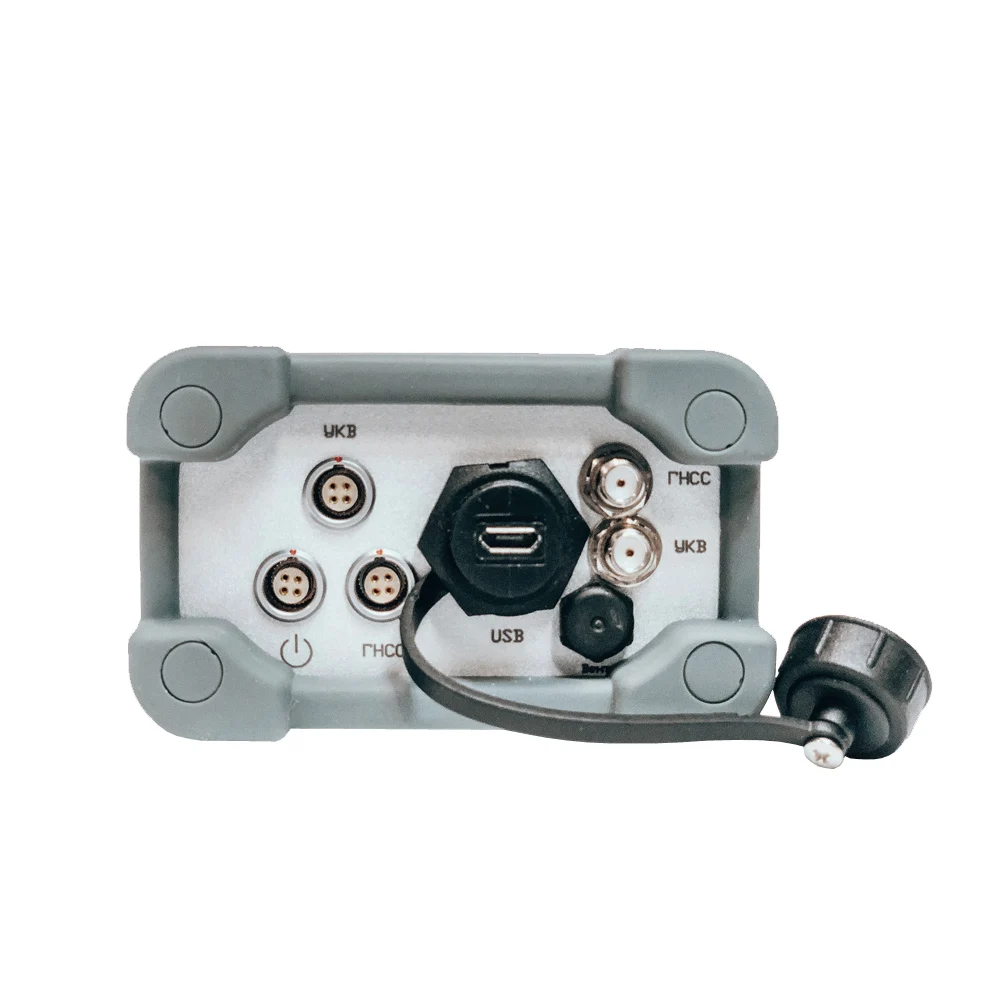

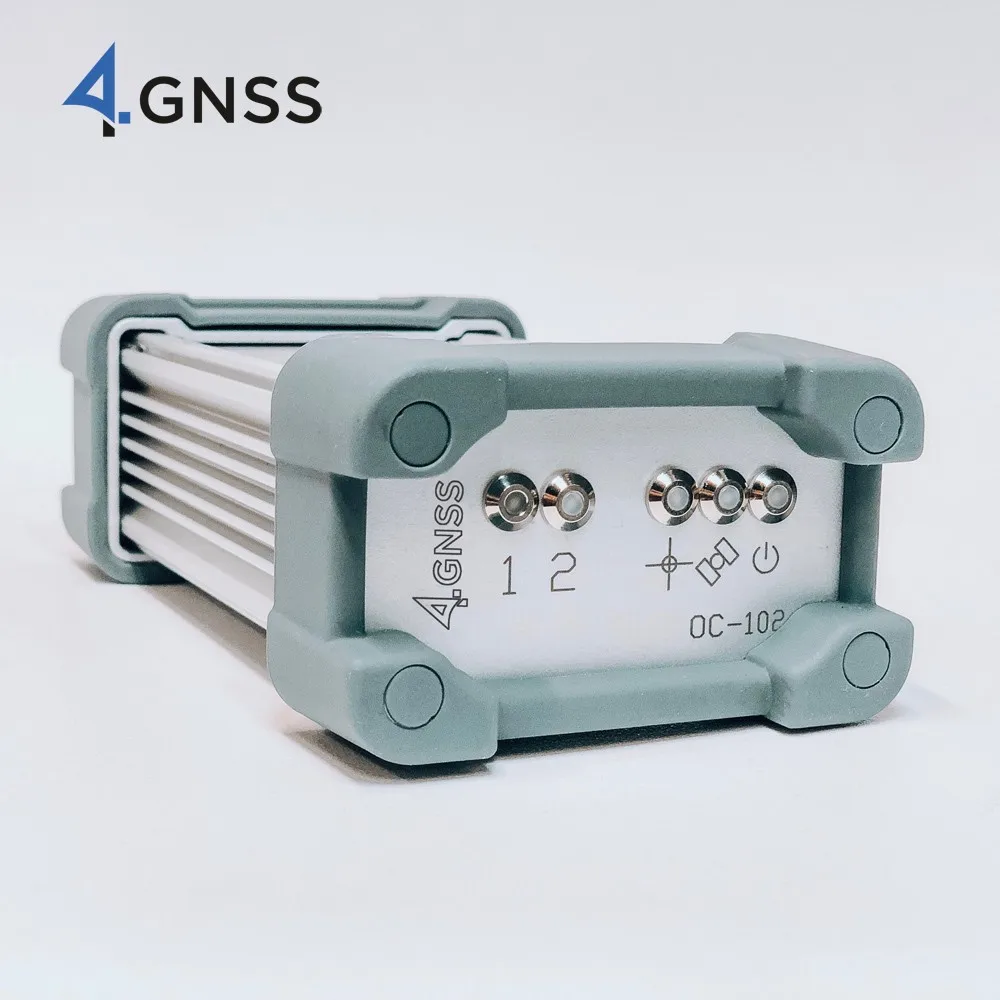

Detailed Images
Specification
\t
Signal Tracking
\t
352 channels
\t
GPS L1 C/A, L2C, L2P
\t
BeiDou B1, B2
\t
GLONASS L1 C/A, L1P, L2 C/A, L2P
\t
QZSS
\t
SBAS: WAAS, EGNOS, MSAS, GAGAN
\t
Performance Specifications
\t
Cold start <50s
\t
RTK Initialization time typically <10s
\t
Signal reacquisition <1.5s
\t
Initialization reliability typically>99.9%
\t
Velocity accuracy 0.03m/s
\t
Acceleration 4g
\t
Overload 15g
\t
Time Precision
\t
20ns
\t
Positioning Specifications
\t
Post Processing Static
\t
2.5 mm+1 ppm Horizontal
\t
5 mm+1 ppm Vertical
\t
Single Baseline RTK (<8km)
\t
8 mm + 1 ppm Horizontal
\t
15 mm + 1 ppm Vertical
\t
DGPS
\t
0.4 m 3D RMS
\t
SBAS
\t
1 m 3D RMS
\t
Standalone
\t
1.5m 3D RMS
\t
Communications
\t
Communication port
\t
2 Lemo0 4pin (female) RS-232 ports, baud rates up to 921600 bps
\t
1 Lemo0 4pin power port
\t
1 USB port
\t
Bluetooth
\t
optionally
\t
6.5W UHF modem Harxon
\t
optionally
\t
WebUI
\t
FTP-server and FTP-Push
\t
Positioning data outputs
\t
1Hz, 2Hz ,5Hz, 10Hz, 20Hz (depends on installed option)
\t
PPS
\t
1 Pulse Per Second Output
\t
Event marker input
\t
Data Format
\t
Correction data I/O
\t
CMR, RTCM 2.x,3.x, RTCM COMPASS
\t
Position data output
\t
ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST; PTNL, PJK; PTNL, GGK; PTNL, AVR; NAVPOS
\t
ComNav Binary data
\t
Physical
\t
Size(L×W×H)
\t
164mm × 87.4mm × 53.6mm
\t
Weight
\t
 0.8 kg
\t
Antenna
\t
1 x SMA female (GNSS), 1 x SMA female (UHF)
\t
Environmental
\t
Working temperature
\t
-40℃ to +85℃
\t
Storage temperature
\t
-40℃ to +85℃
\t
IP protection
\t
IP67
\t
Electrical
\t
 Input voltage
\t
7-28 VDC
\t
Power consumption
\t
1.6W (3 constellations)
\t
Additional functions
\t
UHF 6.5W (OC-101UHF) without internal battery
\t
GPS L1/L2, BeiDou B1/B2, GLONASS L1/L2, Galileo, QZSS
\t
WebUI
\t
Advanced QuantumTM Algorithm
\t
Support short baseline RTK
\t
Support PPS and Event Marker
\t
Low power consumption and compact size
Packing & Delivery
\t
Port
\t
St. Peretburg
\t
Processing Time
\t
2 days
\t
MOQ
\t
1 piece
