Product Overview
Description
Product Details
Taizhou Ouke Pump Co.,Ltd
Working Condition Motor
1.For clear water. PH: 6.5-8.5. 1.Degree of protection: IPX8
2.Solid impurity no more than 0.1%. 2.Insulation class:B
3.Fluid temperature: 0-40℃. 3.Continuous operation
4.Maximum ambient temperature:+40℃.
| Model |
Power (Kw) |
Power (Hp) |
Max.head (m) |
Max.suct (m) |
Max.flow (L/min) |
Inlet/Oulet |
Packing dimension(mm) |
| QB60/QB60-1/PM-45 | 0.37 | 0.50 | 32 | 8 | 35 | 1”*1” | 275*140*165 |
| QB70/QB70-1/PM-65 | 0.55 | 0.75 | 50 | 8 | 45 | 1”*1” | 335*180*205 |
|
QB80/QB80- 1/PM-80 |
0.75 | 1.00 | 55 | 8 | 50 | 1”*1” | 335*180*205 |

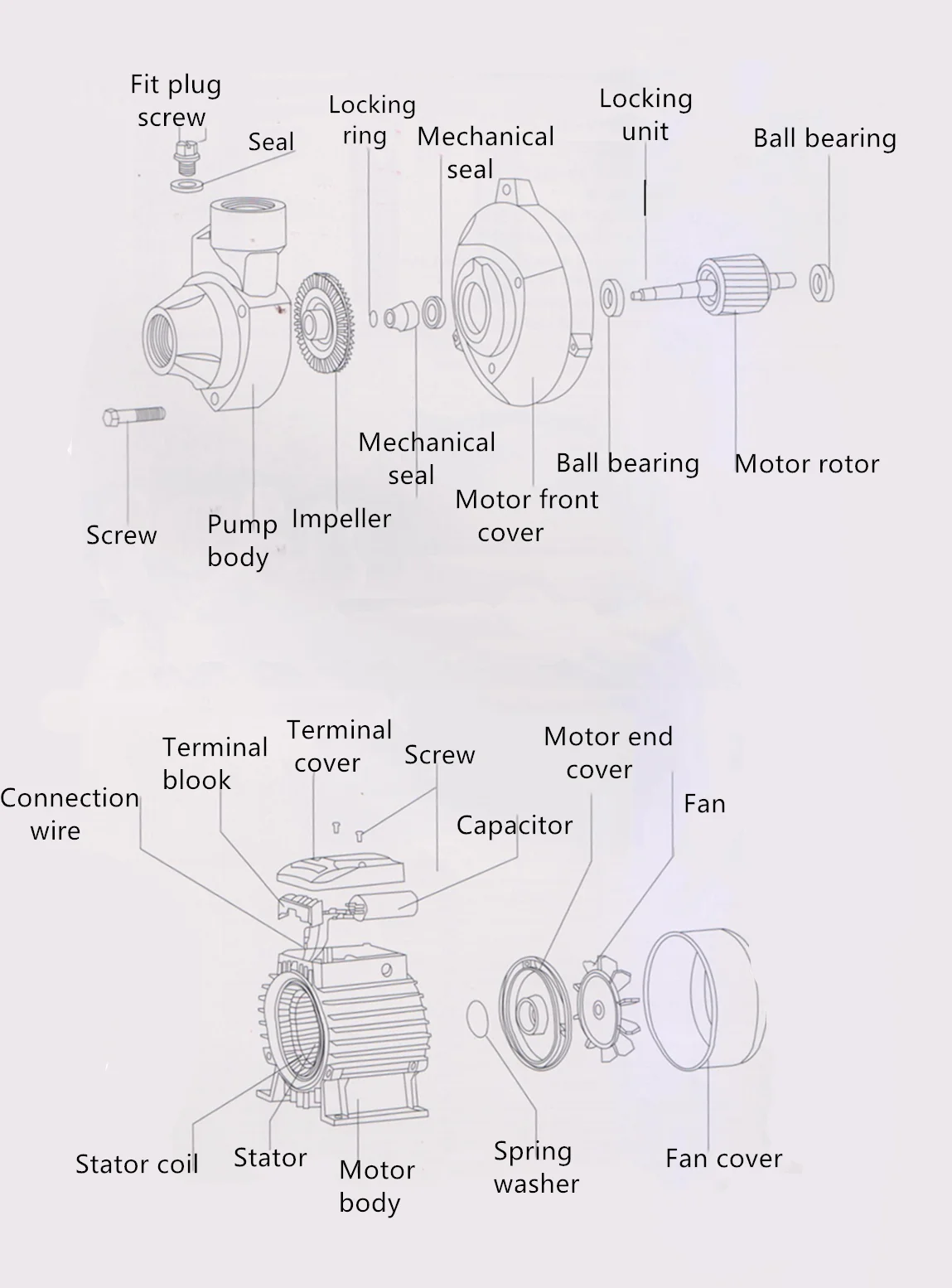

exploded view
