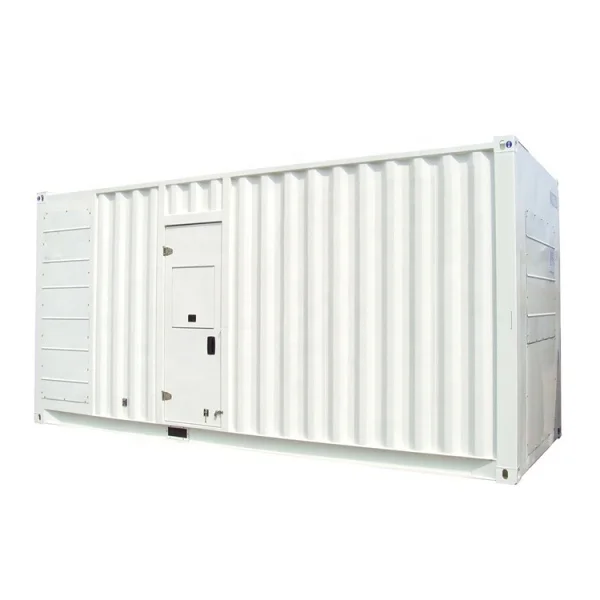

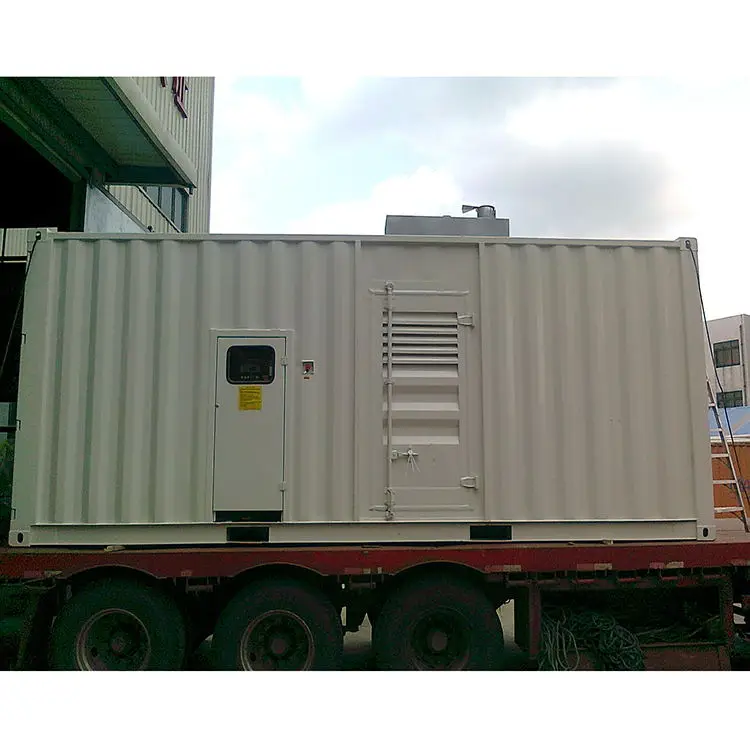

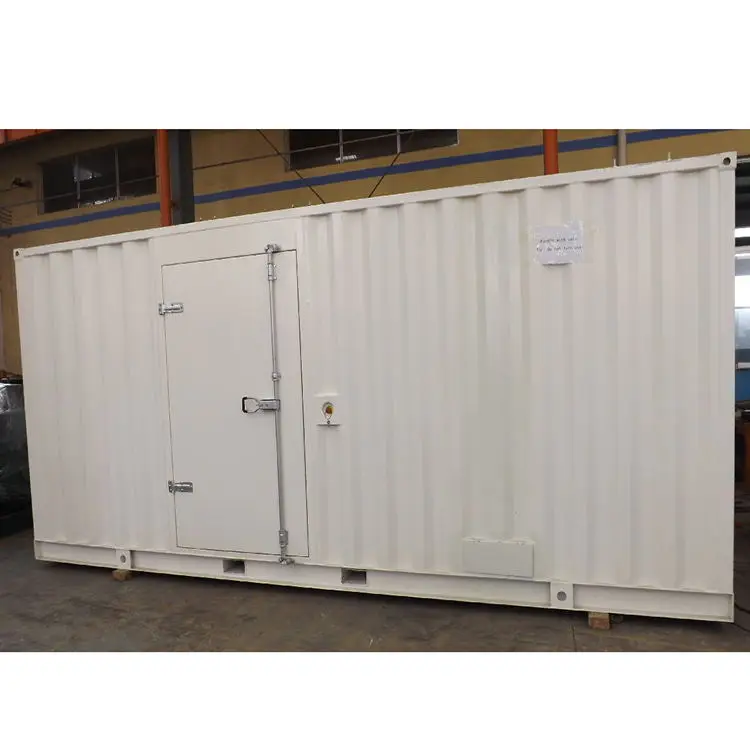

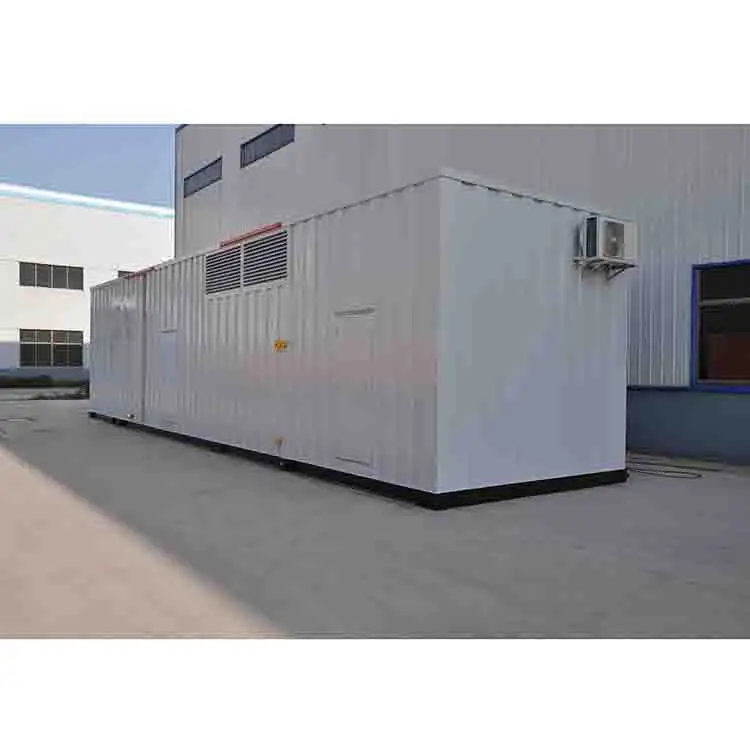

Hot new products industrial solar power hybrid 700kw solar energys system

Share on (62023292296):


Price:$251,850.19

Quantity:


Product Overview

Description



Trade Assurance


paste-pic-dp_uuid_lzayd





Product Descriptions




















































































































































































150kW-700kWh Energy Storage System







Model No.



PS150kW-700kWh







Lithium Battery



Model No.



PS100KW-350KWh



Battery Capacity



700 kWh







Battery Type



Lithium Iron Phosphate Battery







Battery Warranty



5000 cycle times or 5 Years (DOD90% & 25)







AC Input (Charging)







AC Input Voltage



400 / 480 VAC







Power Factor



-1~+1







AC Input  Frequency



50Hz / 60Hz ± 2.5Hz







Max Charge Power



150 kW







Max Efficiency



98.2%







AC Output (Discharging)







Rated AC Output Power



150kW







AC Output Voltage



400 / 480 VAC







AC Output Frequency



50 / 60Hz ± 2.5Hz







Max Efficiency



98.2%







PV Input (Optional)







Max PV Input Power



165kWp







MPPT Input Voltage Range



450~850 VDC







MPPT Number



1 / 2







MPPT Efficiency



99.50%







Max Efficiency



99.01%







Unique Function







Grid-Level Function



Peak shaving and valley filling for electric network







Operational Mode



Off-Grid Mode / On-Grid Mode / On & Off grid Mode (Optional)







UPS Function



YES







Black Start Function



YES







Communication Mode



Modbus TCP/IP







Communication Interface



LAN, RS485, CAN







General







Working Condition



Temperature range  -20~50, Humidity range 0~95%







Noise and Altitude



          70dB, <3000m







Size of PS150kW-700kWh



20 foot container







Weight of PS150kW-700kWh



15 tons







Certification



CE, TUV, IEC,ETL







Email : cmo@cds-solar. com   Whatsapp : +86 18340803630    Facebook : Cds solar

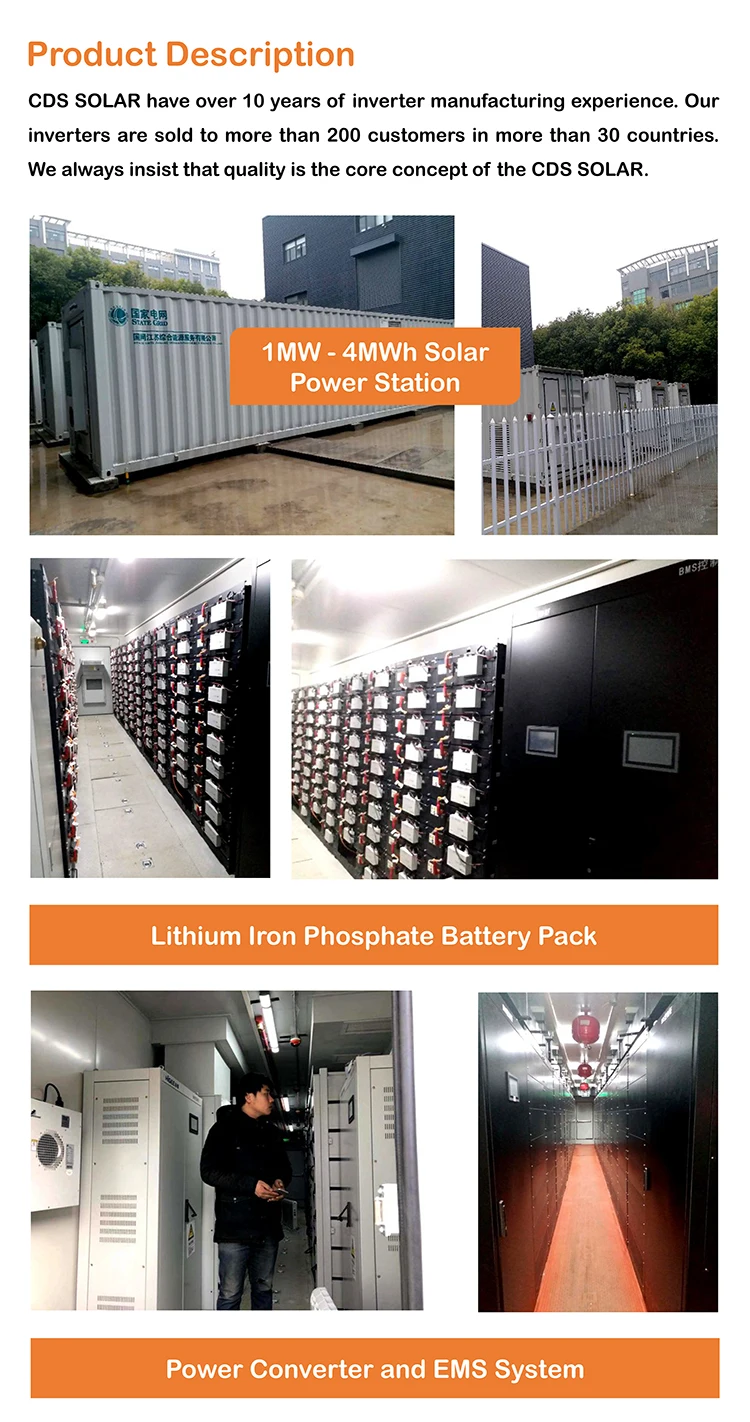

-3-1Description


Power Station supports multiple battery technologies and configurations for maximum application and supply chain flexibility. The modular, pre-engineered design simplifies project development and enables repeatable deployment for maximum project velocity.

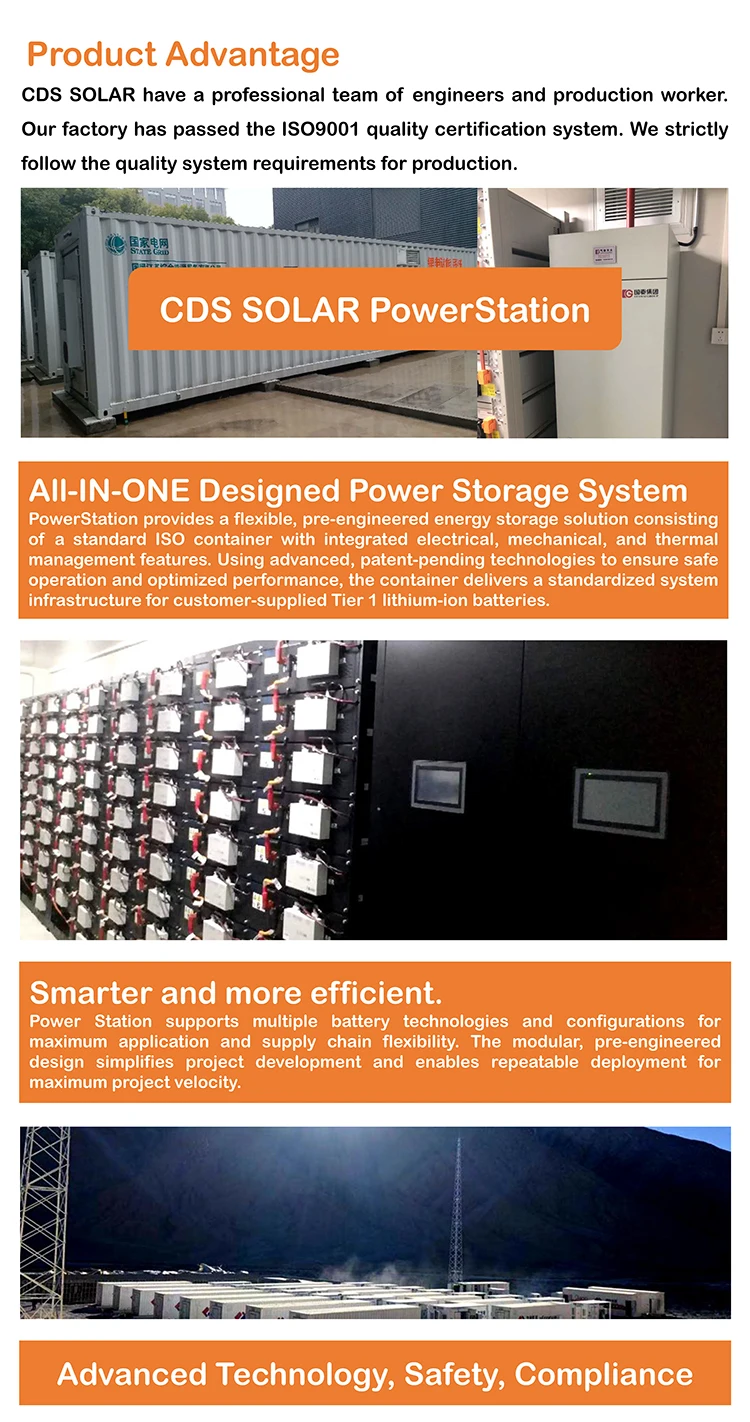

-3-2Description





PowerStation provides a flexible, pre-engineered energy storage solution consisting of a standard ISO container with integrated electrical, mechanical, and thermal management features. Using advanced, patent-pending technologies to ensure safe operation and optimized performance, the container delivers a standardized system infrastructure for customer-supplied Tier 1 lithium-ion batteries.











Related Products


-4-Related Products








About us


-5-About us





CDS Solar is a Chinese leading company in the market of solar research and development, who has the great business sense and rich experience of product development. CDS Solar could provide client with not only solar power storage system, tracker and condenser, but also the professional service for solar plant design and the service of intelligent monitoring system of solar plant.

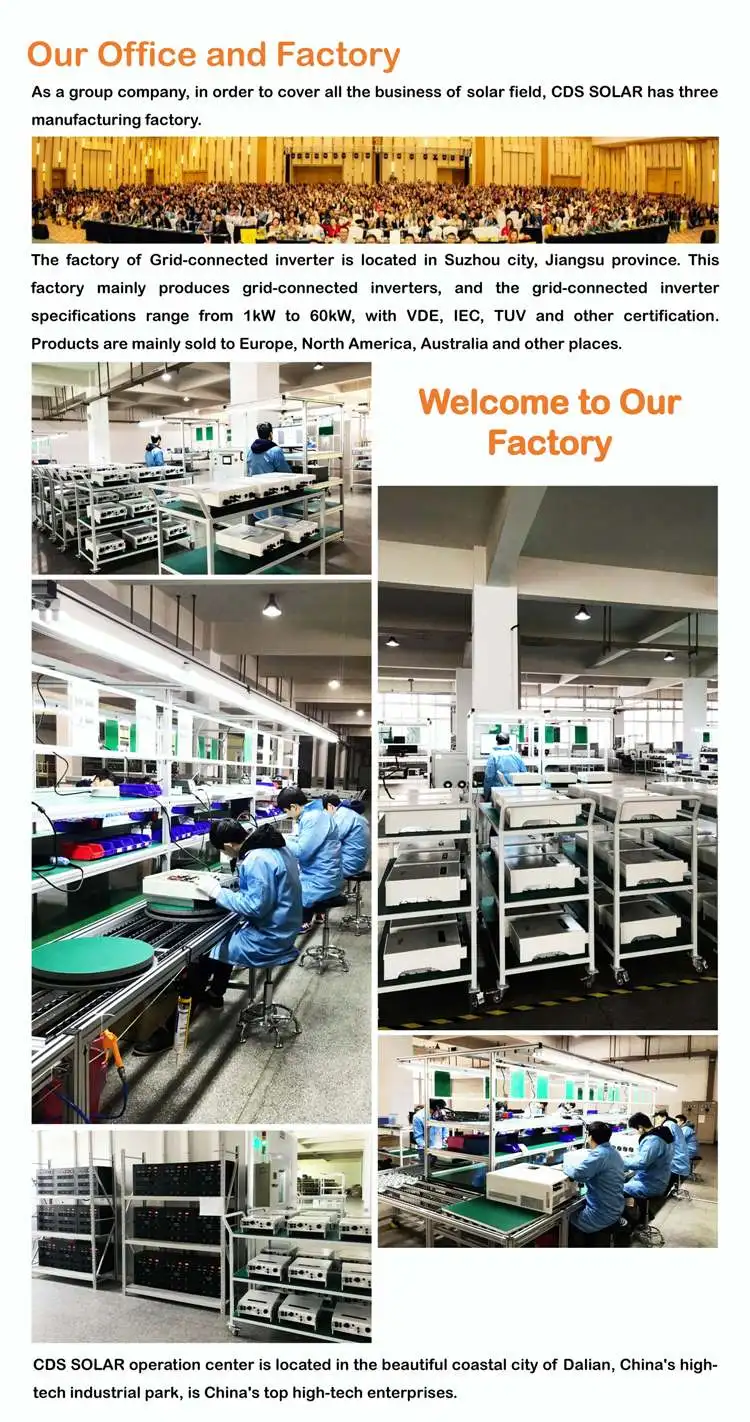

-6-
