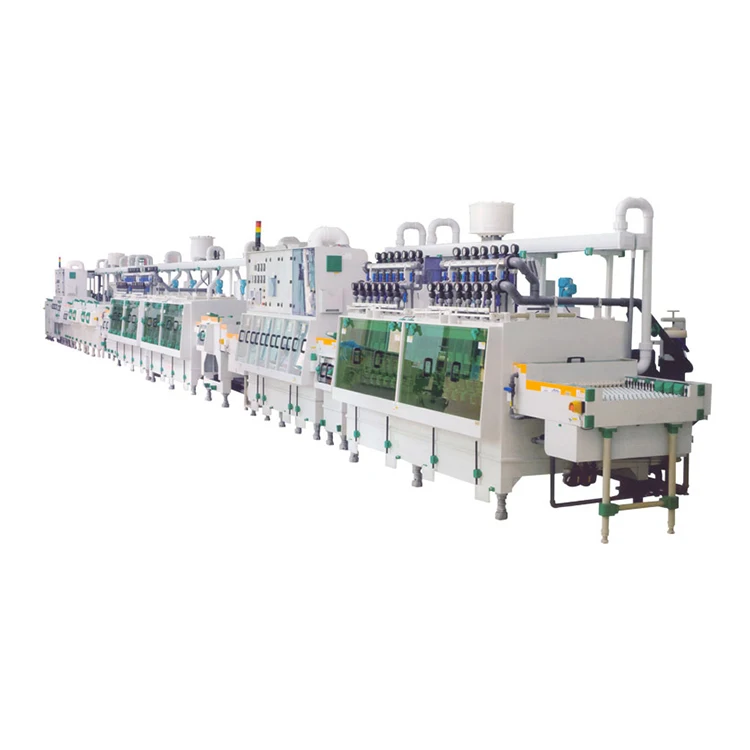

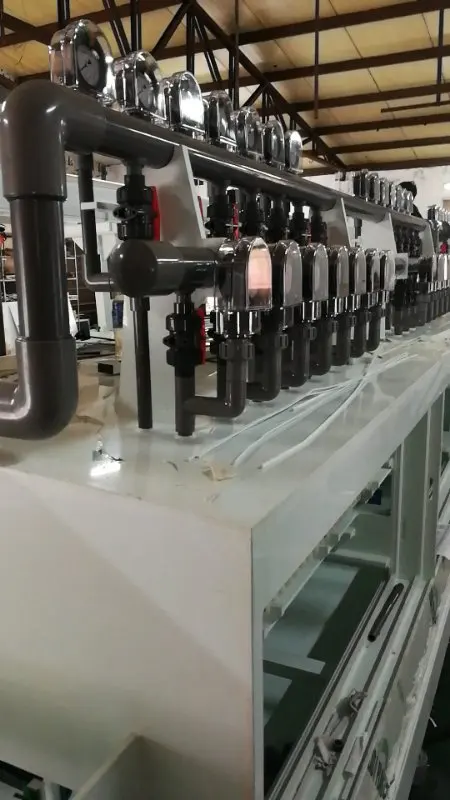

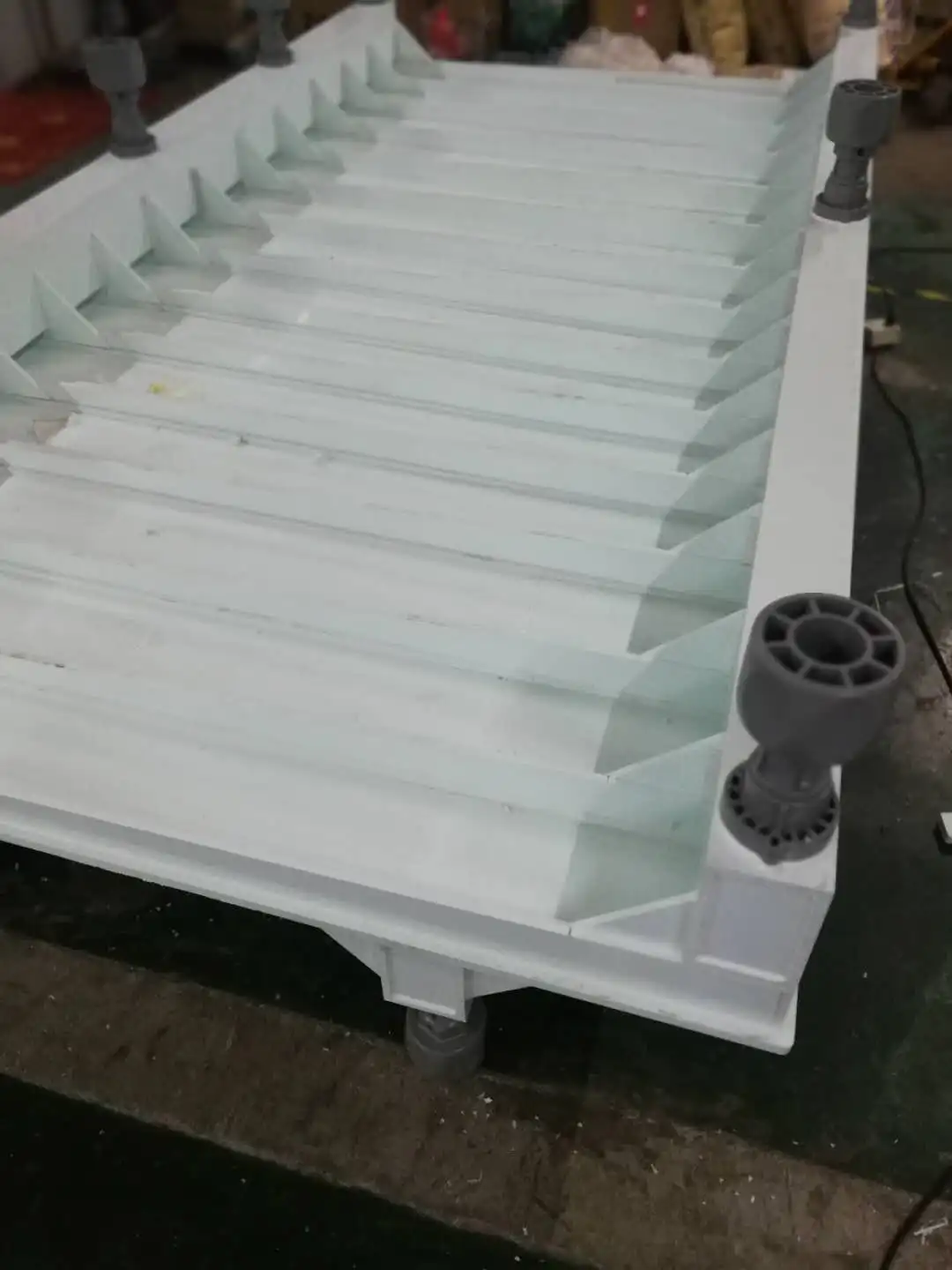

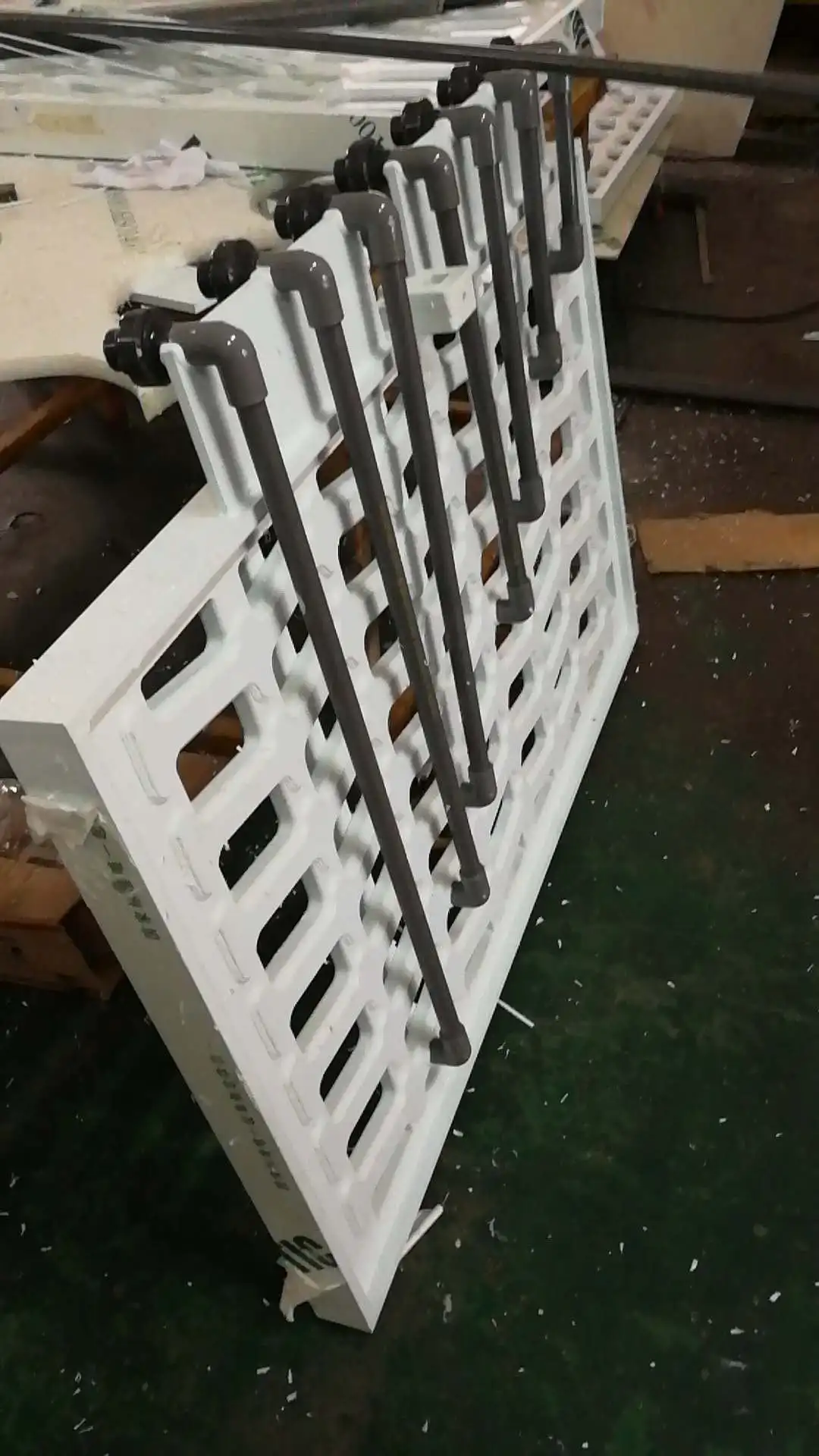

Full Automatic chemical metal PCB manufacturing machine

1)

Dimensions:

19126mm (L) X 2682mm (W) X 2500±25mm (H)

2)

Workpiece size:

i) 610 X 610mm

[maximum]

ii) 200 X 200 mm

[minimum]

iii) 0.075 (No copper)~2.5 mm

[thickness]

3)

Transfer speed:

0.6~5Meter/minute(Adjustable)

[preset speed: 1.5Meter/minute]

4)

Conveyor height:

1100±25mm

5)

Conveyor width

700mm

[work width: 610mm]

6)

Wheel diameter:

Æ32mm

7)

Wheel base:

25mm

8)

Power  supply:

3phase 380V AC 50Hz 83 KW

9)

power consumption:

<40Kw.h/When (board power consumption per square meter to do:0.80 / m²)

10)

Water Consumption:

18~36 L / min (11.0L / m²)

[fresh water]

11)

Exhaust:

12.6 m3 / min

[Non-dry section]

8.4 m3 / min

[Dry section]

12)

Control cabinet:

Touch screen and PLC

13)

Transfer Direction:

Left to right

[Viewed from front]

14)

15)

Drain direction

load or unload

16)

note

if no plate, machine will be stop, power saving function
