We are the first to introduce fuel saving materials, such as fiber glass chamber, underground exhaust system, which is much better than up-going flue, was the first one who developed mobile crematorium machine, which is now being used by UN(United Nation). For nearly 30 years, we have grown to become the recognized leader of the cremation industry. We set the standard which others attempt to follow.
As a leader with a long history in the manufacturing of human cremation equipment and animal cremation equipment, our commitment to research and development is unsurpassed. Since our inception, we have striven to perfect the packaged cremation retort. We are an international-based crematory company; We select spare parts of our crematories worldwide, only for quality reason.
Product Description

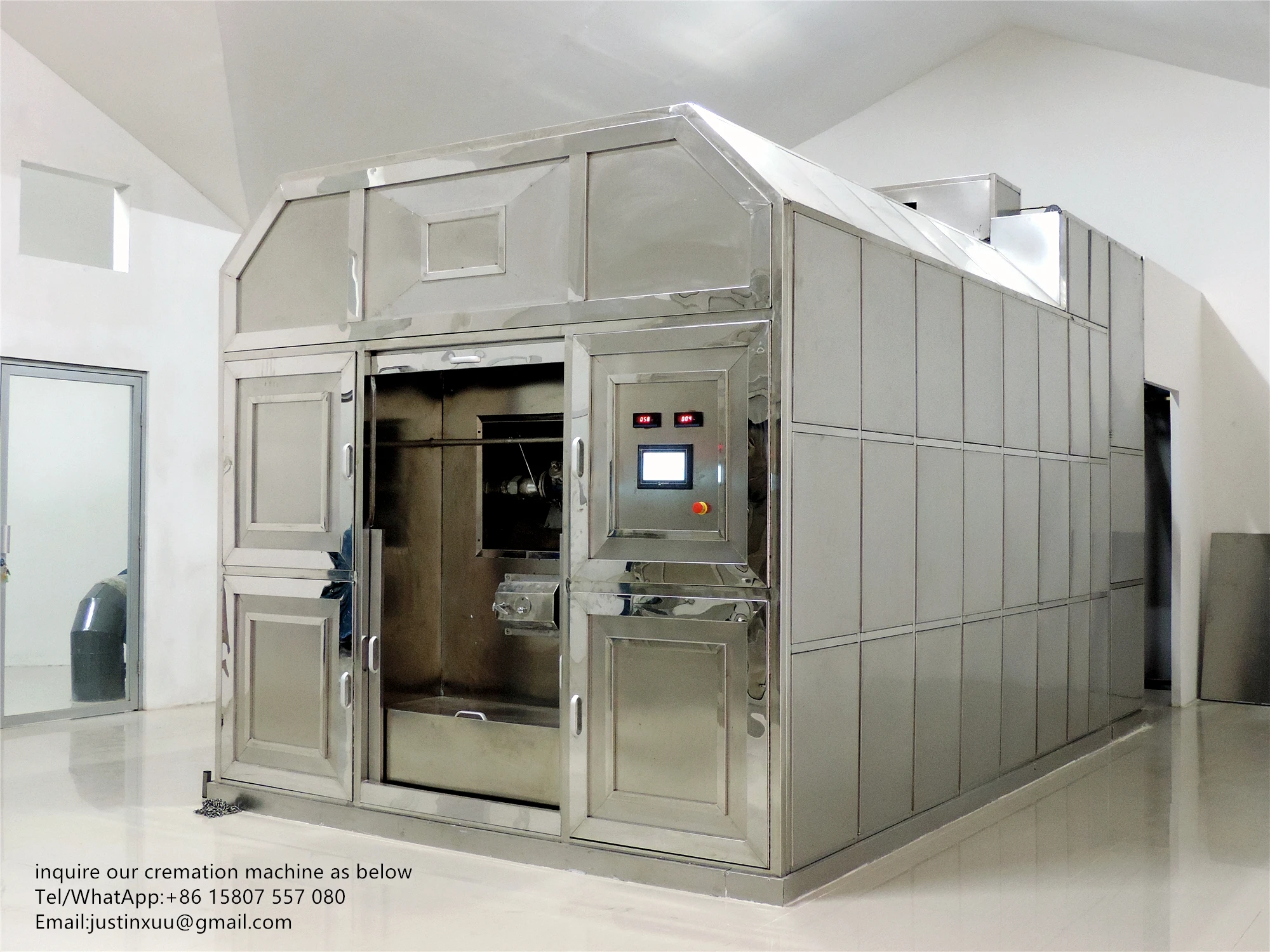

The cremator machine main burning and post-combustion chamber is built in high-temperature resistant refractory.Through many layers of isolation material as well as recovery of heat, an economic operation can be achieved, as well as a low temperature on the cover plates.
1.Post-combustion For many years our furnaces have been equipped with post-combustion chamber, which is absolutely essential for reduction of the hydrocarbons present.
2.The micro processor and touch screen A microprocessor with electronic boards controls the regulation of temperature, air supply, draught regulation and smoke density. The computer panel has clear symbols to ensure an easy operation.
3.Energy saving construction Due to heavy refractory walls and very efficient heat insulation, successive cremations can normally be made without additional heat from the burner. The combustion air is preheated to a very high temperature from the heat stored in the refractory during the first stage of the cremation cycle. The preheated air speeds up the combustion process and prevent decrease of chamber temperature.
4.Environmental requirements Automatic control normally results in flue gases without smoke and odour. Any potential increase in smoke is automatically detected and the air increased so that waste gases are completely combusted at a sufficiently high temperature to eliminate odours.
5.Safe and silent A sophisticated security system gives a complete protection against occupational accidents. The noise level is very low. The automatic control maintains a slightly negative pressure in the cremation chamber and thereby prevents any unpleasant smell in the crematory room. Low outlet velocity from the cremation chamber prevents fly ash from mixing with the waste gases.
Overall dimensions (mm)
12000L2360W2500H
One-way creeper truck dimensions(mm)
3800L830W800H
Temp of Primary combustion chamber(cent degree)
700~900
Hearth Burning Pressure(Pa)
-5~-10
Injection Blower(kw)
7.5
Air Blower(kw)
7.5
Total Power(kw)
18
Total weight of cremator(ton)
19
Total weight of carrier(ton)
1.2
Ground space(m2)
8.26
Average fuel consumption(kg/case)
3~6
Average time(min/case)
20~35
Exhaust of harmful substances
In conformity with ISO14001
Fuel
Ld light diesel 0~10,Natural Gas, Propane,LPG
Our Services
we will send our technicians to customer site for installation, training and trial run.
Packaging & Shipping
One unit of cremation machine load 1*40HQ container, around 27 Ton Totally
