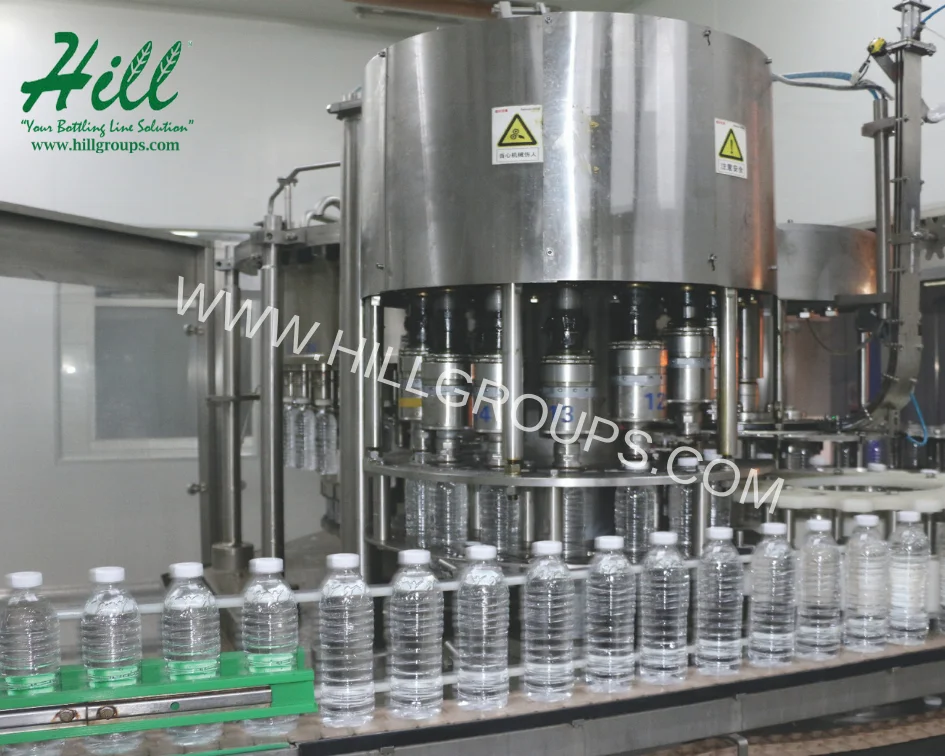

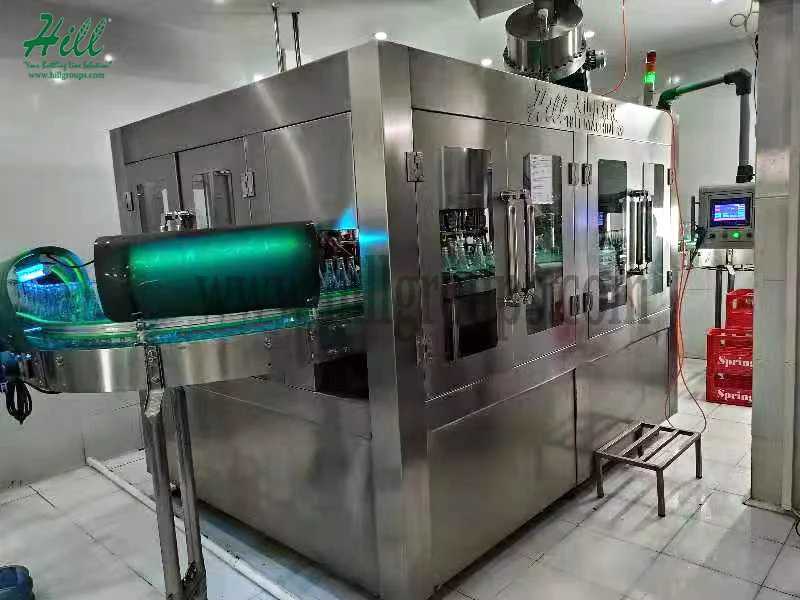

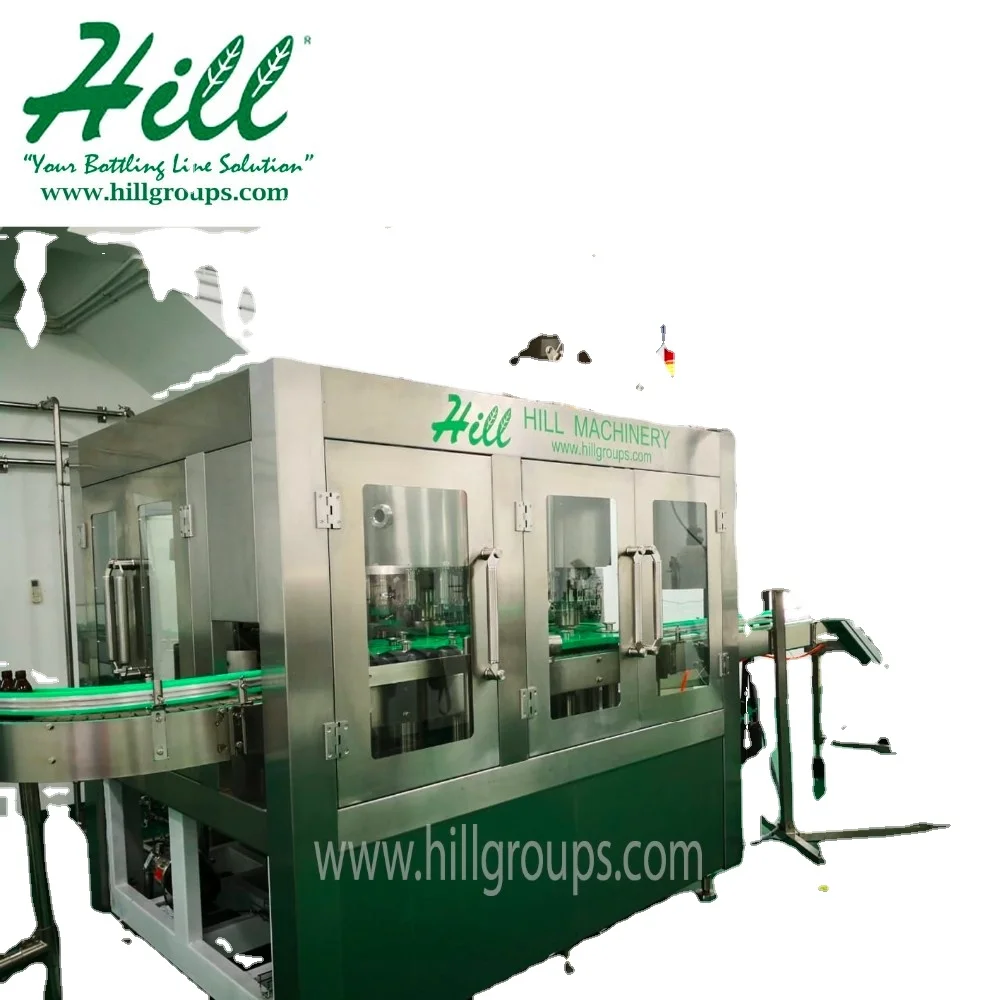

HILL-16-16-05 three-in-one machine for PET bottle integrates the functions of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of mineral water, pure water etc.
| Technical parameter | |||
| Number of working | 16 rinsing heads 16filling heads | ||
| position | 5 capping heads | ||
| Capacity | 7000-8000 bottles | ||
| Pressure of air source | 0.7Mpa | ||
| Air consumption | 1m3/min | ||
| Rinsing water pressure | 0.2~0.25Mpa | ||
| Power of main motor | 4KW | ||
| Dimension | 2500MM*2100MM*2500MM (L*W*H) | ||
| Total weight | 4000KG | ||
| Material | stainless steel 304 | ||

The rotary wheel is a fully AISI304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic and durable.

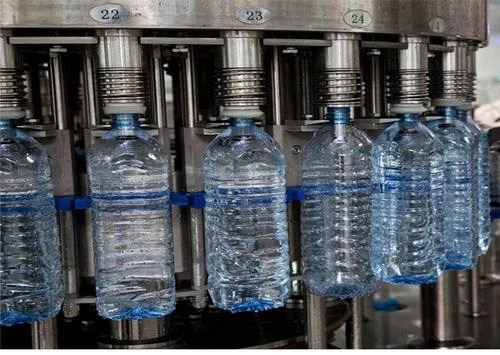

The filler is designed and manufactured with application of Italy technology, providing hardware guarantee for securing product quality and reducing loss.


The capper is most precise part in 3 in 1 filling machine, because the quality of machine is important to running credibility and product quality. The sealing machine in our company has strongpoint as follows:
Packing Details : Packing, wooden case
Delivery Details : 30 days after order and bottle sample received





* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Demonstration and trial before shipment
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Technician standby to help anytime

HILL MACHINERY SDN BHD brings together a large number of liquid (beverage) industry's top technical talent, and domestic and foreign research institutions, professional institutions, etc. also maintained close relations of cooperation. At the beginning of the establishment, the company established the only business direction for beverages, daily chemicals, spices and other liquid packaging machinery field. With fixed assets of more than 4702 million Malaysian Ringgit, company was founded more than 10 years to, we actively promote the imitation innovation, the introduction of the principle of combining innovation, independent innovation, enhance the management and technology of uninterrupted to drive the company's sustainable development!
All members will be firmly adhering to the "customer centered, striving for the people, and never stop" the spirit of enterprise. Focus on the domestic and foreign customers to provide "safe, energy-efficient, efficient" liquid (beverage) equipment and "high-quality, fast, personalized" service! Company was established so far, has been successfully for many domestic and foreign liquid (beverage) factory to provide quality equipment and perfect service, products are sold to many countries and regions around the world.
Hill machinery is a professional enterprise which integrates designing, producing, marketing, and offering the turn-key project to the customers. Based on many years of research and production experience, we absorb the advanced technology from the fellow-trade at home and abroad to major in producing all kinds of large and medium beverage machine. We are sincerely providing our customers the following products; automatic washing, filling, and capping assembly line for the purified water, spring water, fruit juice, lactic acid drink, carbonated drink, wine, flavoring, pulped drink, etc, the complete water treatment device and the automatic washing, filling, and capping assembly line for the 3-5gallon drink water.
HILL people will cherish the glorious dream of "do the world's most competitive liquid (drink) packaging machinery supplier", is committed to to providing with the most competitive solutions for the global liquid (drink) factory, to create maximum value for customers around the world!
The company will always take the "revitalization of national liquid (beverage) packaging machinery" as its mission, in order to achieve the transformation and upgrading of Malaysia from the "manufacturing power" to "manufacturing power" in the historical mission and hard work!





Hill Industries have ten years experience, sustained growth and continuous expansion in both expertise and scale, we provide full coverage for industrial beverage filling systems including Injection Machine, Blowing Machine, Filling machine, Labeling Machine and Packaging Machine.
