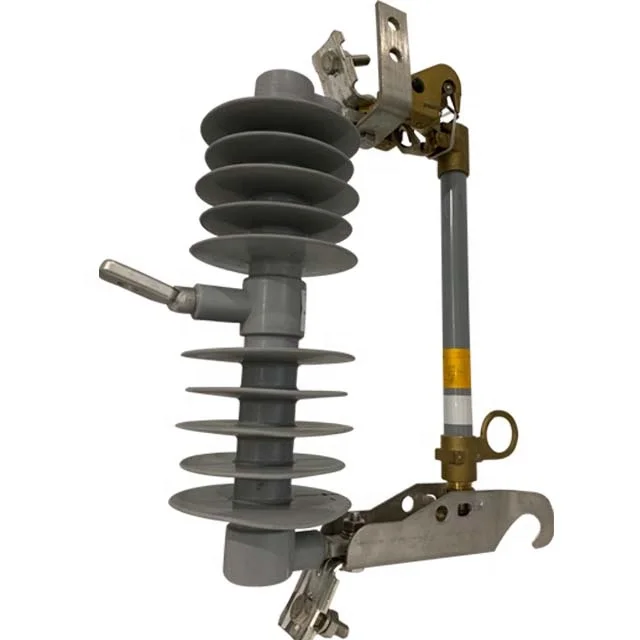

20kv Polymer Expulsion Fuse Cutout

Product Overview

Description

    20kv Polymer Expulsion Fuse Cutout



Type	RZF-11	RZF-12	RZF-14	RZF-16
Rated voltage,KV	24	15	36	36
Rated current,A	100 / 200	100 / 200	100 / 200	100 / 200
Breaking current,A	10000 / 120000	10000 / 120000	10000 / 120000	10000 / 120000
Impulse voltage (BIL)	150	110	170	170
Power frequency withstand voltage,KV	65	45	70	70
Creepage distance,mm	570	360	720	720
Dimension,CM	51*34*11.5	45*34*11.5	63*38*14.5	61*34*11.5
