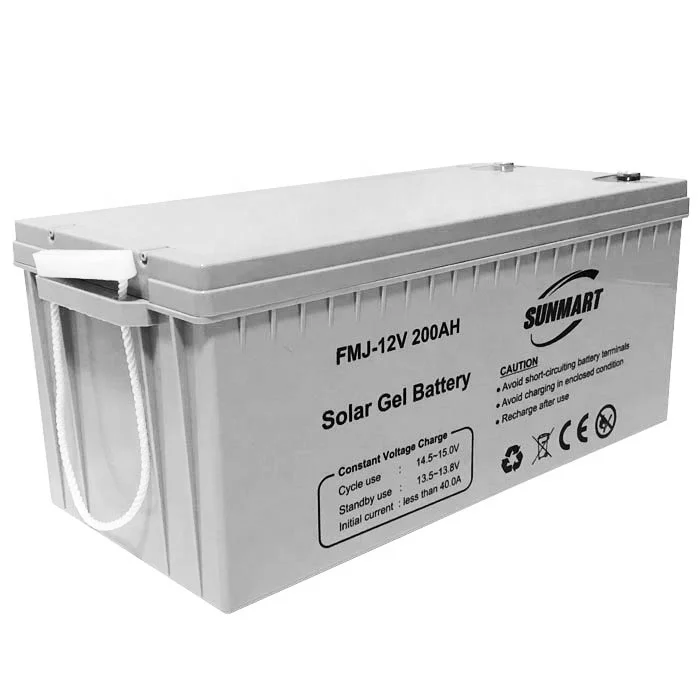

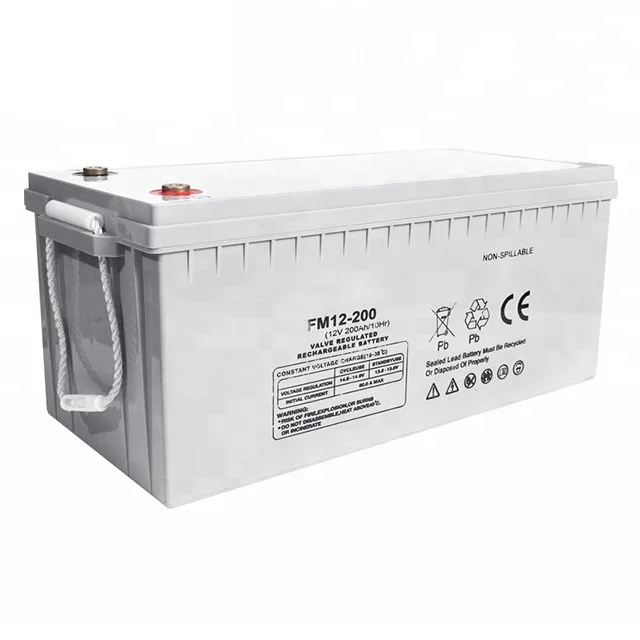

High Quality Gel Agm battery 12v 200Ah Solar Battery for home solar system

Product Overview

Description

12V200AH Deep Cycle Gel Battery Hight Quality



Features :

1.Using oxygen recombination technology: maintenance-free

2.PbCaSn alloy for plate grids: less gassing, less self-discharging

3.High quality AGM separator: extend cycle life and prevent micro short circuit

4.ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)

5.High purity raw material: ensure low self discharge rate

6.Silver-coated copper terminals, brass insert terminals and lead terminals improve theelectric conductivity

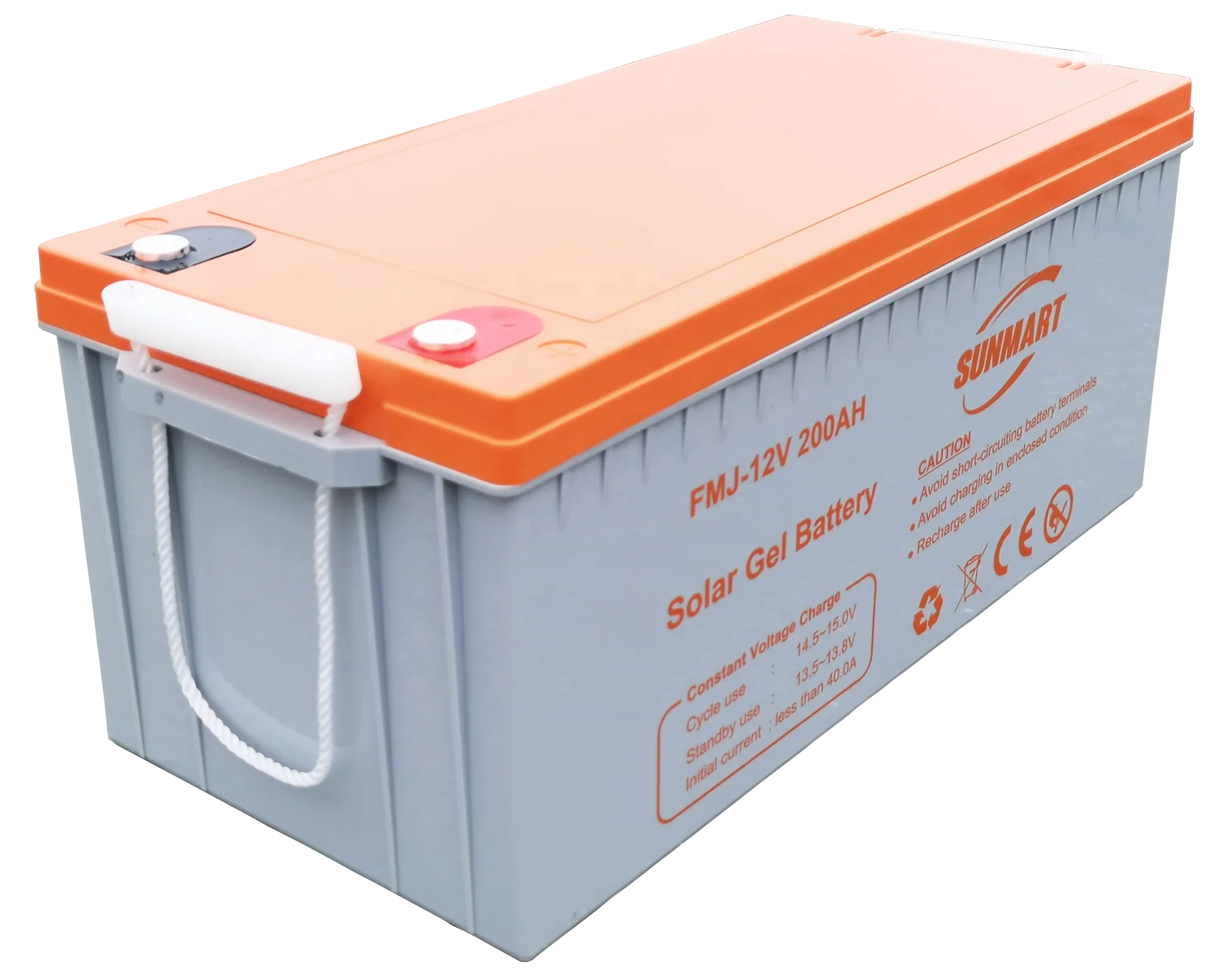

Model	FMJ-100AH12V	FMJ-150AH12V	FMJ-200AH12V
Rated Capacity(10hour Rate)	100Ah	150Ah	200Ah
Dimensions	328X172X220mm	480X170X250mm	522X237X222mm
Weight	28.5 kg	42 kg	58 kg
Characteristics capacity 25℃(77.℉)
10 hour rate(10.0A)	100AH	150AH	200AH
5 Hour rate(16.0A)	80AH	120AH	160AH
1 hour rate(60A)	60AH	90AH	120AH
1.5 hour discharge to 10.5V	40AH	60AH	80AH
Charge (Constant voltage) CYCLE	Initial charging current less than 30A Voltage 14.4-14.8V (14-16 hours)	Initial charging current less than 45A Voltage 14.4-14.8V(14-16 hours)	Initial charging current less than 60A Voltage 14.4-14.8V(14-16 hours)
Float	13.5-13.8V
Capacity affected by temperature(10 hour rate)	40℃104℉    102%
	25℃77℉    100%
	0℃32℉     85%
	-15℃5℉     65%
Self-Discharge at 25℃77℉	Capacity after 3 month storage     91%
	Capacity after 6 month storage     82%
	Capacity after 12 month storage     64%
Terminal	T10	T11	T11
Europe Model	FL-GE-150AH12V
Cells Per Unit	6
Voltage Per Unit	12
Capacity	150Ah@10hr-rate to 1.80V per cell @25 C
Weight	Approx.45.0Kg ( ± %)
Max. Discharge Current	1500 A (5 sec)
Internal Resistance	Approx. 4 mΩ
Operating Temperature Range	Discharge: -20 ~60℃ Charge: 0~50 ℃ Storage: -20~60 ℃
Normal Operating Temperature Range	25 C±5 C
Float charging Voltage	13.6 to 13.8 VDC/unit Average at 25 C
Recommended Maximum Charging Current Limit	45 A
Equalization and Cycle Service	14.6 to 14.8 VDC/unit Average at 25 C
Self Discharge	RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for more than 6 months at 25 C. Self-discharge ratio less than 3% per month at 25 C. Please charge batteries before using.
Terminal	Terminal F9
Container Material	A.B.S. UL94-HB, UL94-V0 Optional

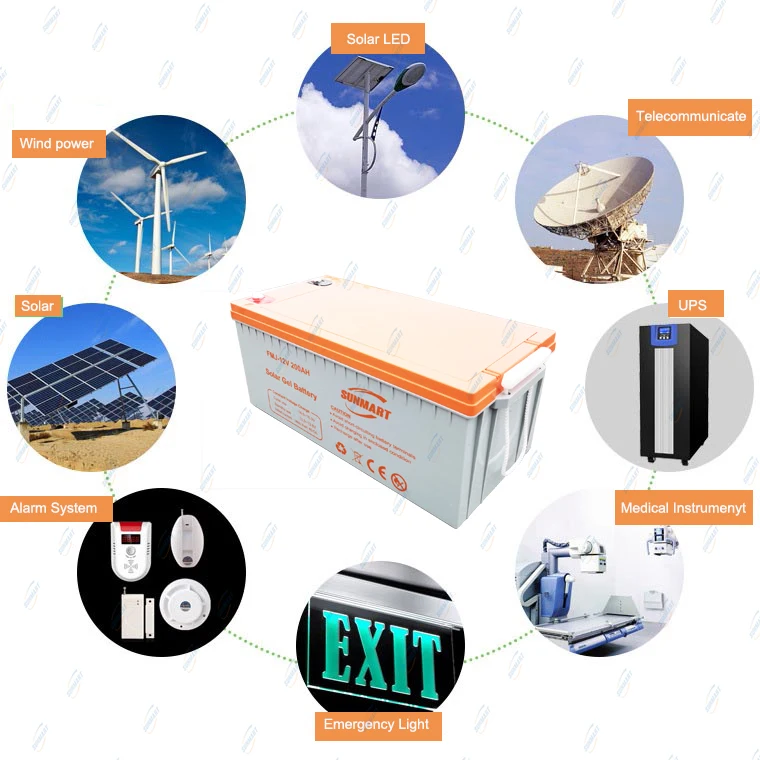

Application :

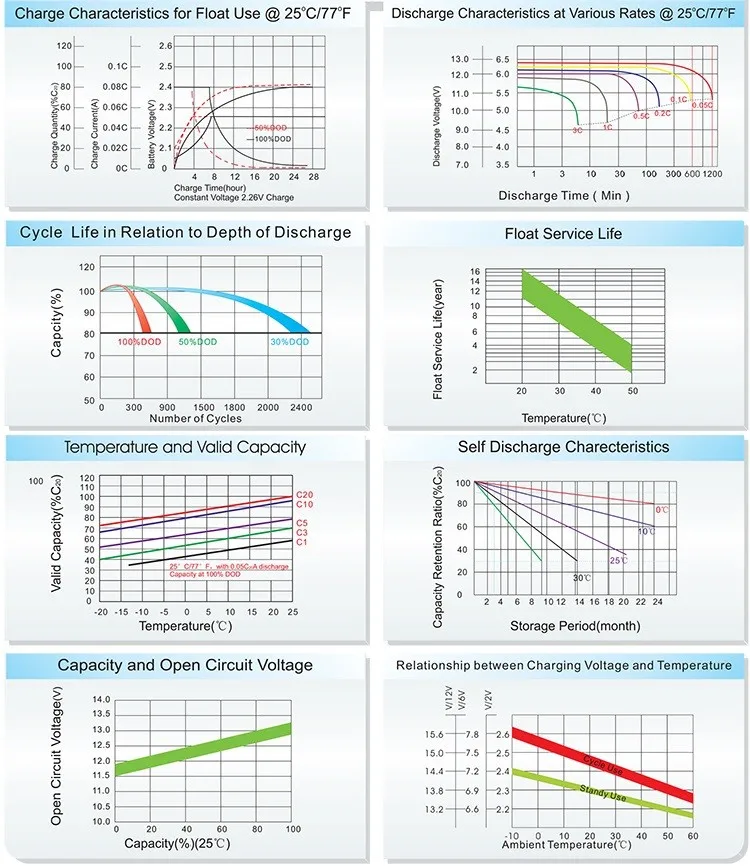

Technical Specifications:

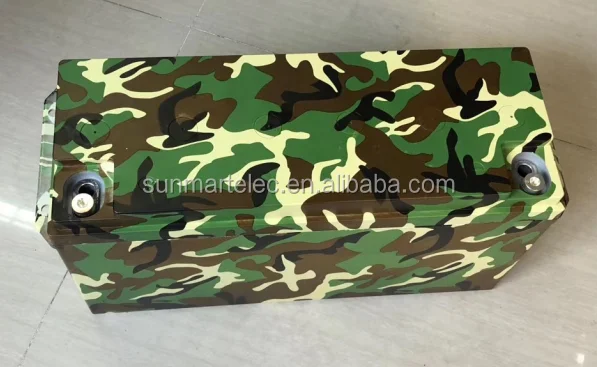

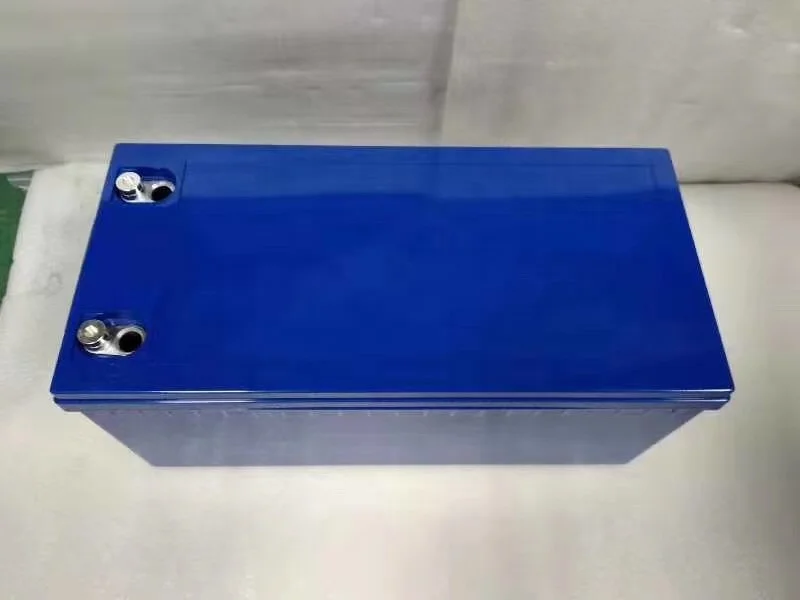

Colour Choose(All different colours can be design according to you )  :

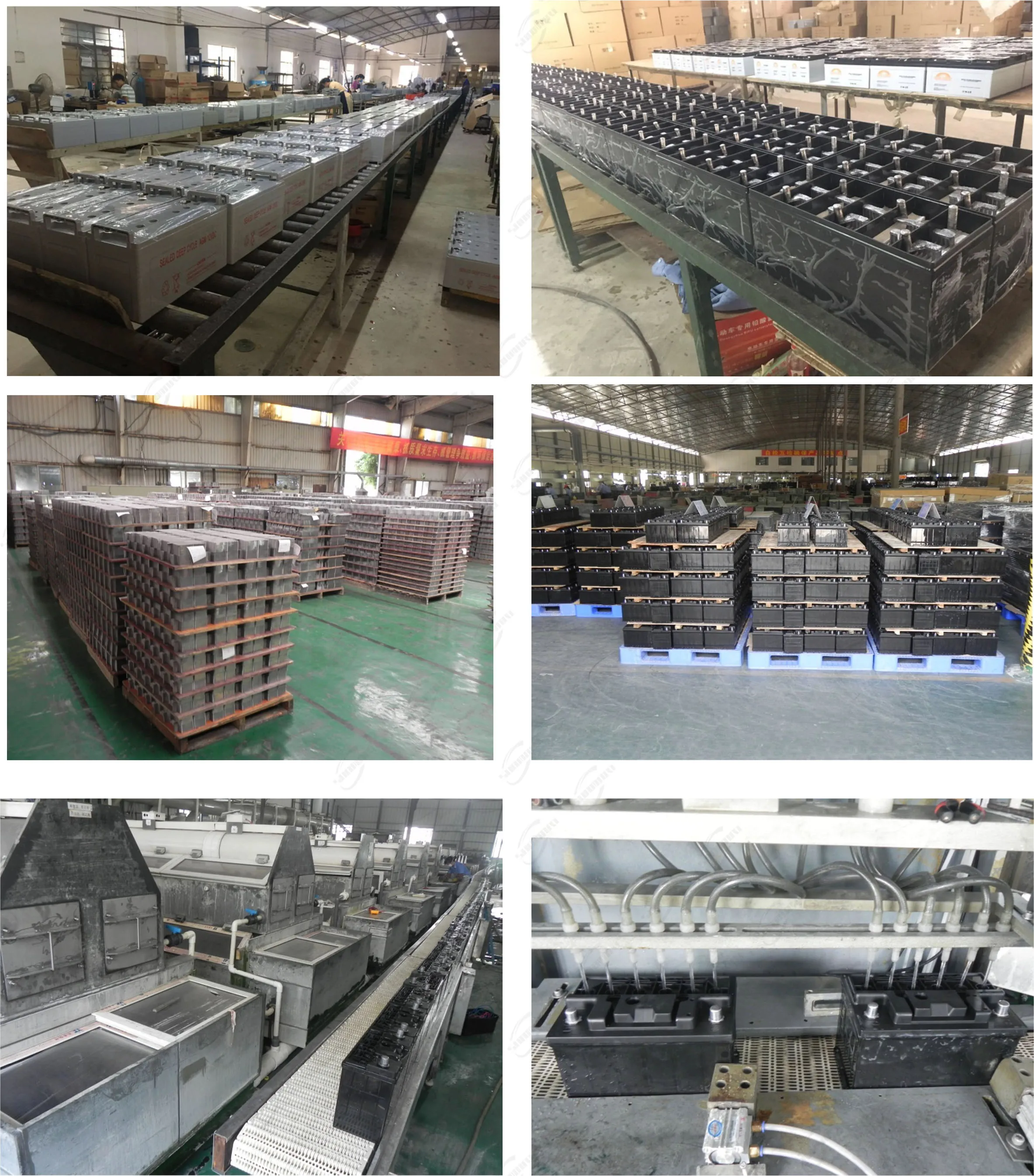

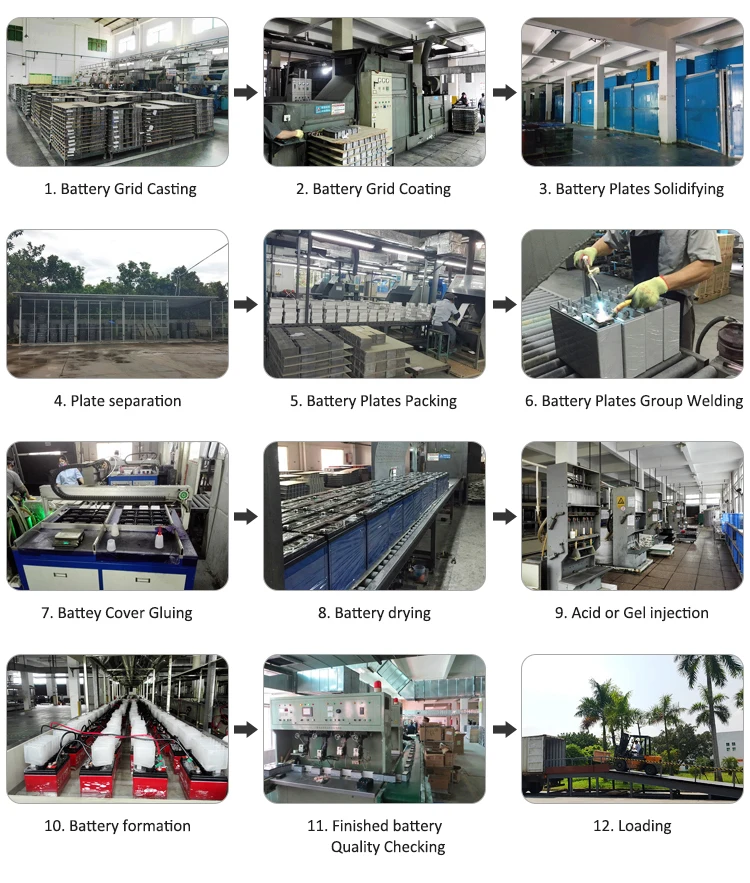

Production Process:





Why choose us ?

1 Rich experienced.

 We have over 10 years experience in production and installation of solar power system and wind power system products and our products are sold to more than twenty countries in the world. We can send installation team engineers to your location and instruct the system installation.

2 Strong technical support

 We have advanced R&D team to customize the system configuration and make sure our product is in stable performance, including solar panel , solar inverter , charge controller etc. Only if you have problem, we will provide professional technical support and solve it by the fastest speed.

3 Good quality, steady operation

 Quality and Service are our Culture! With over 10 years new energy experience with two factories (which produce solar panel, inverter and battery), introduced advanced production equipment and specialized production line, adopt international standard management and strict quality control to ensure the stable-performance and high-quality.

4 Competitive price

 We are professional manufacturer. We will not guarantee you the cheapest price in China, but we will guarantee you the advantaged competitive product .We will do our best to support our customers to open the market and reach a win-win situation in the end.

5 Fast delivery time.

 "Time is gold" We have high-efficiency supply chain and long-term cooperation with shipping company, thus rapid production and fast delivery are assured.

6 Excellent after sales service.

We have professional after sales service engineer team to help you solve any kind of problem:

1) Solar panel has 25years warranty, ship the free new one for service

2) Gel battery has 2 years warranty, ship the free new one for service

 3) Solar inverter has 2 years warranty, ship the free PCB by DHL or FEDEX for service. we are not doing one-time business!
